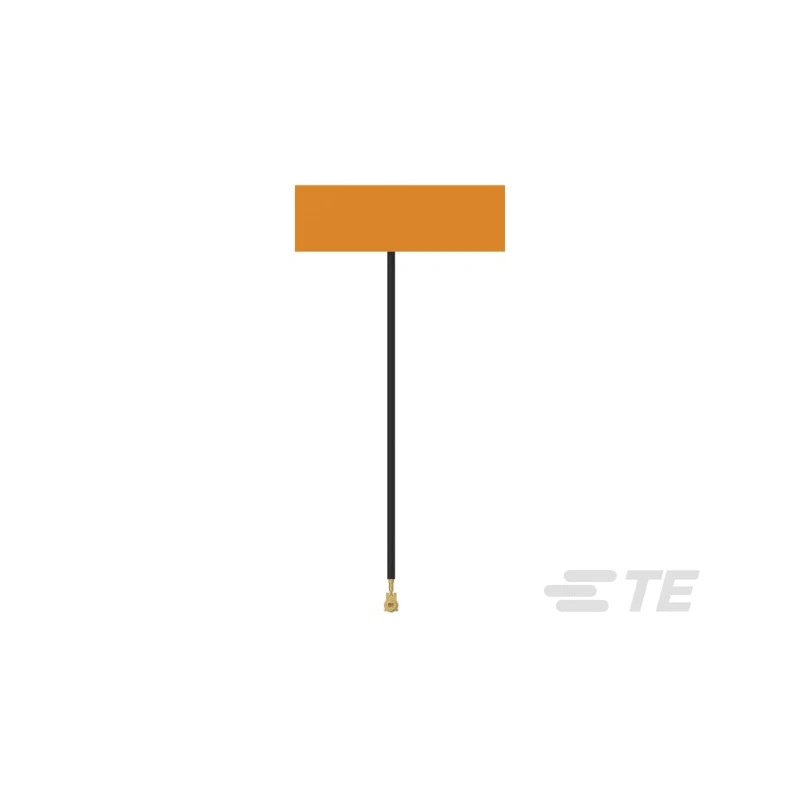

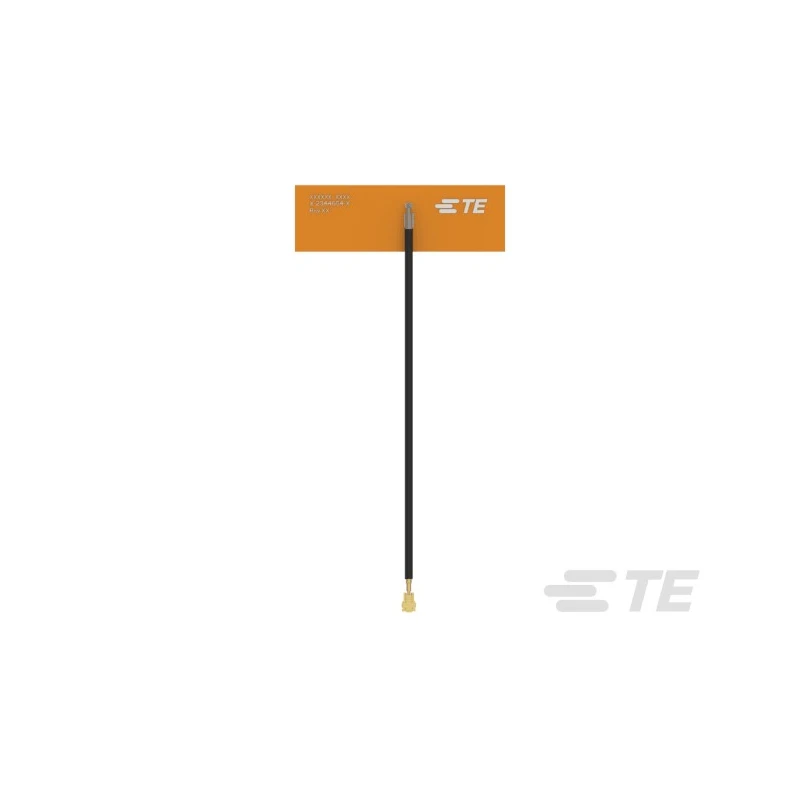

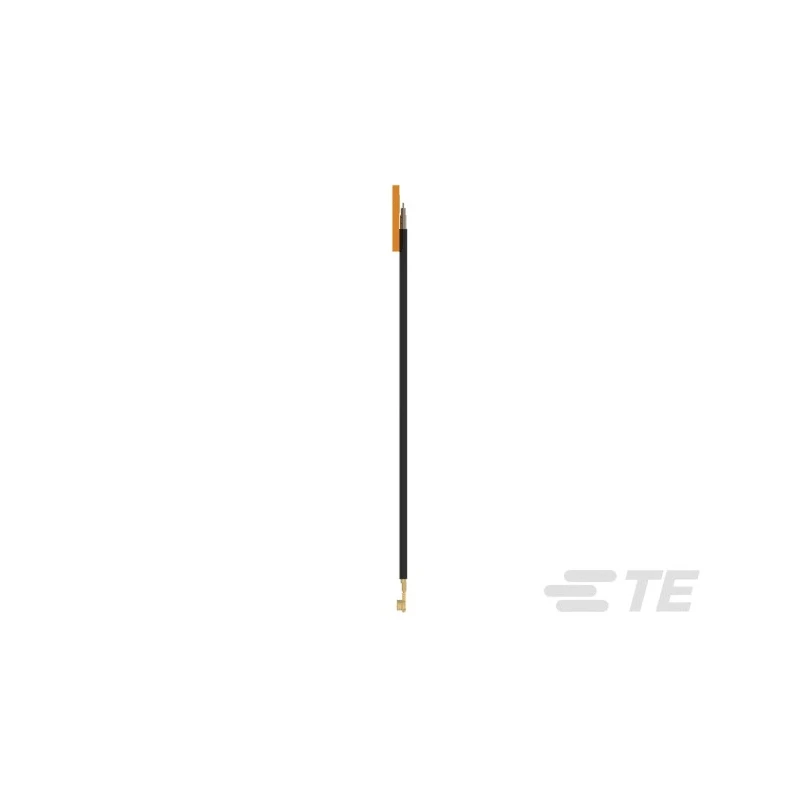

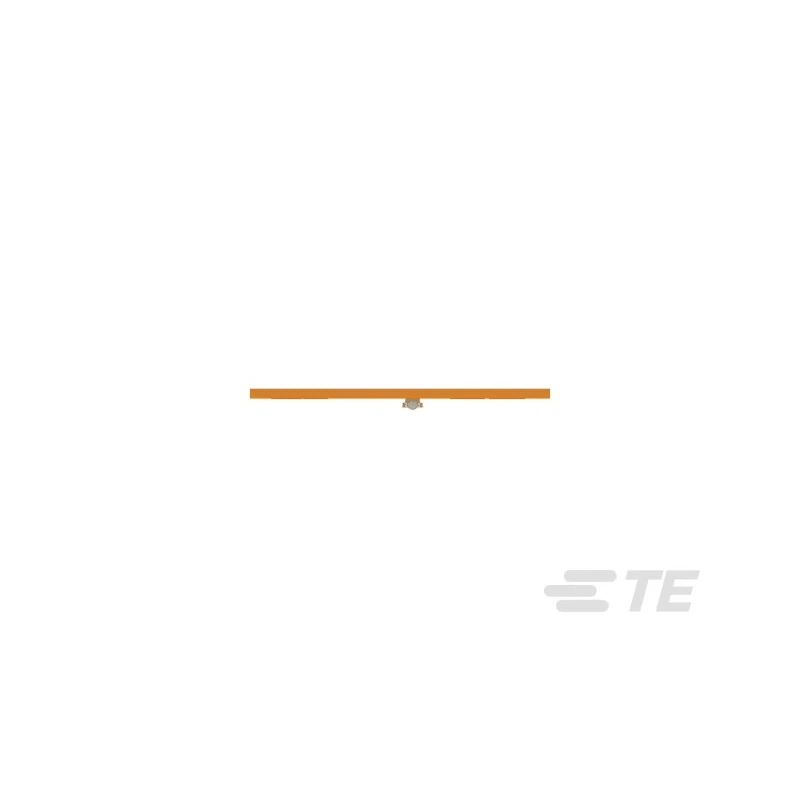

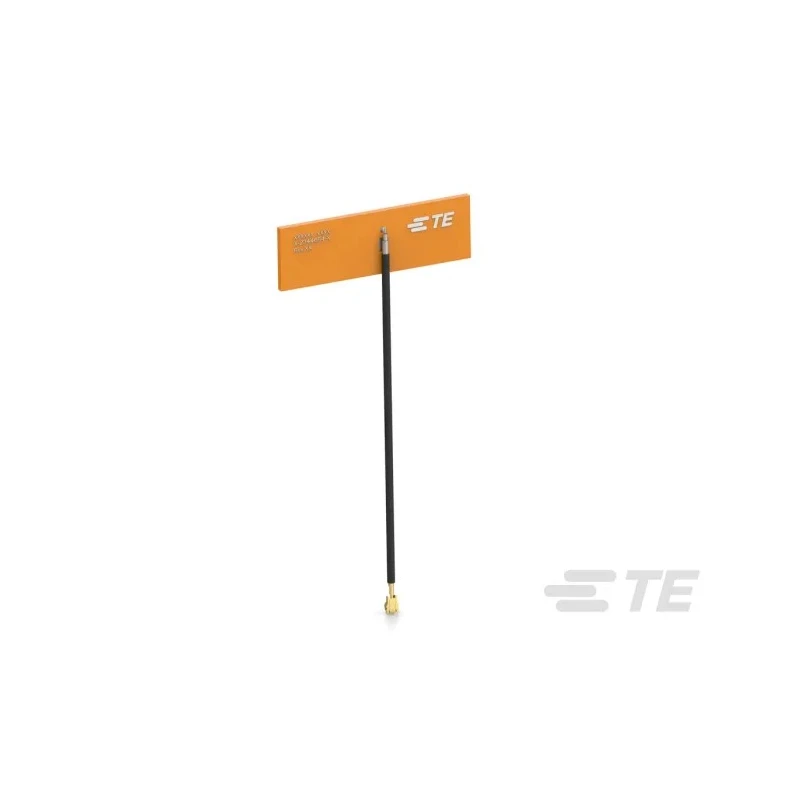

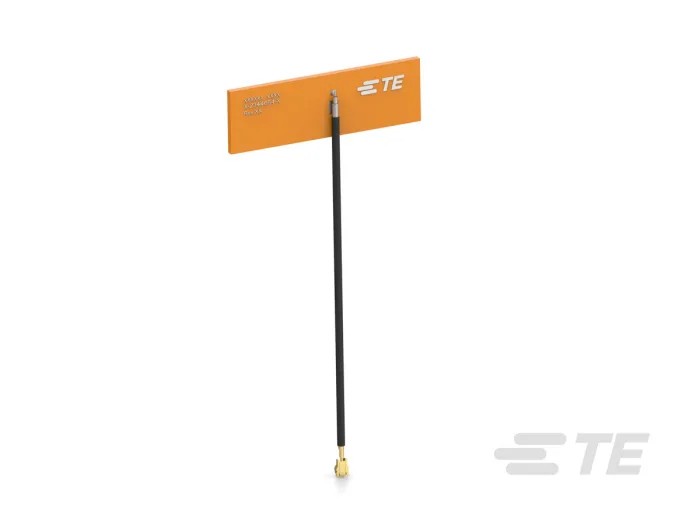

TE Connectivity PCB WiFi Antenna with MHF1 Connector, WiFi Dual Band 2.4-5.5GHz 2dBi Gain 100mm Cable 2344654-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PCB WiFi Antenna with MHF1 Connector, WiFi Dual Band 2.4-5.5GHz 2dBi Gain 100mm Cable 2344654-2

Name: TE Connectivity PCB WiFi Antenna with MHF1 Connector, WiFi Dual Band 2.4-5.5GHz 2dBi Gain 100mm Cable 2344654-2
Brand: TE Connectivity
SKU: 337041
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Cable Length	100mm
Connector Type	MHF1
Series	2344654 PCB V
Gain	2dBi
Standards/Approvals	RoHS
Maximum Frequency	5.5GHz
Connector Gender	Male
Minimum Frequency	2.4GHz
Internal/External	External
RF Protocols	WiFi (Dual Band)
Antenna Physical Form	PCB
Antenna Mount Type	Adhesive
Directivity	Omni-Directional
Number of Bands	2
VSWR is less than 2	1

Key Features

The antenna features an adhesive mount for easy installation on various surfaces.
It provides a gain of 2 dBi with omni-directional directivity for robust signal coverage.
The antenna cable length is 100 mm with a male MHF1 connector supporting 50 Ohm impedance.
Its PCB physical form is compact and lightweight, suitable for Bluetooth, ZigBee, and WiFi uses.
Constructed to comply with RoHS standards and manufactured in China.
The product belongs to the 2344654 PCB V series and supports two frequency bands.

Product Description

TE Connectivity 2344654-2 is a new, external PCB WiFi Antenna featuring a dual band operation supporting 2.4 GHz and 5.5 GHz frequency ranges, ideal for Bluetooth, ZigBee, and WiFi wireless communication applications. The antenna provides a gain of 2 dBi with omni-directional directivity, making it suitable for wide signal coverage in industrial, laboratory, commercial networking, and IoT device implementations. The antenna is mounted via an adhesive backing for flexible and robust placement options on various equipment surfaces.

The antenna includes a 100 mm cable terminating with a male MHF1 connector designed for 50 Ohm systems, ensuring compatibility with a broad range of WiFi modules and devices. Its PCB form factor contributes to a lightweight, compact design, ideal for space-constrained applications.

Manufactured under RoHS compliance, this antenna meets environmental safety standards, and its Voltage Standing Wave Ratio (VSWR) is maintained below 2:1 for high transmission efficiency. The product is part of the 2344654 PCB V series and supports dual band operation for modern wireless protocols. Country of origin is China.

The antenna's adhesive mount type enables easy installation on electronic devices and enclosures. Gain rating of 2 dBi supports effective signal amplification for enhanced connectivity. Omni-directional directivity facilitates signal reception from multiple directions.

Includes 100 mm cable with male MHF1 connector supporting standard 50 Ohm impedance. Compact PCB antenna suitable for Bluetooth, ZigBee, and WiFi applications. Designed to meet RoHS directives ensuring environmental compliance.

Low VSWR (.
