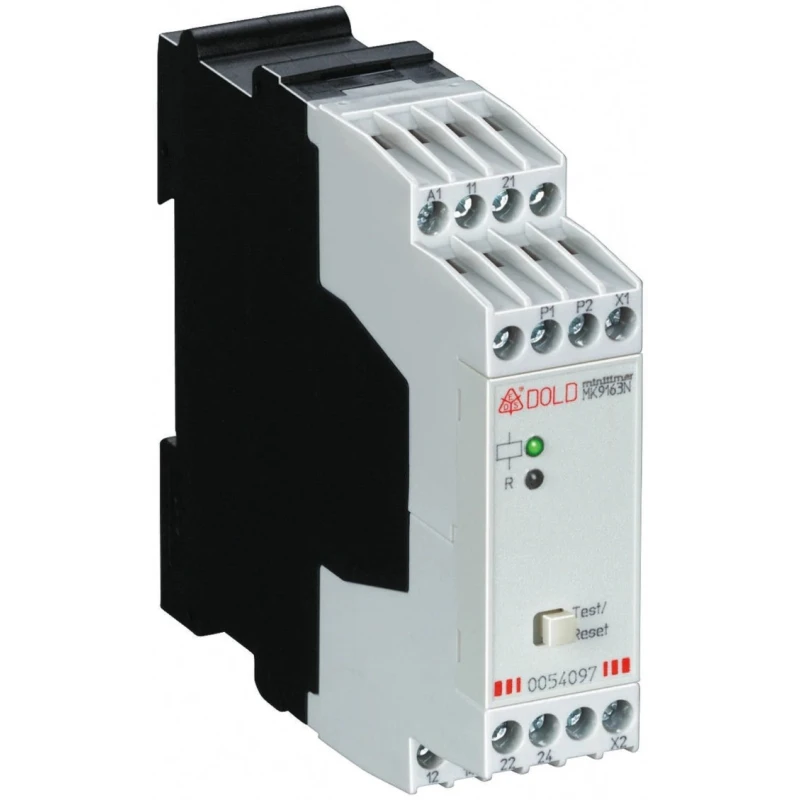

Dold Monitoring Relay DPDT DIN Rail 24 V dc Motor Control MK9163N.12/110 ATEX AC/DC24V
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Dold |
| Height | 90mm |
| Function | Motor Control |
| Length | 102mm |
| Model | MK9163N.12/110 ATEX AC/DC24V |
| IP Rating | IP40, IP20 |
| Mount Type | DIN Rail |
| Series | MK 9163N ATEX |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Contact Current | 5A |
| Supply DC Voltage | 24 V dc |
Key Features
- Features DPDT contact configuration for versatile control.
- Mountable on standard DIN rail with screw terminals.
- Operation temperature range up to 60°C with IP40 and IP20 ratings.
- Includes LED indicators for auxiliary voltage and contact position.
- Supports error memory and reset functions for fault management.
- Complies with multiple standards including EN 60079-14, IEC/EN 60947 series, and ATEX certification.
- Detects temperature limit exceedance and wire breakage in sensor circuits.
- Compact design with overall width of 22.5 mm and dimensions 102 mm length by 90 mm height.
Product Description
Dold MK9163N.12/110 ATEX AC/DC24V monitoring relay is a motor control device operating on 24 V DC supply voltage, designed for robust industrial and automation applications. It utilizes a thermistor input for 1 to 6 thermistors with a closed circuit current principle ensuring output relay is not activated during faults.
The relay features double pole double throw (DPDT) contacts and is mounted easily on DIN rails with screw terminal connections. It is equipped with LED indicators to show auxiliary voltage and the status of contacts, aiding quick diagnostics on-site.
This device includes error memory and reset capabilities to support fault detection and management, making it reliable in critical control environments. With an overall width of 22.5 mm, height of 90 mm, and length of 102 mm, it maintains a compact footprint suitable for control panels with space constraints.
The MK9163N.12/110 ATEX version additionally supports hazardous area certifications (ATEX), providing protection against temperature limit exceedance, as well as detection of wire breaks and short circuits in sensor circuits, vital for monitoring and safety in industrial setups.
DPDT contact configuration for flexible system integration. DIN rail mounting with screw terminal connection for secure installation. LED indicators for easy operational status and troubleshooting. Error memory and reset function for fault tracking and recovery.
Thermistor input for accurate temperature-based protection. Certified to EN, IEC, and ATEX standards ensuring safety and reliability. Compact design facilitates installation in confined spaces. Suitable for temperature, sensor wire breakage, and short circuit detection.
Manufactured in Germany following stringent quality controls.
This monitoring relay is ideal for industrial automation, motor control, and safety monitoring applications, especially where hazardous environment certification is required. It ensures operational reliability and protection of motor systems against temperature-related faults and sensor failures.
Explore more Monitoring Relays and motor control solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Dold MK9163N.12/110 ATEX monitoring relay operates on a supply voltage of 24 V DC.
It features a double pole double throw (DPDT) contact configuration, allowing for versatile control in various applications.
The overall dimensions are 102 mm in length, 90 mm in height, and 22.5 mm in width.
The maximum operating temperature for the relay is 60°C.
It is designed for DIN rail mounting and features screw terminal connections for secure installation.
This model includes error memory and reset functions for fault management, as well as detection for temperature limit exceedance and wire breakage in sensor circuits.
The relay has an IP rating of IP40 and IP20, indicating its level of protection against dust and water.
It complies with multiple standards including EN 60079-14, IEC/EN 60947 series, and has ATEX certification for hazardous environments.
The contact current rating for this monitoring relay is 5A.
It is suitable for industrial automation, motor control, and safety monitoring applications, particularly in hazardous environments.
This model utilizes a thermistor input for 1 to 6 thermistors, ensuring accurate temperature-based protection.
It is manufactured in Germany following stringent quality controls.
