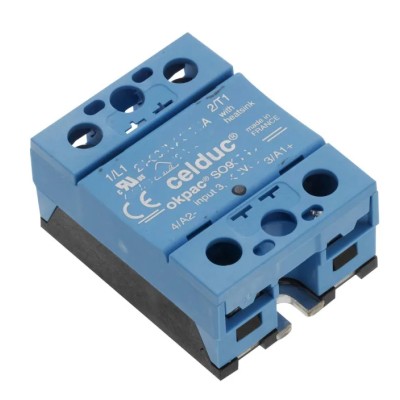

Celduc SO9 Series Solid State Relay 60A 280Vrms Load DIN Rail Mount Triac Output SO945460

Celduc SO945460 SO9 Series solid state relay is engineered for high reliability and durability in electrical and automation applications.

This single-phase relay supports a maximum load current of 60A and can handle a maximum load voltage of 280Vrms. It features a wide control voltage range from 3V to 32V, enabling compatibility with various control circuits. The device mounts easily on DIN rails, making installation and maintenance straightforward.

The relay uses TMS2 thyristor output technology providing longevity and synchronous switching performance. Its zero cross switching function reduces electrical noise and stress on connected loads, enhancing system stability.

With an IP20 rating, it offers basic finger protection suitable for most industrial environments. The relay has a low on state resistance (16mΩ), which minimizes power loss and heat generation during operation. It also features an off state leakage current of 1mA, ensuring minimal energy consumption when inactive.

The compact form factor measures 59.4mm in length, 44.8mm in width, and 30mm in height, fitting efficiently into control panels. Certified to standards such as EAC, RoHS, CSA, CE, VDE, UKCA, and cURus, it meets rigorous quality and safety requirements.

Ideal for industrial automation, HVAC controls, electrical switching, and manufacturing equipment, this solid state relay ensures reliable and silent operation under demanding conditions. It requires mounting on a suitable heatsink for optimal thermal management.

Supports wide control voltage range from 3V to 32V for flexible operation. Screw terminal type ensures secure electrical connections. Zero cross switching function minimizes electrical noise during operation. Compact dimensions of 59.4mm length, 44.8mm width and 30mm height.

Designed for robust performance with IP20 protection rating and operating temperatures from -55°C to 100°C. Triac output type suitable for single-phase AC loads. Low on state resistance of 16mΩ for efficient current conduction.

Complies with international standards including EAC, RoHS, CSA, CE, VDE, UKCA, and cURus certifications. Explore our wide range of reliable Solid State Relays and related electrical automation components at EnvMart for your industrial projects and systems.
