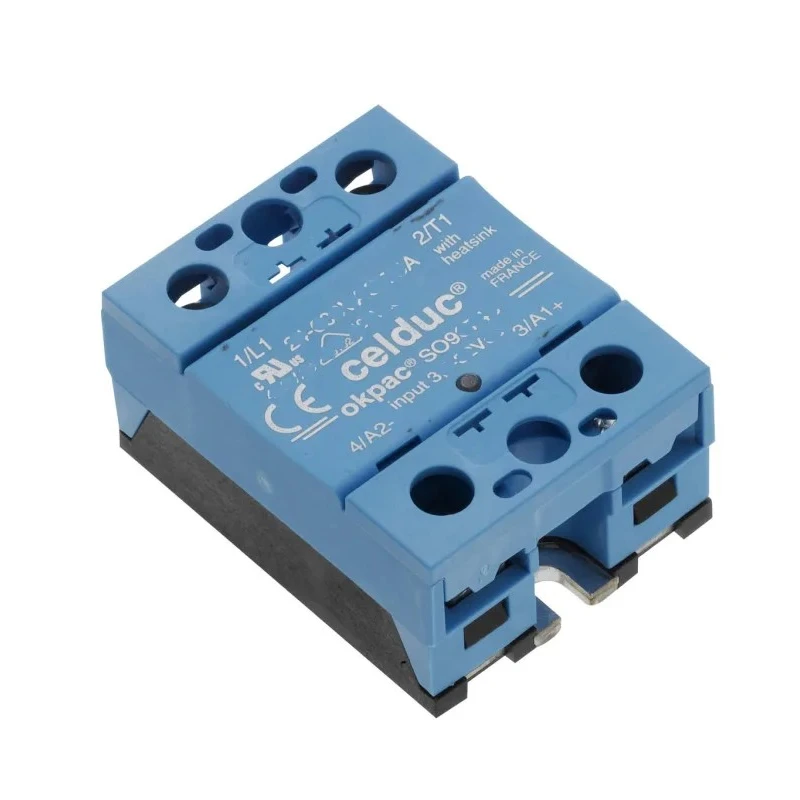

Celduc SO9 Series Solid State Relay, 40 A Load, DIN Rail Mount, 600 Vrms Load, 32V Control SO963460

Celduc SO963460 Solid State Relay from the SO9 series is engineered for robust single-phase load switching with a maximum load current of 40A and maximum load voltage of 600 Vrms. This DIN rail mount relay is optimized for industrial, electrical automation, HVAC, and manufacturing applications requiring reliable and efficient load control.

The device utilizes TMS2 technology thyristor output to ensure durability and longevity, complemented by zero-cross switching functionality that minimizes electrical noise and stress on connected equipment. Its wide control range of 20 to 265 Vac/dc with regulated control current enables versatile use across various control voltage environments between 3V and 32V. Protective VDR components shield the relay against voltage interference, enhancing overall immunity and operational stability.

The green LED input display provides a clear visual indication of activation status. The relay is designed with screw terminal contacts and features an IP20 ingress protection rating ensuring suitability for typical industrial environments. Operating temperature ranges from -55°C to 100°C, enabling deployment under demanding conditions. It requires mounting on a heatsink for optimal thermal management.

Key industrial applications include automation systems, building management controls, manufacturing equipment, and HVAC installations that demand reliable, solid-state switching without mechanical wear. This relay meets multiple international standards including EAC, RoHS, UKCA, VDE, cURus, CE, and CSA, confirming rigorous quality and safety compliance.

This relay supports a maximum load current of 40A. Features DIN rail mount for secure installation. Operates up to 600 Vrms load voltage. Control voltage spans 3V to 32V for flexibility. Triac output type ensures smooth switching.

Zero-cross switching minimizes electromagnetic interference. Includes voltage protection via VDR for interference immunity. LED indicator for operational status. Operating temperature is from -55°C to 100°C. IP20 rated with screw terminals for reliable contacts.

Available in a compact footprint measuring 58.5mm length, 44.8mm width, and 29mm height, Celduc SO963460 is the ideal choice for industrial Solid State Relay applications requiring high current capacity and robust performance. Explore more electronic components and relays at EnvMart to fit your automation and control needs.
