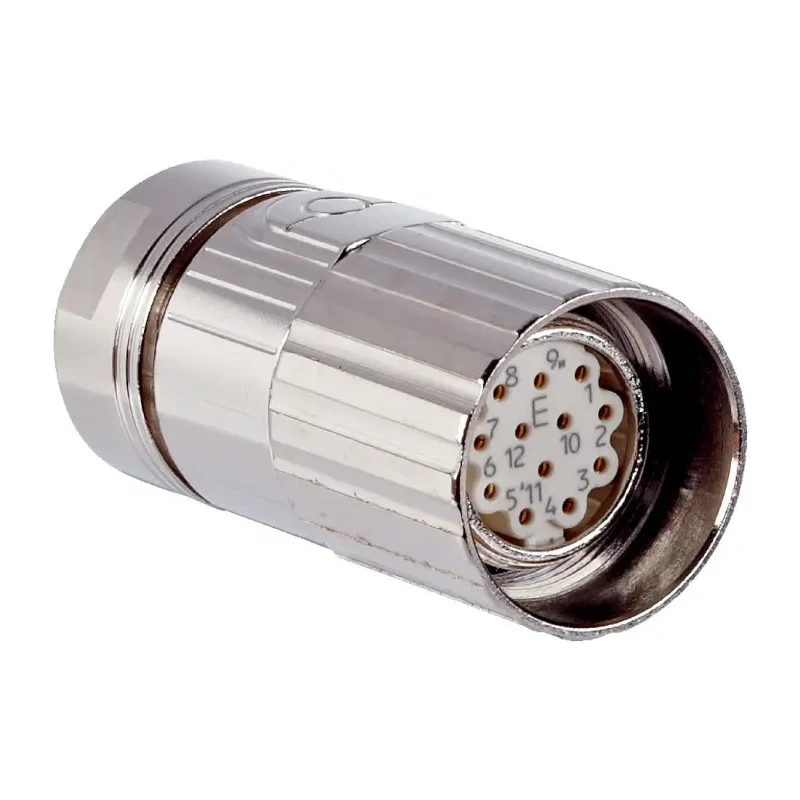

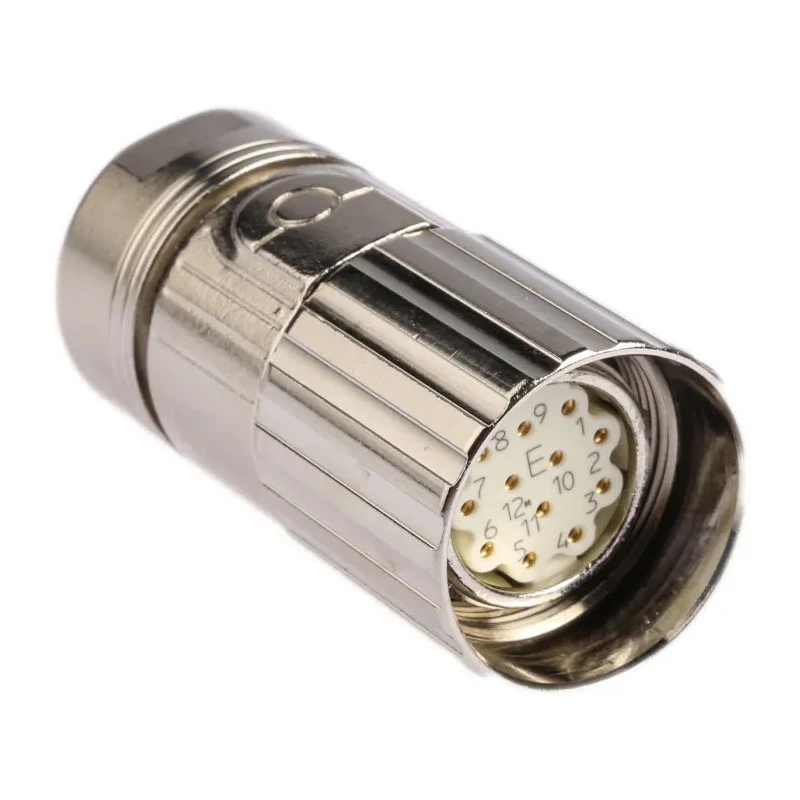

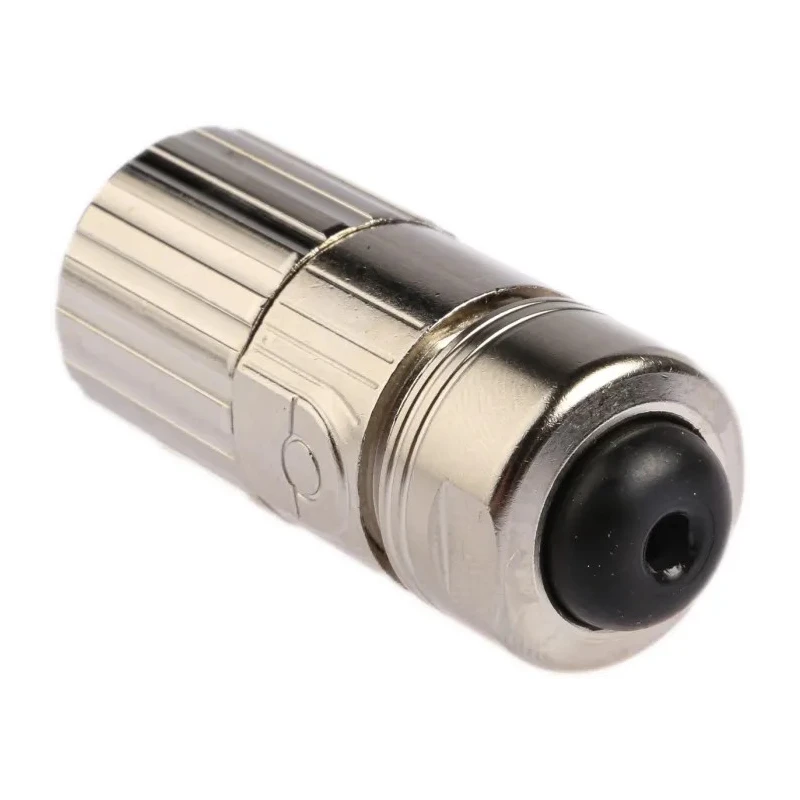

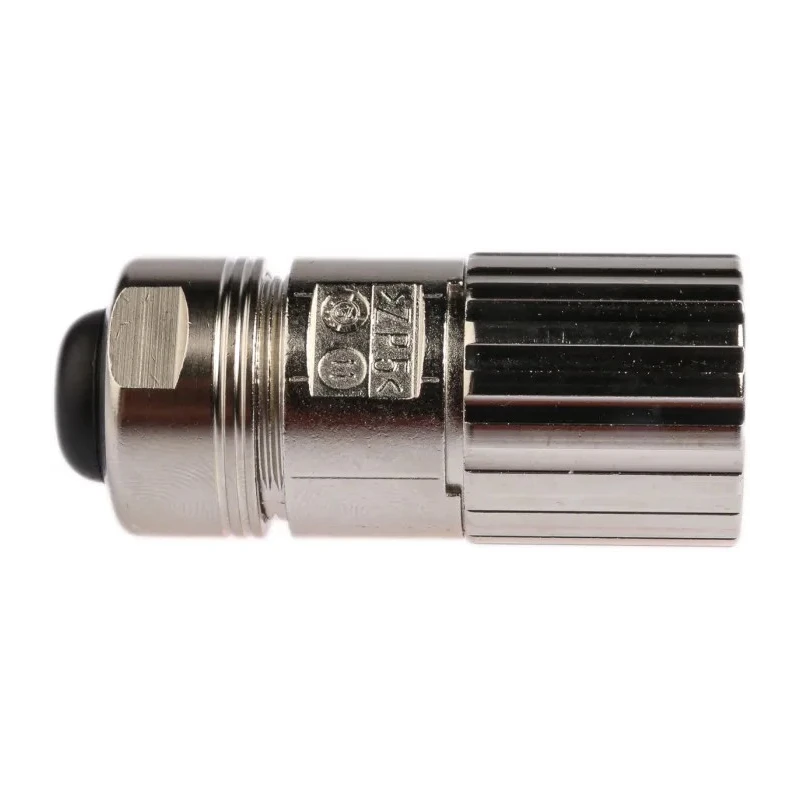

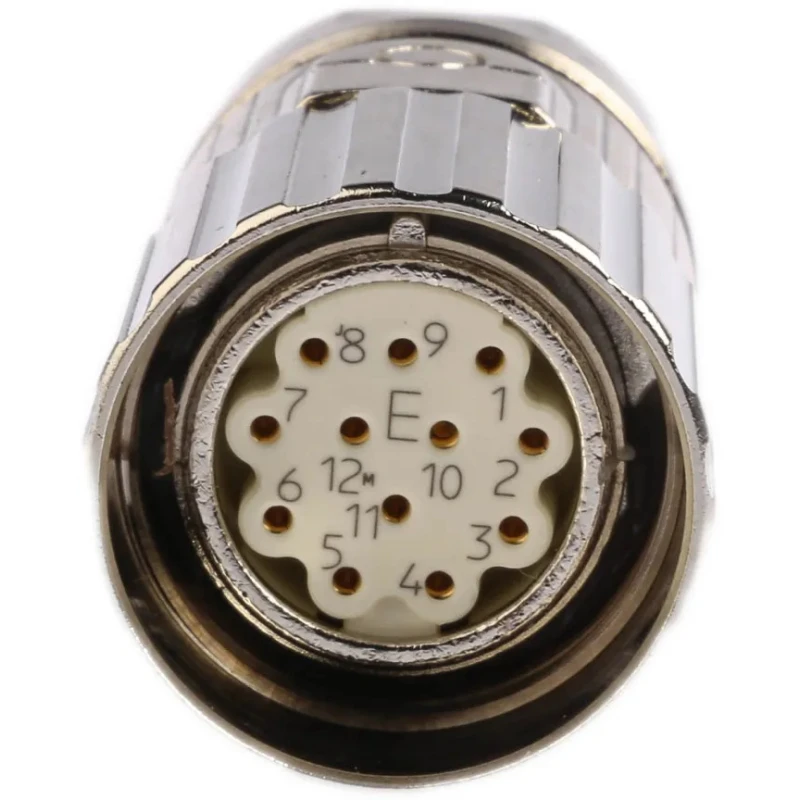

SICK Circular Connector, 12 Contacts, Socket, Cable Mount, M23 Size, 7A Current, 160V, Zinc Housing, /IP67 Protection IP66
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 160V |
| Brand | SICK |
| Orientation | Straight |
| Current | 7A |
| Model | IP66 |
| IP Rating | IP66, IP67 |
| Mount Type | Cable |
| Housing Material | Zinc |
| Contact Material | Zinc |
| Series | DOS-2312 |
| Termination Type | Solder |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | -20°C |
| Pole Format | 12 |
| Contact Plating | Nickel |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Shell Size | 26 mm |
| Connector Size | M23 |
| Plug/Socket | Socket |
| Coding | A |
Key Features
- The M23 connector size supports secure cable termination.
- Rated for 7A current and 160V voltage, suitable for industrial signal transmission.
- Features solder termination type ensuring stable contact connections.
- Nickel-plated zinc housing offers IP66/IP67 protection against dust and washdown environments.
- Designed to operate reliably from -20°C to +130°C temperature range.
- Straight orientation socket with female contact gender for versatile applications.
- Compatible with shielded cables of 5.5mm to 10.5mm diameter for strain relief.
- Ideal for encoder cabling, feedback loops, and industrial automation systems.
Product Description
The SICK DOS-2312-G circular connector is a high-quality, 12-contact socket designed for cable mounting in industrial applications. This M23 size connector provides a secure and shielded interface essential for transmitting signals and moderate power levels up to 7A and 160V. The zinc housing with nickel plating assures excellent durability and environmental protection rated to IP66 and IP67 standards, making it suitable for washdown and dust-prone environments.
Engineered for continuous operation between -20°C and +130°C, the connector supports harsh industrial conditions. Its straight orientation and female contact gender accommodate versatile installation scenarios, particularly in control, feedback, and encoder cabling assemblies within machinery and automation systems.
The solder termination method ensures reliable and stable electrical contact, while the quick screw locking plug mechanism provides mechanical stability for cable assembly. Compatible cable diameters range from 5.5mm to 10.5mm, facilitating adequate strain relief for noise-sensitive signals through the integrated shielding design.
The connector is suitable for use in HIPERFACE® and SSI encoder cabling in drive systems. Ideal for incremental encoder signal connections in feedback loops and motor or servo assemblies. Supports field wiring for control panel sensor networks in industrial environments.
Nickel-plated zinc shell and locking nut create an effective electromagnetic interference shield. Manufactured with precision in Germany under the DOS-2312 series specifications, ensuring high reliability.
Choose the SICK DOS-2312-G circular connector for robust, reliable industrial cable connections with excellent environmental protection and signal integrity. Explore more Industrial Circular Connectors and related electrical components on EnvMart to suit your automation and control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum current rating of 7A.
It is rated for a maximum voltage of 160V.
The connector has an IP rating of IP66 and IP67, providing protection against dust and water.
It is designed to operate reliably in a temperature range from -20°C to +130°C.
This model utilizes a solder termination type to ensure stable contact connections.
The connector features a female contact gender.
This model is an M23 size connector with a shell size of 26 mm.
It is compatible with shielded cables ranging from 5.5mm to 10.5mm in diameter.
It is ideal for encoder cabling, feedback loops, and industrial automation systems.
The connector is manufactured in Germany.
The housing is made of zinc with nickel plating for durability and protection.
It features a quick screw locking plug mechanism for mechanical stability.
