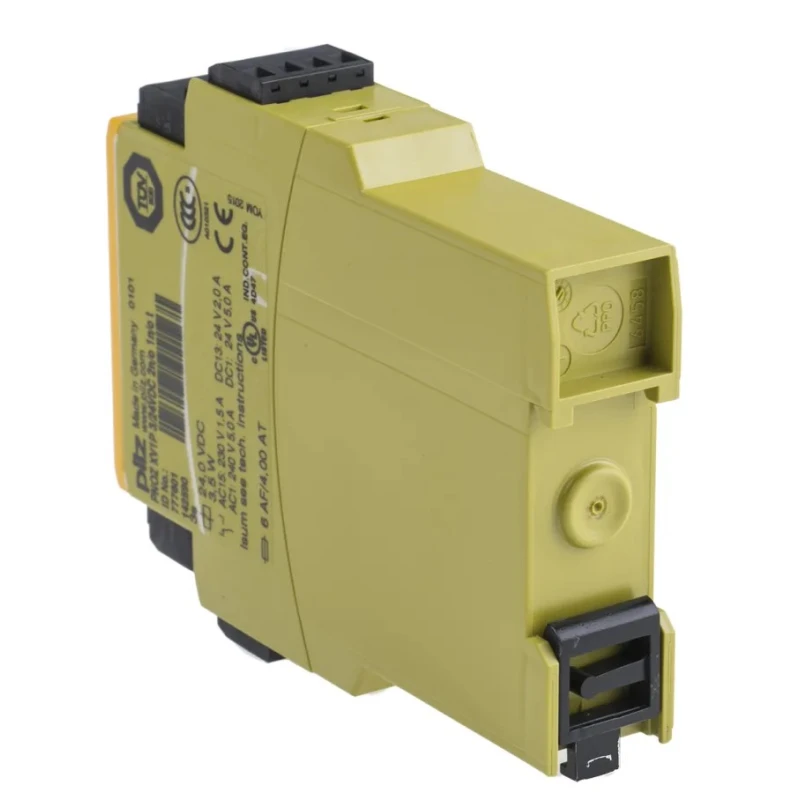

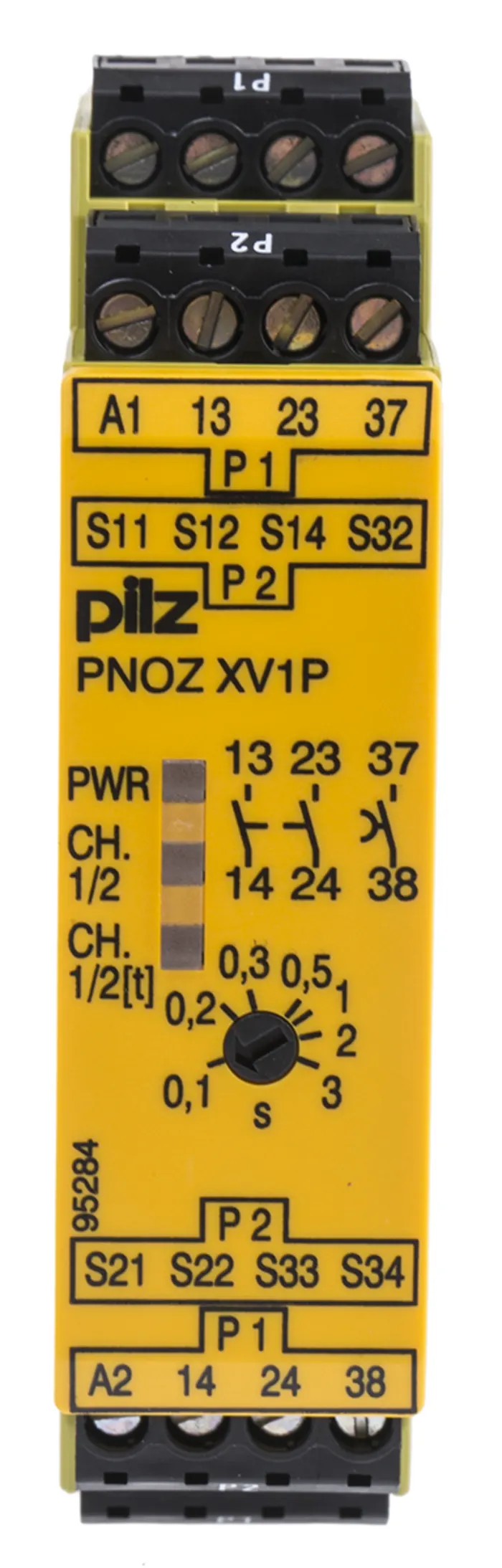

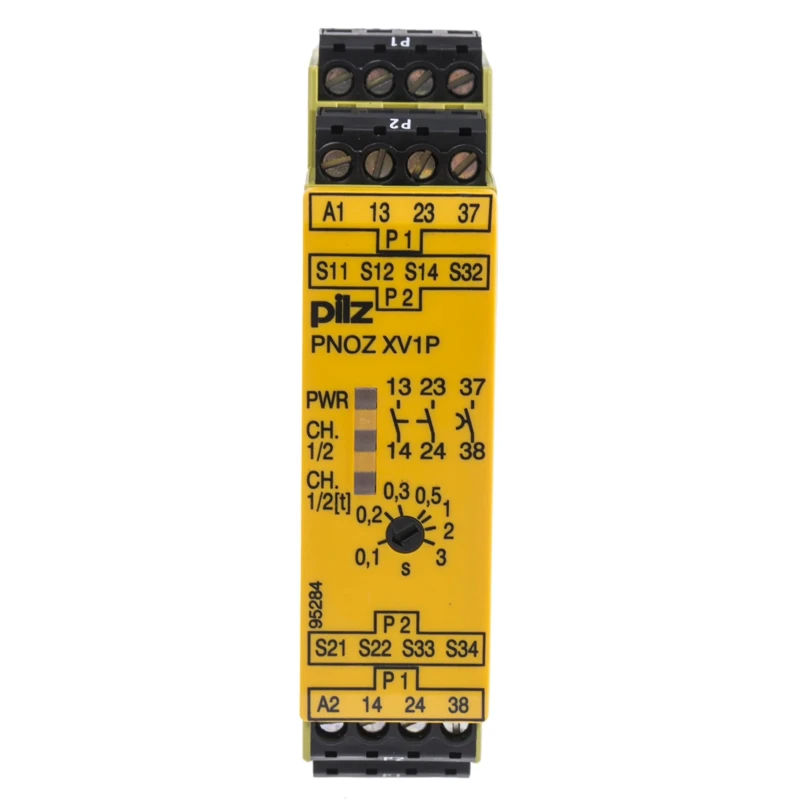

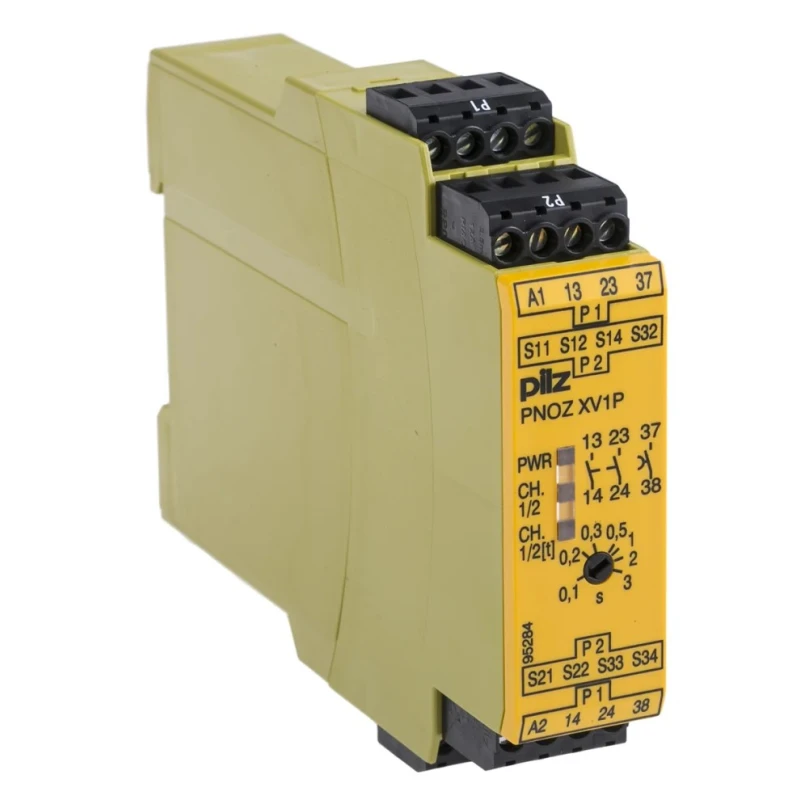

Pilz PNOZ XV1P 24V dc Safety Relay 2 Safety Contacts DIN Rail Mount IP20 Model
Specifications
| Country of Origin | India |
|---|---|
| Brand | Pilz |
| Height | 121mm |
| Length | 94mm |
| Model | XV1P |
| IP Rating | IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | PNOZ XV1P |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Safety Category | PLe Category 4 |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Coil Voltage | 24V dc |
| Safety Contacts | 2 |
| Pilz PNOZ X1, 24V ac/dc Safety Relay, 3 Safety Contacts, 1Brand | Pilz |
Key Features
- This safety relay features two safety contacts for reliable circuit control.
- It supports DIN rail mounting with easy snap-on installation.
- Equipped with screw-type terminals for secure electrical connections.
- Offers IP20 rating providing protection against solid objects larger than 12 mm.
- Adjustable time delay feature allows precise control of relay operations.
- Supports single or dual channel input for versatile safety circuit management.
- Supports automatic and manual reset modes for flexible operation scenarios.
- LED status indicators facilitate monitoring and troubleshooting.
Product Description
Pilz XV1P 24V dc safety relay with 2 safety contacts Model 777601 offers dependable protection for industrial safety applications. It is designed to control emergency stop buttons, pull wire emergency stop switches, safety light curtains, and safety sensors, safeguarding personnel and machinery.
The relay features an adjustable time delay that provides complete control over when the relay activates or deactivates. Its single or dual channel input capability allows it to manage one or multiple safety circuits effectively. Pilz XV1P supports automatic and manual reset modes to suit different operational requirements. LED indicators on the device enable users to monitor system status and preempt faults before they escalate.
Mounting is facilitated through DIN rail snap-on compatibility, accelerating installation and maintenance. The device uses screw terminals ensuring secure and stable wiring connections. With an IP20 rating, the relay protects against access to hazardous parts with a solid object larger than 12 mm.
This safety relay supports emergency stop and guard system applications. The adjustable time delay enhances operational flexibility. Automatic/manual reset modes offer customizable control. LED status indicators improve operational diagnostics.
Compatible with industrial standards EN 60204-1, EN 62061, and EN ISO 13849-1. Operating temperature range of -10°C to 55°C ensures reliable functionality. Dimensions are compact: 22.5 mm width, 121 mm height, and 94 mm length.
Pilz PNOZ XV1P is suited for use in industrial automation, machine safety, manufacturing machinery, and control panel applications. It provides Category 4 PLe safety compliance ensuring highest safety reliability levels.
Explore more Pilz Safety Relays and related automation components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this safety relay is 24V DC.
This model has a width of 22.5 mm, a height of 121 mm, and a length of 94 mm.
The Pilz PNOZ XV1P safety relay has an IP20 rating, providing protection against solid objects larger than 12 mm.
This safety relay complies with PLe Category 4 safety standards, ensuring high safety reliability levels.
The operating temperature range for the Pilz PNOZ XV1P is -10°C to 55°C.
It is designed for DIN rail mounting, allowing for easy snap-on installation.
This model uses screw-type terminals for secure electrical connections.
It features an adjustable time delay and supports both automatic and manual reset modes for customizable control.
It is suitable for controlling emergency stop buttons, pull wire emergency stop switches, safety light curtains, and safety sensors.
It complies with industrial standards EN 60204-1, EN 62061, and EN ISO 13849-1.
The Pilz PNOZ XV1P safety relay features 2 safety contacts.
The country of origin for this safety relay is India.
