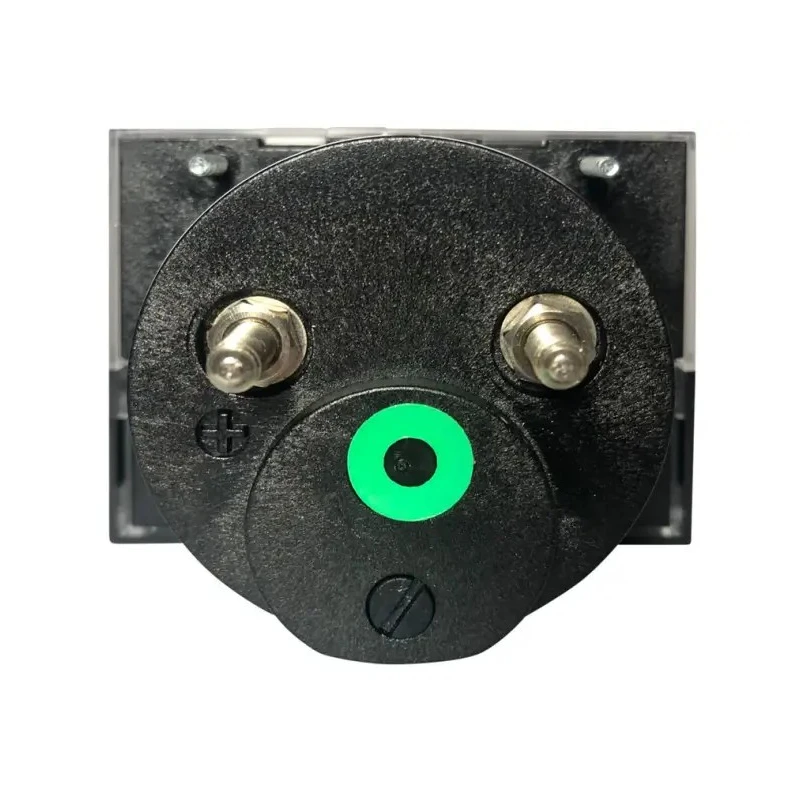

HOBUT RS PRO Analogue Panel Ammeter 1000 A AC, 76 mm x 74 mm, ±1.5 % Accuracy, High Torque Pivot and Jewel Moving 186-2515

HOBUT 186-2515 Analogue Panel Ammeter 1000 A AC is engineered for precision current measurement in industrial and commercial electrical applications. Featuring a high torque pivot combined with jewel moving coil and moving iron technology, this panel ammeter provides accurate and stable readings with an accuracy of ±1.5 %.

The instrument has compact cutout dimensions of 76 mm height and 74 mm width, and a depth of 45.7 mm, making it suitable for integration into control panels, distribution switchboards, and energy management systems.

The meter's design includes a pivot, hairspring, and jewel movement where the bottom jewel is oil-filled to provide effective damping and the top spring ensures resilience and stability during operation. The clear knife-edge type pointer ensures precise reading visibility.

The device operates reliably across a temperature range of 0°C to 60°C and tolerates relative humidity from 25% to 80%, making it ideal for marine, utility power monitoring, motor monitoring, and switchgear applications.

The polycarbonate cover secures the meter against dust and mechanical damage, while the detachable lower fascia plate enhances installation flexibility. The meter uses a high torque pivot and jewel moving coil and moving iron movement for accurate current measurement.

Cutout dimensions are 76 mm in height and 74 mm in width to fit standard panels. Operating temperature ranges from 0°C to 60°C suitable for varied industrial environments. The meter accuracy is ±1.5 %, ensuring precise current readings.

It includes a knife-edge type pointer for clear indication. Relative humidity tolerance spans from 25% to 80% for reliable function. The ammeter has a maximum ampere rating of 1000 A AC for heavy-duty applications. Features a detachable lower fascia plate for flexible installation.

Equipped with a polycarbonate cover for durability and protection.

This Analogue Panel Ammeter meets multiple international standards and approvals, including IS9249, UL 94 V-O, EN 61010-1, IEC 529, ISO 20653, and CE certification, ensuring its compliance and safety for industrial use.

It is extensively suitable for installation in switchgear, control panels, embedded generation, energy management, building management systems, and utility power monitoring environments.
