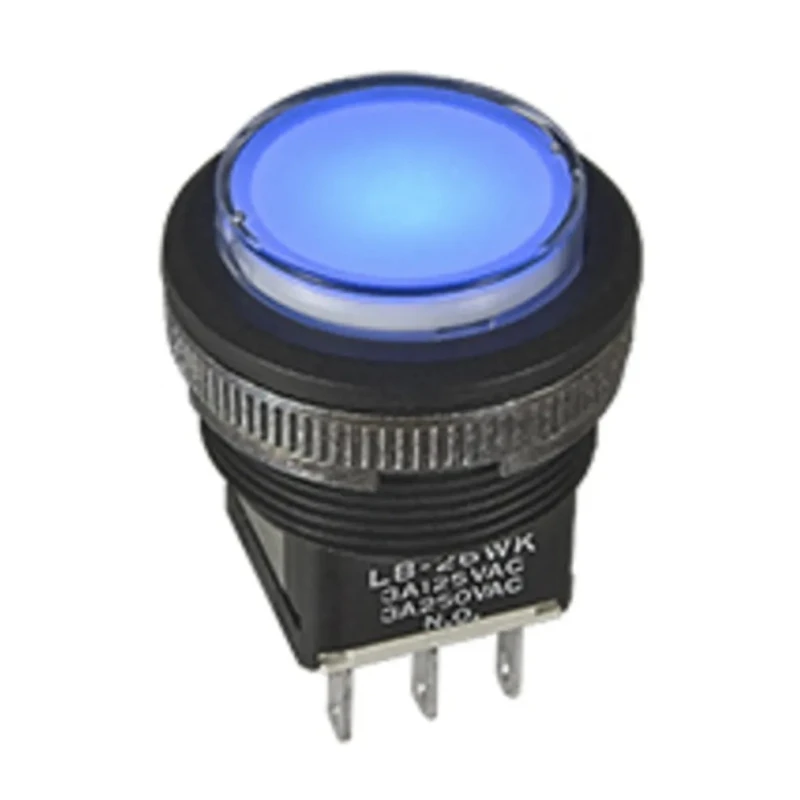

NKK Switches LB Series Illuminated Push Button Switch, On-On, Panel Mount, 22 mm Cutout, SPDT, IP65, 30 V dc 250 V LB15CGW01
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | NKK Switches |
| Model | LB15CGW01 |
| IP Rating | IP65 |
| Mount Type | Panel Mount |
| Series | LB |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Quick Connect, Solder Lug |
| Standards/Approvals | CSA, IEC 60529, UL 94 V-0, UL Recognised |
| Switch Operation | On-On |
| Contact DC Voltage | 30V dc |
| Actuator Style | Round |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- Operates with On-On switch operation for reliable control.
- Illuminated design enhances visibility in control panels.
- Panel mount type with 22 mm cutout size for standard applications.
- SPDT contact configuration suitable for versatile switching needs.
- Rated IP65 for dust and water protection in challenging environments.
- Supports contact voltages up to 30 V dc and 250 V ac.
- Designed for operating temperatures from -25°C to 50°C.
- Includes quick connect and solder lug terminals for ease of installation.
Product Description
NKK Switches LB15CGW01 is a high-quality illuminated push button switch designed for panel mounting with a 22 mm cutout. This On-On switch features an SPDT (Single Pole Double Throw) contact configuration, making it ideal for diverse electrical and automation applications in industrial, commercial, and laboratory environments.
The switch provides a reliable 3A current rating with contact voltages of 30 V dc and 250 V ac, making it suitable for controlling various equipment and circuits. Its illuminated design improves visibility and user interface clarity under all lighting conditions.
Constructed to IP65 standards, the switch resists dust ingress and water jets, enhancing durability and safety in harsh environments, including manufacturing, machinery control panels, and HVAC systems.
The round actuator style ensures ease of use and a professional look. Termination options include quick connect and solder lug terminals, facilitating straightforward installation and maintenance. Operating temperature ranges from -25°C to 50°C, supporting a wide range of operational environments.
This product meets stringent standards such as CSA, IEC 60529, UL 94 V-0, and is UL Recognised, assuring compliance with global safety and quality benchmarks. Operates with On-On switch operation for reliable control. Illuminated design enhances visibility in control panels.
Panel mount type with 22 mm cutout size for standard applications. SPDT contact configuration suitable for versatile switching needs. Rated IP65 for dust and water protection in challenging environments. Supports contact voltages up to 30 V dc and 250 V ac.
Designed for operating temperatures from -25°C to 50°C. Includes quick connect and solder lug terminals for ease of installation. Actuator style is round for ergonomic button operation. Certified to CSA, IEC 60529, UL 94 V-0 and is UL Recognised for safety compliance.
This NKK Switches LB15CGW01 is suitable for industrial automation, control panels, electrical equipment, laboratory instruments, and HVAC systems. Explore EnvMart's extensive range of high-quality Push Button Switches and accessories for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LB15CGW01 features an SPDT (Single Pole Double Throw) contact configuration, making it suitable for versatile switching needs.
This model can operate at a maximum temperature of 50°C, allowing it to be used in a variety of environments.
The LB15CGW01 has an IP65 rating, providing protection against dust ingress and water jets, suitable for challenging environments.
It supports contact voltages of up to 30 V dc and 250 V ac, making it versatile for different electrical applications.
The switch includes quick connect and solder lug terminals, facilitating straightforward installation and maintenance.
This model requires a panel cutout size of 22 mm for proper installation in control panels.
The actuator style of this switch is round, designed for ergonomic button operation.
The minimum operating temperature for the LB15CGW01 is -25°C, allowing it to function in colder environments.
This switch meets several standards including CSA, IEC 60529, UL 94 V-0, and is UL Recognised, ensuring compliance with global safety benchmarks.
It operates with an On-On switch configuration, providing reliable control for various applications.
The LB15CGW01 is suitable for industrial automation, control panels, electrical equipment, laboratory instruments, and HVAC systems.
This model has a current rating of 3A, making it suitable for controlling various equipment and circuits.
