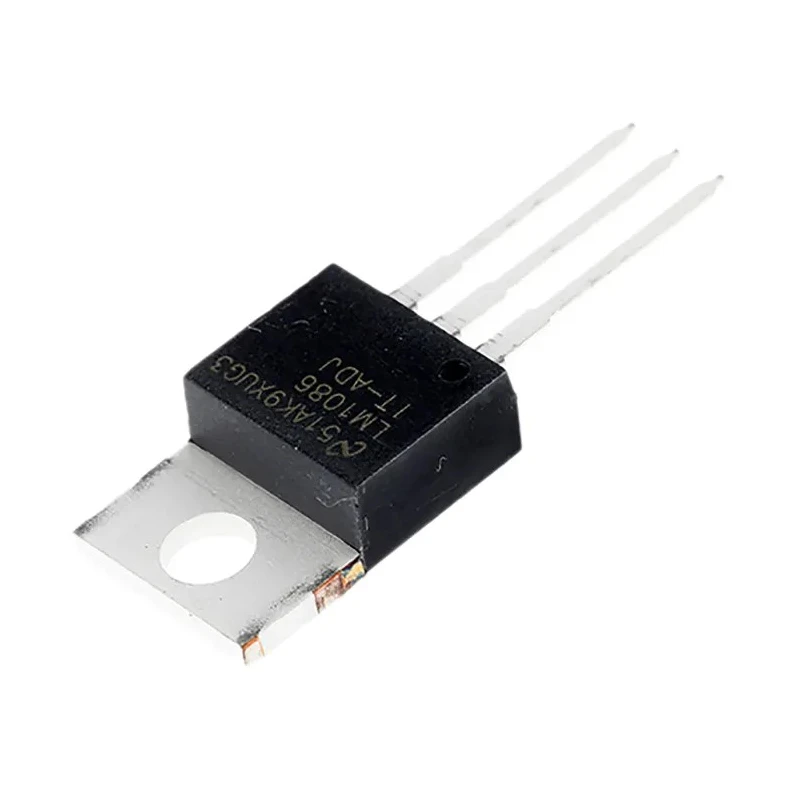

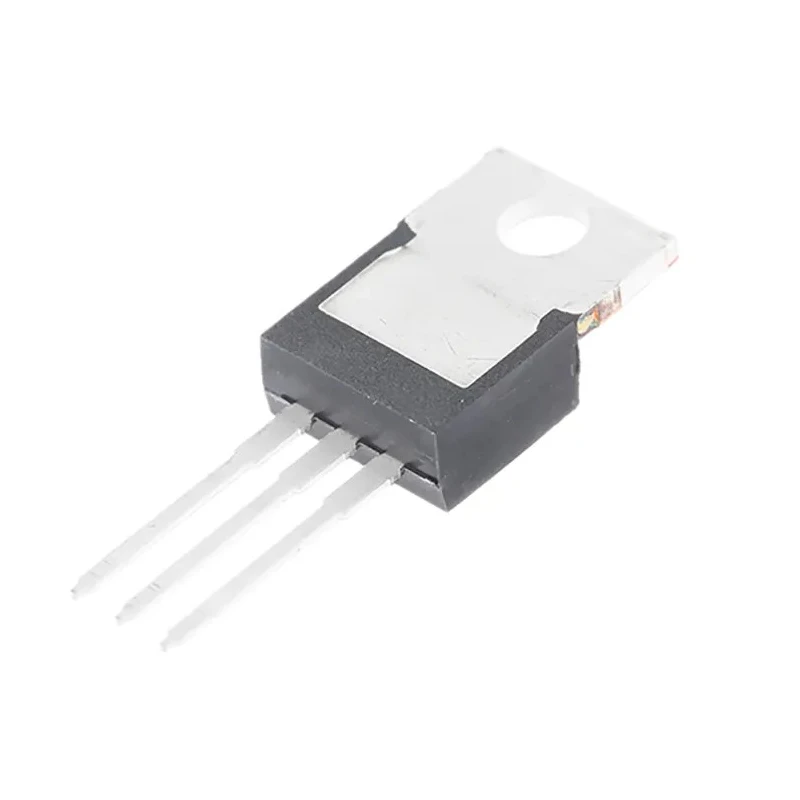

Texas Instruments Adjustable Low Dropout (LDO) Linear Voltage Regulator TO-220 3-Pin 30V LM1086IT-ADJ/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Texas Instruments, Voltage Regulator 30V TO-220 3-Pin RS Stock No |
| Brand | Texas Instruments |
| Height | 8.89mm |
| Length | 10.16mm |
| Model | LM1086IT-ADJ/NOPB |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | LM1086 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Polarity | Positive |
| Maximum Input Voltage | 30V |
| Quiescent Current | 5mA |
| Minimum Input Voltage | 2.6V |
| Pin Count | 3 |
Key Features
- The device supports a maximum operating temperature of 125 degrees Celsius.
- Featuring a positive polarity and through-hole mount type for easy installation.
- Boasts a low quiescent current of 5mA, making it energy efficient.
- Compact dimensions with 10.16mm length, 8.89mm height, and 4.7mm width.
- This regulator is suitable for a variety of industrial and electronic applications requiring adjustable output voltage.
- Offers excellent line voltage regulation and high power supply rejection ratio (PSRR).
- Built to operate with a minimum input voltage of 2.6V.
- Delivered in production pack (tube) suitable for machine insertion to improve production efficiency.
Product Description
Texas Instruments LM1086IT-ADJ/NOPB is an Adjustable Low Dropout (LDO) Linear Voltage Regulator housed in a durable TO-220 3-pin package. It supports a maximum input voltage of 30V and is capable of handling currents from 1A to 2A, making it an ideal solution for voltage regulation in industrial, laboratory, and commercial electronic circuits.
This voltage regulator features a positive polarity with through-hole mount type, facilitating easy assembly on printed circuit boards. Its low quiescent current of 5 mA helps minimize power consumption, enhancing overall efficiency in power management applications.
The compact size with 10.16 mm length, 8.89 mm height, and 4.7 mm width allows integration in space-constrained designs. Its operation is reliable across a maximum temperature of 125°C, suitable for demanding environments.
The LM1086 series offers excellent line voltage regulation and a high power supply rejection ratio (PSRR), resulting in stable output voltage with minimal noise. The regulator is designed to operate with a minimum input voltage of 2.6V, expanding its versatility across various power supply ranges.
The device’s positive polarity supports standard voltage regulation needs. Through-hole mounting ensures secure mechanical and electrical connection. Low quiescent current reduces energy wastage during operation. Compact physical dimensions enable flexible circuit board layout.
Wide industrial temperature range ensures robust operation. Adjustable output voltage capability supports custom power supply configurations. Suitable for applications in industrial machines, laboratory instruments, water treatment systems, HVAC controls, and manufacturing equipment.
This item is supplied in production packs (tube packaging) optimized for automated assembly lines, enhancing manufacturing productivity. Users can rely on Texas Instruments quality and the LM1086 series' proven capabilities for efficient power management solutions.
Explore more high-quality Voltage Regulators and power management ICs at EnvMart for diverse industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 30V.
This regulator features adjustable output voltage capability, allowing for custom power supply configurations.
It has a low quiescent current of 5mA, which helps minimize power consumption.
The dimensions are 10.16mm in length, 8.89mm in height, and 4.7mm in width.
The maximum operating temperature is 125°C, suitable for demanding environments.
It features a through-hole mount type, facilitating easy assembly on printed circuit boards.
The minimum input voltage for this device is 2.6V.
This voltage regulator has a pin count of 3.
It is suitable for various applications including industrial machines, laboratory instruments, water treatment systems, and HVAC controls.
This model belongs to the LM1086 series.
The country of origin for this product is India.
