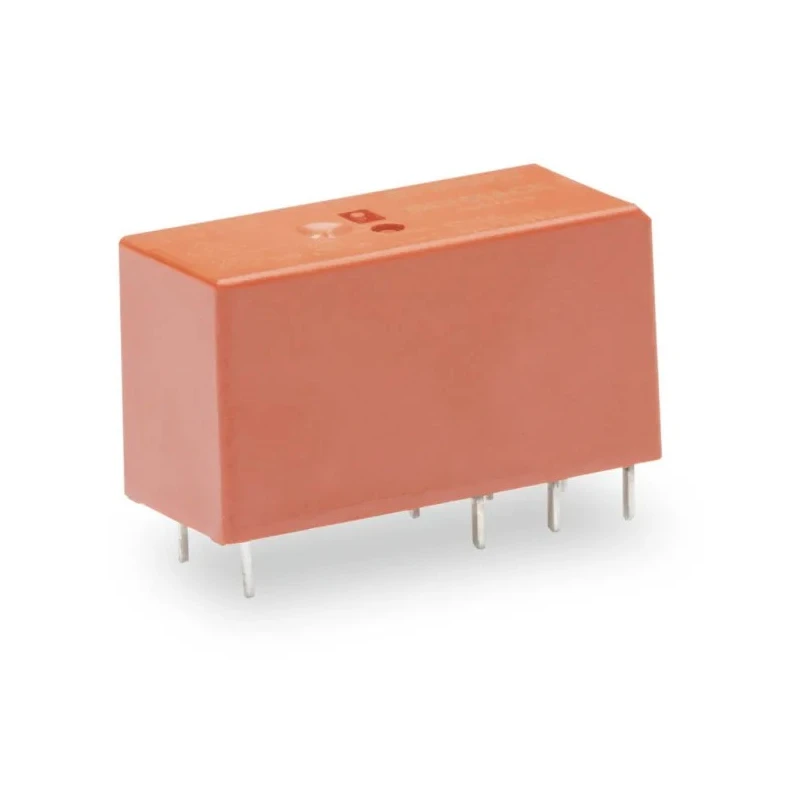

WAGO Power Relay 12V DC Coil 8A Switching Current DPDT 2kW Coil Power 788-152
Specifications
| Country of Origin | India |
|---|---|
| Brand | WAGO |
| Height | 15.7mm |
| Length | 12.7mm |
| Model | 788-152 |
| Width | 29mm |
| Contact Material | Silver Alloy |
| Series | 788 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | PCB Pin |
| Standards/Approvals | EN 61810-1 |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 24V ac |
| Coil Power | 2kW |
Key Features
- This power relay operates with a 12V DC coil voltage delivering efficient switching performance.
- Features a double pole double throw (DPDT) contact configuration for versatile circuit control.
- Supports switching AC voltage up to 24V AC and DC voltage up to 24V DC.
- Operates within a temperature range from -40°C to 85°C ensuring durability in harsh environments.
- The relay coil power rating is 2kW, suitable for various industrial applications.
- Constructed with silver alloy contacts to ensure reliable conductivity and longevity.
- Designed with PCB pin terminals for secure mounting on printed circuit boards.
- Compact dimensions of 12.7mm length, 29mm width, and 15.7mm height optimize space utilization.
Product Description
WAGO 788-152 Power Relay is a robust DPDT relay featuring a 12V DC coil and an 8A switching current, engineered to provide dependable performance in a variety of electrical and automation applications. The relay supports switching voltages up to 24V AC and 24V DC, making it versatile for many control circuits.
Its compact design with dimensions of 12.7mm in length, 29mm in width, and 15.7mm in height allows integration in space-constrained environments. The silver alloy contact material enhances conductivity and ensures long service life. The relay is designed to be mounted securely on PCBs with its PCB pin terminal type.
Operating reliably in temperatures ranging from -40°C to 85°C, this relay is well suited for industrial, manufacturing, and automation systems requiring high switching capacity and robust construction. Compliant with standard EN 61810-1, it meets essential quality and safety requirements for power relays.
This power relay operates with a 12V DC coil voltage delivering efficient switching performance. Features a double pole double throw (DPDT) contact configuration for versatile circuit control. Supports switching AC voltage up to 24V AC and DC voltage up to 24V DC.
Operates within a temperature range from -40°C to 85°C ensuring durability in harsh environments. The relay coil power rating is 2kW, suitable for various industrial applications. Constructed with silver alloy contacts to ensure reliable conductivity and longevity.
Designed with PCB pin terminals for secure mounting on printed circuit boards. Compact dimensions of 12.7mm length, 29mm width, and 15.7mm height optimize space utilization.
Ideal for electronics manufacturing, industrial automation, HVAC systems, and other power switching control systems, this WAGO Power Relay combines reliability and performance for critical applications. It is a new product meeting high industry standards and is ready for integration into sophisticated control solutions.
Explore a wide range of industrial electrical components and relays at EnvMart for efficient, high-quality automation and control products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It can handle a maximum switching current of 8A.
This model features a double pole double throw (DPDT) contact configuration.
The relay has dimensions of 12.7mm in length, 29mm in width, and 15.7mm in height.
It supports switching AC voltage up to 24V AC and DC voltage up to 24V DC.
The coil power rating is 2kW, suitable for various industrial applications.
The contacts are constructed from silver alloy, which enhances conductivity.
It operates within a temperature range from -40°C to 85°C.
It is designed with PCB pin terminals for secure mounting on printed circuit boards.
It complies with the standard EN 61810-1, meeting essential quality and safety requirements for power relays.
The relay is manufactured in India.
This relay is suitable for various industrial applications, including electronics manufacturing and automation systems.
