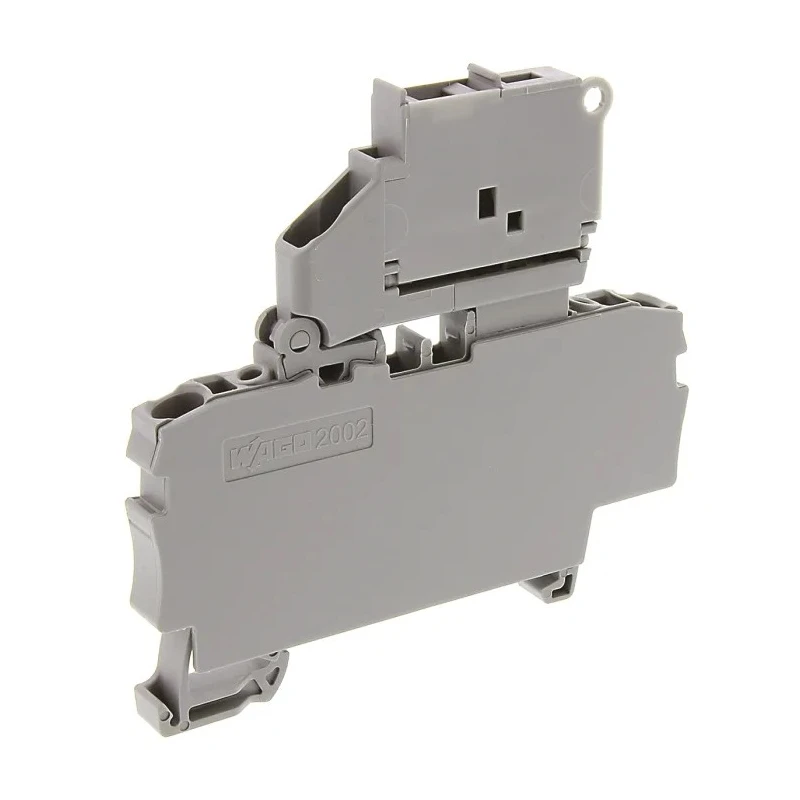

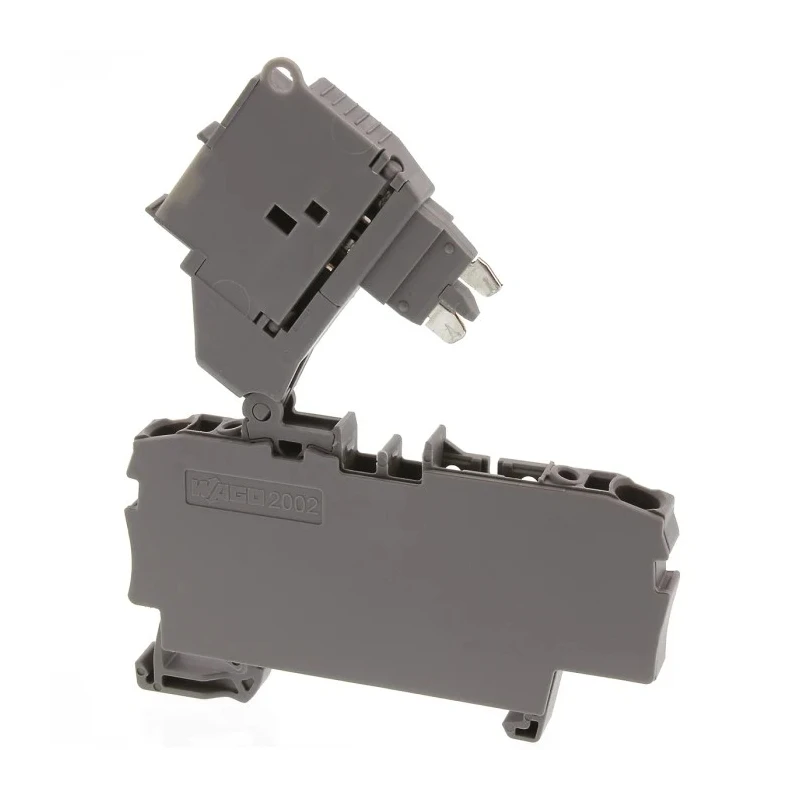

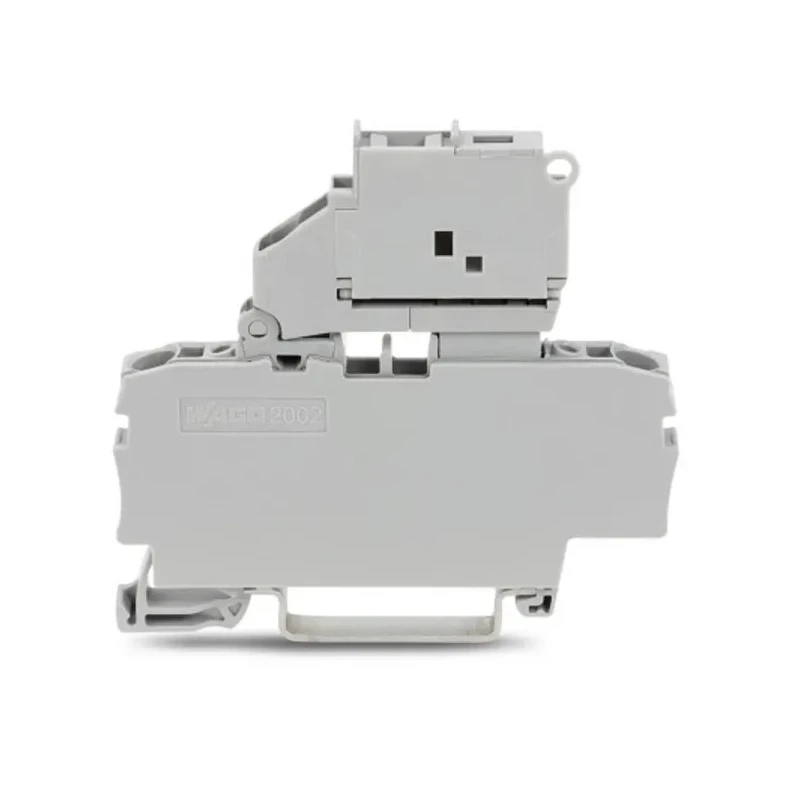

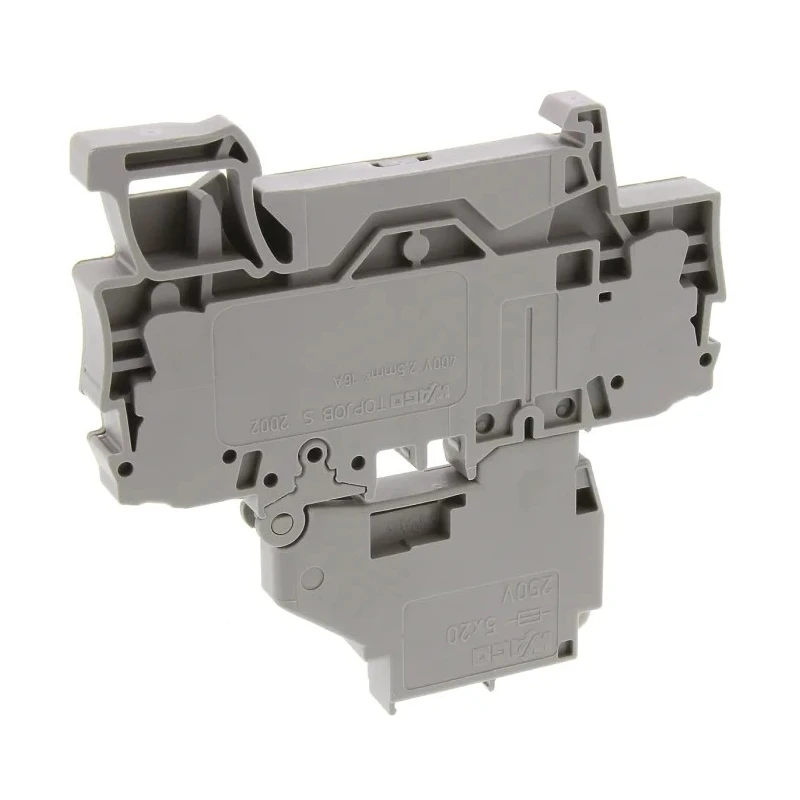

WAGO 2002 Series Fuse Terminal Block Grey 2.5mm² 1-Level Fused Cage Clamp ATEX 2002-1611

Free Delivery in India | Lowest Global Shipping Charges

WAGO 2002 Series Fuse Terminal Block Grey 2.5mm² 1-Level Fused Cage Clamp ATEX 2002-1611

Name: WAGO 2002 Series Fuse Terminal Block Grey 2.5mm² 1-Level Fused Cage Clamp ATEX 2002-1611
Brand: Wago
SKU: 227353
Price: 9.74 USD
Availability: InStock



Category DIN Rail Terminal Blocks Brand Wago Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	WAGO
Colour	Grey
Series	2002
Termination Type	Cage Clamp
Maximum Operating Temperature	105°C
Number of Levels	1
Number of Positions	2
Sub Type	Fused Disconnect Terminal Block
Minimum Operating Temperature	-60°C
Pitch	6.2mm
Hazardous Area Certification	ATEX
Standards/Approvals	UL
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	12AWG
Cable CSA	2.5mm²
Terminal Block Current	6.3A

Key Features

Constructed with grey PA material providing excellent insulation and durability.
Compact size with dimensions 57.6mm height, 6.2mm pitch, and 66.5mm depth.
Supports wire sizes from 22 AWG to 12 AWG ensuring versatility.
Rated at 250V voltage and 6.3A current for heavy-duty electrical applications.
Cage clamp termination technology reduces wiring time with reliable contact.
Equipped with pivoting fuse holder accommodating 5x20mm miniature fuses.
Meets UL standards and certified for hazardous locations with ATEX compliance.
Operating temperature range from -60°C to 105°C for diverse environments.

Product Description

WAGO 2002-1611 fuse terminal block is a reliable electrical component designed for industrial, telecommunications, and civil installation use. Built with robust PA insulation in grey colour, it offers high electrical safety and mechanical strength. This 2002 series terminal provides a secure 1-level fuse protection with a current rating of 6.3A and voltage rating of 250V, suitable for rigorous heavy-duty applications.

The terminal block features cage clamp technology that vastly reduces wiring time by eliminating the need for crimping, ensuring a solid wire connection across a wide range of wire sizes from fine 22 AWG up to thicker 12 AWG cables. Its compact dimensions of 57.6 mm height, 6.2 mm pitch, and 66.5 mm depth allow for maximal use of DIN rail space in crowded electrical panels.

The 5 x 20 mm miniature fuse holder is pivoting, facilitating easy fuse replacement and maintenance. Its compliance with UL standards and ATEX hazardous area certification guarantees safety and reliability in sensitive environments. The unit tolerates operating temperatures ranging from -60°C to 105°C, making it adaptable for use in diverse industrial and laboratory settings.

This WAGO fuse terminal block is commonly employed in lighting control systems, telecommunications equipment, and civil electrical infrastructure to provide effective circuit protection and wiring organization. Its lightweight construction at only 13.5 grams minimizes mechanical load on mounting rails.

Robust PA construction ensures electrical insulation and durability. Cage clamp terminations offer fast and secure wire connections. Supports 5 x 20 mm miniature fuses with pivoting fuse holder. Voltage rating of 250V and current rating of 6.3A for industrial use.

Certified to UL standards and ATEX for hazardous locations. Compact dimensions maximize DIN rail space usage. Wide operating temperature range from -60°C to 105°C. Wire size range from 22 AWG to 12 AWG for versatile applications.

Lightweight design reduces mechanical strain. Suitable for lighting controllers, telecommunications, and civil wiring. Explore the WAGO product range in EnvMart for innovative DIN rail terminal solutions designed to meet stringent industrial and electrical safety requirements.
