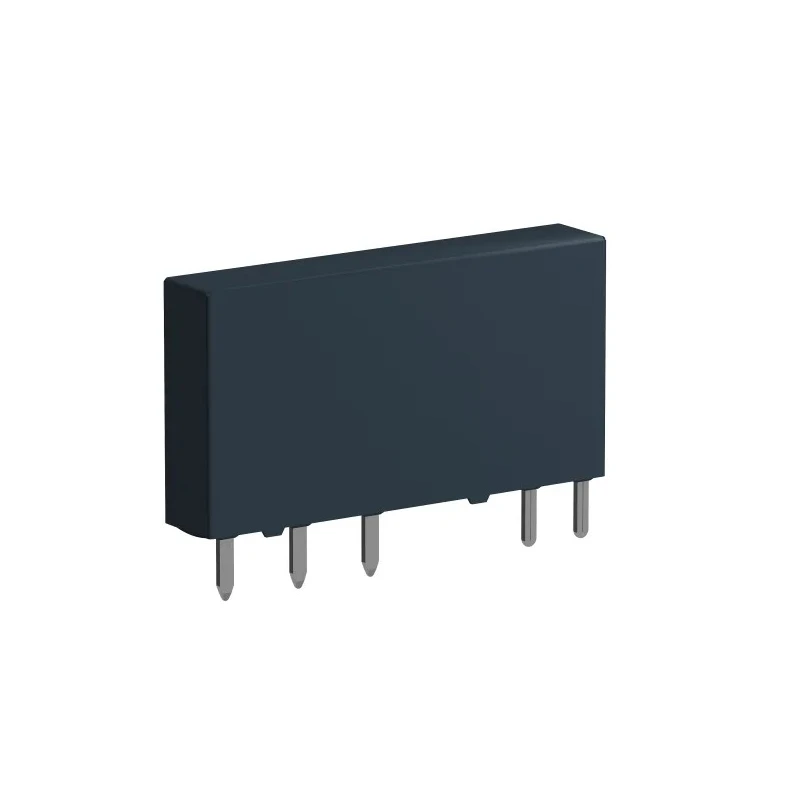

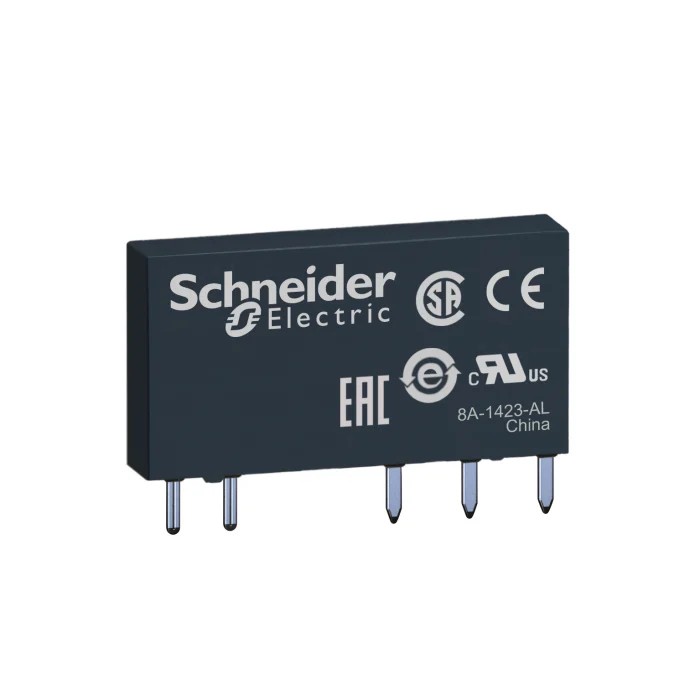

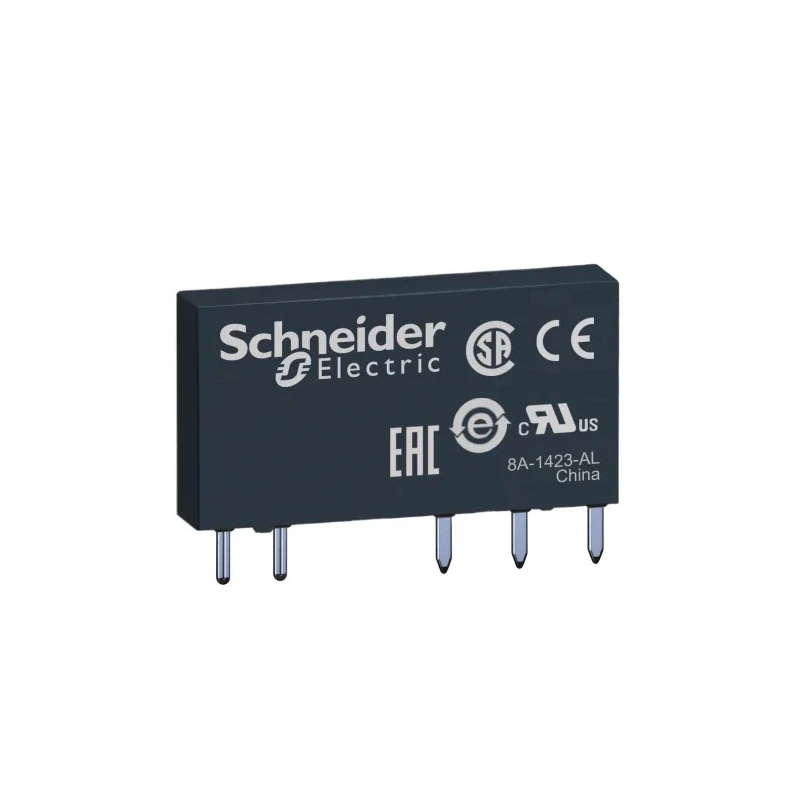

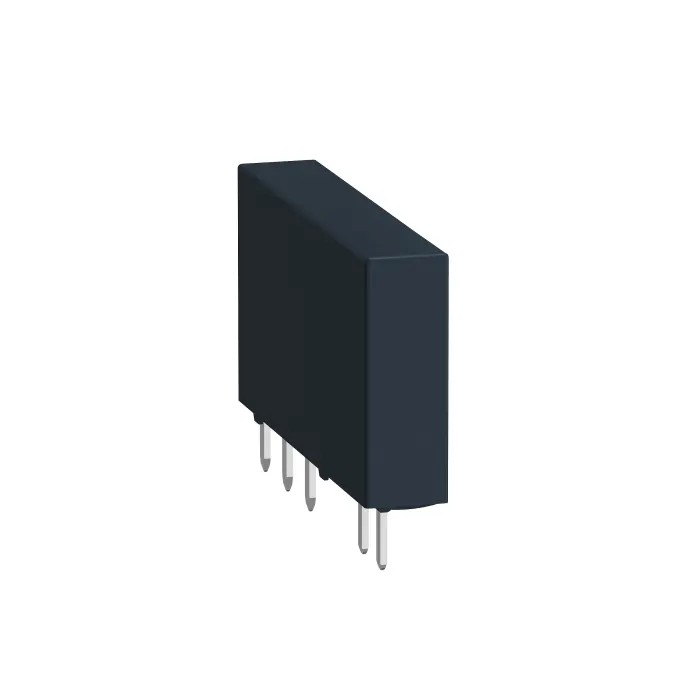

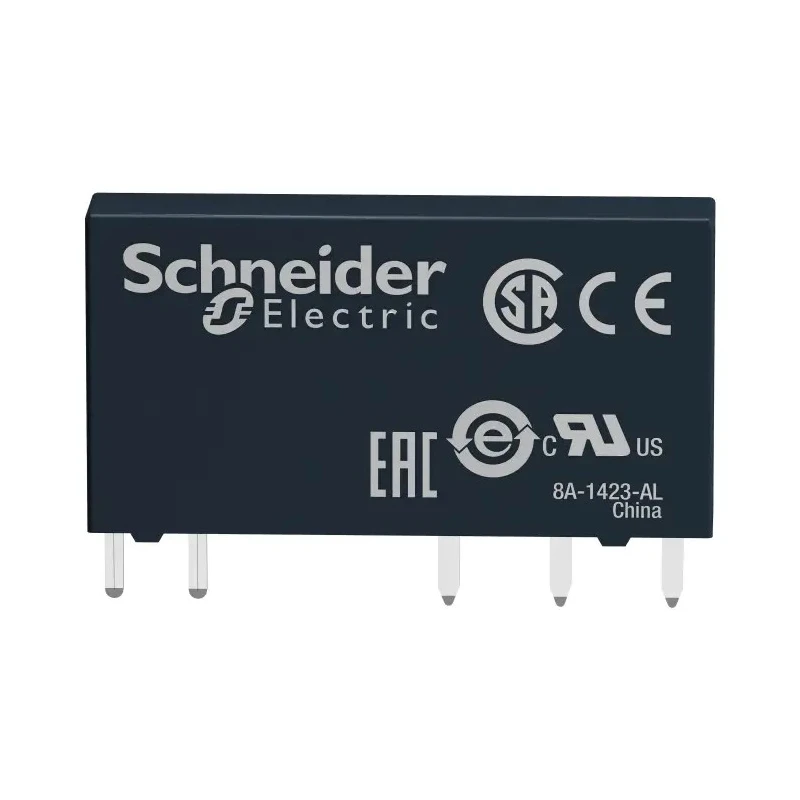

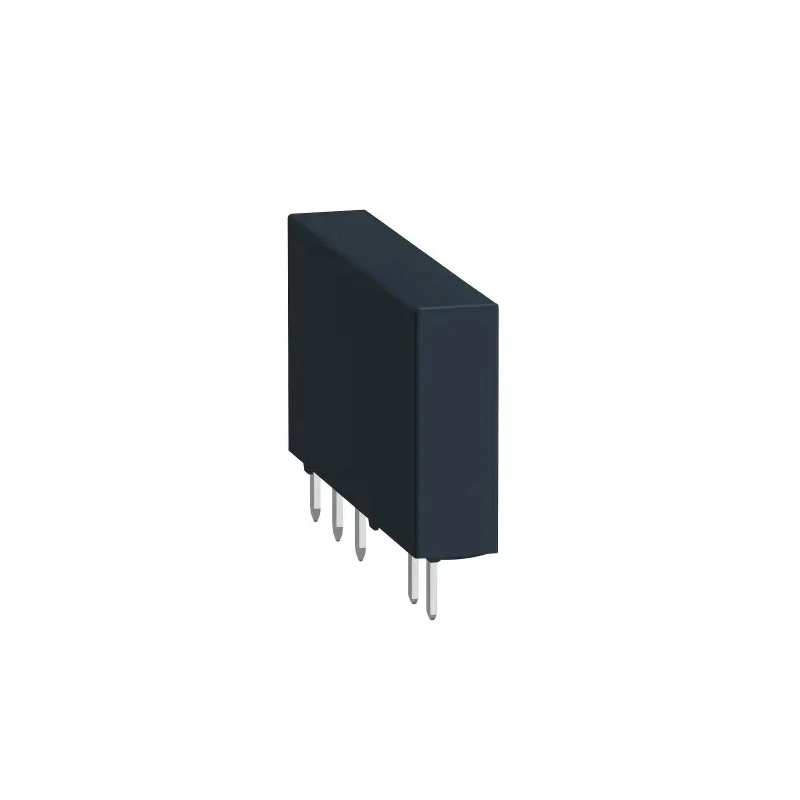

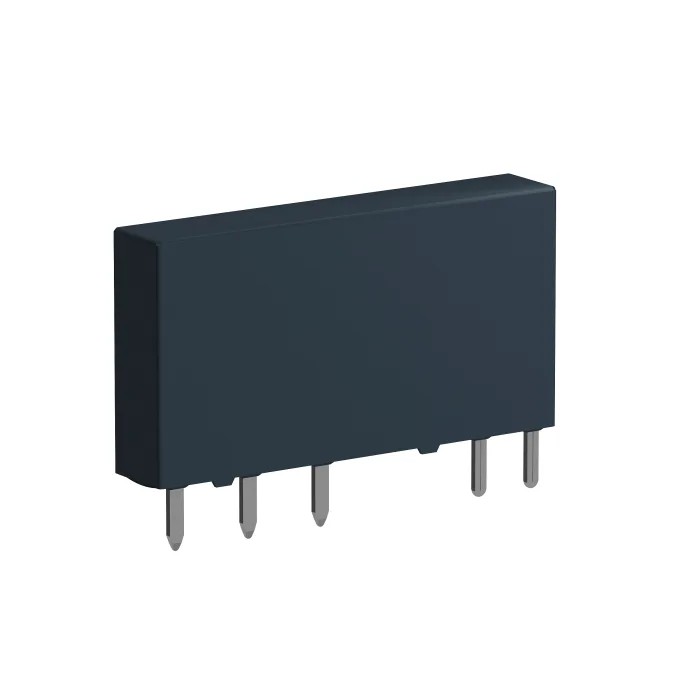

Schneider Electric PCB Power Relay 12V dc Coil 6A Switching Current SPDT RSL1AB4JD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 28mm |
| Length | 5mm |
| Model | RSL1AB4JD |
| Width | 15mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RSL |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | PCB Pin |
| Standards/Approvals | RoHS |
| Coil Resistance | 848Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 12V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 170mW |
Key Features
- Features a slim design with a 6mm width for space-saving installation.
- Equipped with 1 changeover contact (SPDT) suitable for high rated current use.
- Coil power consumption is low at 170mW, improving energy efficiency.
- Operates reliably in temperatures from -40°C to 55°C.
- Includes PCB pin terminals for easy installation on printed circuit boards.
- Contact material made of silver alloy for consistent conductivity and durability.
- Supports switching voltages up to 12V dc and 277V ac for versatile applications.
- Constructed to meet RoHS compliance standards, ensuring safety and environmental responsibility.
Product Description
Schneider Electric RSL1AB4JD is a high-quality PCB Power Relay designed for efficient switching operations in industrial and commercial electrical applications. It features a slim interfacing design with a coil voltage of 12V DC and a single pole double throw (SPDT) contact configuration capable of switching a current of 6A. The relay's compact 6mm width allows it to be installed in limited space environments, reducing enclosure sizes and enhancing machine reliability.
This relay operates reliably within a wide temperature range of -40°C to 55°C, making it suitable for diverse environmental conditions. The coil consumes a minimal power of 170mW, contributing to overall energy savings. Its PCB pin terminals facilitate easy and secure mounting on printed circuit boards, streamlining installation processes.
The contact material is crafted from durable silver alloy, ensuring excellent conductivity and long service life. Rated for switching DC voltages up to 12V and AC voltages up to 277V, this relay is highly versatile and fits a broad range of circuit requirements. Its RoHS compliance guarantees adherence to environmental and safety standards.
The Schneider Electric RSL1AB4JD relay is compatible with hard-wired logic automated systems and industrial programmable logic controllers (PLCs), making it ideal for control and signal conditioning tasks in manufacturing, automation, and electrical distribution.
Space-saving slim design enables installation in tight spaces. High switching current capacity of 6A for robust electrical control. Wide operating temperature range ensures reliable performance in harsh conditions. Low coil power consumption improves energy efficiency.
Silver alloy contacts provide durability and excellent electrical conductivity. PCB pin terminals simplify mounting and integration. RoHS compliant, meeting strict environmental regulations. Supports AC and DC switching voltages up to 277V AC and 12V DC.
Designed for use in industrial automation and control systems.
This power relay is an essential component for industrial, electrical, and automation applications, providing reliable switching and control. It complements a comprehensive range of electromechanical relays from Schneider Electric, suitable for interface, miniature, and power relay needs.
Explore more in the Power Relays category on EnvMart for compatible industrial relays and automation products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay has a switching current capacity of 6A, making it suitable for robust electrical control applications.
The coil voltage of this relay is 12V DC, which is necessary for its operation.
The dimensions of the relay are 28mm in height, 15mm in width, and 5mm in length, allowing for space-saving installations.
It operates reliably within a temperature range of -40°C to 55°C, making it suitable for diverse environmental conditions.
This relay features a single pole double throw (SPDT) contact configuration, suitable for various applications.
The coil power consumption is low at 170mW, contributing to improved energy efficiency.
The contacts are made of silver alloy, which ensures consistent conductivity and durability.
It is designed for PCB mounting, featuring PCB pin terminals for easy installation on printed circuit boards.
It supports switching voltages up to 12V DC and 277V AC, providing versatility for different applications.
Yes, it is RoHS compliant, ensuring it meets strict environmental and safety standards.
This model is commonly used in industrial automation and control systems, making it suitable for control and signal conditioning tasks.
This relay is part of the Harmony Relay RSL series, which includes a range of electromechanical relays.
