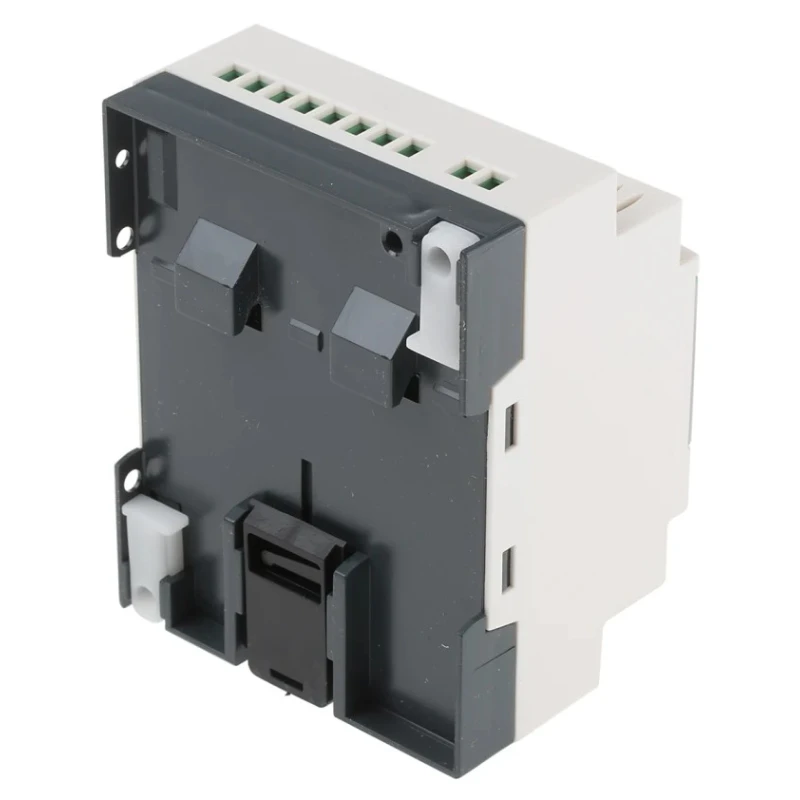

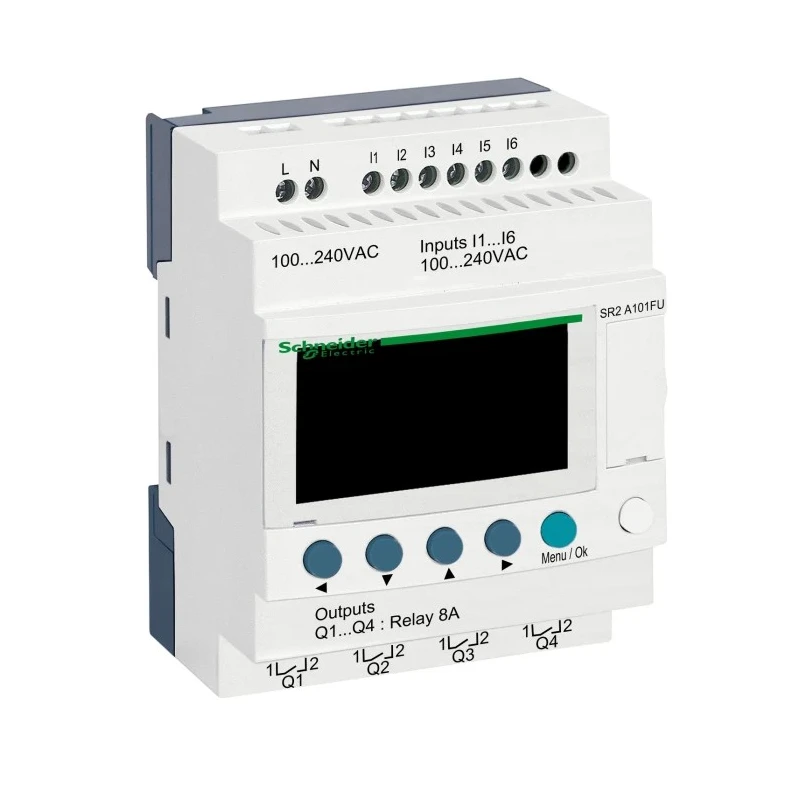

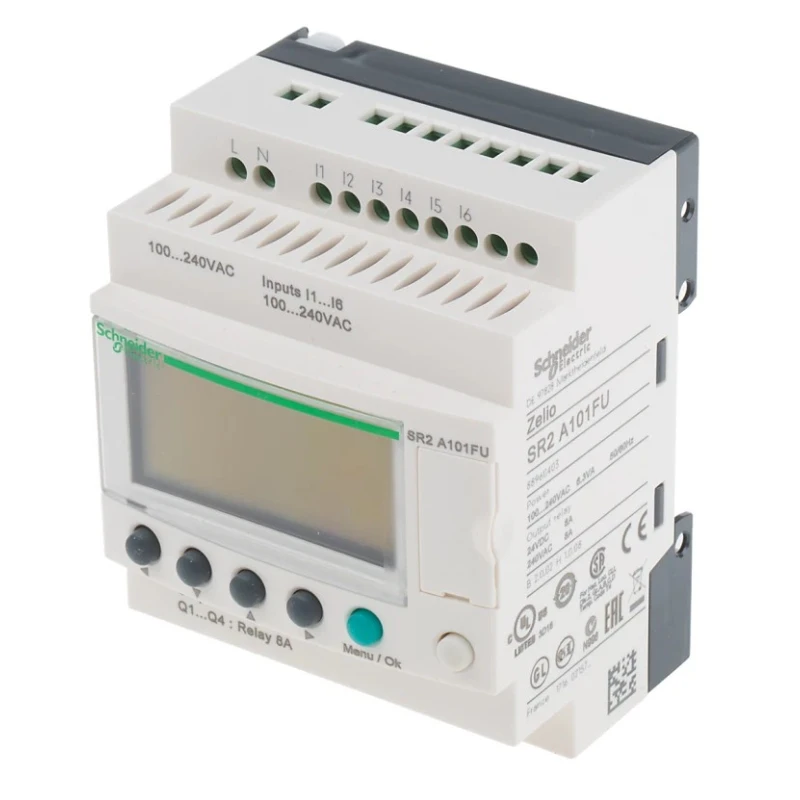

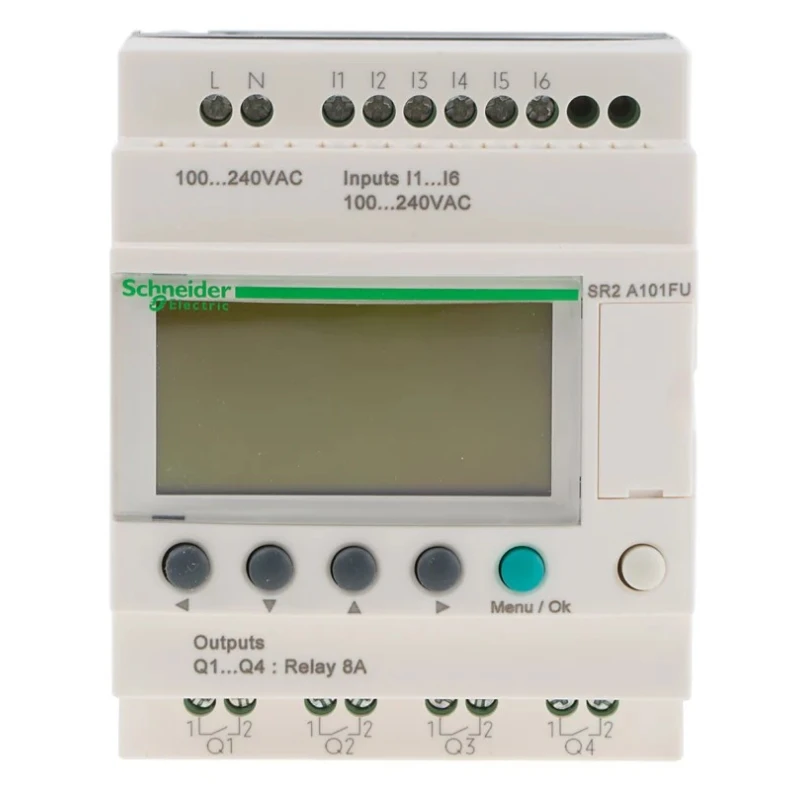

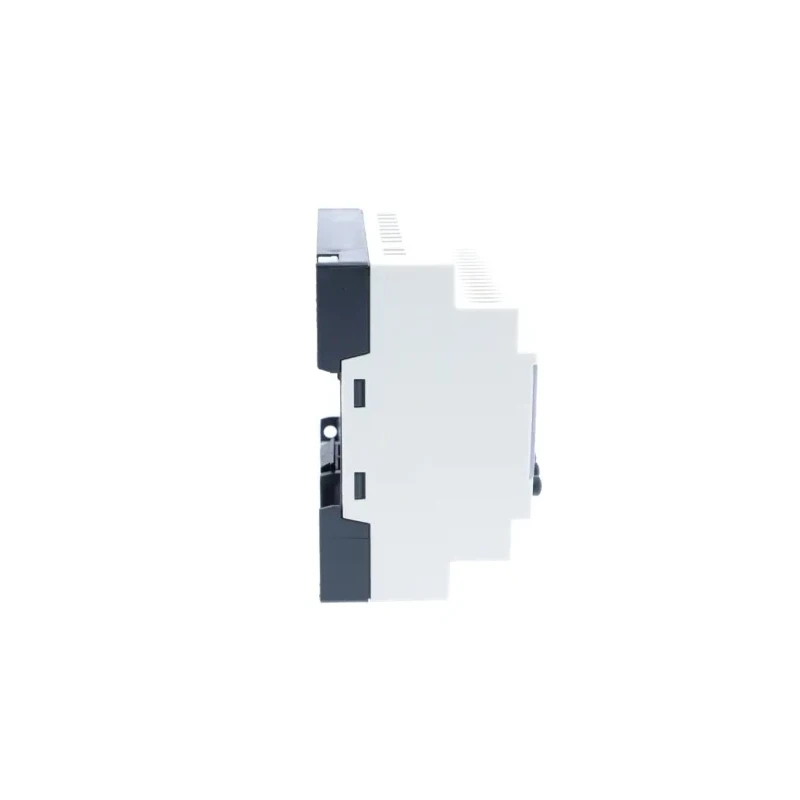

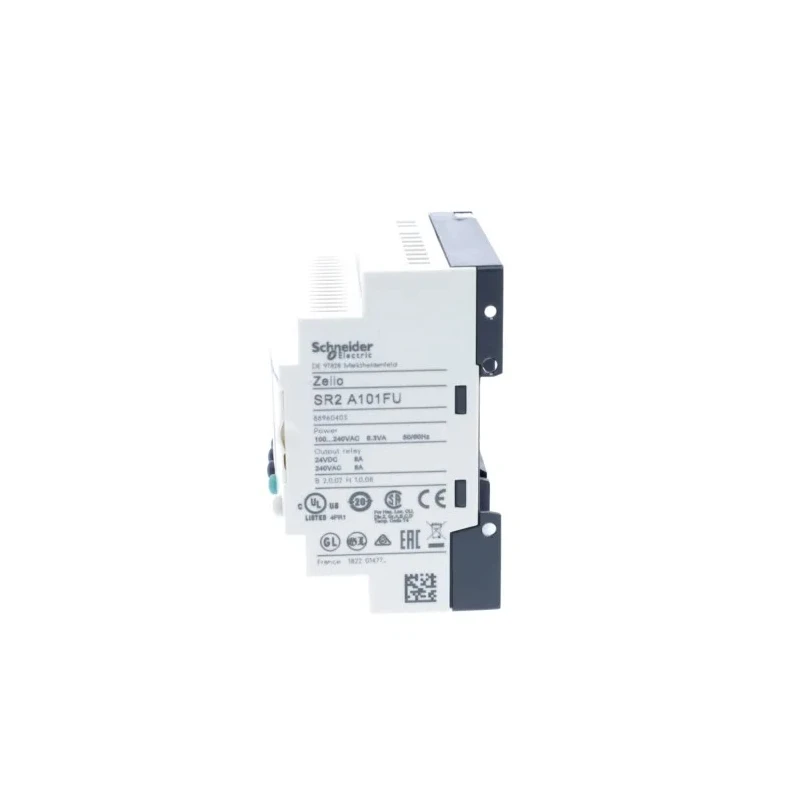

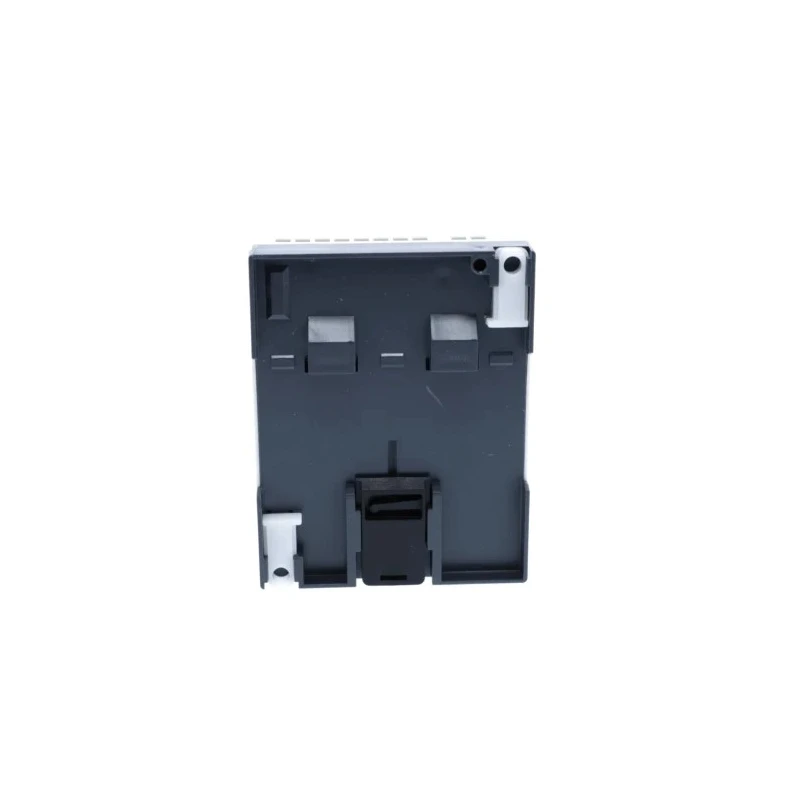

Schneider Electric Zelio Logic Series Logic Module, 6-Input, Discrete Input, 4 Outputs, Relay Output 468-4444
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 71.2mm |
| Model | 468-4444 |
| Depth | 59.5mm |
| Width | 107.6mm |
| Mount Type | DIN Rail |
| Number of inputs | 6 |
| Output type | Relay |
| Series | Zelio Logic |
| Input Type | Discrete |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 4 |
| Supply Voltage | 120, 240V ac |
| Standards/Approvals | CSA, UL, IEC, GL |
| Communication Port Type | GSM Modems |
| Programming Language Used | FBD, Ladder Logic, Sequential function chart (SFC) |
| Standard zelio logic PLC,SR1A101FU 10i/oBrand | Schneider Electric |
Key Features
- Supports a wide supply voltage range of 120 to 240 V AC.
- Features a bright LCD display for easy monitoring in low light conditions.
- Includes battery backup for 10 years data retention.
- Operates reliably within industrial temperature ranges from -20°C to 55°C.
- Equipped with GSM modem communication port for flexible connectivity.
- Designed for DIN Rail mounting ensuring easy installation.
- Programmable with graphical languages such as FBD, Ladder Logic, and SFC.
- Protected against over-voltage for enhanced durability in harsh environments.
Product Description
Schneider Electric 468-4444 Logic Module, part of the Zelio Logic Series, is a compact programmable logic controller providing 6 discrete inputs and 4 relay outputs designed to control small automated systems.
Its versatile supply voltage of 120 to 240 V AC and robust design make it suitable for industrial and commercial environments such as warehouses, agricultural machinery, and commercial HVAC systems.
The module features a bright LCD screen for clear visibility in poorly lit conditions, alongside durable screw terminals that maintain electrical connections even during vibrations.
Built-in battery backup allows program memory retention for up to 10 years, facilitating rapid deployment and reduced setup time across multiple devices. Its wide operating temperature range from -20°C to 55°C ensures reliable performance in various industrial climates.
Communication is enabled via GSM modem ports, supporting remote connectivity and monitoring.
Programming is accessible using graphical languages, including Function Block Diagram (FBD), Ladder Logic, and Sequential Function Chart (SFC), making it suitable for users without specialized programming knowledge.
The device requires installation within an enclosure to prevent damage or fire hazards due to foreign objects or wiring debris. Supports wide AC supply voltage (120-240 V AC). Bright LCD enhances readability in difficult lighting.
10-year battery backup preserves user programs. Robust terminals designed for vibration resistance. Wide operating temperature range (-20°C to 55°C). GSM modem communication port included. DIN Rail mount for easy installation.
Compatible with graphical programming languages (FBD, Ladder Logic, SFC). Protected against over-voltage to ensure stability. Ideal for industrial, agricultural, and commercial automation.
This Schneider Electric Zelio Logic Module enhances automation projects with dependable performance and flexible control features. Explore more automation solutions and programmable logic controllers at EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a wide supply voltage range of 120 to 240 V AC.
This model features 6 discrete inputs and 4 relay outputs.
It operates reliably within an industrial temperature range from -20°C to 55°C.
It can be programmed using graphical languages such as Function Block Diagram (FBD), Ladder Logic, and Sequential Function Chart (SFC).
It is equipped with GSM modem communication ports for flexible connectivity.
The dimensions are 71.2 mm in length, 59.5 mm in depth, and 107.6 mm in width.
It is designed for DIN Rail mounting, ensuring easy installation.
The bright LCD display allows for easy monitoring in low light conditions.
It includes a battery backup that allows for 10 years of program memory retention.
It is compliant with standards from CSA, UL, IEC, and GL.
The output type is relay, suitable for controlling small automated systems.
Yes, it is protected against over-voltage to ensure stability in harsh environments.
