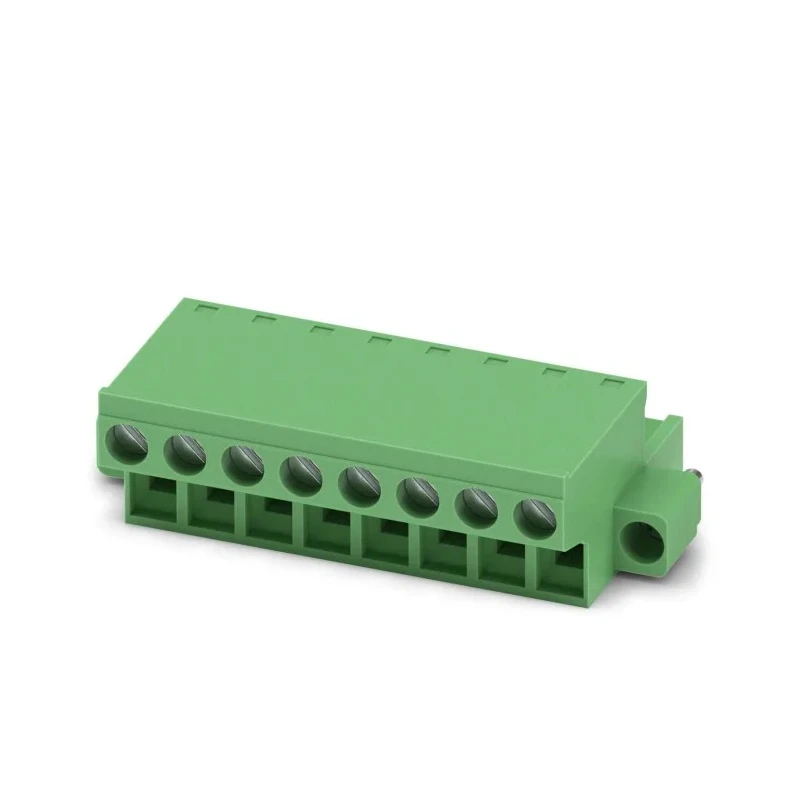

Phoenix Contact Pluggable Terminal Block, 8-Contact, 5.08 mm Pitch, 1 Row, 12A Current, Polyamide Housing, Green 1777798

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Pluggable Terminal Block, 8-Contact, 5.08 mm Pitch, 1 Row, 12A Current, Polyamide Housing, Green 1777798

Name: Phoenix Contact Pluggable Terminal Block, 8-Contact, 5.08 mm Pitch, 1 Row, 12A Current, Polyamide Housing, Green 1777798
Brand: PHOENIX CONTACT
SKU: 333163
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	630V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	12A
Length	27.2mm
Model	1777798
Depth	15mm
Width	50.44mm
Housing Material	Polyamide
Series	FRONT-MSTB 2.5/8-STF-5.08
Number of Rows	1
Pitch	5.08mm
Number of Contacts	8
Connector Gender	Female
Minimum Wire Size mm²	0.34mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Push-in Spring
PCB connector, nominal current	12 A, rated voltage (III/2): 320 V, number of positions: 8, pitch: 5.08 mm, connection method: Front screw connection, colour: green, contact surface: Tin

Key Features

Supports a nominal current of 12 A for efficient power transmission.
Features one row with an 8-contact layout for compact PCB integration.
Constructed with polyamide housing in green color for durability and easy identification.
Wire connection method utilizes push-in spring technology for secure and quick installation.
Compatible with wire sizes ranging from 24 AWG to 12 AWG ensuring flexible application.
Connector gender is female with a straight orientation for straightforward PCB mounting.
Manufactured in Germany, meeting high-quality standards for electronic components.

Product Description

Phoenix Contact 1777798 is a high-quality pluggable terminal block designed for secure and reliable electrical connections in industrial and electronic applications. It features an 8-contact configuration with a 5.08 mm pitch and a single row layout, making it ideal for compact printed circuit board (PCB) mounting.

This terminal block supports a nominal current of 12 A and a rated voltage of 630 V, providing robust performance in power distribution and signal applications. The connector housing is made of durable polyamide material with a green finish, offering excellent mechanical strength and chemical resistance.

The wire connection method is a push-in spring system, allowing for quick and tool-free wire termination, enhancing installation efficiency. It accommodates wires from 24 AWG to 12 AWG (0.34 mm² to 2.5 mm²), making it versatile for various wiring requirements.

With dimensions of 27.2 mm length, 50.44 mm width, and 15 mm depth, the terminal block provides compact footprint, suitable for densely populated PCBs. The female connector gender and straight orientation facilitate easy front wiring and integration.

Made in Germany, this terminal block complies with rigorous manufacturing standards, ensuring long-term reliability in industrial, automation, HVAC, manufacturing, and electronic control systems.

Supports 12 A nominal current for efficient power handling. Push-in spring wire connection method for fast installation. Polyamide housing provides durability and chemical resistance. Compact 8-contact, 1-row design with 5.08 mm pitch.

Compatible with wire sizes from 24 AWG to 12 AWG. Rated voltage of 630 V for a wide range of applications. Made in Germany ensuring high manufacturing quality. Explore more Phoenix Contact pluggable terminal blocks and electronic components at EnvMart for your industrial and commercial projects.
