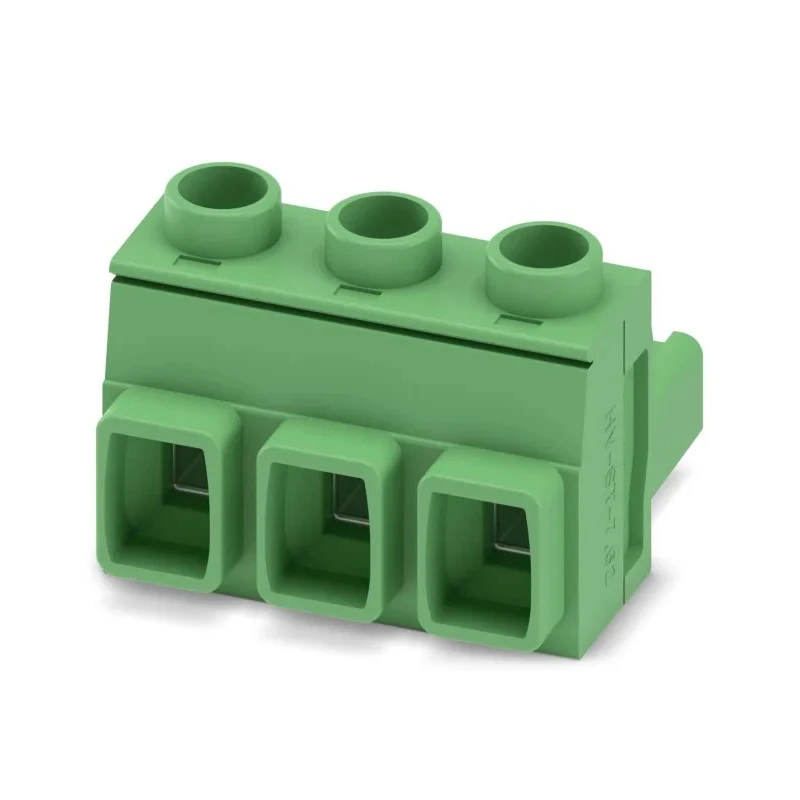

Phoenix Contact Pluggable Terminal Block 3-Contact, 7.62 mm Pitch, 1 Row, 16A, 1kV, Polyamide Housing 1714281

Phoenix Contact 1714281 is a high-quality pluggable terminal block designed to provide secure and efficient electrical connections on printed circuit boards. It features three contacts with a 7.62 mm pitch arranged in a single row, supporting a nominal current of 16 amperes and a rated voltage of 1 kV, suitable for a wide range of industrial and electronic applications.

The terminal block is constructed with a durable polyamide housing colored green, providing excellent insulation and mechanical strength. The screw connection method incorporates a tension sleeve ensuring a reliable and vibration-resistant clamp on wires. The contact surfaces are tin-plated to resist corrosion and maintain stable electrical conductivity over time.

This component accepts wires ranging from 0.2 mm² (24 AWG) up to 0.2 mm² (12 AWG), accommodating various wiring configurations. Its compact dimensions of 21 mm length, 22.64 mm width, and 17.5 mm depth make it ideal for space-efficient PCB layouts. The device supports straightforward installation, including wave soldering mounting techniques.

Applications include use in industrial automation, control systems, and electronic circuit assemblies requiring dependable power and signal connections. The product's design emphasizes longevity, ease of installation, and compliance with electrical safety standards.

Durable polyamide housing enhances mechanical strength. Nominal current rating of 16 A and rated voltage of 1 kV ensure high performance. Screw connection with tension sleeve secures wire connections and reduces maintenance.

Supports wire sizes from 24 AWG to 12 AWG, offering flexibility. Compact size supports efficient PCB space management. Tin-plated contacts provide corrosion resistance and reliable conductivity. Green color coding facilitates identification and system integration.

Straight orientation and female connector gender standardize compatibility.

The Phoenix Contact 1714281 pluggable terminal block is manufactured in Germany and meets rigorous quality controls. It is a dependable choice for various electronic and industrial environments requiring secure, maintainable, and efficient PCB connections.
