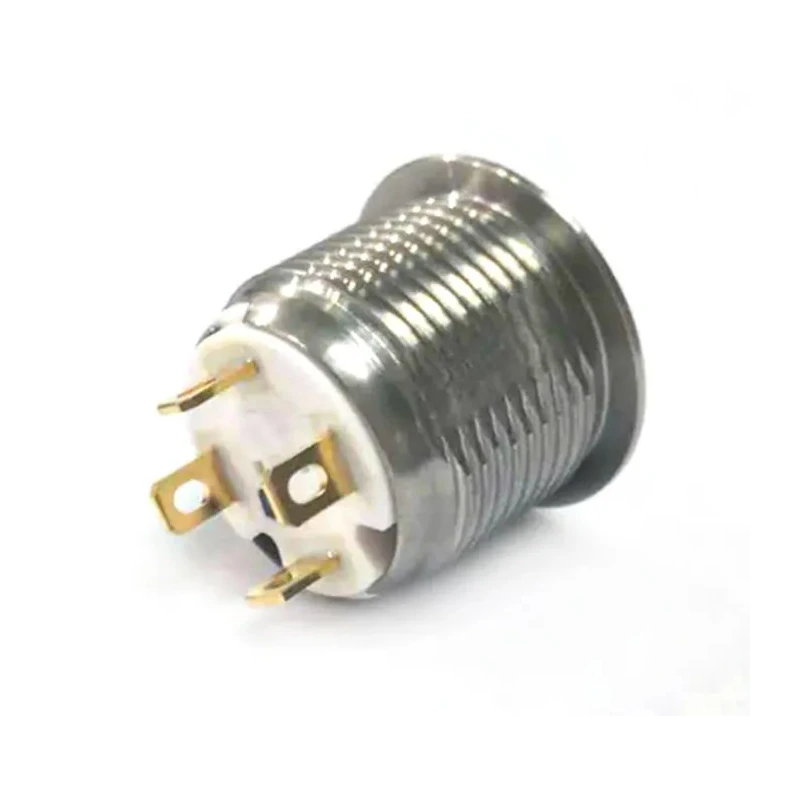

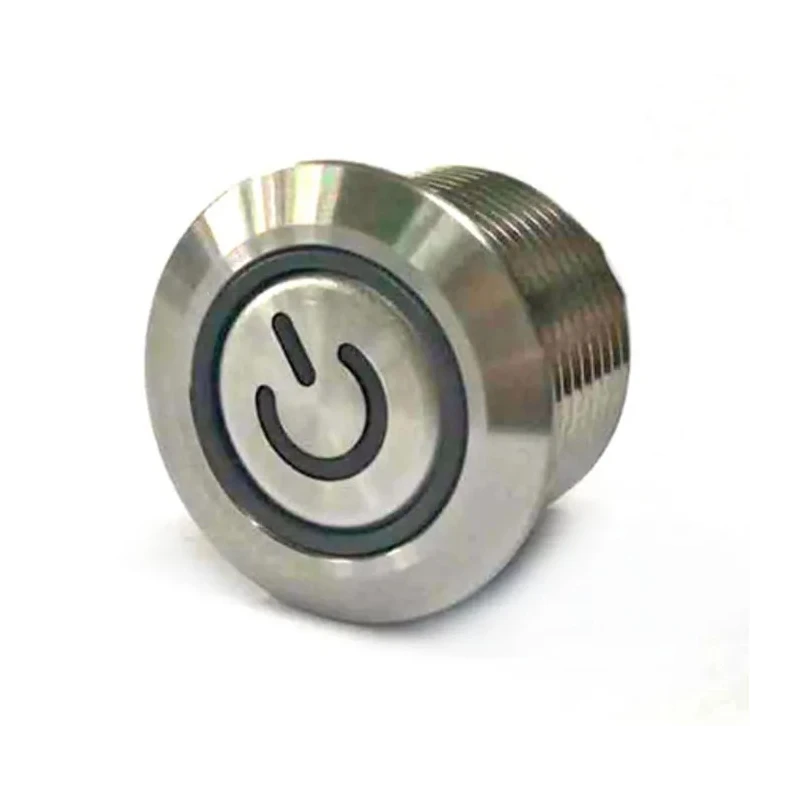

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 16 mm Cutout, SPST, Blue LED, IP67, 36 V dc 175-9119
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 175-9119 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Solder |
| Standards/Approvals | UL 94 V-0, UL 94 V-2 |
| LED Colour | Blue |
| Switch Operation | Momentary |
| Contact DC Voltage | 36V dc |
| Actuator Style | Flat |
| Switch Contact Current | 2A |
| Legend | Power Symbol |
Key Features
- This push button switch features a blue LED for clear visual indication.
- It is rated IP67 for excellent protection against dust and water ingress.
- The switch operates at 36 V dc with a contact current rating of 2A.
- The flat actuator style provides a low-profile and user-friendly interface.
- Designed to operate reliably within a temperature range of -20°C to 70°C.
- Constructed to meet UL 94 V-0 and UL 94 V-2 approvals for safety and durability.
- Ideal for industrial control instruments, medical equipment, and security monitoring applications.
- Country of origin is Taiwan, Province Of China.
Product Description
RS PRO 175-9119 Illuminated Momentary Push Button Switch is a high-quality, panel-mounted switch designed for industrial and commercial applications. It features a 16 mm cutout size suitable for compact installations and an SPST contact configuration to provide simple ON/OFF functionality with momentary operation. The switch includes a bright blue LED, making it highly visible and easy to use in control panels.
Constructed with IP67 protection, the switch is highly resistant to dust ingress and water exposure, ensuring reliable performance even in harsh environments. The flat actuator style contributes to a sleek, vandal-resistant design while maintaining ease of operation.
Operating at 36 V dc and rated for a contact current of 2A, this switch is built to meet UL 94 V-0 and UL 94 V-2 flame retardant standards, reflecting its durability and safety certifications. It performs well within an operating temperature range from -20°C to 70°C, making it suitable for various industrial and medical applications.
Typical use cases include industrial control instruments, security monitoring equipment, vehicle peripherals, energy storage systems, and audio-visual equipment. The switch is manufactured in Taiwan, Province Of China, assuring high manufacturing standards.
This switch features a momentary operation suitable for transient control functions. Blue LED illumination provides clear status indication. IP67 rating ensures protection against dust and water. Panel mount design with 16 mm cutout size for easy installation.
SPST contact configuration supports simple circuit control. Flat actuator style offers a vandal-resistant and ergonomic design. Rated to operate safely between -20°C and 70°C. Complies with UL 94 V-0 and V-2 safety standards.
Contact voltage rating is 36 V dc with a 2A current rating.
This RS PRO push button switch is an excellent choice for precision control environments in industrial, laboratory, manufacturing, HVAC, and commercial applications. Explore more high-quality RS PRO switches and control devices on EnvMart.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an SPST (Single Pole Single Throw) contact configuration, allowing for simple ON/OFF functionality with momentary operation.
It operates at a contact DC voltage of 36 V and has a contact current rating of 2 A.
The switch is rated IP67, providing excellent protection against dust ingress and water exposure.
This unit is designed to operate reliably within a temperature range of -20°C to 70°C.
The required panel cutout size for installation is 16 mm.
It features a blue LED for clear visual indication of the switch status.
It complies with UL 94 V-0 and UL 94 V-2 safety standards, reflecting its safety and durability certifications.
The switch has a flat actuator style, contributing to a low-profile and user-friendly interface.
This model is designed for panel mounting, making it suitable for compact installations.
It is ideal for use in industrial control instruments, medical equipment, and security monitoring applications.
The switch is equipped with solder terminals for secure connections.
The push button switch is manufactured in Taiwan, Province of China, ensuring high manufacturing standards.
