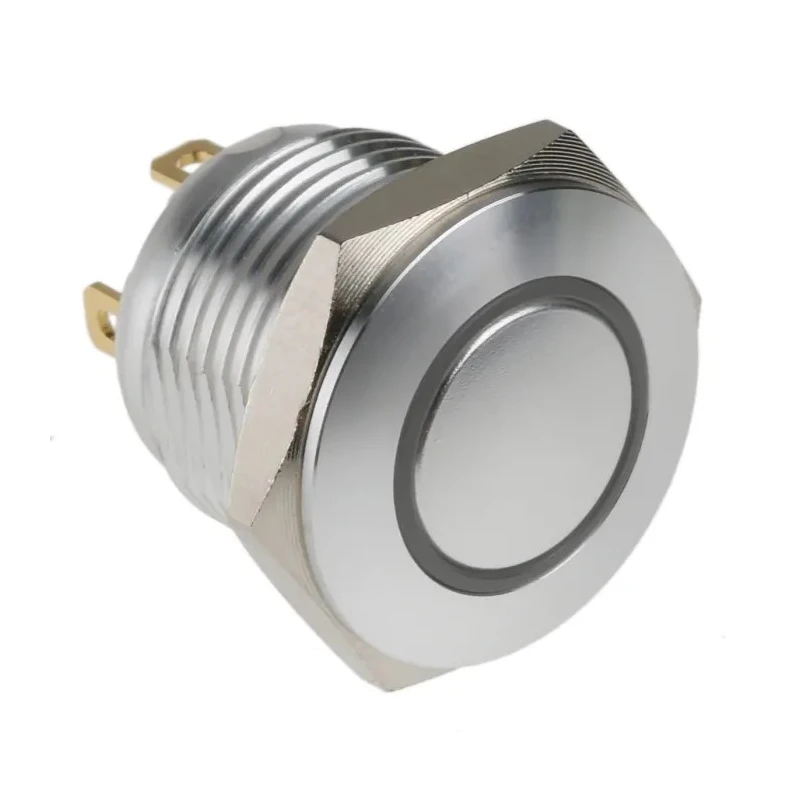

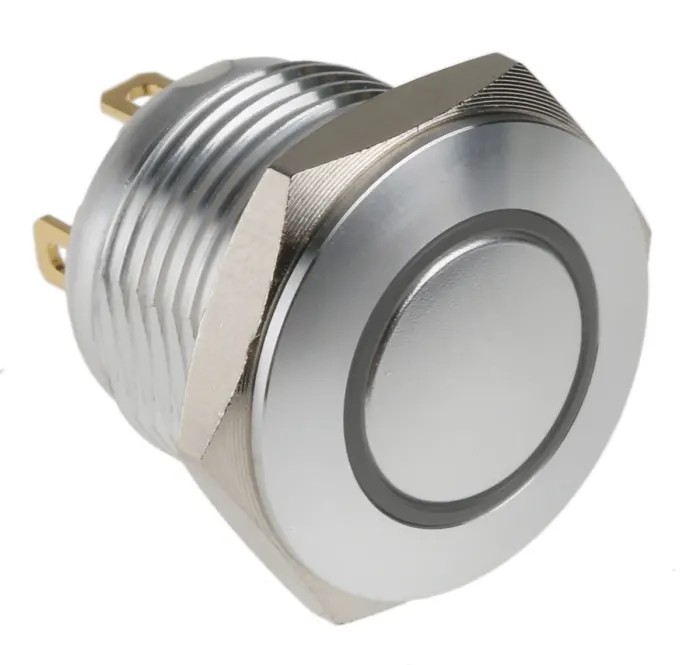

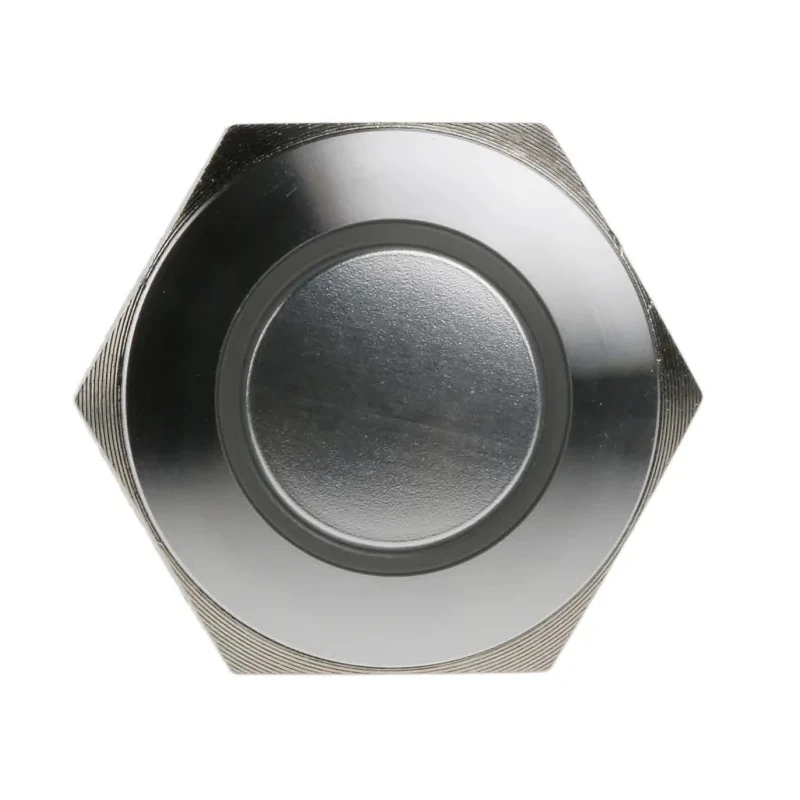

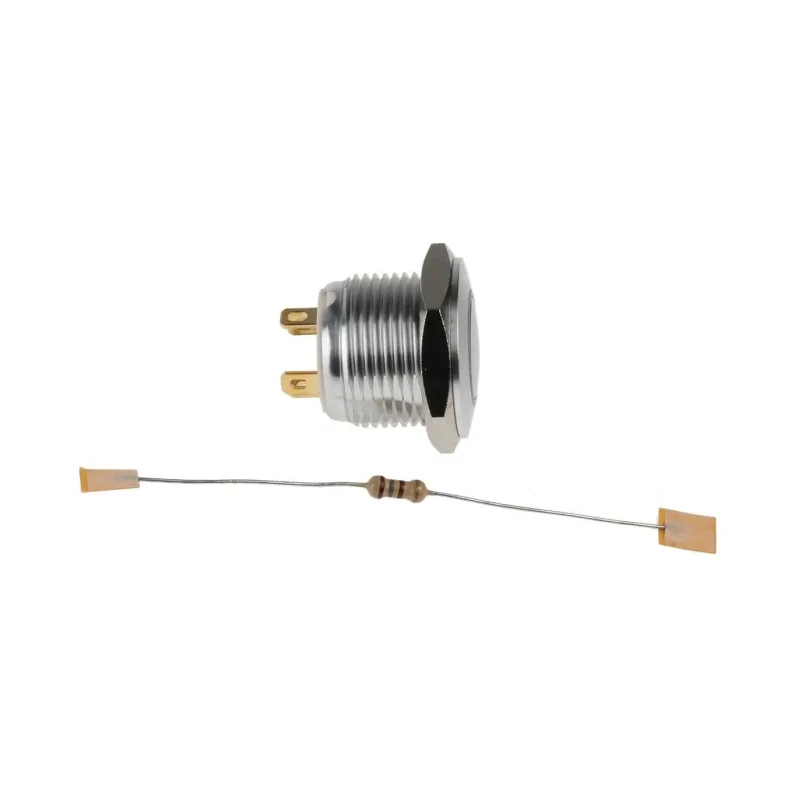

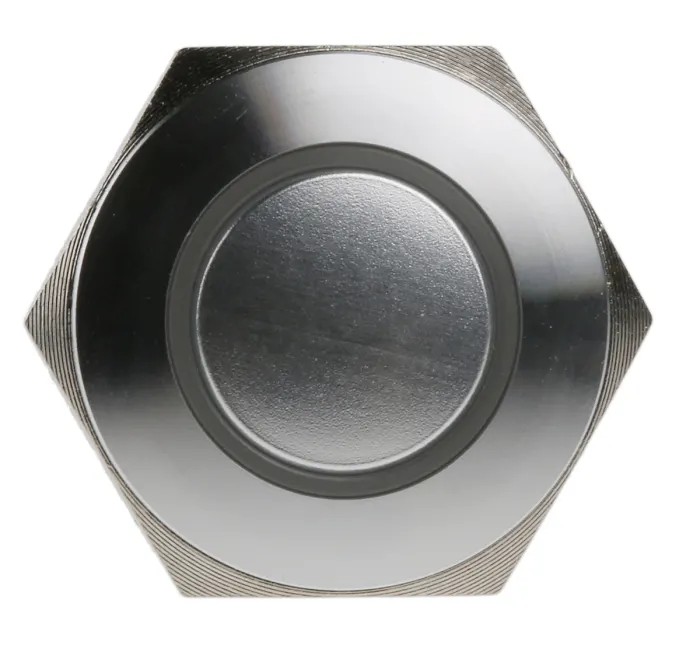

RS PRO Illuminated Momentary Push Button Switch Panel Mount 16 mm Cutout SPST Red Green LED IP67 36 V dc 175-8499

RS PRO 175-8499 Illuminated Push Button Switch is a high-quality, momentary panel mount switch designed for demanding industrial and commercial environments. Featuring a 16 mm panel cutout and SPST contact configuration, this switch provides reliable and robust operation. The round actuator style offers ease of use while the dual LED illumination in red and green colors ensures clear visual status indications under varied conditions.

With an IP67 rating, the switch is dust tight and waterproof, making it highly suited for applications in harsh environments where ingress protection is critical. The switch supports a contact DC voltage of 36 V dc and can handle a contact current of 2 A, making it effective for control and signaling circuits.

Compliance with UL 94 V-0 and UL 94 V-2 standards affirms its flame-retardant properties, enhancing the safety profile for installation in diverse settings. The operating temperature range from -20°C to +70°C allows the switch to perform reliably in varying ambient temperatures.

This switch's robust construction includes anti-vandal characteristics making it suitable for public and industrial installations requiring vandal resistance. The lightweight metal body delivers good corrosion resistance, heat dissipation, and aesthetic appeal.

Applications for the RS PRO 175-8499 include industrial control instruments, medical equipment, security monitoring systems, vehicle peripherals, audio-visual devices, and energy storage equipment, ensuring broad usability across sectors.

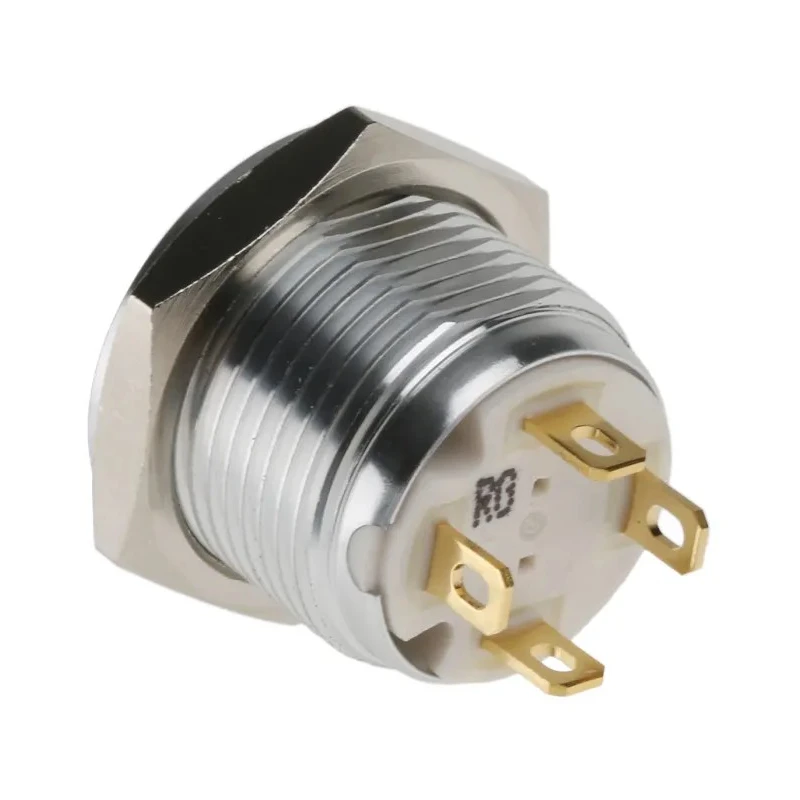

The switch operates momentarily with a durable round actuator style. Illumination is provided by red and green LEDs for clear status indication. Designed for panel mounting with a 16 mm cutout diameter. The contact configuration is Single Pole Single Throw (SPST) with solder terminals.

The device has an IP67 ingress protection rating, ensuring dust tight and waterproof performance. It supports a contact DC voltage of 36 V dc and a contact current rating of 2 A. The switch is compliant with UL 94 V-0 and UL 94 V-2 standards, ensuring flame retardancy.

Operating temperature range is from -20°C to +70°C for versatile environmental use. Originating from Taiwan, Province Of China, this switch is designed for industrial and commercial applications.

This RS PRO illuminated push button switch combines durability, safety, and visual feedback features ideal for industrial automation, electrical panels, manufacturing, and security systems. Explore the Electronics & Electricals category for more high-quality control switch solutions at EnvMart.
