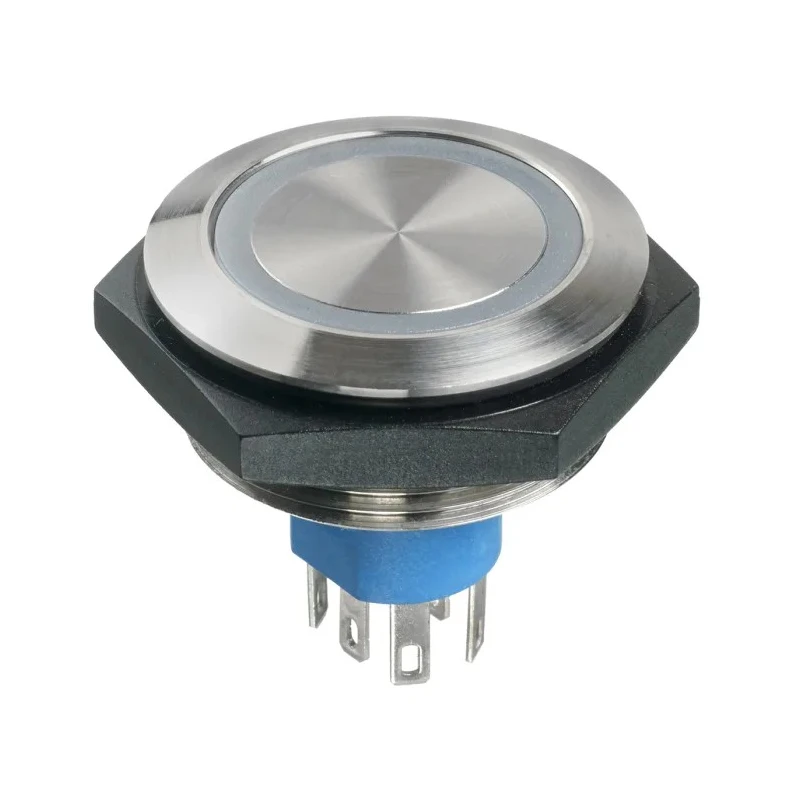

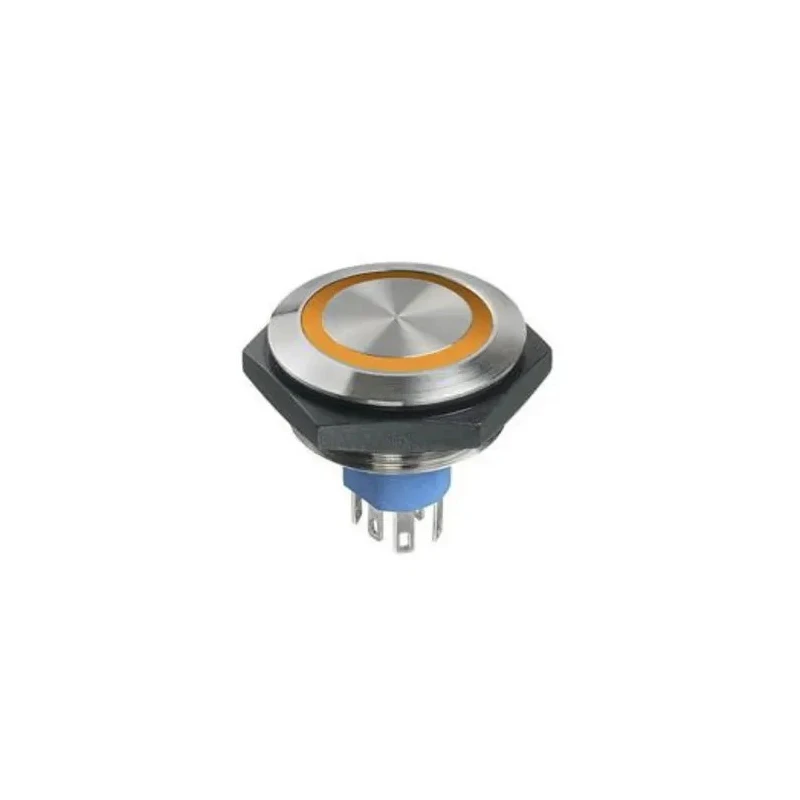

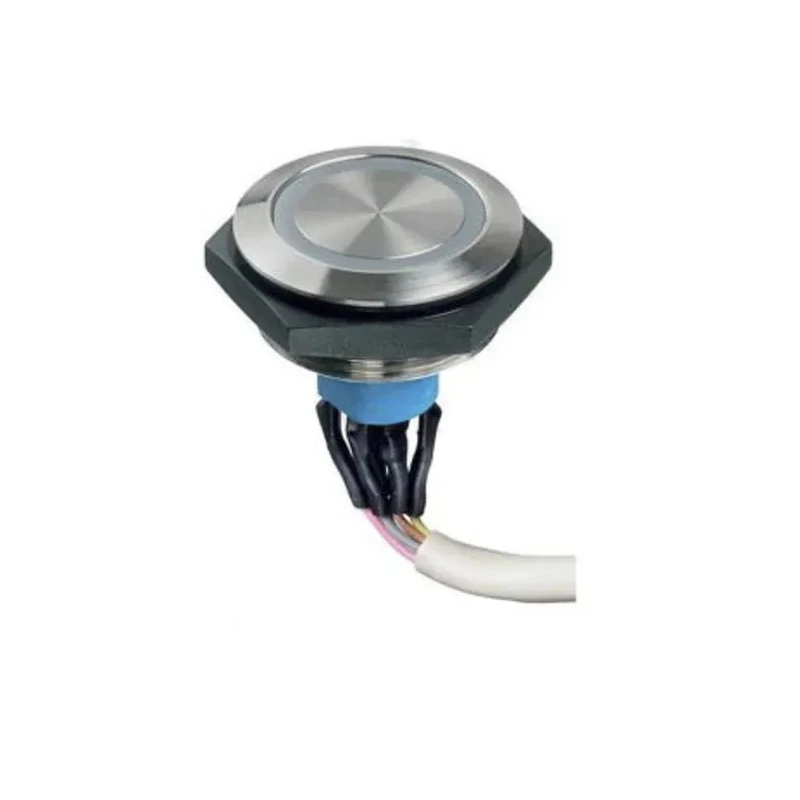

APEM AV Series Vandal Proof Push Button Switch Momentary Panel 30.2 mm Cutout SPST IP67 30 V dc AV50022000024BK

Name: APEM AV Series Vandal Proof Push Button Switch Momentary Panel 30.2 mm Cutout SPST IP67 30 V dc AV50022000024BK
Brand: APEM
SKU: 332126
Price: 83.67 USD
Availability: InStock



Category Push Button Switches Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Length	200mm
Model	AV50022000024BK
IP Rating	IP67
Mount Type	Panel
Series	AV
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Switch Configuration	NC/NO
Minimum Operating Temperature	-30°C
Panel Cutout Size	30.2 mm
Terminal type	Quick Connect
Standards/Approvals	EN 62262, IEC 60529, IK06
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	30V dc
Actuator Style	Round
Switch Contact Current	1A
Mechanical Life	1 million cycles

Key Features

The actuator is silver colored with a round style for easy access.
Specifically designed for panel mounting with a 200 mm length thread.
Provides momentary switch operation with NC/NO configuration for versatile use.
Rated for a switch contact current of 1A suitable for low power applications.
Offers a robust IP67 protection rating to resist dust and water ingress.
Constructed for operation in temperature ranges from -30°C to 70°C.
Complies with EN 62262, IEC 60529, and IK06 standards for durability and safety.
Mechanical lifecycle rated for 1 million operations ensuring long-lasting usage.

Product Description

The APEM AV50022000024BK is a vandal proof push button switch from the AV Series engineered for secure and reliable control in industrial, automation, and electrical panel applications.

This momentary push button switch has a silver-colored round actuator designed to offer a large actuation surface, ensuring ease of use and visibility when mounted on panels featuring a 30.2 mm cutout diameter.

Equipped with a single-pole single-throw (SPST) momentary switch operation and NC/NO contact configuration, it supports 30 V dc contact voltage and a 1A contact current rating, suitable for low voltage electrical control circuits.

With a robust IP67 protection rating, it provides full protection against dust ingress and immersion in water up to defined limits, making it suitable for harsh and outdoor environments.

The switch supports quick connect terminals for simplified wiring and panel mounting, with an overall thread length of 200 mm for secure installation.

Engineered to withstand operating temperatures from -30°C to 70°C, it meets international standards EN 62262, IEC 60529, and IK06, ensuring mechanical durability and impact resistance.

The mechanical life expectancy reaches up to 1 million cycles, promising sustained reliability in industrial automation, manufacturing control panels, and security applications. The actuator is silver colored with a round style for easy access.

Specifically designed for panel mounting with a 200 mm length thread. Provides momentary switch operation with NC/NO configuration for versatile use. Rated for a switch contact current of 1A suitable for low power applications.

Offers a robust IP67 protection rating to resist dust and water ingress. Constructed for operation in temperature ranges from -30°C to 70°C. Complies with EN 62262, IEC 60529, and IK06 standards for durability and safety.

Mechanical lifecycle rated for 1 million operations ensuring long-lasting usage.

This APEM push button switch is ideal for electrical and automation control panels, industrial machinery, HVAC equipment, commercial electrical installations, and any application requiring a robust, vandal resistant momentary control switch.
