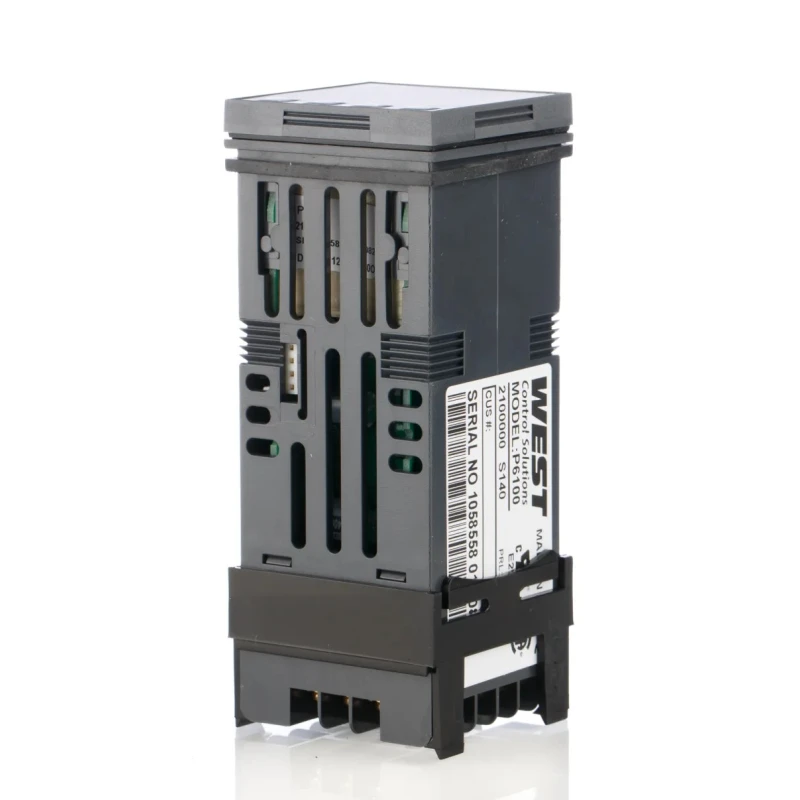

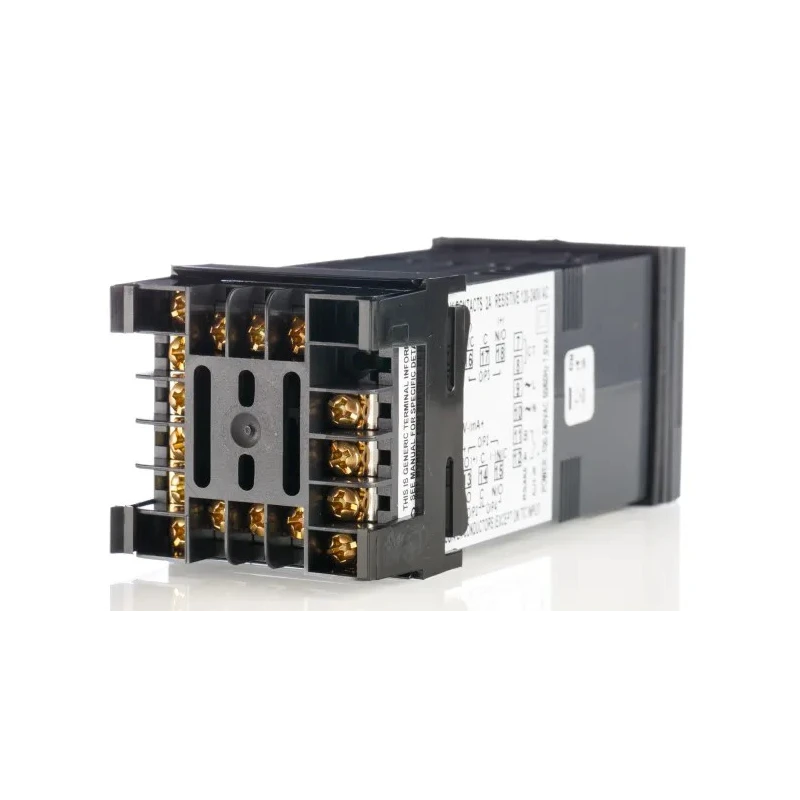

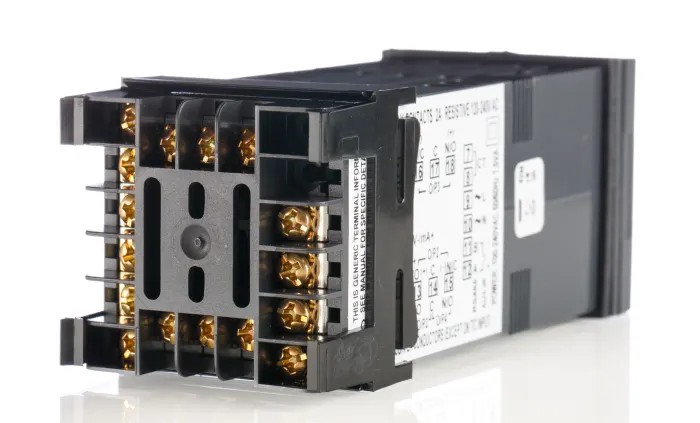

West Instruments PID Temperature Controller 1 Input, 1 Relay Output, 240V AC, DIN Rail Mount P6100-2100-00-0

Free Delivery in India | Lowest Global Shipping Charges

West Instruments PID Temperature Controller 1 Input, 1 Relay Output, 240V AC, DIN Rail Mount P6100-2100-00-0

Name: West Instruments PID Temperature Controller 1 Input, 1 Relay Output, 240V AC, DIN Rail Mount P6100-2100-00-0
Brand: West Instruments
SKU: 332048
Price: 564.69 USD
Availability: InStock



Category Temperature Controller Brand West Instruments Condition New

Specifications

Country of Origin	United Kingdom
Display Type	LED
Brand	West Instruments
Length	48mm
Model	P6100-2100-00-0
IP Rating	IP20, IP66
Width	24mm
Mount Type	DIN Rail
Number of inputs	1
Output type	Relay
Series	P6100
Maximum Operating Temperature	55°C
Control Type	On-Off
Minimum Operating Temperature	0°C
Maximum Current	20mA
Number of outputs	1
Terminal type	Screw
Maximum Voltage	10V
Standards/Approvals	UL, CE, ULC
Maximum Supply Voltage	240V ac
Digital Comms	RS485
Panel Depth	120mm
1/16DIN temp controller,90-264VacBrand	NEUTRAL

Key Features

Equipped with a single thermocouple input suitable for types J, K, R, S, T, B, L, and N.
Features a configurable relay output for on-off control accommodating heating and cooling systems.
Operates on 100 - 240V AC supply with a maximum current of 20mA, supporting DIN rail mounting for easy installation.
Durable design includes IP20 and IP66 rated facia for dust and water resistance.
LED dual 4-digit display with easy 4-button operation and RS485 digital communication interface.
Supports auto/manual tuning, ramping set point, and two process alarms enhancing process control flexibility.
Compact size with dimensions 48mm length, 24mm width, suitable for panel depths up to 120mm.

Product Description

West Instruments P6100-2100-00-0 is a versatile PID temperature controller designed for industrial and process control applications. It features a single input compatible with multiple thermocouple types and a single configurable relay output enabling precise on-off temperature regulation through heating or cooling systems.

The controller runs on a universal 100 to 240 V AC power supply and is designed for quick installation on standard DIN rails, making it suitable for retrofit or new equipment setups. Its compact 1/16 DIN size (48mm x 24mm) facilitates integration in control panels of up to 120mm depth.

The robust construction includes an IP20 rated housing complemented by an IP66 rated facia, providing resistance against dust ingress and water exposure, ensuring reliability in industrial environments.

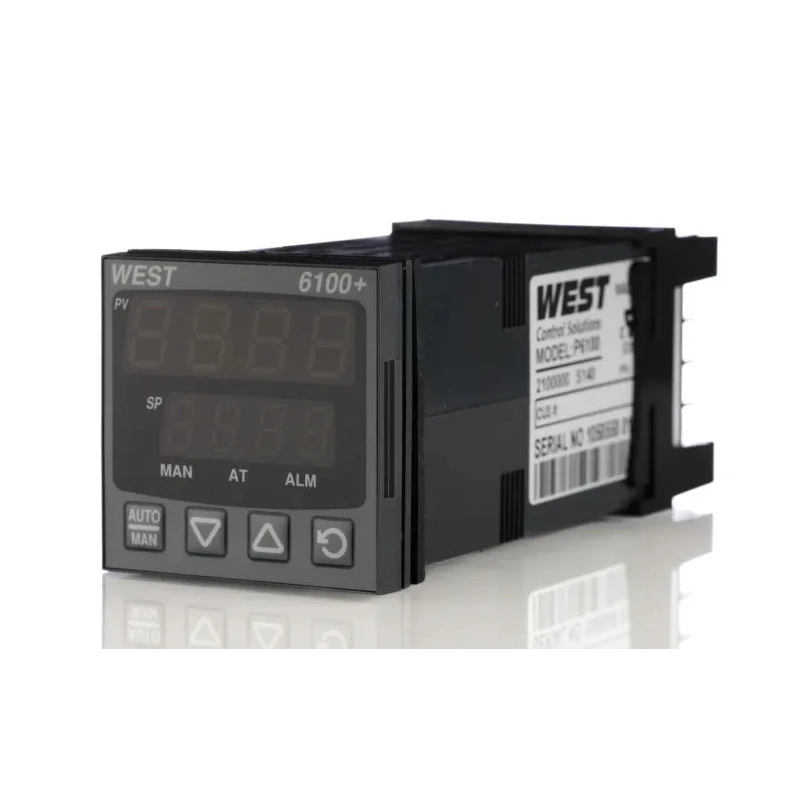

Equipped with dual 4-digit LED displays (10mm and 8mm digit heights), the controller shows clear process and set point values. Its intuitive 4-button interface allows easy configuration and operation. The built-in RS485 communication port supports integration with digital control networks.

Advanced control features include full PID control with pre-tune, self-tune, manual tuning modes, selectable heat and cool functions, ramping set points, and two process alarms along with a loop alarm. These features provide flexible and reliable temperature control suitable for manufacturing, HVAC, water treatment, and laboratory applications.

Equipped with a single thermocouple input compatible with various types. Configurable relay output for on/off temperature control. Universal AC power supply with a maximum current of 20mA. Rugged IP20/IP66 housing for harsh industrial environments.

Clear LED display and intuitive control buttons. Support for RS485 digital communication. Advanced PID control and alarm functionalities.

This controller is made in the United Kingdom, ensuring compliance with relevant UL, CE, and ULC standards. It is ideal for industrial machines and instruments requiring reliable, compact, and precise temperature control. Explore more process control instruments and Temperature Controllers on EnvMart for comprehensive industrial automation solutions.
