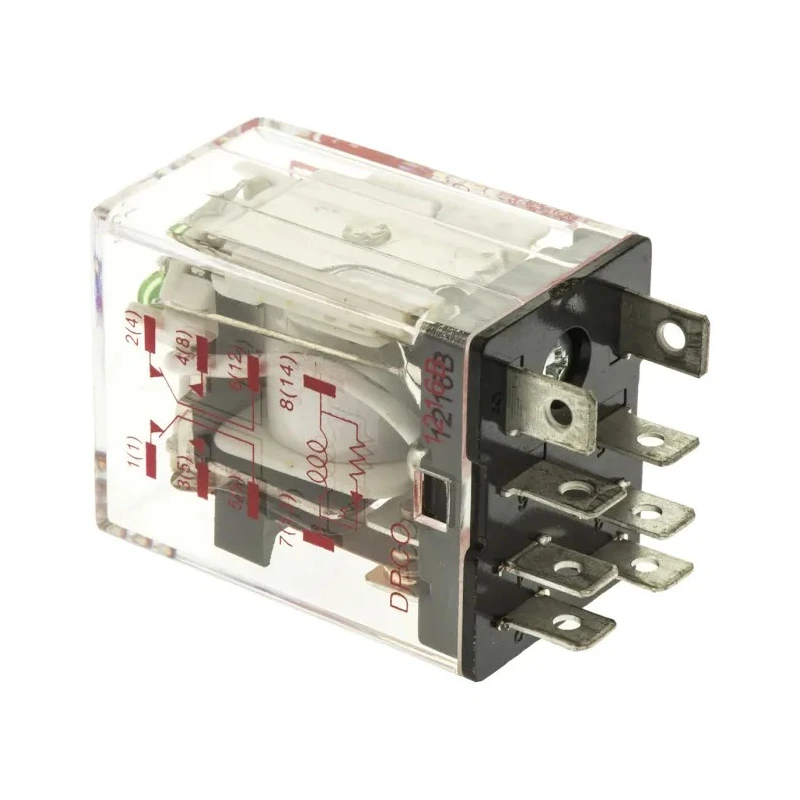

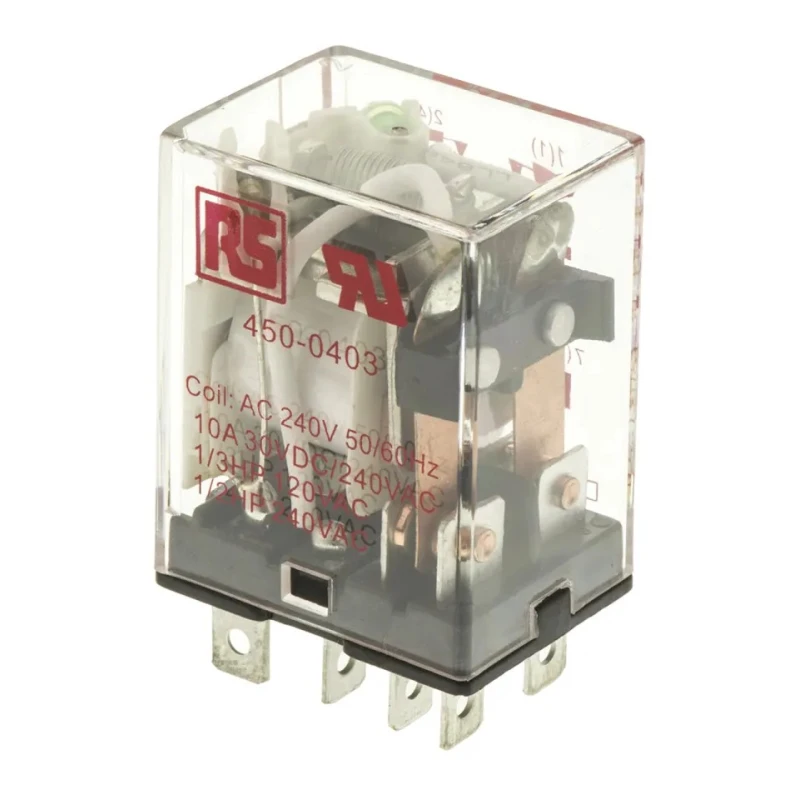

RS PRO Plug-in Power Relay, 240V AC Coil, 10A Switching Current, DPDT 450-0403

RS PRO 450-0403 plug-in power relay is a robust, general purpose relay featuring a 240V AC coil and DPDT contact configuration. It is designed for reliable switching control in industrial, automation, and electrical panel applications with a maximum switching current of 10A.

This relay's compact build (36 x 28 x 21.5 mm) makes it ideal for installation in constrained areas. The coil LED power indicator provides clear ON/OFF status even in low-light conditions, aiding operational efficiency.

The plug-in mount and PCB pin terminals offer straightforward wiring and serviceability. Silver alloy contacts provide stable conductivity and increased longevity under electrical load.

With a switching capacity of up to 2.4 kVA on AC and 300W on DC loads, this relay supports a broad range of use cases including control panel circuitry, sequence control, direct load switching, surge protection, and industrial automation systems.

Operating temperature ranges from -45° to 55°C to ensure dependable performance in various environments. UL, EN, and CE certifications attest to its compliance with international safety and quality standards.

The RS PRO 450-0403 relay is engineered for durability with an electrical life expectancy of one million operational cycles, making it a dependable choice for frequent switching requirements.

Applications include power control, industrial machinery, automation controllers, and electrical equipment monitoring. The user-friendly push button feature enables technicians to manually activate the relay for quick testing and troubleshooting operations.

Explore more electrical relays and accessories within the RS PRO range and broader Power Relay products on EnvMart for industrial and engineering needs. Double Pole Double Throw (DPDT) design enables versatile switching applications.

Coil voltage rated at 240V AC with a coil resistance of 15.7 kΩ. Compact dimensions of 36mm height, 28mm length, and 21.5mm width for use in confined spaces. Silver alloy contacts ensure good conductivity and durability.

Includes coil LED status lamp for easy operation indication in low light environments. Plug-in mount type with PCB pin terminals for straightforward installation. Maximum switching power of 2.4 kVA AC and 300W DC suitable for industrial and control panel use.

Electrical life rated at 1,000,000 cycles promising long operational durability. Operating temperature range from -45°C to 55°C supports various environments. Certified to UL, EN, CE standards for quality assurance. Discover a wide selection of relays to suit power, signal, and control requirements across professional applications on EnvMart.
