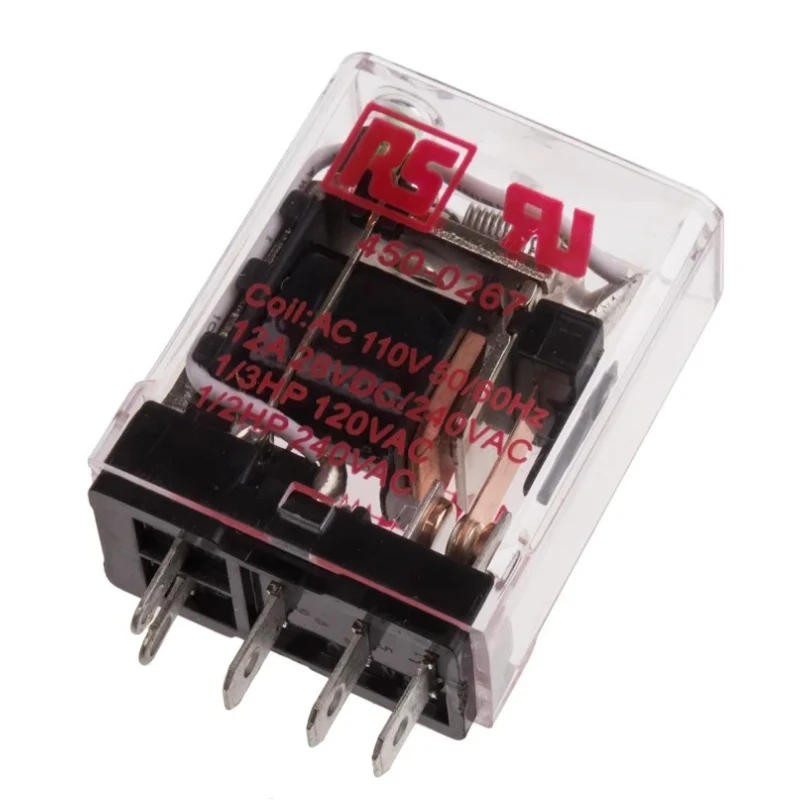

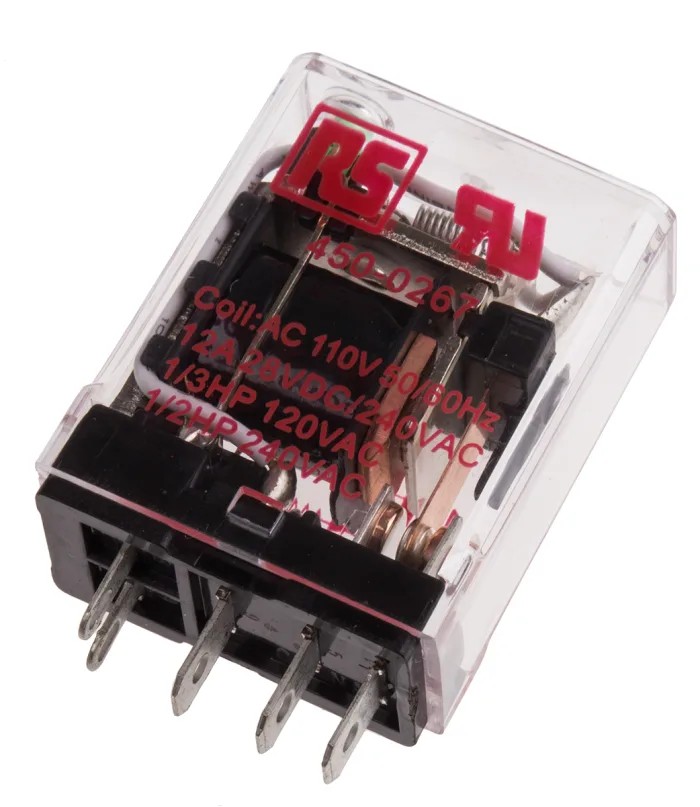

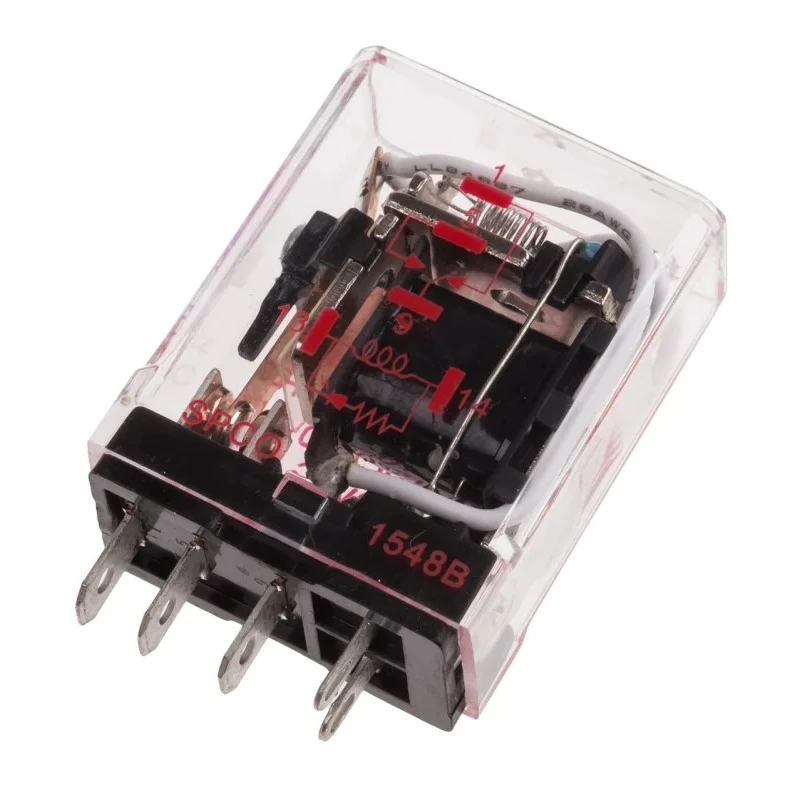

RS PRO PCB Power Relay, 110V AC Coil, 15A Switching Current, SPDT 450-0267

RS PRO 450-0267 PCB Power Relay is a robust industrial component designed specifically for PCB mounting applications in electrical, automation, and control systems. The relay features a 110V AC coil and a switching current capacity of 15A with a SPDT contact configuration, making it ideal for a wide range of switching requirements in industrial automation, manufacturing, and HVAC systems.

The relay supports a maximum switching power of 3.6 kVA, allowing for safe and effective switching of AC voltages up to 240V and DC voltages up to 28V. Its silver alloy contact material ensures minimal contact resistance (maximum 50 mΩ), contributing to long-term reliability and superior conductivity.

Designed to perform reliably within a minimum operating temperature of -45°C up to a maximum of 55°C, this relay is suitable for harsh environments. The coil resistance of 3.8 kΩ and coil power rating of 1.2 W help optimize energy consumption without sacrificing performance.

With a mechanical life rating of 10 million operations and electrical life rating of 100000 operations, the RS PRO 450-0267 relay provides excellent durability for heavy-duty industrial use. Its compact size, measuring 27 mm in length, 13.5 mm in width, and 35.6 mm in height, makes it easy to integrate into tight spaces on printed circuit boards.

The product is certified to meet international EN, CE, and UL standards, ensuring reliability and safety in commercial and industrial applications ranging from automation systems to power switching solutions.

Suitable for PCB mounting with PCB pin terminals providing secure connections. Reliable operation across wide temperature ranges, from -45°C to 55°C. Supports AC switching voltages up to 240V and DC switching voltages up to 28V with 15A current capacity.

Durable silver alloy contacts with low contact resistance ensure longevity. Energy-efficient coil with 3.8 kΩ resistance and 1.2 W power consumption. Robust mechanical and electrical lifespans support intensive industrial use.

Compact and space-saving with precise dimensions for PCB integration. Compliance with EN, CE, and UL standards guarantees safety and quality.

This RS PRO Power Relay is essential for industrial, laboratory, HVAC, and commercial automation systems requiring dependable switching performance. Explore EnvMart for more industrial-grade relays and electronic components from reputed brands.
