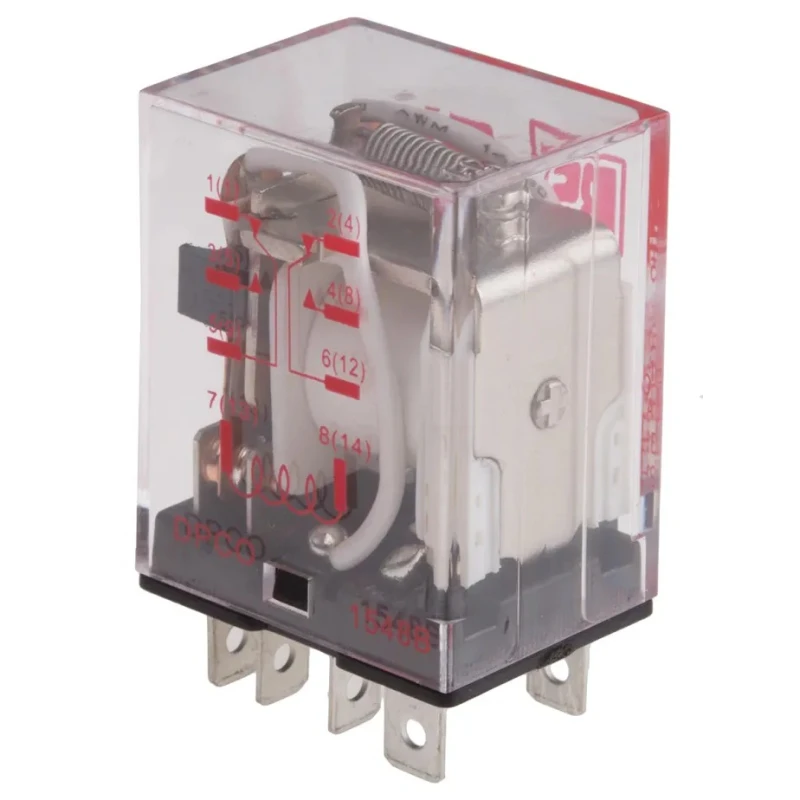

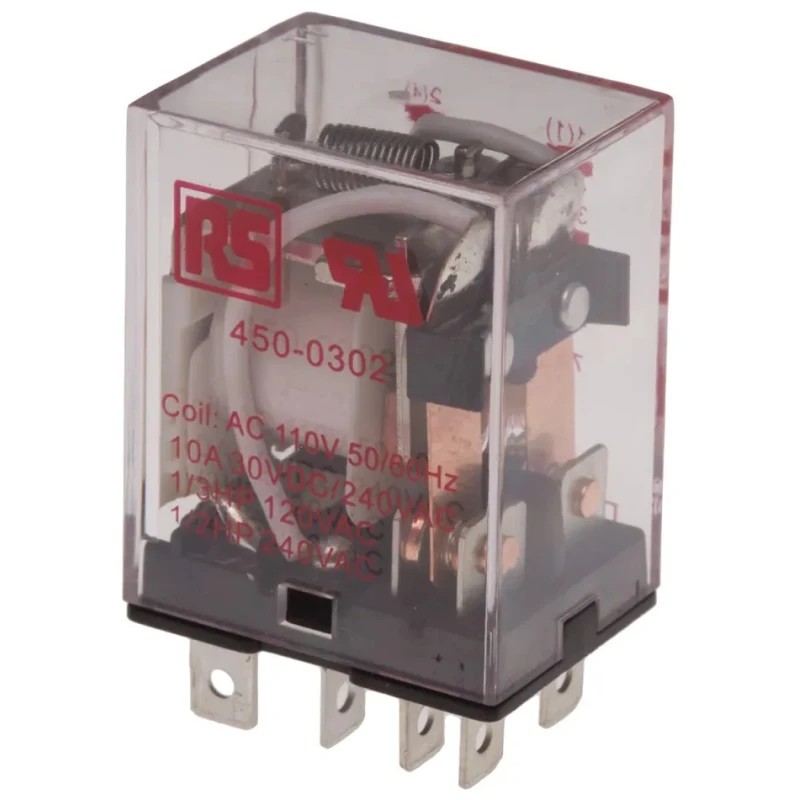

RS PRO Power Relay Plug-in DPDT 110V AC Coil 10A Switching Current 240V AC 450-0302
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Height | 36mm |
| Length | 28mm |
| Model | 450-0302 |
| Width | 21.5mm |
| Mount Type | Plug-in |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ max |
| Standards/Approvals | EN, UL, CE |
| Mechanical Life | 10 million operations |
| Coil Resistance | 3.8kΩ |
| Coil Voltage | 110V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 1.2W |
| Electrical Life | 100000 operations |
| DPCO standard relay,10A 110Vac coilBrand | Idec |
Key Features
- This power relay has a coil resistance of 3.8kΩ and coil power of 1.2W.
- Compatible with PCB pin terminal types for reliable mounting.
- Operates reliably between -45°C and 55°C minimal and maximal operating temperatures.
- Constructed with silver alloy contacts ensuring low contact resistance of 50mΩ max.
- Designed for a mechanical life of 10 million operations and electrical life up to 100000 operations.
- Compact dimensions of 28mm length, 21.5mm width, and 36mm height enable space-efficient integration.
- Standards compliant with EN, UL, and CE certifications.
Product Description
RS PRO 450-0302 is a robust plug-in power relay featuring a double-pole double-throw (DPDT) contact configuration driven by a 110V AC coil. It is engineered to handle a switching current of 10A at 240V AC, making it suitable for various industrial, electrical, and automation applications. The relay is designed for PCB pin mounting, ensuring secure and efficient installation in control panels and circuit boards.
It operates efficiently within a temperature range from -45°C to 55°C and features a coil resistance of 3.8kΩ and coil power rating of 1.2W, optimizing power consumption during relay activation. The relay employs silver alloy contact materials to provide excellent conductivity and durability, with contact resistance not exceeding 50mΩ.
With an extensive mechanical life rated at 10 million operations and an electrical life of up to 100000 operations, this relay promises longevity and reliability in demanding industrial environments. Compact dimensions (28mm length, 21.5mm width, 36mm height) enable integration into tight spaces without compromising performance.
This power relay ensures precise switching control for industrial automation and electrical circuitry. Suitable for applications in manufacturing, HVAC systems, control panels, and automated machinery. Complies with key industry standards including EN, UL, and CE for assured quality and safety.
RS PRO’s 450-0302 model offers dependable relay performance for professionals seeking high quality plug-in Power Relays. Browse more relays and power control products on EnvMart to find the optimal solutions for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 10A at 240V AC.
This model operates with a coil voltage of 110V AC.
The dimensions of the relay are 28mm in length, 21.5mm in width, and 36mm in height.
It features a double-pole double-throw (DPDT) contact configuration.
The relay operates efficiently within a temperature range of -45°C to 55°C.
This model is designed for plug-in mounting, suitable for PCB pin terminal types.
The contact resistance is a maximum of 50mΩ.
It has a mechanical life rated at 10 million operations.
The coil resistance is 3.8kΩ.
The relay complies with EN, UL, and CE standards.
The electrical life is rated for up to 100,000 operations.
The contacts are constructed from silver alloy, ensuring low contact resistance.
