Kubler A40 Series Linear Measuring Encoder IP54 24V Supply Voltage Incremental Model D5.2102.2421.1000

Kubler D5.2102.2421.1000 Linear Measuring Encoder is a high precision incremental encoder designed for motion control and length measurement applications in industrial automation. It operates at a supply voltage of 24V and has an ingress protection rating of IP54, which ensures reliable function in moderately harsh environments.

This encoder features a miniature cable pull sensor configuration with temperature and ageing compensation to deliver consistent and accurate measurements over time. The short-circuit proof outputs combined with reverse polarity protection safeguard the device against electrical faults and connection errors.

With 1000 pulses per revolution and output circuit featuring controller inversion, the encoder provides reliable pulse signals suitable for precise control systems. It is capable of measuring lengths up to 2000 mm thanks to its robust mechanical construction and steel cable design.

The compact size of 74 mm length, 40 mm height, and 40 mm depth allows easy integration in tight spaces commonly found in machine and plant construction environments. The unit is rated for operation up to 85°C, meeting demanding industrial temperature conditions.

This product meets CE compliance requirements under EN50082-2, EN50081-2, and EN55011 Class B standards, ensuring electromagnetic compatibility and safety in use. It is manufactured in Germany to stringent quality standards.

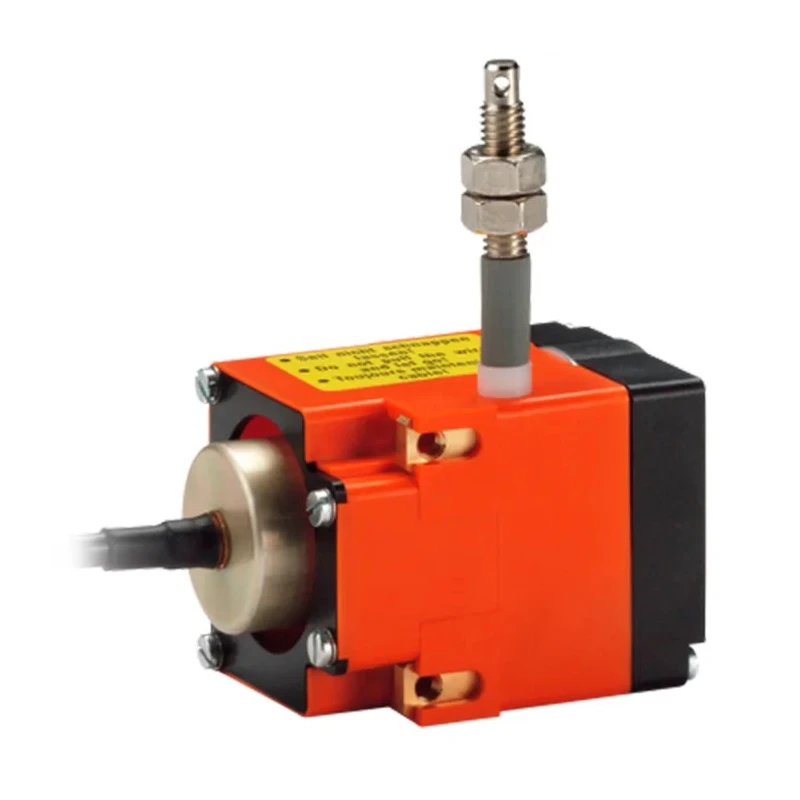

Miniature cable pull sensor designed for length or distance measurement in machine and plant construction. Features temperature and ageing compensation for reliable performance. Short-circuit proof outputs and reverse polarity protection ensure device safety.

Provides 1000 pulses per revolution with output circuit featuring controller inversion. Measured length capacity up to 2000 mm enabled by robust design and steel cable. Compact dimensions of 74 x 40 x 40 mm for space-efficient installation.

Operates reliably up to maximum temperature of 85°C. Complies with CE standards EN50082-2, EN50081-2, and EN55011 Class B for electromagnetic compatibility.

This linear measuring encoder is suitable for applications in industrial automation, manufacturing process control, machine tool positioning, and motion control systems. It offers a compact, rugged solution for precision length measurement and sensor feedback in harsh factory environments.
