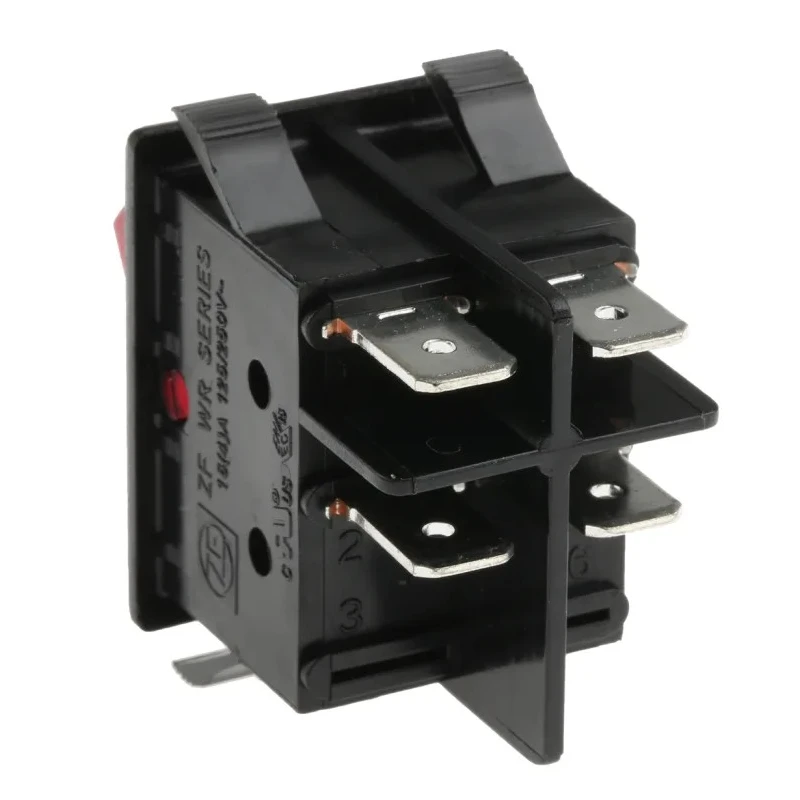

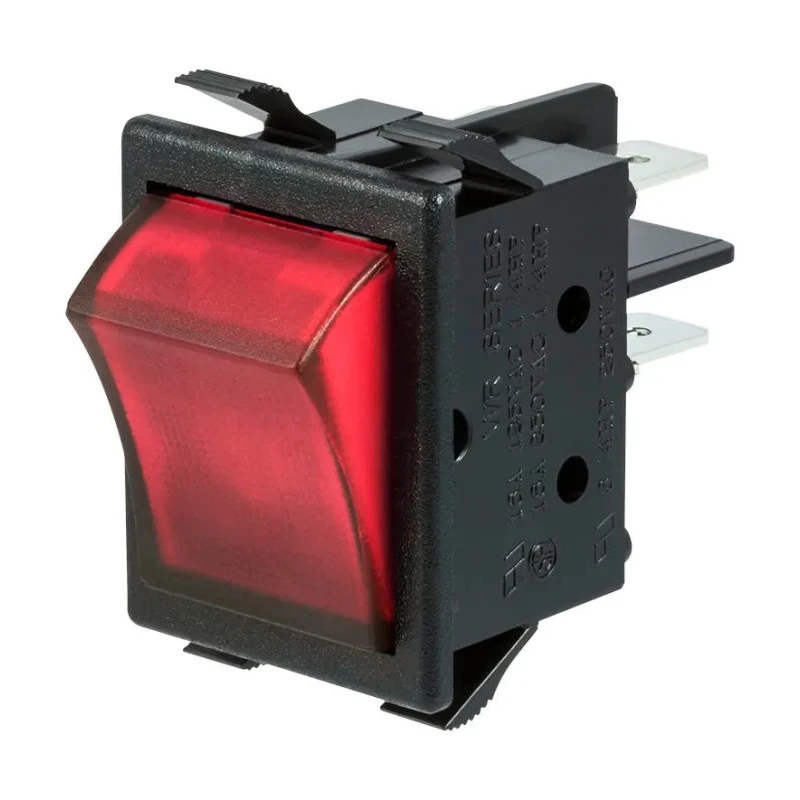

ZF Illuminated Double Pole Single Throw (DPST) On-Off Rocker Switch Panel, Red Actuator, Quick Connect WRG32F2BBREN

ZF WRG32F2BBREN illuminated DPST On-Off rocker switch panel is engineered for high-current switching applications requiring dual-circuit control. This switch features a robust polyester housing with a flame-retardant rating of UL 94V-2, making it suitable for use in demanding industrial and commercial environments.

The compact panel cutout size of 30.2 by 22 mm allows seamless integration into control panels and automation systems. The red illuminated rectangular actuator not only signals the switch status clearly but also enhances operational safety during power management. With a contact current rating of 16A and contact voltage capacity of 32V DC, it is capable of handling significant electrical loads.

Designed with IP67 splash-proof rating, this rocker switch panel ensures reliable operation even under wet or dust-prone conditions when used with compatible splash covers (sold separately). The quick connect 6.3 x 0.8 mm tab terminals provide ease of wiring and maintenance. The actuator includes self-locking compensation ribs securing the switch firmly within the panel cutout.

The mechanical life expectancy of 50,000 operations guarantees long-term durability in industrial applications. Temperature operating range from -20°C to 65°C enables use across varied environments, including industrial automation, power supply control, security equipment, and HVAC systems.

This model complies with IEC, VDE, UL, and RoHS standards, assuring compliance with international safety and environmental regulations. The product is manufactured in China under the WR series of ZF switches, known for quality and performance.

Double pole single throw (DPST) switch configuration for simultaneous control of two circuits. Illuminated red actuator for easy visual status monitoring. Durable polyester housing rated UL 94V-2 for flame retardance. Panel mount with precise 30.2 x 22 mm cutout footprint.

Quick connect terminal type (6.3 x 0.8 mm) ensures ease of wiring. Contact rating suitable for 16A current and 32V DC voltage. Rated to operate across -20°C to 65°C ambient temperature. High mechanical life of 50,000 operations.

IP67 rated for splash-proof protection. Compliant with IEC, VDE, UL, and RoHS standards.

The WRG32F2BBREN is ideal for applications ranging from automation control panels to heavy-duty electrical equipment requiring dependable switching solutions. Available accessories include splash-proof covers for enhanced environmental protection.
