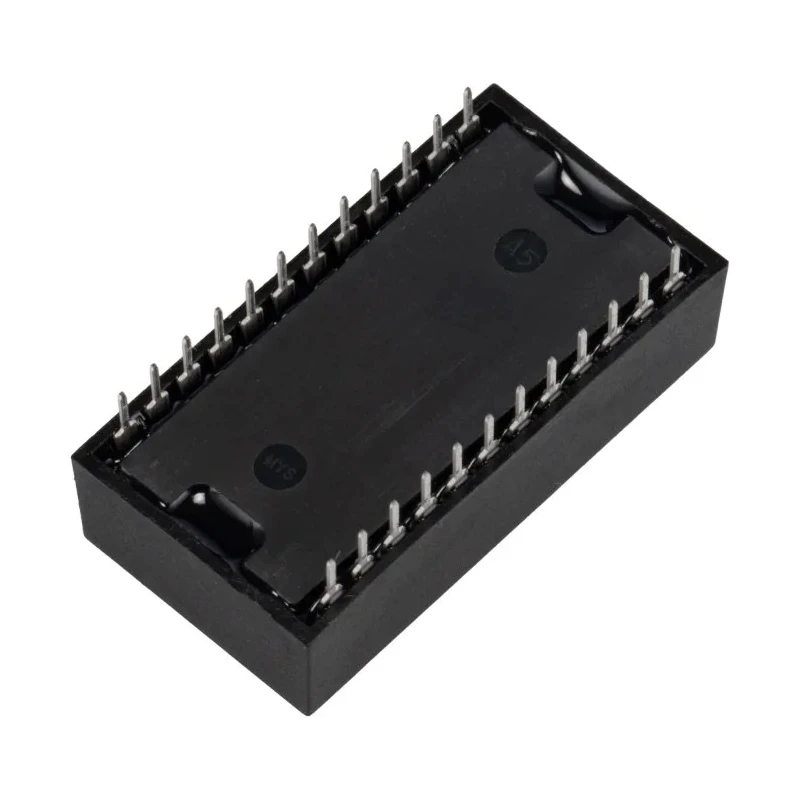

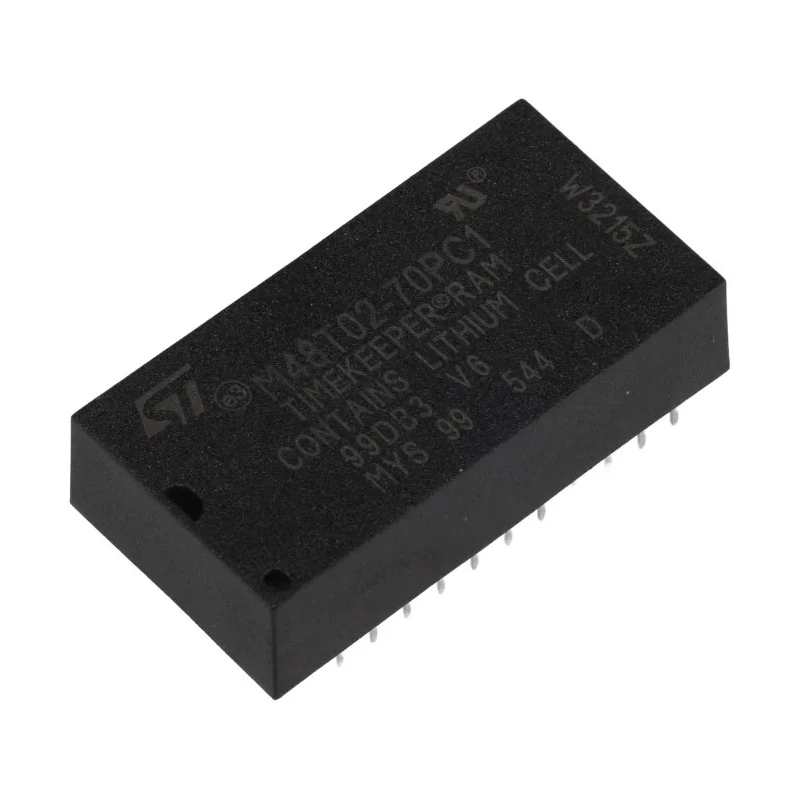

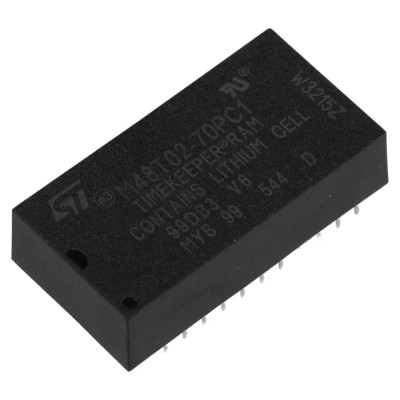

STMicroelectronics 16 kB 70 ns NVRAM 24-Pin PCDIP Memory Chip M48T02-70PC1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 8.89mm |
| Length | 34.8mm |
| Model | M48T02-70PC1 |
| Width | 18.34mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 70°C |
| Package Type | PCDIP |
| Minimum Operating Temperature | 0°C |
| Memory size | 16kB |
| Interface Type | Parallel |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.75V |
| Supply Current | 80mA |
| Organisation | 2K x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 70ns |
| Number of Words | 2 |
Key Features
- 16 kB memory size with 2K x 8 bit organisation.
- Operating voltage range from 4.75 V to 5.5 V.
- Maximum random access time of 70 ns ensures high-speed memory operations.
- Features parallel interface with 8-bit data bus width.
- Through-hole mount type with 24 pins in a PCDIP package.
- Compact dimensions of 34.8 mm length, 18.34 mm width, and 8.89 mm height.
- Operating temperature range from 0°C to 70°C for durable industrial use.
- Low supply current of 80 mA for efficient power consumption.
Product Description
STMicroelectronics M48T02-70PC1 is a high-performance Non-Volatile RAM (NVRAM) memory chip featuring 16 kB memory capacity and a maximum random access time of 70 nanoseconds. Its robust design with a 24-Pin PCDIP package fits through-hole mounting applications, making it suitable for various electronics and industrial systems requiring reliable data storage and real-time clock functionality.
This NVRAM combines SRAM memory with an integrated quartz-based oscillator and clock/calendar circuit to provide real-time data, backed up by an internal battery and crystal, ensuring data retention during power loss. The device supports a parallel interface with an 8-bit data bus, enabling fast and efficient communication.
It operates over a voltage range of 4.75 V to 5.5 V and within temperature ranges of 0°C to 70°C, making it adaptable to a wide range of environments. The low supply current of 80 mA helps minimize power consumption for battery-operated systems.
With dimensions of 34.8 mm length, 18.34 mm width, and 8.89 mm height, the chip fits standard through-hole sockets. This product is ideal for applications in industrial automation, instrumentation, consumer electronics, and embedded systems requiring non-volatile memory with integrated timekeeping capabilities.
16 kB memory size with 2K x 8 bit organisation. 70 ns maximum random access time for fast performance. Parallel interface with 8-bit data bus width. 24-pin PCDIP through-hole package. Operating voltage: 4.75 V to 5.5 V. Operating temperature: 0°C to 70°C.
Low supply current of 80 mA. Embedded real-time clock and quartz oscillator. Battery and crystal embedded for data retention. Suitable for industrial, electronic, and embedded system applications. Explore our Electronics & Electricals category on EnvMart for more semiconductor and memory chip products from reputable brands like STMicroelectronics.
Explore more products in our Memory Chips category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a memory capacity of 16 kB, organized as 2K x 8 bits.
The maximum random access time is 70 nanoseconds, ensuring high-speed memory operations.
It operates within a voltage range of 4.75 V to 5.5 V.
The dimensions are 34.8 mm in length, 18.34 mm in width, and 8.89 mm in height.
This model comes in a 24-pin PCDIP package, suitable for through-hole mounting.
The supply current for this memory chip is 80 mA, which aids in efficient power consumption.
It can operate within a temperature range of 0°C to 70°C, making it suitable for industrial use.
Yes, it includes an embedded real-time clock and quartz oscillator for timekeeping, along with a battery and crystal for data retention during power loss.
It supports a parallel interface with an 8-bit data bus width for efficient communication.
This memory chip is suitable for applications in industrial automation, instrumentation, consumer electronics, and embedded systems.
The memory organization is 2K x 8 bits, allowing for efficient data storage and retrieval.
The country of origin for this product is India.
