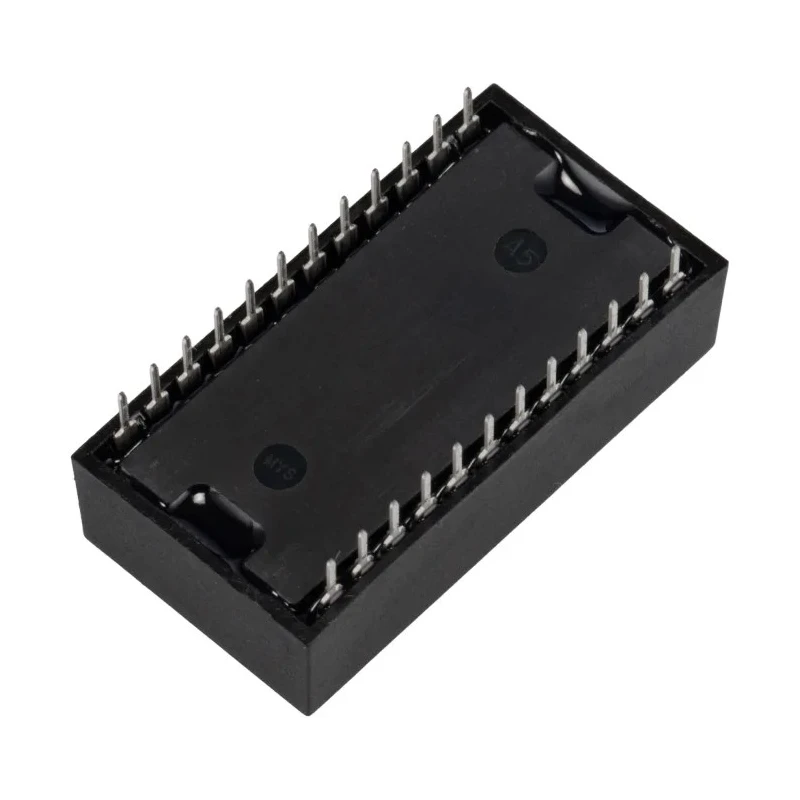

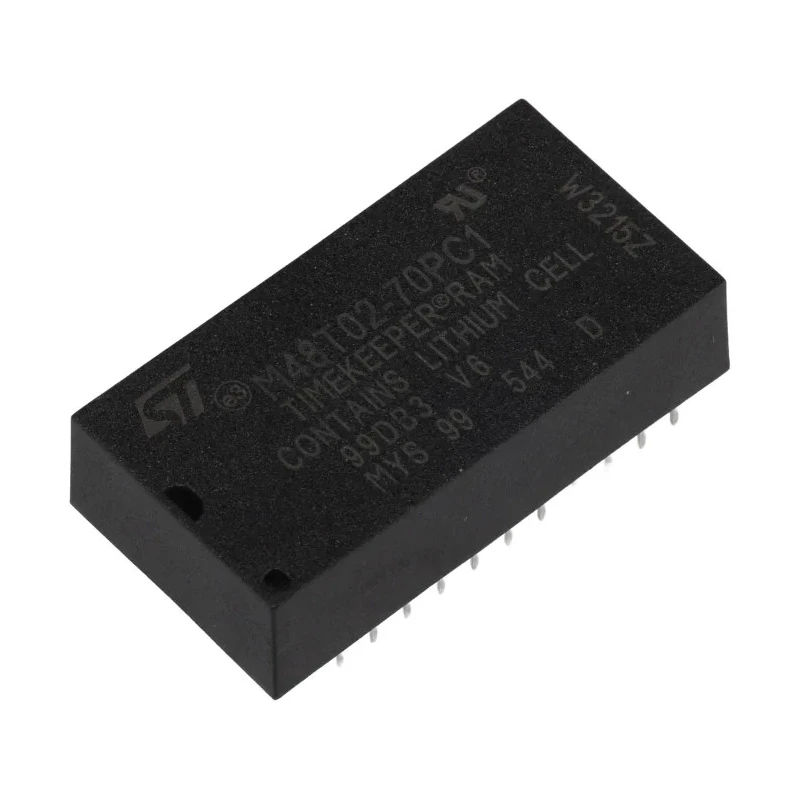

STMicroelectronics 16 kB 70 ns NVRAM 24-Pin PCDIP M48T02-70PC1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 8.89mm |
| Length | 34.8mm |
| Model | M48T02-70PC1 |
| Width | 18.34mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 70°C |
| Package Type | PCDIP |
| Minimum Operating Temperature | 0°C |
| Memory size | 16kB |
| Interface Type | Parallel |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.75V |
| Supply Current | 80mA |
| Organisation | 2K x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 70ns |
| Number of Words | 2 |
Key Features
- Memory size of 16 kB arranged as 2K x 8 bit organization.
- Parallel interface with an 8-bit data bus width for efficient data transfer.
- Maximum random access time of 70 nanoseconds for fast memory operations.
- Mounted through hole in a 24-pin Plastic Ceramic Dual In-line Package (PCDIP).
- Operating temperature range from 0°C to 70°C ensures reliability in diverse environments.
- Supply voltage ranging from 4.75V minimum to 5.5V maximum for standard operation.
- Low supply current consumption of 80mA for energy-efficient use.
- Physical dimensions include length 34.8mm, width 18.34mm, and height 8.89mm.
Product Description
STMicroelectronics M48T02-70PC1 is a 16 kB non-volatile RAM (NVRAM) module that combines SRAM memory with a real-time clock powered by a built-in quartz oscillator and battery. It features a parallel interface with an 8-bit data bus, supporting a memory organization of 2K x 8 bits and offering a fast maximum random access time of 70 nanoseconds.
This device is housed in a 24-pin Plastic Ceramic Dual In-line Package (PCDIP) suitable for through-hole mounting. The compact dimensions of 34.8 mm length, 18.34 mm width, and 8.89 mm height make it compatible with a wide range of printed circuit boards.
Operating reliably over a temperature range from 0°C to 70°C, the M48T02-70PC1 maintains accurate timekeeping and data retention. It requires a supply voltage between 4.75V and 5.5V, with a typical supply current of 80mA, ensuring energy-efficient operation.
The integrated battery and crystal oscillator enable continuous clock/calendar functionality, making this product ideal for industrial and commercial applications where persistent memory and timing are critical.
Memory size is 16kB arranged as 2K x 8-bit for versatile data storage. Parallel interface and 8-bit data bus maximize data throughput. 70 ns maximum random access time facilitates fast data access. Through-hole mount in a 24-pin PCDIP package for easy integration.
Wide operating temperature range from 0°C to 70°C supports various environments. Low power consumption with 80mA supply current enhances efficiency. Compact dimensions ease incorporation into electronic systems. Embedded battery and quartz oscillator sustain real-time clock functions.
Suitable for applications in industrial, electronic components, and embedded systems. Explore more memory chip options and STMicroelectronics products at EnvMart for your electronic component needs.
Explore more products in our Memory Chips category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The M48T02-70PC1 has a memory size of 16 kB, organized as 2K x 8 bits.
It features a maximum random access time of 70 nanoseconds, allowing for fast memory operations.
The supply voltage for this model ranges from a minimum of 4.75V to a maximum of 5.5V.
The dimensions are 34.8 mm in length, 18.34 mm in width, and 8.89 mm in height.
It uses a parallel interface with an 8-bit data bus width for efficient data transfer.
The operating temperature range is from 0°C to 70°C, ensuring reliability in various environments.
It has a low supply current consumption of 80 mA, promoting energy-efficient use.
This model is housed in a 24-pin Plastic Ceramic Dual In-line Package (PCDIP) suitable for through-hole mounting.
The memory is organized as 2K x 8 bits, allowing versatile data storage.
It is suitable for industrial, electronic components, and embedded systems where persistent memory and timing are critical.
The country of origin for this model is India.
The M48T02-70PC1 features a pin count of 24.
