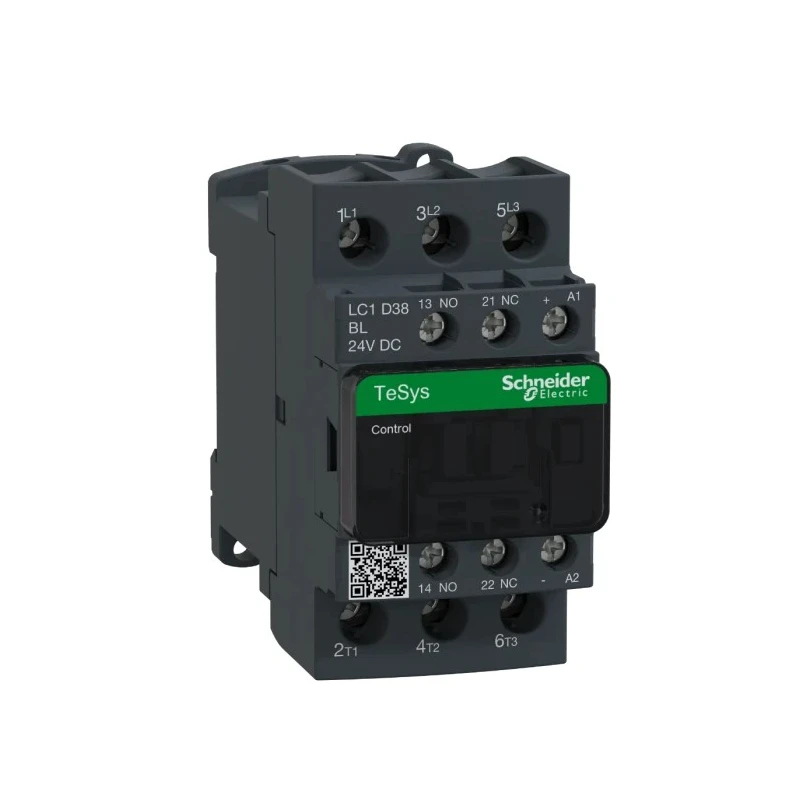

Schneider Electric LC1D Contactor 24V DC Coil 3-Pole 38A 18.5 kW 1 NO/1 NC 600V AC LC1D38BL

Schneider Electric LC1D38BL Contactor is a high-quality, 3-pole device that operates on a 24V DC coil and controls up to 38A current with a power rating of 18.5 kW. It is designed primarily for motor control and resistive load applications in industrial, commercial, and manufacturing environments.

Featuring a maximum operating cycle rate of 3600 cycles per hour at +60°C and an ambient temperature range of -40°C to +60°C, this contactor is built to withstand demanding operational conditions. The mechanical durability of 30 million cycles ensures long service life, while its vibration-resistant design maintains reliable performance even in high-shake environments.

The contactor includes two auxiliary contacts configured as 1 normally open and 1 normally closed contacts, allowing integration with additional control circuits or contactors. The screw-type terminals are finger-safe (IP20 rated) and marked for easy wiring compliant with both North American and International standards. The product is equipped for DIN rail mounting, simplifying installation within electrical panels.

Compact dimensions (85mm length, 45mm width, 92mm depth) conserve panel space without compromising performance. Manufactured to meet international certifications including CCC, RoHS, IEC, EAC, CSA, and UL, ensuring safety and compliance for global applications.

Applications for this Contactor include lighting fixtures, HVAC systems, electrical control panels, and various industrial motor controls. Its fast switching times and robust features make it ideal for industrial automation, electrical engineering, and manufacturing plants.

Maximum operating rate of 3600 cycles per hour at +60°C for reliable performance. Wide ambient temperature range of -40°C to +60°C supports challenging environments. Contact current rating of 38A for heavy-duty electrical loads.

Two auxiliary contacts (1 NO and 1 NC) for flexible switching options. DIN rail mounting with screw terminals and IP20 finger-safe protection. Complies with CCC, RoHS, IEC, EAC, CSA, and UL standards for quality assurance.

Built to resist vibration ensuring steady operation in industrial settings. Explore the comprehensive range of Schneider Electric automation and control products for industrial and commercial electrical installations.
