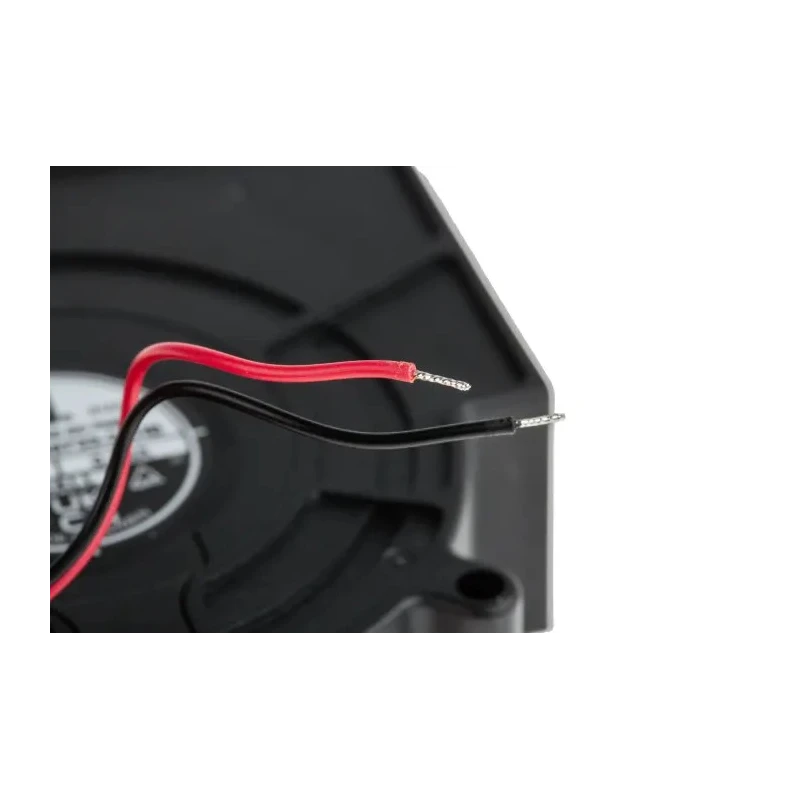

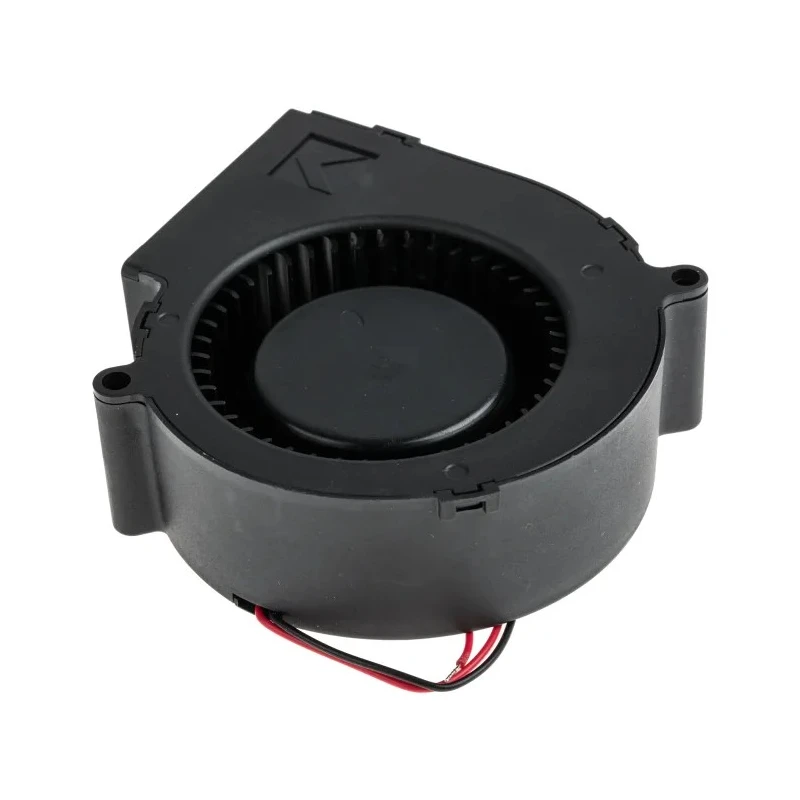

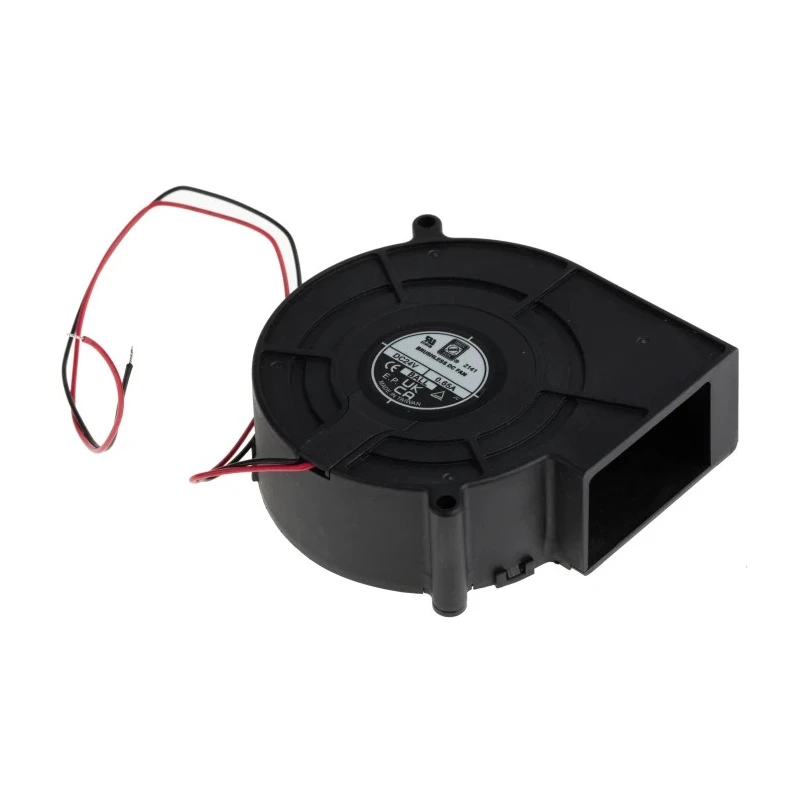

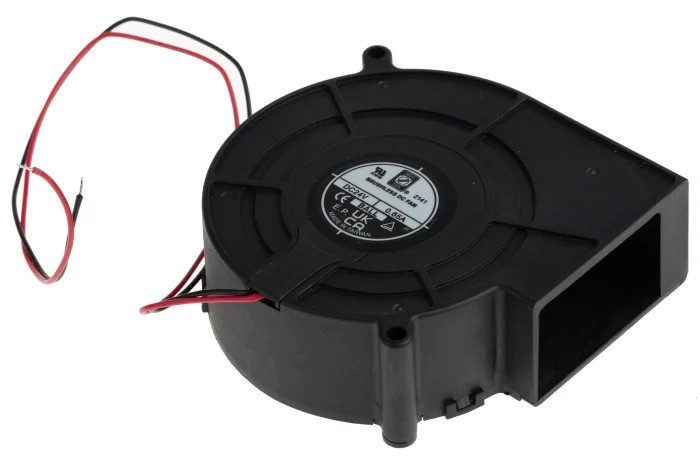

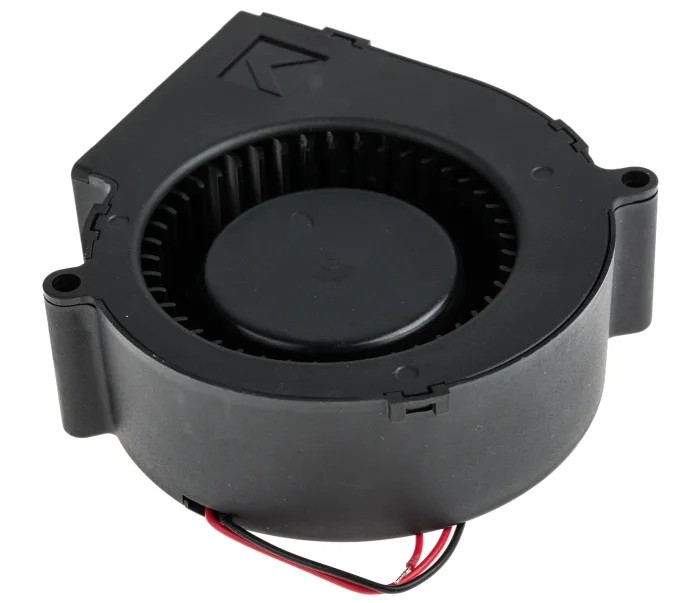

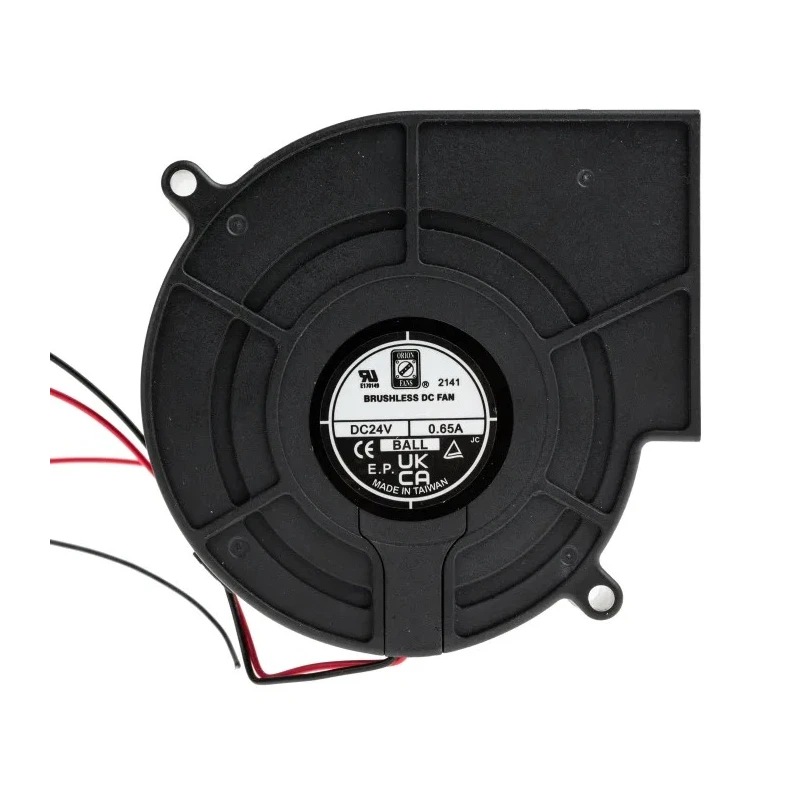

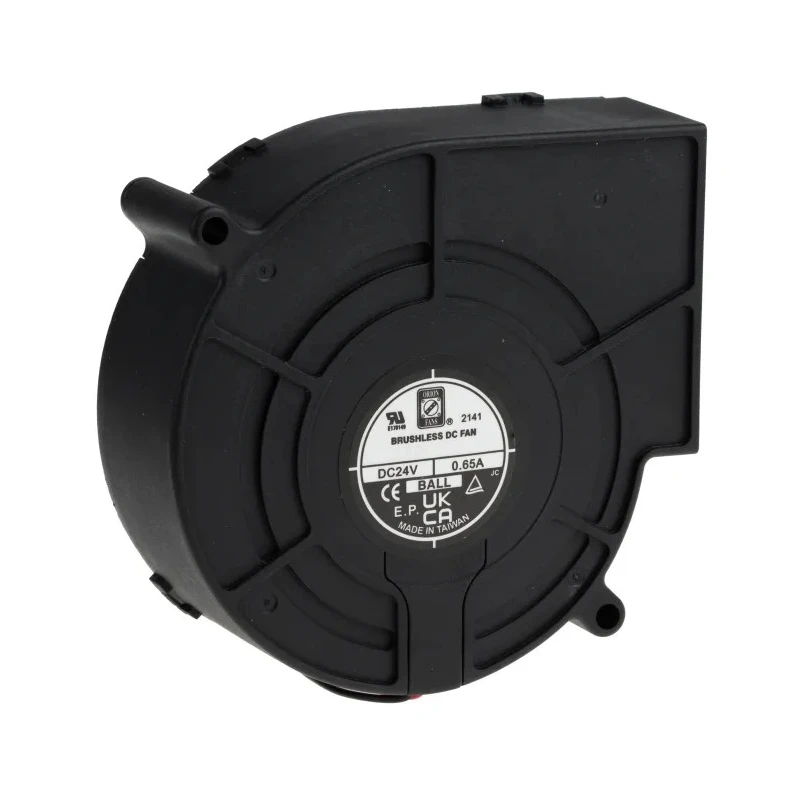

RS PRO Blower Centrifugal Fan 24V DC 33 CFM Ball Bearing Brushless Commutation 4000 RPM 787-4022
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Blower Type | Blower |
| Height | 95.87mm |
| Fan Speed | 4000rpm |
| Air Flow | 33cfm |
| Model | 787-4022 |
| Depth | 97mm |
| Noise Level | 56dBA |
| Width | 33mm |
| Static Pressure | 1.1in/H2O |
| Maximum Current | 780mA |
| Terminal type | Wire |
| Outlet Diameter | 55mm |
| Supply Voltage | 24V dc |
| Bearing Type | Ball |
| Standards/Approvals | UL, RoHS |
| AC or DC Operation | DC |
| Commutation Type | Brushless |
| Mounting Hole Diameter | 4.5 mm |
| Sensor Output Type | Tachometer |
Key Features
- Operates at 24 volts DC for consistent and reliable performance.
- Airflow capacity of 33 cubic feet per minute (CFM) ensures effective air movement.
- Brushless commutation with ball bearing design reduces wear and increases longevity.
- Fan speed reaches 4000 rotations per minute providing dynamic air circulation.
- Compact dimensions measuring 95.87 mm height, 33 mm width, and 97 mm depth.
- Features a low noise level of 56 dB(A), suitable for quiet environments.
- Tachometer sensor output available for precise speed monitoring.
- Static pressure rating of 1.1 in/H2O for enhanced air delivery against resistance.
Product Description
RS PRO 787-4022 Blower Centrifugal Fan is a durable and efficient ventilating solution designed for industrial, HVAC, and commercial air handling systems. Operating at 24 volts DC, this fan provides a steady airflow of 33 CFM, suitable for cooling, circulation, and air conveyance applications.
The fan features a brushless commutation type with ball bearings for enhanced operational life and minimal maintenance. The frame and impeller are fabricated from polybutylene terephthalate (PBT), a material known for its fire resistance and chemical durability, making it ideal for safety-critical installations.
This centrifugal blower operates at a speed of 4000 rpm with a maximum current draw of 780 mA, producing a static pressure of 1.1 inches water gauge (in/H2O). Its low noise emission level of 56 dB(A) ensures quiet operation in sensitive environments. The inclusion of a tachometer sensor output allows monitoring of fan speed, contributing to system diagnostics and control.
Dimensions for this model are compact, with a height of 95.87 mm, width of 33 mm, and depth of 97 mm. The mounting hole diameter of 4.5 mm facilitates straightforward and secure installation. The outlet diameter measures 55 mm, optimizing the fan’s airflow performance.
Operates using a 24 V DC supply voltage. Brushless commutation and ball bearing technology for longevity. Compact size fits diverse industrial and commercial spaces. Approved to UL and RoHS standards ensuring quality and compliance.
Suitable for HVAC systems, air conveyors, cooling equipment, and thermal management. Resistant to chemical and stain damages, easy to maintain and clean.
RS PRO centrifugal fans are engineered to meet rigorous industrial demands, delivering reliable air movement solutions. Explore the wide range of Centrifugal Fans at EnvMart for all ventilation and cooling system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The airflow capacity of this model is 33 cubic feet per minute (CFM), ensuring effective air movement for various applications.
This fan operates at a supply voltage of 24 volts DC, providing consistent performance in its applications.
The maximum fan speed reaches 4000 rotations per minute (RPM), allowing for dynamic air circulation.
The dimensions of this model are 95.87 mm in height, 33 mm in width, and 97 mm in depth, making it compact for various installations.
The static pressure rating of this centrifugal fan is 1.1 inches of water gauge (in/H2O), enhancing air delivery against resistance.
Yes, this model has a noise level of 56 dB(A), making it suitable for quiet environments.
This centrifugal fan features a ball bearing design, which reduces wear and increases longevity.
Yes, this model includes a tachometer sensor output for precise speed monitoring, aiding in system diagnostics.
The outlet diameter of this fan measures 55 mm, optimizing its airflow performance.
This model is approved to UL and RoHS standards, ensuring quality and compliance for safety-critical installations.
The maximum current draw for this centrifugal fan is 780 mA, which is important for power supply considerations.
This model features a mounting hole diameter of 4.5 mm, facilitating straightforward and secure installation.
