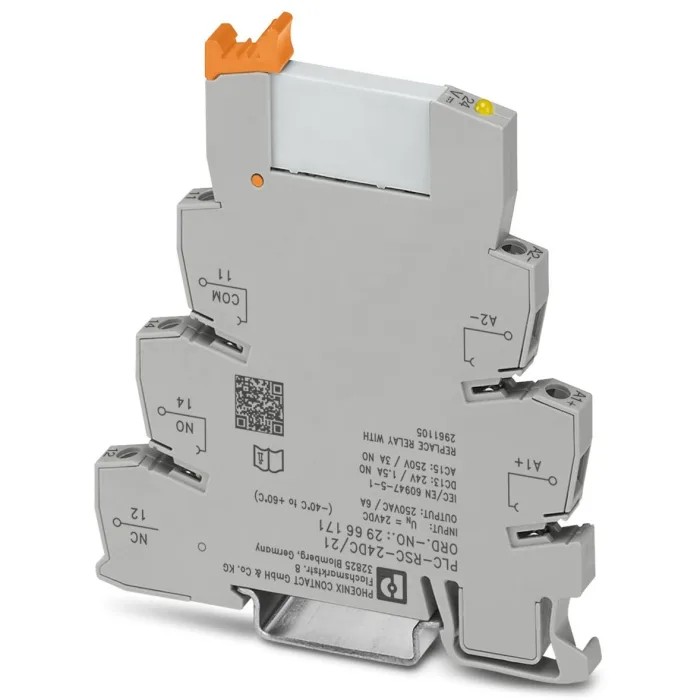

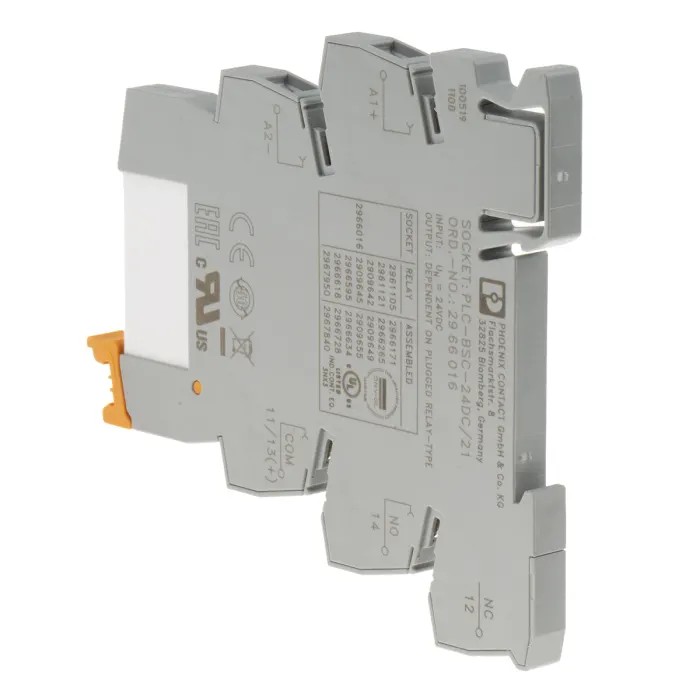

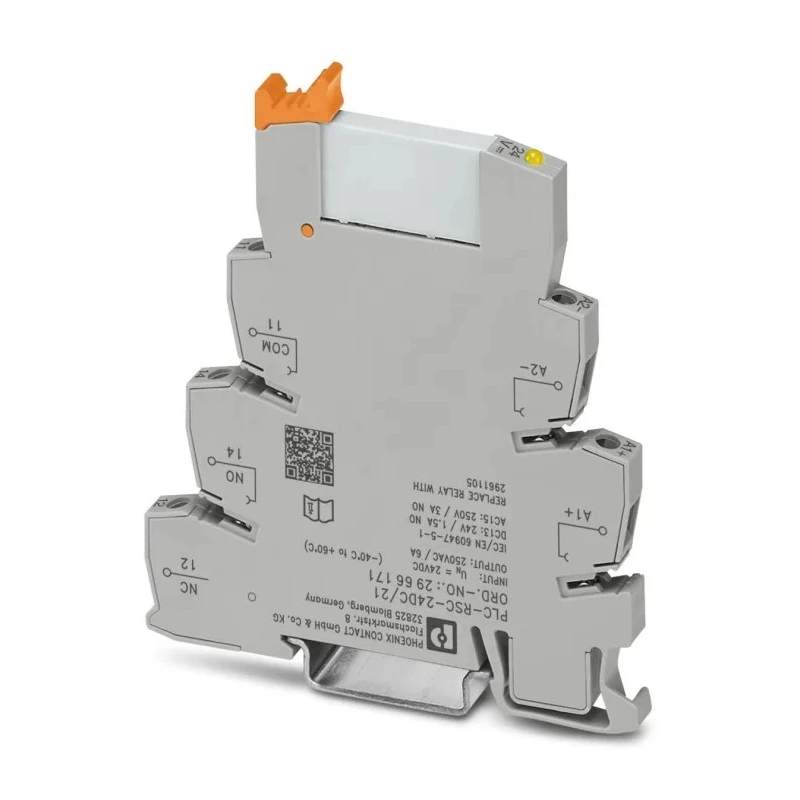

Phoenix Contact Electromechanical Interface Relay DIN Rail Mount 24V DC Coil 9mA SPDT 6A 2966171
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Height | 94mm |
| Length | 80mm |
| Model | 2966171 |
| Width | 6.2mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | PLC-RSC-24DC/21 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Coil Voltage | 24V dc |
| Coil Current | 9mA |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Phoenix Contact Interface Relay Module, DIN Rail Mount, SPDT, 6A LoadBrand | Phoenix Contact |
Key Features
- The relay features a silver alloy contact material for reliable conductivity.
- It supports switching currents up to 6A for both AC and DC voltages.
- The device operates efficiently within temperature ranges from -40°C to 60°C.
- A yellow LED indicates the coil operating voltage status for easy monitoring.
- The compact design with dimensions 80mm (L) x 94mm (H) x 6.2mm (W) saves DIN rail space.
- Equipped with screw terminal connections for secure wiring.
- Suitable for automation and control applications in industrial settings.
Product Description
Phoenix Contact 2966171 Electromechanical Interface Relay is a compact, DIN rail mountable device featuring a 24V DC coil with a 9mA coil current. It utilizes a single pole double throw (SPDT) configuration, enabling effective switching between circuits or simple ON/OFF control.
The relay is engineered with silver alloy contacts, ensuring high conductivity and durability under switching currents up to 6A. It supports AC and DC switching voltages up to 250V, making it versatile for various electrical control tasks.
Its operating temperature range from -40°C to +60°C allows reliable performance across demanding industrial environments. The relay includes a yellow LED that provides visible coil voltage status to facilitate easier maintenance and troubleshooting.
Designed for installation on standard DIN rails (NS 35/7.5), the relay offers a space-saving footprint with dimensions of 80mm length, 94mm height, and 6.2mm width. The unit secures wiring via screw terminal connections, providing stable, vibration-resistant contacts.
This relay is commonly used in automated production lines, factory assembly automation, lighting control, and other industrial applications requiring reliable switching and isolation of control signals.

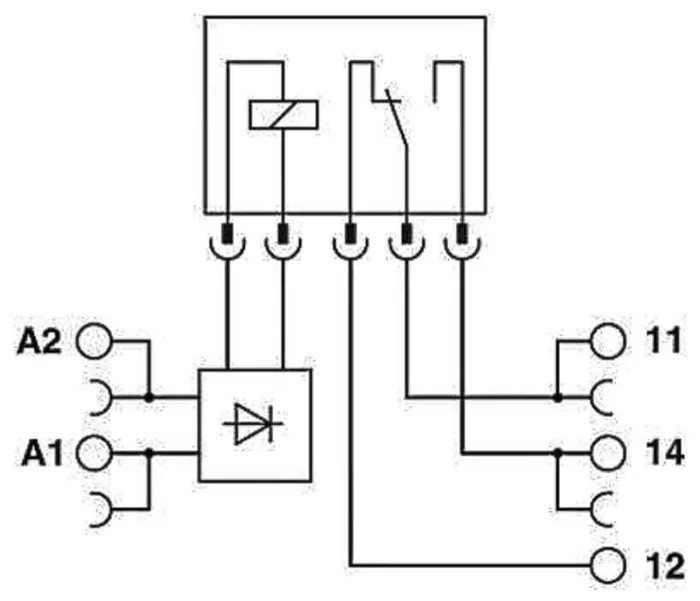

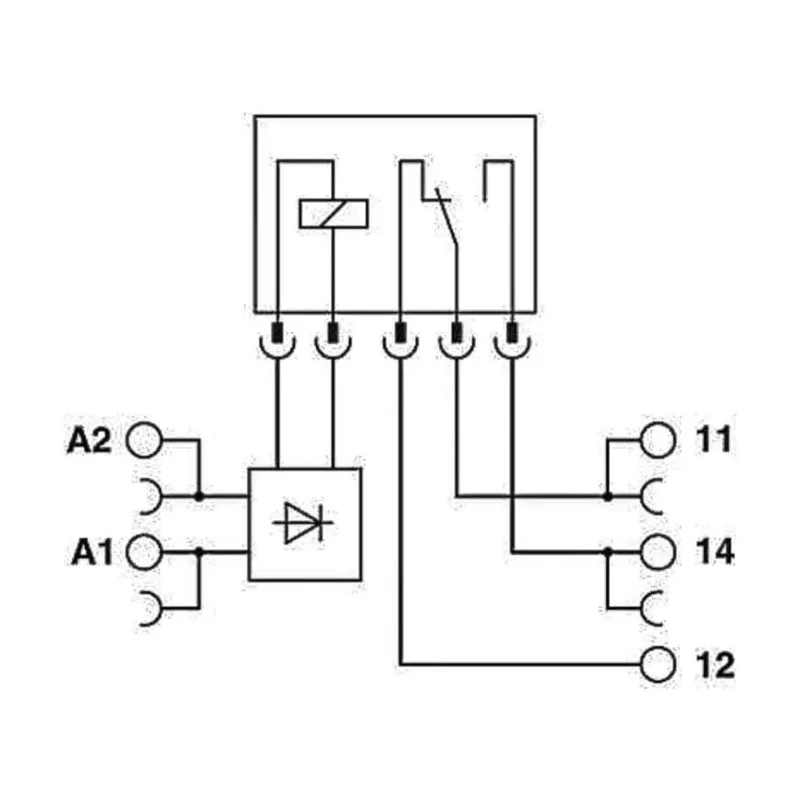

The relay includes a free-wheeling diode for coil protection and damping. Its DIN rail mounting and compact size optimize panel space utilization. Suitable for use in PLC interfaces and general automation systems. Phoenix Contact’s PLC-RSC series provides cost-effective solutions for interface relay applications with reliable performance and easy installation.
Explore more from the Interface Relay category at EnvMart for diverse industrial control components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It can handle a maximum switching current of 6A.
The relay has dimensions of 80mm in length, 94mm in height, and 6.2mm in width.
The operating temperature range for this relay is from -40°C to +60°C.
It features a single pole double throw (SPDT) contact configuration.
The relay is constructed with silver alloy contact material for reliable conductivity.
This model is designed for DIN rail mounting, specifically on standard DIN rails (NS 35/7.5).
It is equipped with screw terminal connections for secure wiring.
It can switch both AC and DC voltages up to 250V.
Yes, it includes a yellow LED that indicates the coil operating voltage status.
The relay complies with RoHS standards.
It is suitable for automation and control applications in industrial settings, including automated production lines and lighting control.
