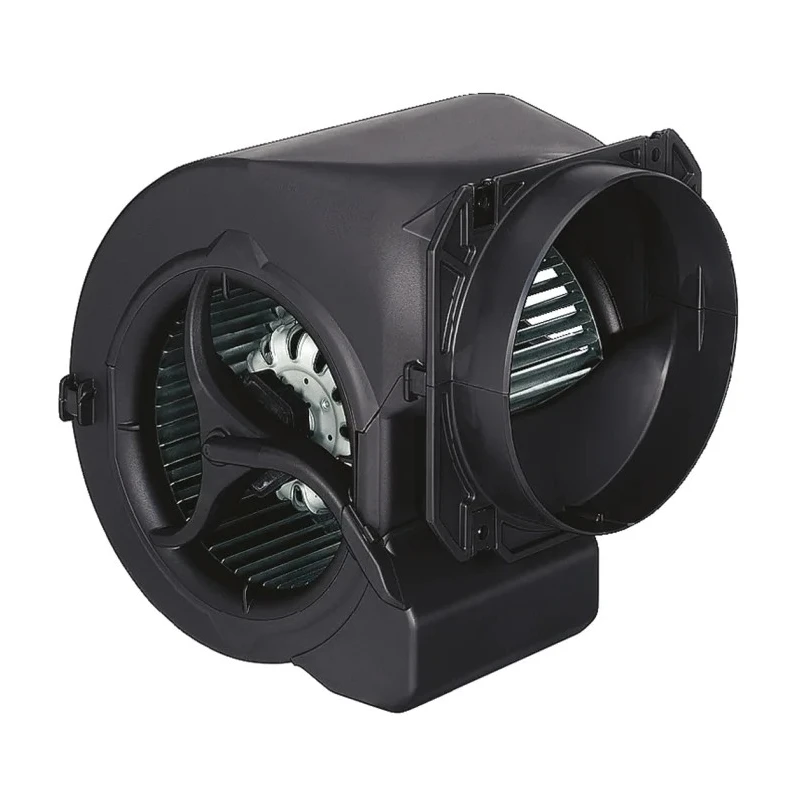

ebm-papst D2E 146 Series Centrifugal Fan 230V AC 910 m³/h 1600 RPM Ball Bearing IP20 D2E146-HT59-02
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ebm-papst |
| Blower Type | Centrifugal |
| Height | 216mm |
| Fan Speed | 1600rpm |
| Air Flow | 910m³/h |
| Model | D2E146-HT59-02 |
| Depth | 199mm |
| IP Rating | IP20 |
| Width | 220mm |
| Static Pressure | 379Pa |
| Series | D2E 146 |
| Maximum Current | 1.5A |
| Terminal type | Box |
| Supply Voltage | 230V ac |
| Bearing Type | Ball |
| Standards/Approvals | EN, RoHS, CE, VDE, ISO |
| AC or DC Operation | AC |
| Commutation Type | Electronic |
| Mounting Hole Diameter | 138 mm |
Key Features
- Operates at a supply voltage of 230V AC and air flow rate of 910 m³/h.
- Constructed with a sheet steel impeller coated in black for durability.
- Features maintenance-free ball bearings and electronic commutation.
- Equipped with clockwise rotor rotation and horizontal shaft mounting.
- IP20 rated with insulation class F ensuring protection and reliability.
- Compact dimensions of 216 mm height, 220 mm width, and 199 mm depth.
- Static pressure rating at 379 Pa suitable for various industrial applications.
- Certified to EN, RoHS, CE, VDE, and ISO standards for quality compliance.
Product Description
ebm-papst D2E146-HT59-02 centrifugal fan is a high-performance industrial cooling solution designed for HVAC, ventilation, and thermal management applications. Operating at 230V AC, this fan delivers robust air flow of 910 m³/h at 1600 RPM, ensuring efficient air movement in various industrial and commercial environments.
The impeller is manufactured from sheet steel and coated with a black finish to enhance corrosion resistance and durability. It features a maintenance-free ball bearing system and electronically commutated motor for reliable operation with minimal maintenance requirements. The fan’s shaft mounting is horizontal with a clockwise rotor rotation, providing installation flexibility.
Compactly sized with 216 mm height, 220 mm width, and 199 mm depth, this centrifugal fan integrates easily into diverse systems. It is IP20 rated and equipped with insulation class F, assuring protection from dust and electrical safety. The maximum static pressure of 379 Pa means it can efficiently handle resistance in ductwork and ventilation systems.
Conforming to internationally recognized standards including EN, RoHS, CE, VDE, and ISO, the fan meets stringent safety and environmental requirements. This model is ideally suited for use in industrial, laboratory, HVAC, manufacturing, and commercial air conditioning settings where reliable and quiet air flow is essential.
Engineered and manufactured in Germany, the ebm-papst D2E146-HT59-02 centrifugal fan is a trusted choice for demanding applications requiring durability and performance. Its efficient design reduces installation space without compromising airflow capacity. Suitable for replacement or integration into existing centrifugal fan setups, it provides long service life and energy-efficient operation.
Operates at 230V AC with 910 m³/h airflow capacity. Sheet steel impeller coated in black enhances durability. Maintenance-free ball bearing design for reliable operation. Electronic commutation motor ensures efficient power use.
Compact dimensions fit versatile installation requirements. Static pressure capability of 379 Pa supports industrial ventilation. IP20 rated with insulation class F for safety and protection. Certifications: EN, RoHS, CE, VDE, ISO compliant.
Manufactured in Germany for quality assurance. Discover more Centrifugal Fans and industrial cooling solutions at EnvMart for your HVAC, industrial, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers an airflow capacity of 910 m³/h.
It operates at a supply voltage of 230V AC.
The fan speed is rated at 1600 RPM.
The static pressure rating is 379 Pa, suitable for various industrial applications.
The dimensions are 216 mm in height, 220 mm in width, and 199 mm in depth.
It features maintenance-free ball bearings for reliable operation.
The fan is rated IP20, providing protection against dust and solid objects.
It is certified to EN, RoHS, CE, VDE, and ISO standards for quality compliance.
It has a horizontal shaft mounting with clockwise rotor rotation.
It is equipped with an electronically commutated motor for efficient power use.
This model is manufactured in Germany.
It is designed for HVAC, ventilation, and thermal management applications in industrial and commercial settings.
