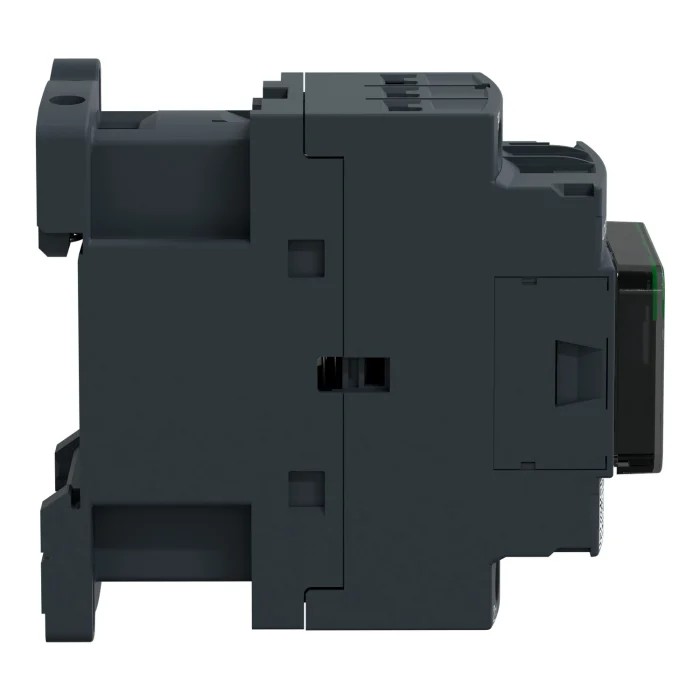

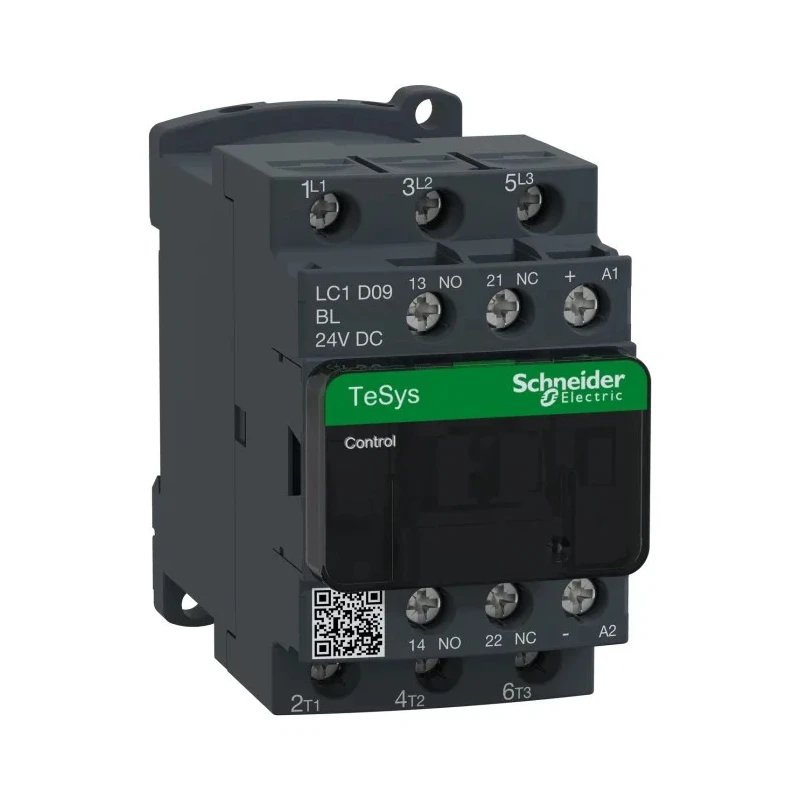

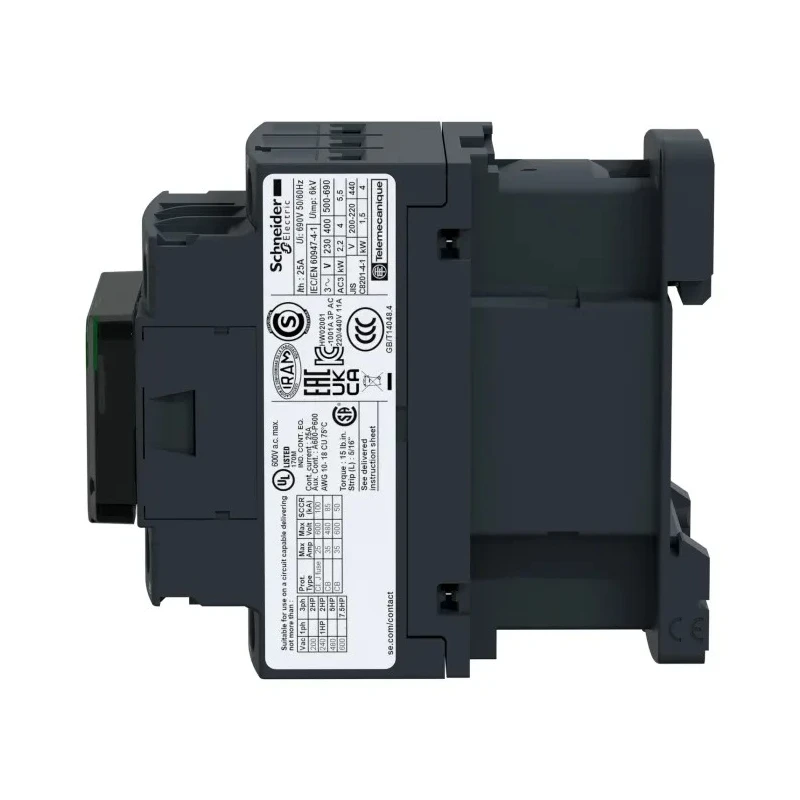

Schneider Electric LC1D Contactor, 24V DC Coil, 3-Pole, 9A, 4kW, 3 NO, 690V AC

Schneider Electric LC1D09BL Contactor is a three-pole electrical switching device designed for motor control and resistive load applications. It features a 24V DC coil and supports a contact current rating of 9A with a power rating of 4kW, making it suitable for efficient electrical circuit control in industrial and commercial environments.

This contactor includes three normally open (NO) contacts and is equipped with two auxiliary contacts arranged in 1 normally open (NO) and 1 normally closed (NC) configuration, allowing for expanded circuit functionality and control options.

Its compact form factor, measuring 77mm in length, 45mm in width, and 95mm in depth, enables easy installation on a standard DIN rail, while the screw terminal type ensures secure and straightforward wiring with cable sizes ranging from 1 to 4mm².

The device operates effectively across a wide temperature range from -40°C to +60°C, supporting demanding industrial applications including HVAC systems, automated machinery, and various motor controls. The inclusion of a built-in peak limiting diode suppressor stabilizes the control circuit by reducing voltage spikes.

Manufactured under stringent quality standards and complying with certifications such as IEC, RoHS, UL, CSA, CCC, and EAC, this contactor assures reliable performance and safety. Its rated insulation voltage of 690V AC further enhances system protection during operation.

Efficient motor control with a 24V DC coil and 9A operational current. Three-pole configuration with 3 normally open contacts for versatile application. Auxiliary contacts (1 NO / 1 NC) for additional control capabilities.

Durable screw terminal connections compatible with 1 - 4mm² cables. Compact dimensions for space-saving DIN rail mounting. Wide operating temperature range: -40°C to +60°C. Built-in peak limiting diode suppressor for circuit stability.

Complies with international standards: IEC, RoHS, UL, CSA, CCC, EAC. High insulation voltage of 690V AC for safety assurance. Manufactured in France ensuring quality and reliability.

This Schneider Electric LC1D09BL contactor is ideal for industrial automation, manufacturing equipment, HVAC motor controls, and automation applications requiring a robust and reliable switching solution. Browse the Electronics & Electricals category for more Contactors and related control gear on EnvMart.
