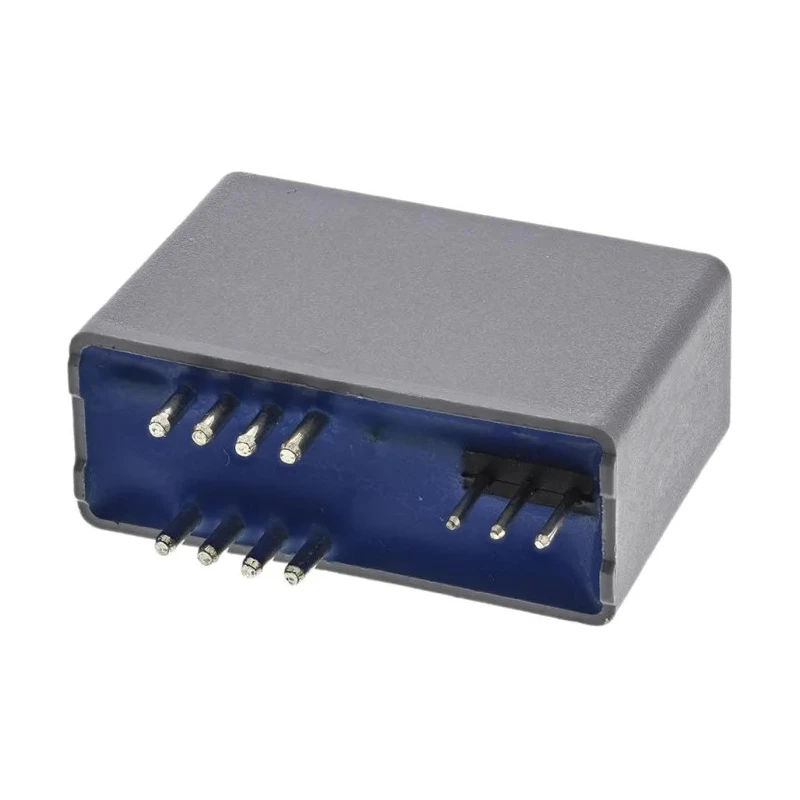

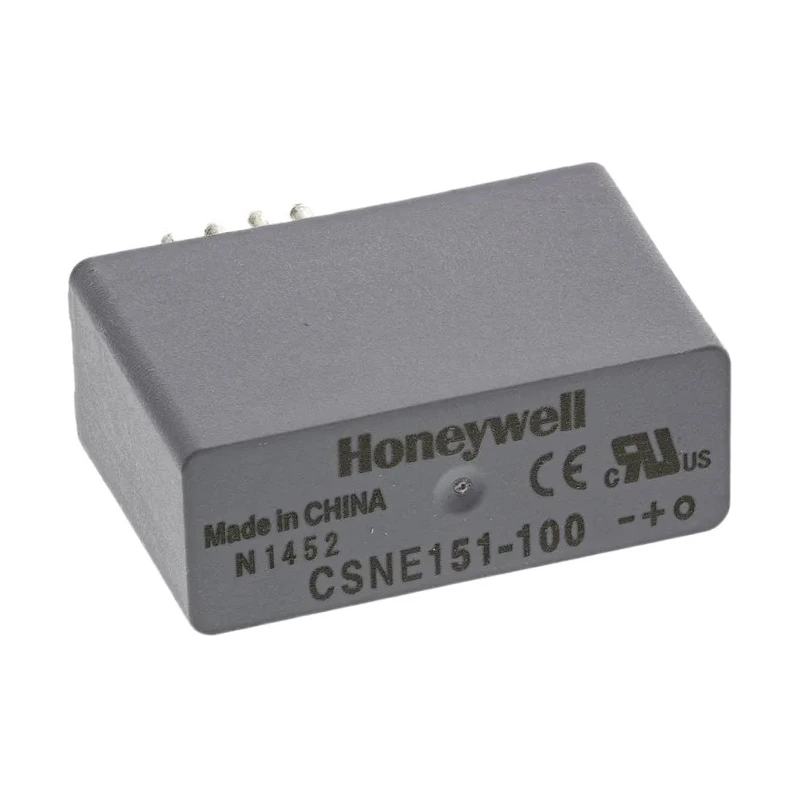

Honeywell Technologies CSN Series Current Sensor 90A 1:1000 Turns Ratio 12V/15V DC CSNE151-100
Specifications
| Country of Origin | China |
|---|---|
| Brand | Honeywell |
| Length | 28mm |
| Model | CSNE151-100 |
| Depth | 16.8mm |
| Width | 28mm |
| Mount Type | PCB |
| Series | CSN |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Secondary current | 25mA |
| Terminal type | Wire |
| Supply Voltage | 12, 15V dc |
| Standards/Approvals | UL, CE |
| Primary Current | 90A |
| Turns Ratio | 1:1000 |
| Primary DC Resistance | 54Ω |
| Secondary DC Resistance | 360Ω |
| Honeywell CSN Series Current Transformer, 56A Input, 56 | 1, 12.5 mA Output, 15 V dcBrand: Honeywell |
| Honeywell Technologies CSN Series Current Sensor 90 A 1 | 1000 12V dc, 15 V dc |
Key Features
- The CSN series uses Hall effect technology and null balance principles for precise current sensing.
- It features wired terminals for secure PCB mounting.
- Operating temperature ranges from -40°C to 85°C, ensuring durability in diverse environments.
- The sensor has compact dimensions of 28mm length, 28mm width, and 16.8mm depth for easy integration.
- Secondary current output is 25mA, compatible with various control systems.
- Meets UL and CE standards for safety and reliability.
- Designed for industrial applications including automation and process control.
- Made in China with high-quality materials for stable performance.
Product Description
Honeywell Technologies CSNE151-100 is a high-precision CSN Series Current Sensor designed for measuring DC, AC, or pulsed currents with a primary current rating of 90 amperes and a turns ratio of 1:1000. Operating at supply voltages of 12V and 15V DC, this sensor utilizes Hall effect and null balance principles to deliver accurate current sensing for industrial and laboratory applications.
The sensor features a wire terminal type and is intended for PCB mount type installations, offering ease of integration into existing control and automation systems. Compactly sized at 28mm length, 28mm width, and 16.8mm depth, it fits well within constrained spaces. Operating across a wide temperature range of -40°C to 85°C, it ensures reliable performance under harsh environments.
The secondary current output is 25mA, compatible with standard measuring instruments and signal processing equipment. Robust construction complying with UL and CE standards guarantees safety and operational reliability.
Ideal for use in industrial automation, process control, electrical panels, and other electronic measurement applications, this sensor provides dependable feedback on current flow, supporting efficient monitoring and fault detection.
The CSN Series Current Sensors employ Hall effect technology for consistent and precise current measurement. Designed for use with AC, DC, and pulsed current applications. Features a 1:1000 turns ratio suitable for high-accuracy scaling of primary currents.
Compact PCB mounting with wire terminals ensure straightforward assembly. Wide operating temperature range supports use in diverse industrial environments. Compliance with international standards such as UL and CE ensures quality and reliability.
Constructed with high-quality components for long service life and stable output. Manufactured in China under strict quality control protocols. Explore the extensive range of Honeywell sensors and automation control gear in the Electronics & Electricals category on EnvMart for advanced industrial sensing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current rating of this sensor is 90 amperes.
It has a turns ratio of 1:1000, which allows for high-accuracy scaling of primary currents.
This model operates at supply voltages of 12V and 15V DC.
The operating temperature range is from -40°C to 85°C, making it suitable for diverse environments.
It supports PCB mounting with wire terminals for secure installation.
The secondary current output is 25mA, compatible with various measuring instruments.
The dimensions are 28mm in length, 28mm in width, and 16.8mm in depth.
It meets UL and CE standards, ensuring safety and reliability.
It is designed for industrial applications including automation, process control, and electrical panels.
It utilizes Hall effect technology and null balance principles for precise current sensing.
The primary DC resistance is 54Ω.
The secondary DC resistance is 360Ω.
