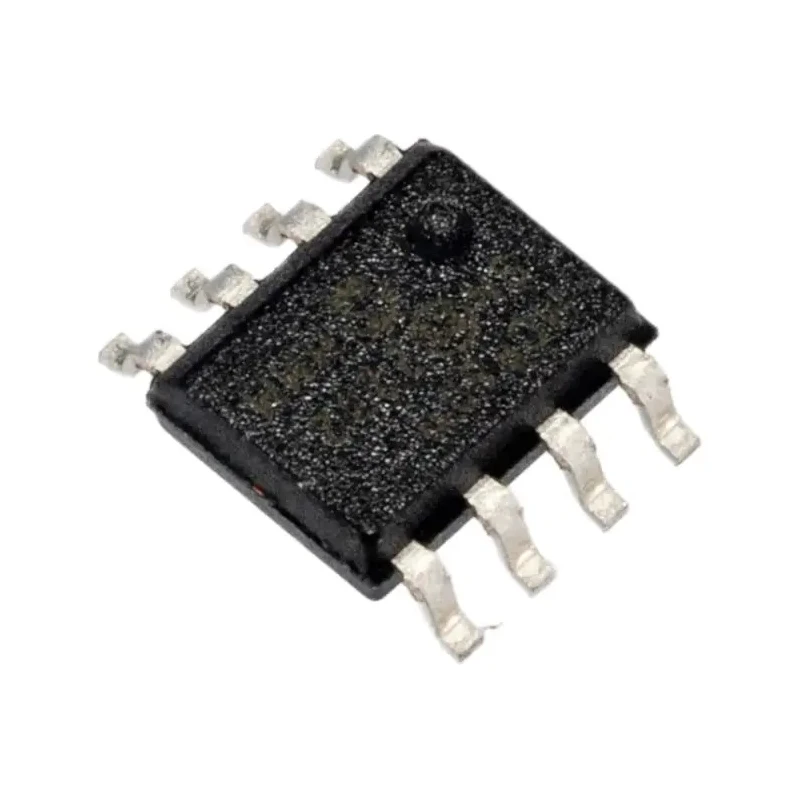

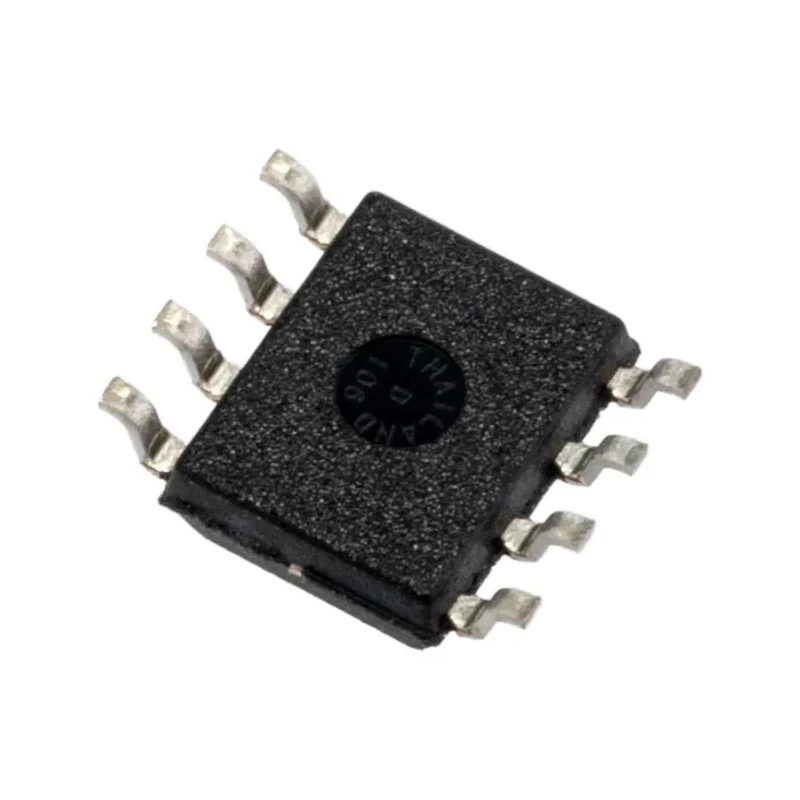

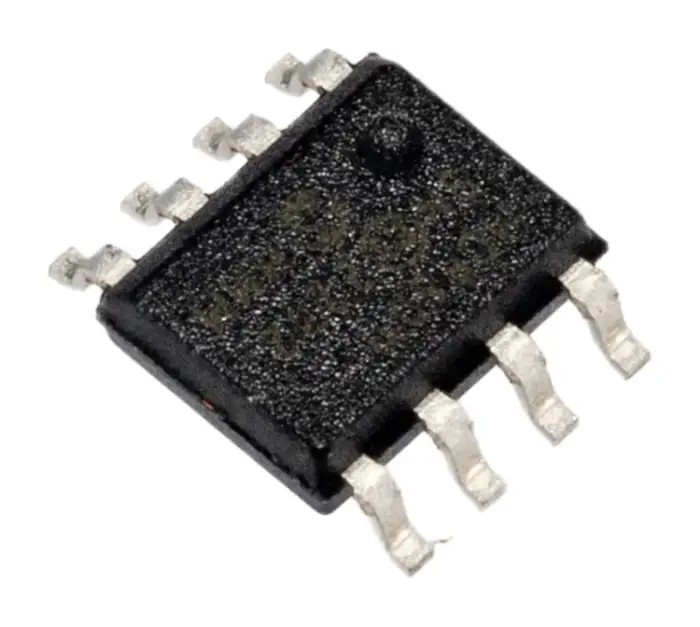

Microchip Operational Amplifier MCP601-I/SN 2.8 MHz Gain Bandwidth, 8-Pin SOIC, 3-5 V Supply MCP601-I/SN

Microchip MCP601-I/SN is a high-performance operational amplifier designed for various industrial and commercial electronic applications. This single-channel op amp operates with a supply voltage range from 3 V to 5 V and delivers a gain bandwidth product of 2.8 MHz, making it ideal for precision signal amplification needs.

Encapsulated in an 8-pin SOIC surface-mount package, the chip offers compact dimensions (4.9 mm length, 3.9 mm width, and 1.25 mm height), suitable for space-constrained PCB designs. Its low input bias current of 1 pA and minimal input offset voltage of 2 mV enhance signal integrity, ensuring accurate analog processing.

The MCP601-I/SN features a slew rate of 2.3 V/μs, enabling quick adaptation to changing signals, and can deliver up to 30 mA output current, sufficient for driving various loads without external buffers. The temperature rating from -40°C to 85°C allows usage in harsher industrial environments.

This operational amplifier is RoHS compliant, making it suitable for environmentally conscious manufacturing. Its automotive standard is not applicable, positioning it mainly for general-purpose industrial electronics, laboratory equipment, instrumentation, and embedded system designs.

Single channel operational amplifier for precision analog applications. Operates reliably with supply voltages from 3 V to a maximum of 5 V. Gain Bandwidth Product (GBP) is 2.8 MHz enabling high-speed amplification. Includes a low input bias current of 1 pA for accurate signal processing.

Slew rate of 2.3 V/μs ensures rapid response to signal changes. Operating temperature range from -40°C to 85°C suitable for industrial environments. Compact 8-pin SOIC surface-mounted package with dimensions 4.9 mm x 3.9 mm x 1.25 mm.

Output current capability up to 30 mA for driving loads directly. Complies with RoHS standards ensuring environmentally safe design.

This MCP601 series Operational Amplifier is widely used in industrial electronics, instrumentation amplifiers, sensor interface circuits, audio amplifiers, and other embedded analog solutions. Its proven reliability and RoHS compliance make it a cornerstone component in modern industrial and laboratory electronics projects.
