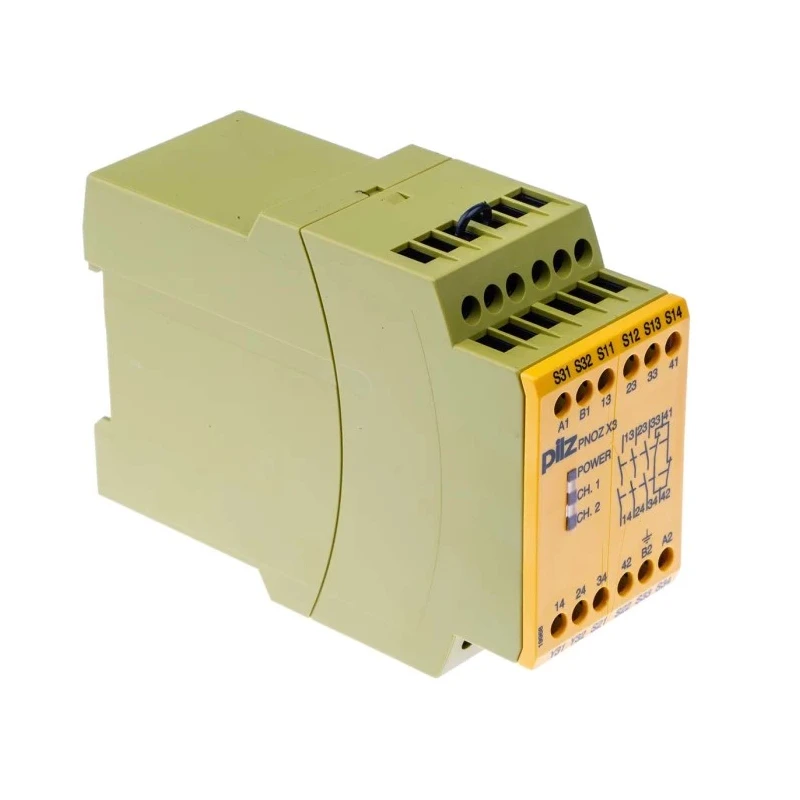

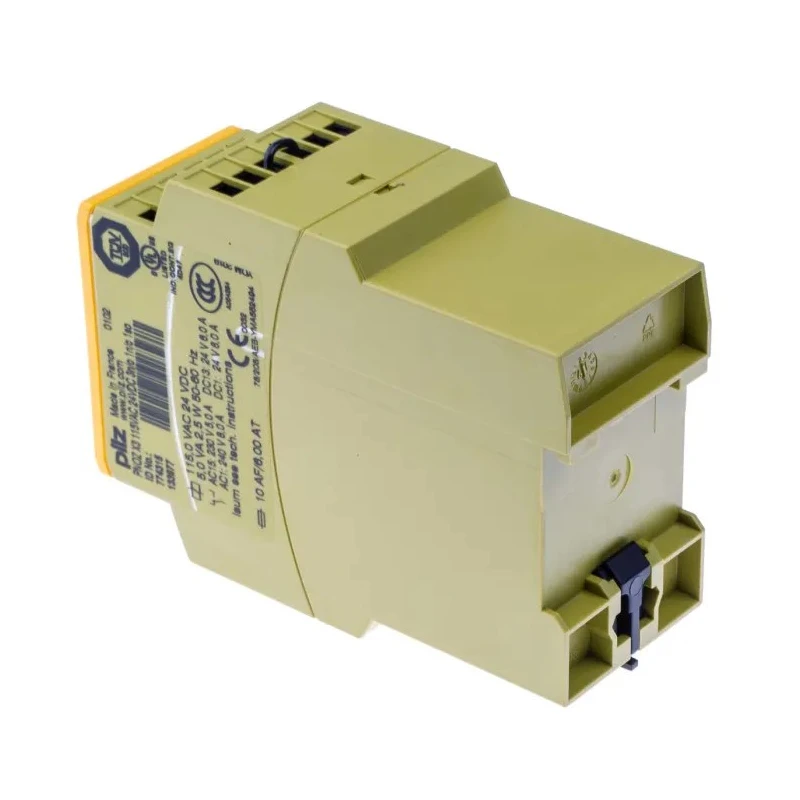

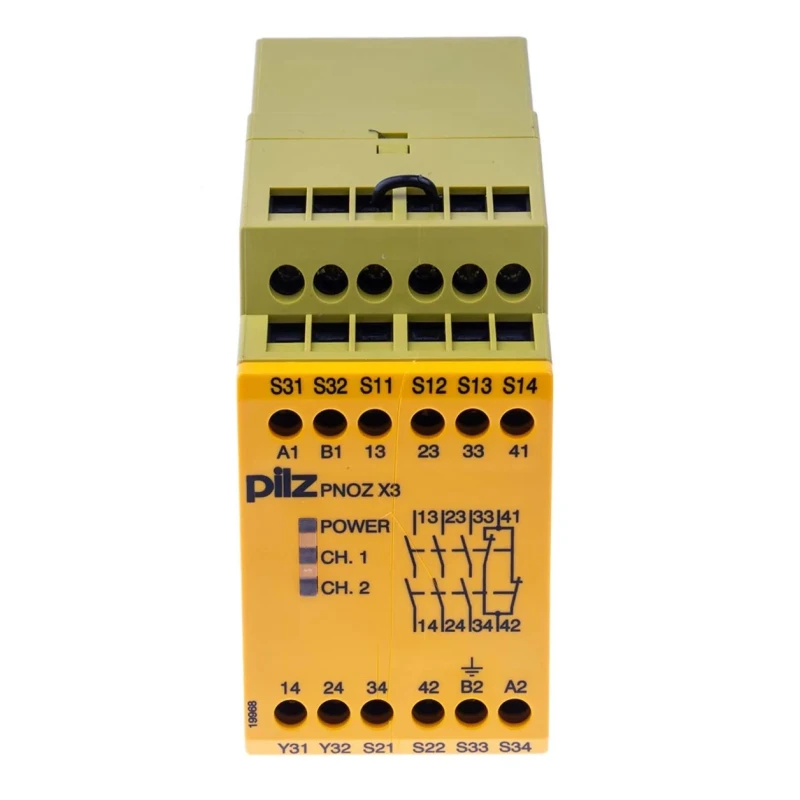

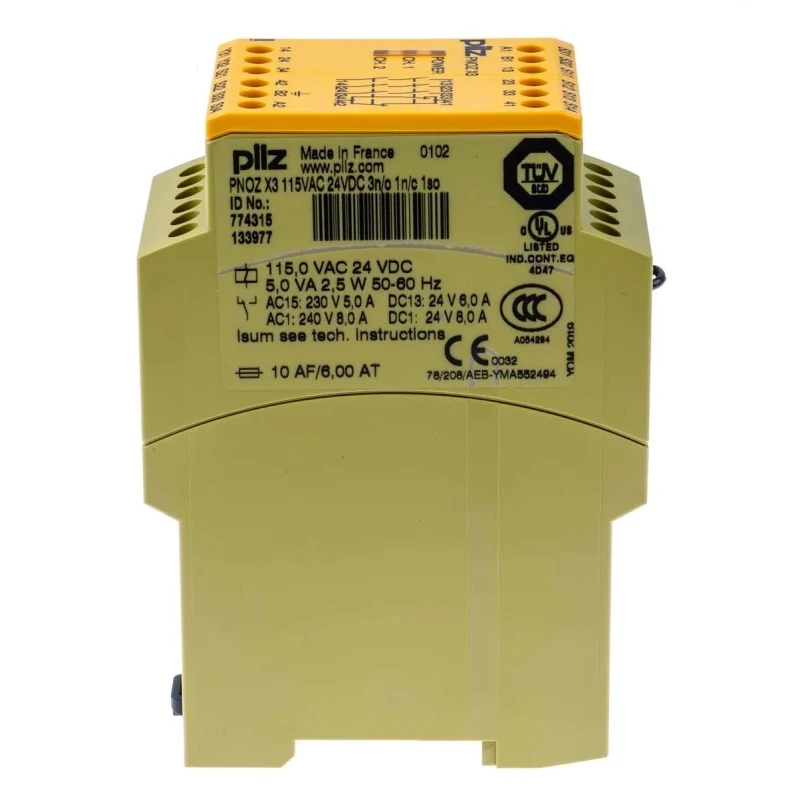

Pilz Safety Relay PNOZ X3, 115V AC/DC, 24V AC/DC Coil Voltage, 3 Safety Contacts, 1 Auxiliary Contact 774315
Specifications
| Country of Origin | India |
|---|---|
| Brand | Pilz |
| Height | 121mm |
| Length | 87mm |
| Model | 774315 |
| IP Rating | IP40, IP20, IP54 |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | PNOZ X3 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 3 NO/1 NC |
| Minimum Operating Temperature | -20°C |
| Safety Category | PLe/Category 4 EN ISO 13849-1 |
| Terminal type | Screw |
| Coil Voltage | 115, 24V ac/dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Safety Contacts | 3 |
| Number of Auxiliary Contacts | 1 |
| Semiconductor output signals | switch status channel 1 / 2 |
| Pilz PNOZ XV2, 24V dc Safety Relay, 2 Safety Contacts, 1Brand | Pilz |
Key Features
- Equipped with 3 normally open and 1 normally closed safety contacts.
- Operates on coil voltages of 115 V AC/DC and 24 V AC/DC.
- Features screw terminal connections and DIN rail mount installation.
- Integrated LED indicators for channel and supply voltage status.
- Designed for operation in -20°C to 55°C temperature range.
- Conforms to multiple safety standards including EN ISO 13849-1 and IEC 61511.
- Provides PLe / Category 4 safety category performance for high safety requirements.
- Includes semiconductor output signals for switch status monitoring.
Product Description
Pilz 774315 Safety Relay PNOZ X3 is a high-quality safety relay designed for industrial and automation environments where rapid and reliable safety interruption is critical. It supports coil voltages of 115 V AC/DC and 24 V AC/DC and is equipped with 3 safety contacts and 1 auxiliary contact, ensuring effective safety control in hazardous environments.
This relay features screw terminal type for secure wiring and standard DIN rail mounting for easy panel integration. LED indicators provide real-time feedback on switching channel statuses and supply voltage, facilitating maintenance and monitoring.
Operating safely within a temperature range from -20°C to 55°C, the product is suitable for a variety of industrial, laboratory, manufacturing, and automation applications such as emergency stop buttons, safety gate limit switches, reset buttons, and light barriers.
The PNOZ X3 series offers reliable X3 functionality with redundancy and built-in self-monitoring that maintains safety functions even in case of component failure. Its design includes a short-circuit-proof transformer and an electronic fuse on DC supply for enhanced protection.
3 safety contacts configured as 3 NO / 1 NC enhance hazard prevention. 1 auxiliary contact for additional circuit monitoring or control. Screw terminal ensures secure and robust connections. Compliance with numerous international safety standards including EN IEC 62061 and EN 60947 ensures industrial safety integrity.
Compact size and IP ratings of IP40, IP20, and IP54 for environmental protection. Automatic testing of opening and closing safety functions within each on-off cycle. Applications suitable for automated factories, warehouses, and industrial safety circuits.
The Pilz 774315 Safety Relay is trusted for its safety category rating of PLe / Category 4 as per EN ISO 13849-1, enabling its use in critical safety applications. Explore more Safety Relays and automation products at EnvMart for your industrial safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates on coil voltages of 115 V AC/DC and 24 V AC/DC.
It features a contact configuration of 3 normally open (NO) contacts and 1 normally closed (NC) contact.
This unit operates safely within a temperature range from -20°C to 55°C.
The relay has a height of 121 mm, a width of 45 mm, and a length of 87 mm.
It is designed for DIN rail mounting, facilitating easy panel integration.
It conforms to multiple safety standards including EN ISO 13849-1 and IEC 61511, ensuring high safety performance.
The PNOZ X3 includes 1 auxiliary contact for additional circuit monitoring or control.
It features screw terminal connections for secure wiring.
The relay has IP ratings of IP40, IP20, and IP54, providing various levels of environmental protection.
It is suitable for applications such as emergency stop buttons, safety gate limit switches, reset buttons, and light barriers.
It includes semiconductor output signals for switch status monitoring, specifically for channel 1 and channel 2.
It provides PLe / Category 4 safety category performance as per EN ISO 13849-1, suitable for critical safety applications.
