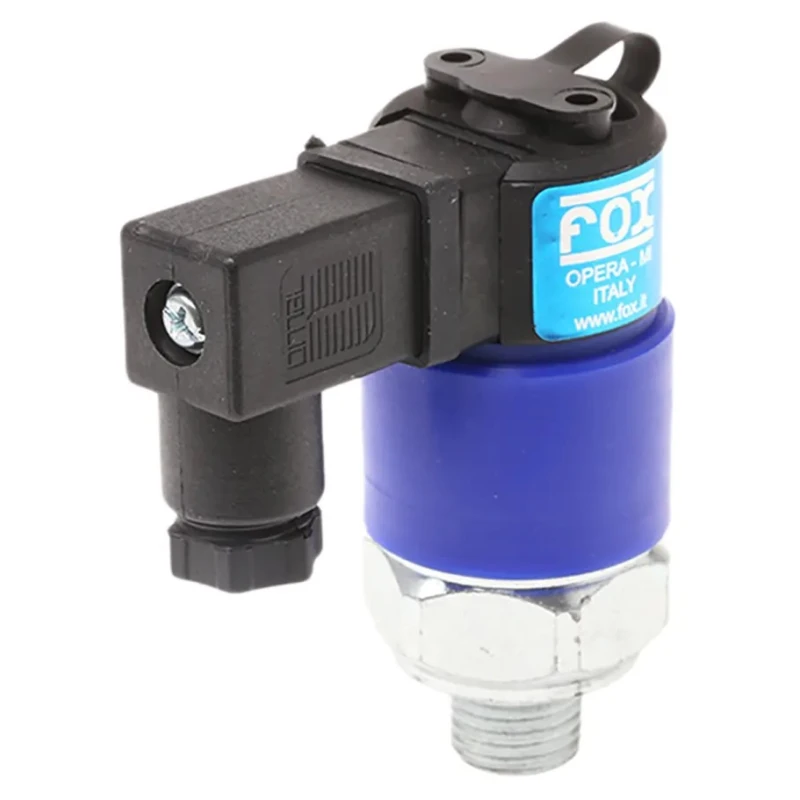

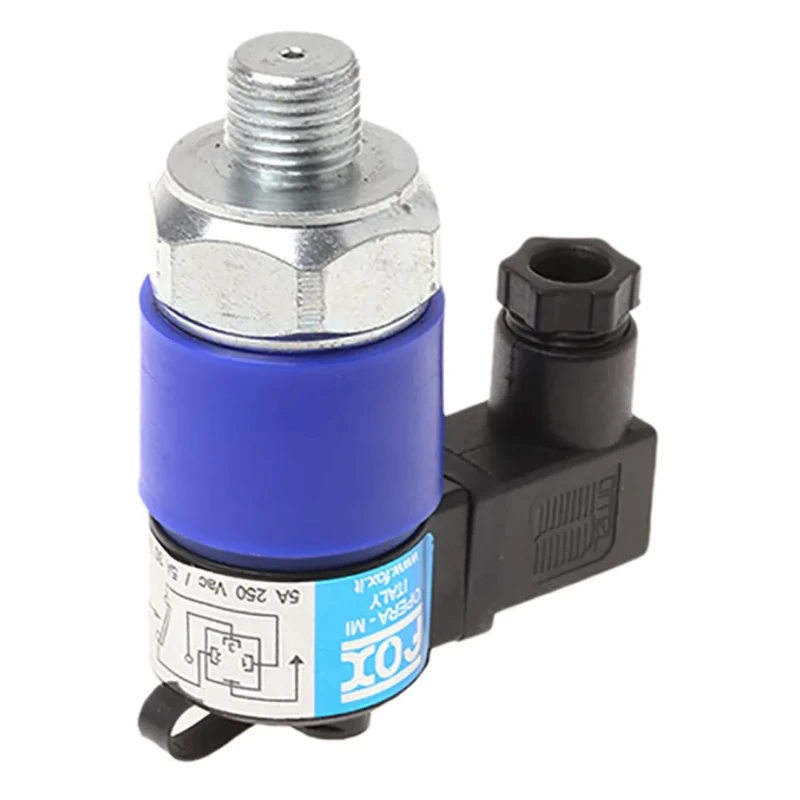

RS PRO Adjustable Pressure Switch NC 5 bar to 50 bar, 250V AC, 0.5A Load, IP65, Steel Body 363-5980

RS PRO 363-5980 Adjustable Pressure Switch is a high-quality device designed for precise monitoring of fluid pressures in hydraulic and pneumatic systems, supporting pressures from 5 bar to 50 bar. This pressure switch provides reliable electrical signaling once the preset pressure threshold is reached, ideal for fluid power and industrial applications.

The switch is constructed from durable steel, ensuring robustness and longevity in demanding environments. It features an adjustable setpoint via a central screw, allowing users to fine-tune the operational pressure with accuracy. Mechanical stops protect the internal spring and micro-switch from damage by over-pressurization, enhancing operational safety.

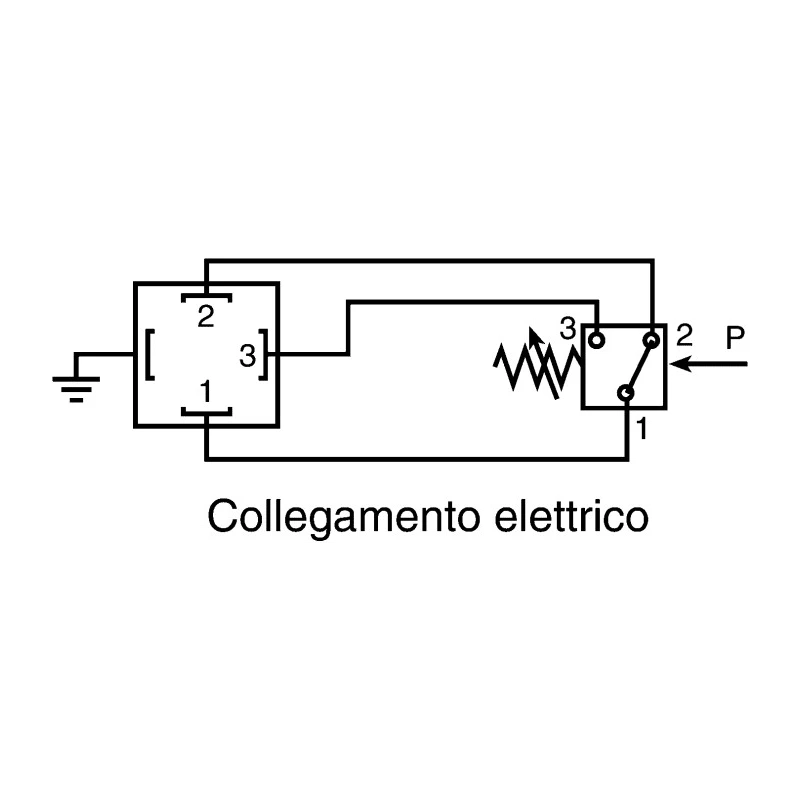

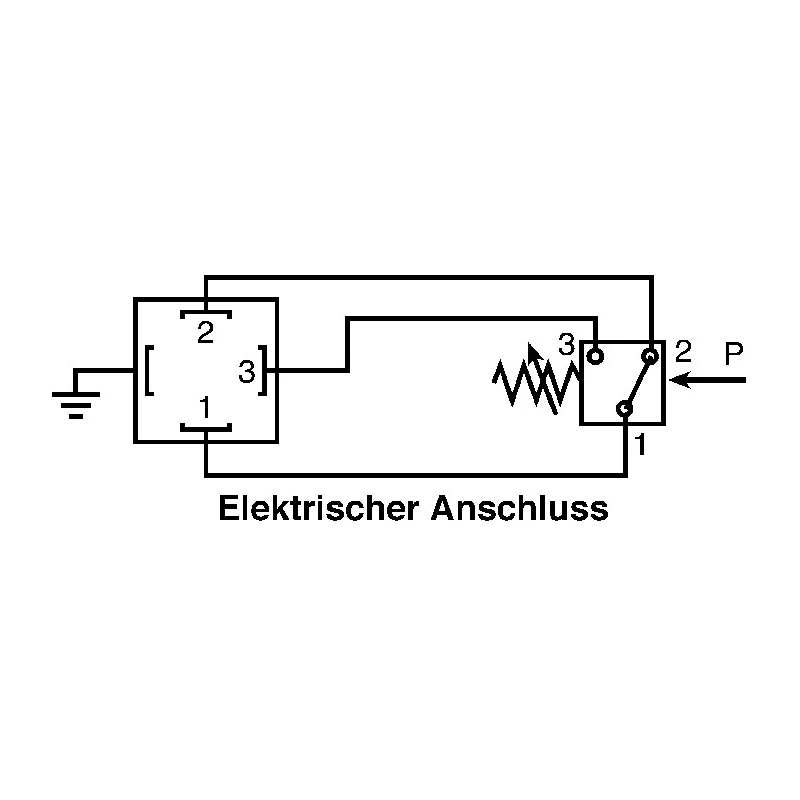

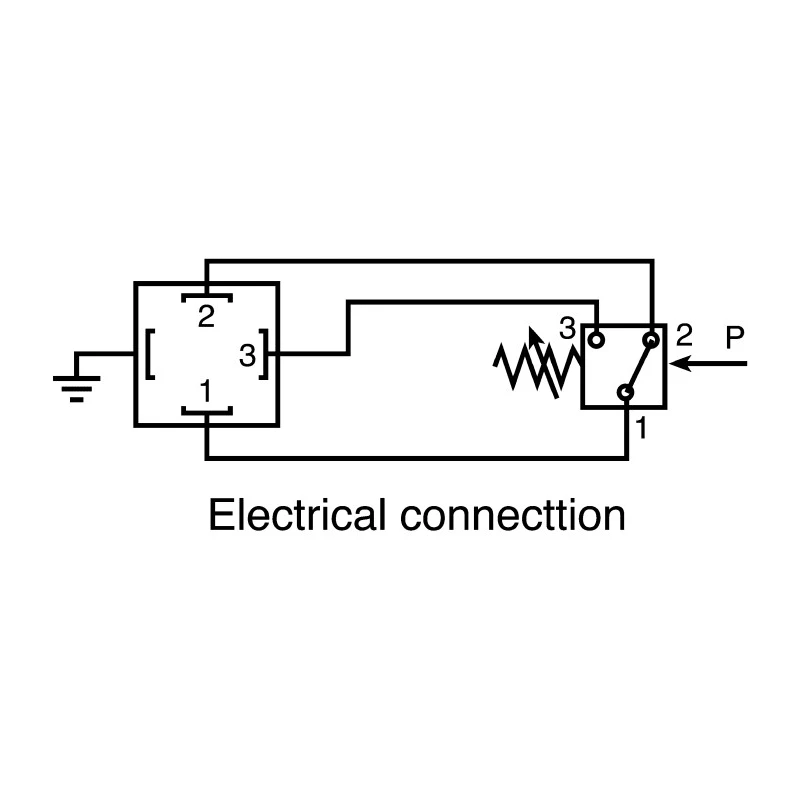

Electrical connectivity is secured through a DIN 43650 IP65-rated plug, and the device offers a compact footprint, enabling installation in restricted spaces and any orientation. The pressure switch supports a rated voltage of 250V AC and a maximum load current of 0.5A with a switching frequency up to 120 cycles per minute.

Operating within a temperature range of -20°C to 80°C, this switch is suitable for a variety of industrial environments. Its connection port size is 1/4 inch BSP male thread, and it complies with RoHS and DIN standards, ensuring regulatory compliance and quality assurance. Originating from Italy, it exemplifies high manufacturing standards.

The pressure switch operates with a voltage rating of 250V AC and a maximum load current of 0.5A. It features normally closed (NC) and normally open (NO) contacts with SPDT configuration for flexible switching. Constructed from robust steel, it offers IP65 protection and corrosion resistance.

The device can be adjusted via a central screw to set the desired pressure point precisely. Compact design allows mounting in any orientation in industrial environments. Rated for a maximum operating temperature of 80°C and minimum of -20°C.

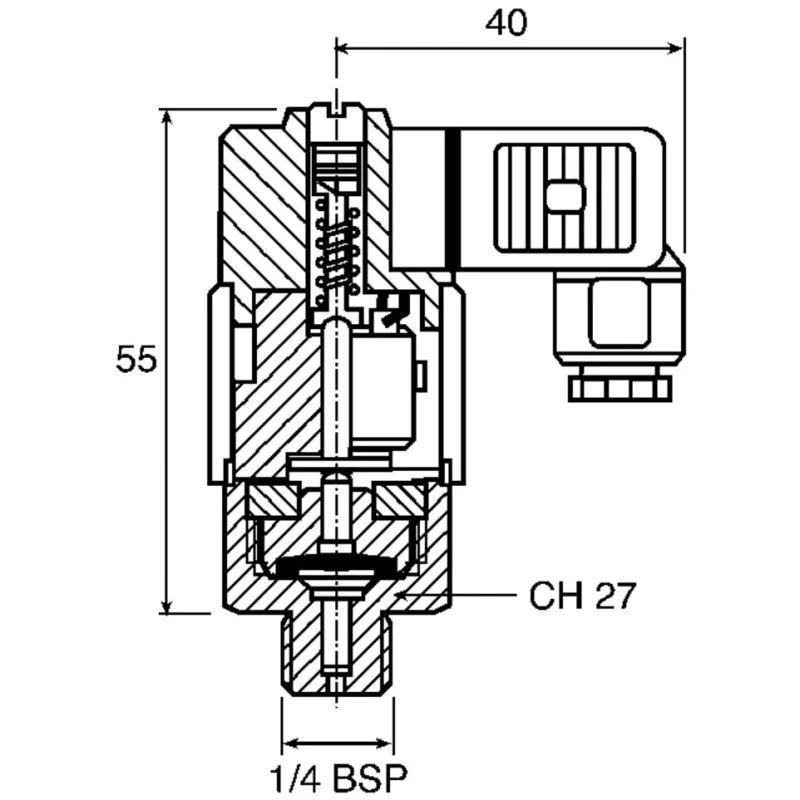

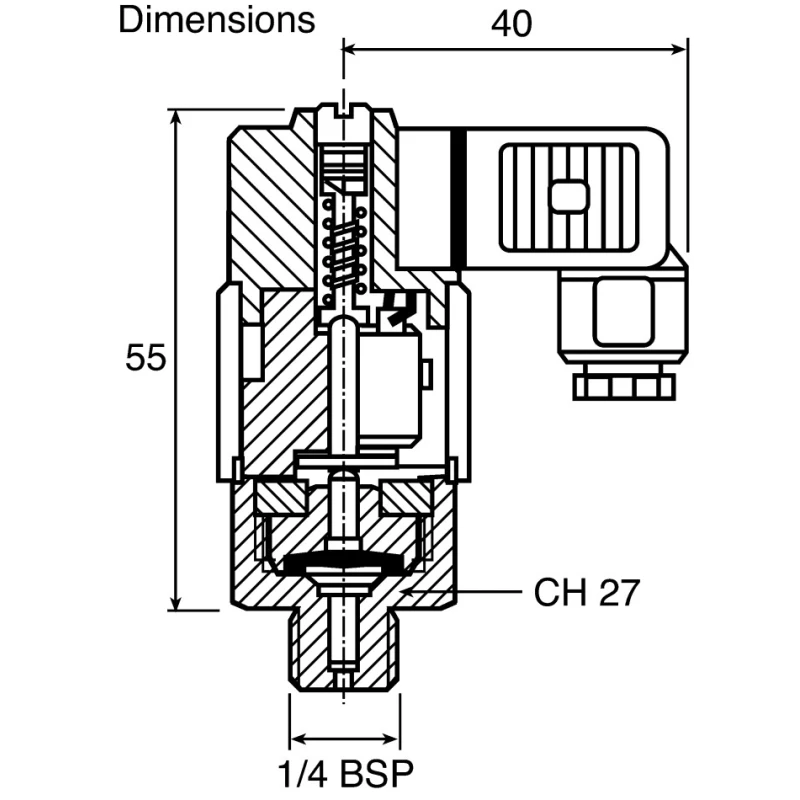

Connection is via 1/4 inch BSP parallel male thread with DIN 43650 IP65 electrical plug. It supports a switching frequency up to 120 cycles per minute, with mechanical stops to prevent over-pressurization. Compliant with RoHS and DIN standards, made in Italy.

Suitable for pumps, compressed air systems, machine tools, and process control equipment.

Ideal for numerous industrial applications including hydraulics, pneumatics, machine tools, and sensors, the RS PRO 363-5980 Pressure Switch provides reliable pressure sensing and control. Its robust design and ease of installation make it a versatile choice for process control and fluid power systems.
