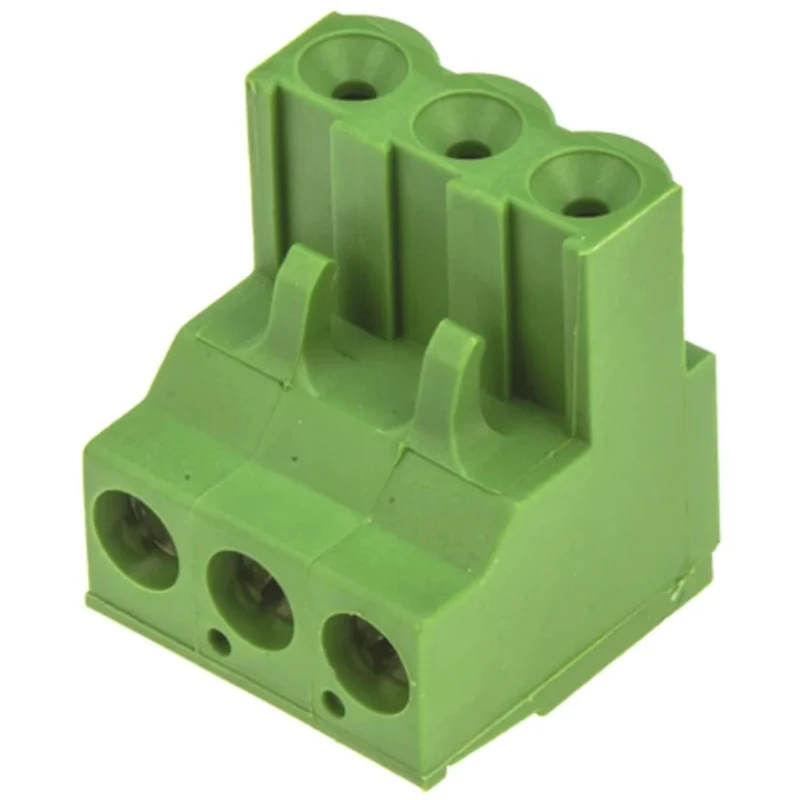

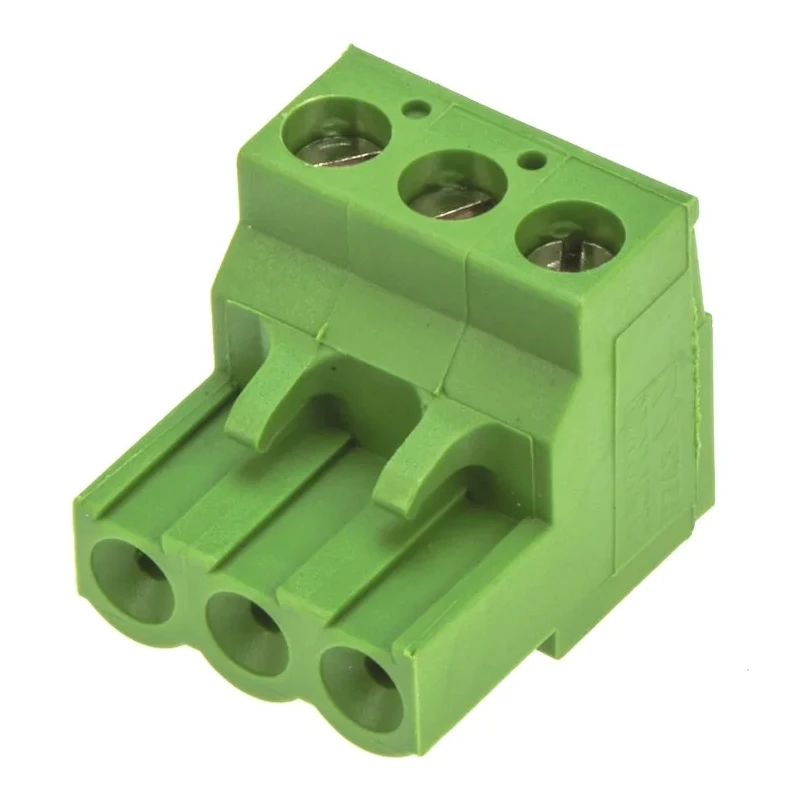

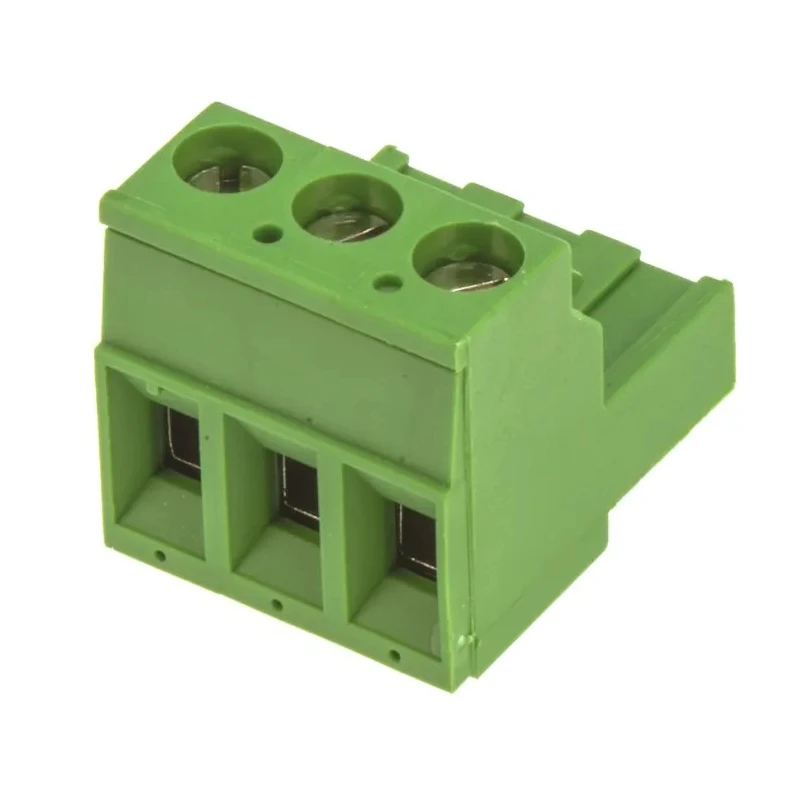

TE Connectivity Buchanan Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 300 V AC, 15 A Current 796634-3

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Buchanan Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 300 V AC, 15 A Current 796634-3

Name: TE Connectivity Buchanan Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 300 V AC, 15 A Current 796634-3
Brand: TE Connectivity
SKU: 328438
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	300V ac
Brand	TE Connectivity
Colour	Green
Orientation	Right Angle
Current	15A
Length	10.16mm
Model	796634-3
Depth	18.4mm
Width	15.5mm
Housing Material	Polyamide
Series	Buchanan
Number of Rows	1
Pitch	5.08mm
Standards/Approvals	UL no E 60677, RoHS, CSA File no 007189A
Number of Contacts	3
Connector Gender	Male
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	3mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	30AWG
Wire Connection Method	Screw

Key Features

Constructed with durable polyamide housing ensuring robustness and electrical insulation.
Designed for right angle orientation for PCB mounting and side stacking capabilities.
Accommodates wire sizes from 30 to 12 AWG with screw connection method.
Rated for 15 A current and 300 V AC voltage for medium power applications.
Compact dimensions with 15.5 mm width, 18.4 mm depth, and 10.16 mm length.
Rising clamp design with side entry terminals facilitates secure wire connection.
Suitable for corrosive environments enhancing long term reliability.
Meets industry standards including UL no E 60677, RoHS compliance, and CSA certification.

Product Description

TE Connectivity 796634-3 is a Buchanan Series pluggable terminal block featuring 3 contacts and a 5.08 mm pitch, designed for robust and reliable PCB electrical connections. It operates at up to 300 V AC with a current rating of 15 A, suitable for industrial, automation, and control applications within electrical and electronic systems.

This terminal block is manufactured from green polyamide 6.6 GF housing, providing excellent insulation and mechanical strength. Its right angle mounting and side stackable design optimize space on PCB assemblies while facilitating easy wiring configurations. The block supports wire sizes from 30 AWG to 12 AWG, connected via M3 screw terminals, making it versatile for various wiring gauges.

The rising clamp design with side entry terminals ensures secure contact with minimal assembly effort. It comes supplied with open screws, thereby reducing installation time. Additionally, the terminal block is suitable for use in corrosive environments, ensuring durability in harsh industrial conditions.

It complies with recognized standards including UL no E 60677, RoHS, and CSA File no 007189A, assuring safety, environmental responsibility, and quality performance.

This pluggable terminal block is ideal for applications in industrial automation, manufacturing, electrical control panels, and instrumentation where reliable and compact terminal connections are essential.

Durable polyamide housing provides excellent electrical insulation and mechanical resistance. Right angle, side stackable design facilitates space saving on PCBs. Accepts wire sizes ranging from 30 AWG to 12 AWG for flexible wiring options.

Screw connection technology ensures secure and maintenance-friendly wiring. Rated for 15 A current and 300 V AC voltage, meeting medium power requirements. Compliant with UL, RoHS, and CSA standards for quality and safety assurance.

Suitable for corrosive environments ensuring longevity in challenging conditions. Explore more high quality pluggable terminal blocks and connector solutions from TE Connectivity on EnvMart for industrial and electronic component needs.
