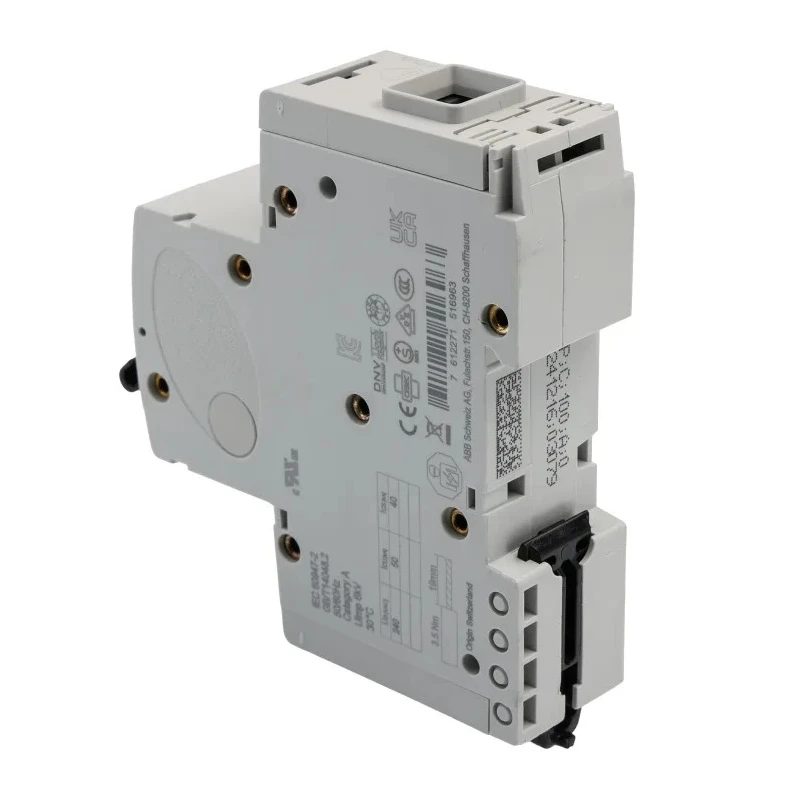

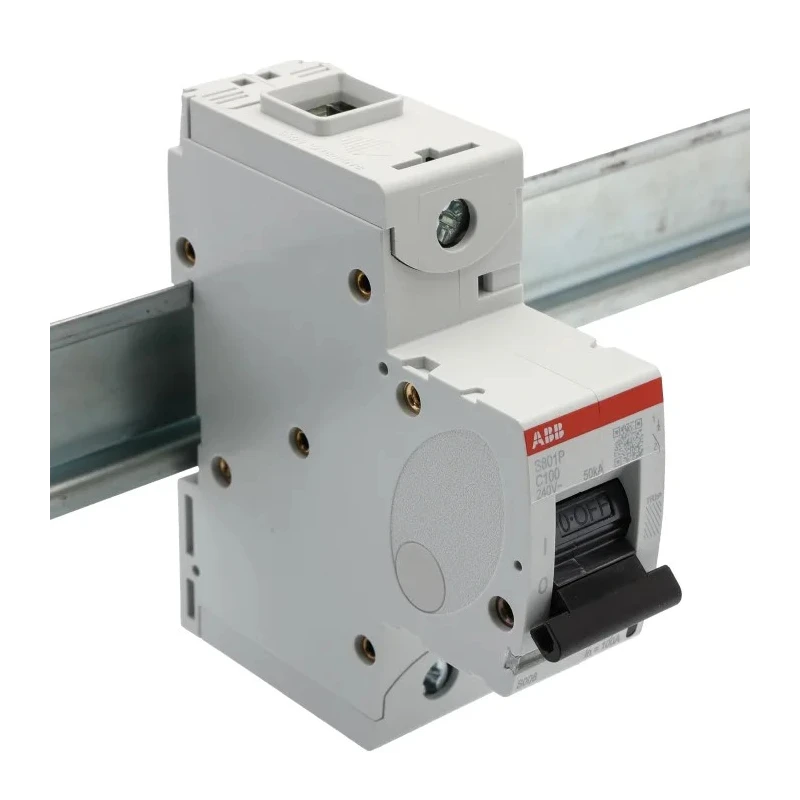

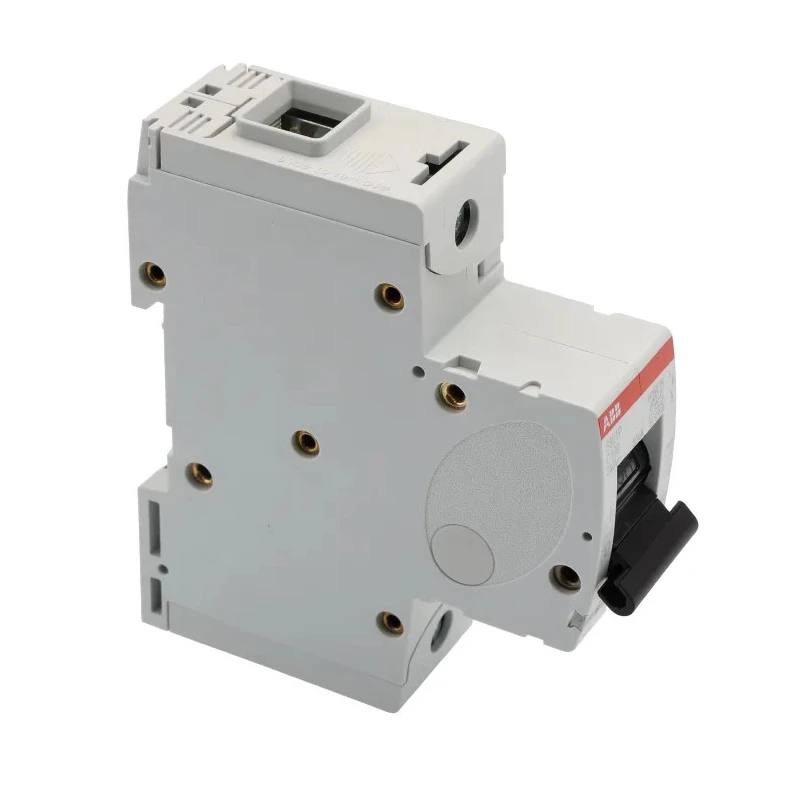

ABB High Performance S800S Miniature Circuit Breaker 1-Pole 100A Type C 690V AC 250V DC 50kA Breaking 2CCG001227R0001
Specifications
| Country of Origin | Switzerland |
|---|---|
| Range | High Performance |
| Brand | ABB |
| Height | 95mm |
| Model | 2CCG001227R0001 |
| Depth | 82.5mm |
| IP Rating | IP20 |
| Width | 27mm |
| Mount Type | DIN Rail |
| Current Rating | 100A |
| Series | S800S |
| Terminal type | Screw |
| Breaking Capacity | 50kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 |
| Rated AC Voltage | 690V ac |
| Rated DC Voltage | 250V dc |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Electromagnetic, Thermomagnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Rated current of 100A ensures efficient circuit protection.
- Type C tripping characteristic suitable for inductive load circuits.
- Supports rated AC voltage up to 690V and DC voltage up to 250V.
- High breaking capacity of 50kA for enhanced safety against short circuits.
- Compact size with 27mm width and DIN rail mount compatibility.
- Toggle switch actuator offers straightforward manual reset after tripping.
- Tripping mechanism combines electromagnetic and thermomagnetic operation.
- Certified to IEC/EN 60947-2 and IEC/EN 60898-1 standards for quality assurance.
Product Description
ABB 2CCG001227R0001 high performance S800S Miniature Circuit Breaker is designed for demanding electrical protection in industrial, commercial, and residential environments.
With a single pole and a rated current of 100A, it effectively safeguards circuits against overload and short circuit faults, supporting both AC and DC applications with voltages up to 690V AC and 250V DC respectively.
The Type C tripping characteristic makes it suitable for circuits with inductive loads such as motors and transformers, providing reliable and fast disconnection when required.
This MCB features a robust breaking capacity of 50kA, enhancing safety by effectively interrupting high fault currents. It is engineered for convenient DIN rail mounting, has a compact 27mm width, 95mm height, and 82.5mm depth, making it suitable for varied panel installations.
The toggle switch actuator enables easy manual reset after fault clearance, while the electromagnetic and thermomagnetic tripping mechanisms ensure precise operation and protection adherence to IEC/EN 60947-2 and IEC/EN 60898-1 standards.
Constructed with screw terminals and rated IP20 for indoor protection, this breaker is a reliable component for electrical distribution systems. Rated current of 100A ensures efficient circuit protection. Type C tripping characteristic suitable for inductive load circuits.
High breaking capacity of 50kA for enhanced safety. Compact size with DIN rail mounting compatibility. Toggle switch actuator allows easy manual reset. Certified to international IEC/EN standards. Electromagnetic, thermomagnetic tripping mechanism.
IP20 protection rating for safe indoor use. Manufactured in Switzerland for quality assurance. Screw terminal type for secure connections.
This ABB S800S Miniature Circuit Breaker is ideal for electrical distribution boards in industrial, manufacturing, commercial, and residential settings to protect wiring and equipment.
Explore a wide range of electrical circuit protection devices in EnvMart’s category for reliable, high-quality electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a rated current of 100A, ensuring efficient circuit protection.
It features a high breaking capacity of 50kA, enhancing safety against short circuits.
It supports a rated AC voltage of up to 690V and a rated DC voltage of up to 250V.
This unit has a Type C tripping characteristic, making it suitable for inductive load circuits such as motors and transformers.
It has a compact size with a width of 27mm, height of 95mm, and depth of 82.5mm, and is designed for DIN rail mounting.
The tripping mechanism combines electromagnetic and thermomagnetic operation for reliable protection.
It has an IP20 protection rating, making it suitable for indoor use.
The reset actuator type is a toggle switch, allowing for straightforward manual reset after tripping.
It is certified to IEC/EN 60947-2 and IEC/EN 60898-1 standards for quality assurance.
This model features screw terminals for secure connections.
It is manufactured in Switzerland, ensuring quality assurance.
This circuit breaker belongs to the S800S series, which is designed for high performance.
