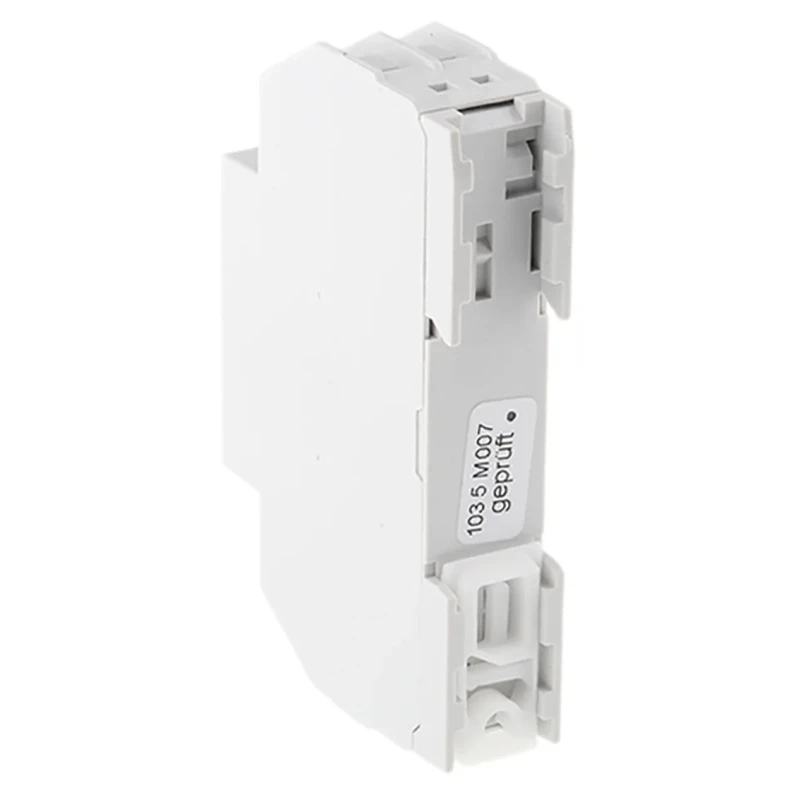

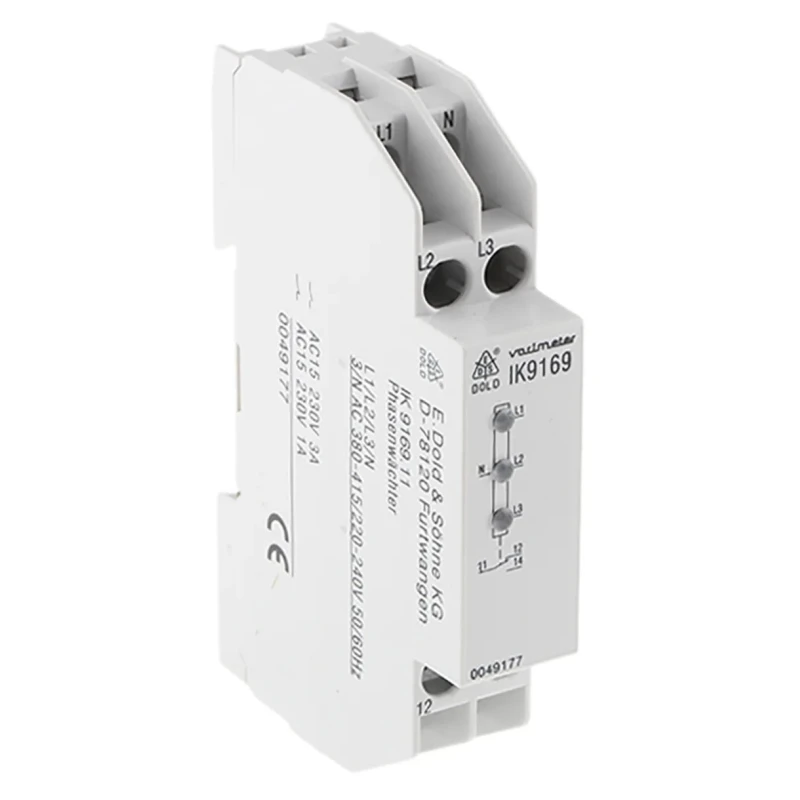

Dold Monitoring Relay, 3 Phase SPDT Contact, DIN Rail Mount, 230V AC, IK9169.11 3AC380-415/220-240V
Specifications
| Country of Origin | Malta |
|---|---|
| Brand | Dold |
| Height | 90mm |
| Function | Phase Failure |
| Length | 59mm |
| Model | IK9169.11 3AC380-415/220-240V |
| IP Rating | IP40 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | IK 9169 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Switching Voltage | 230V ac |
| Contact Current | 4A |
Key Features
- Detects phase failure in three-phase and single-phase electrical systems with accuracy.
- Features adjustable phase sequence and LED indicators for each phase status.
- Compact 17.5 mm width DIN rail mounting for efficient space utilization.
- Operates within a temperature range from +60°C to 60°C with IP40 protection.
- Contact current rating of 4A with secure screw terminal connections.
- Complies with multiple international IEC and UL electrical and safety standards.
- Orange housing manufactured according to DIN 43 880 standards for durability.
Product Description
Dold IK9169.11 3AC380-415/220-240V Monitoring Relay is a high-precision 3-phase monitoring device featuring an SPDT contact configuration and DIN rail mounting suitable for industrial electrical control systems.
This relay expertly detects phase failure in both three-phase and single-phase electrical supply systems using the rest current principle. It includes adjustable phase sequence settings and LED displays for clear monitoring of each phase condition.
The device features a compact and durable design with overall dimensions including a width of 17.5 mm, height of 90 mm, and length of 59 mm. Its orange housing conforms to DIN 43 880 standards, ensuring robustness and easy identification in installations.
Equipped with screw terminal type connections and a contact current rating of 4 amperes, this monitoring relay operates efficiently in temperatures ranging from +60°C to 60°C. It is IP40 rated, offering protection against solid objects and is suitable for indoor industrial use.
Designed according to rigorous IEC and UL standards, this relay supports reliable phase monitoring and failure detection essential for manufacturing plants, electrical distribution, automation systems, HVAC control, and commercial electric panels.
Detects phase failure in three-phase systems with single-phase connection option. Adjustable phase sequence and LED display for each phase enhance operational clarity. Compact 17.5 mm width and DIN rail mounting ensure space-saving installation.
Screw terminal connections facilitate secure wiring and maintenance. Contact current capacity of 4A supports moderate load switching applications. Meets international standards including IEC 60664-1 and UL Subject 94. Robust orange housing manufactured to DIN 43 880 standards for durability.
This Dold Monitoring Relay is an essential component for monitoring devices in industrial, construction, and manufacturing electrical control systems. Its reliable phase failure detection helps prevent equipment damage and process downtime.
Explore more from the Dold product range in the Relays & Contactors category at EnvMart for comprehensive industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The monitoring relay features a Single Pole Double Throw (SPDT) contact configuration.
This model has a compact width of 17.5 mm, making it suitable for DIN rail mounting.
The maximum operating temperature for this monitoring relay is 60°C.
The contact current rating is 4A, which supports moderate load switching applications.
It uses DIN rail mounting, which allows for efficient space utilization in electrical control systems.
The relay has an IP40 rating, providing protection against solid objects.
It operates at a switching voltage of 230V AC.
It detects phase failure using the rest current principle, suitable for both three-phase and single-phase electrical systems.
The overall dimensions are 90 mm in height, 59 mm in length, and 17.5 mm in width.
It features screw terminal type connections for secure wiring and maintenance.
It complies with multiple international IEC and UL electrical and safety standards, including IEC 60664-1 and UL Subject 94.
The monitoring relay is manufactured in Malta.
