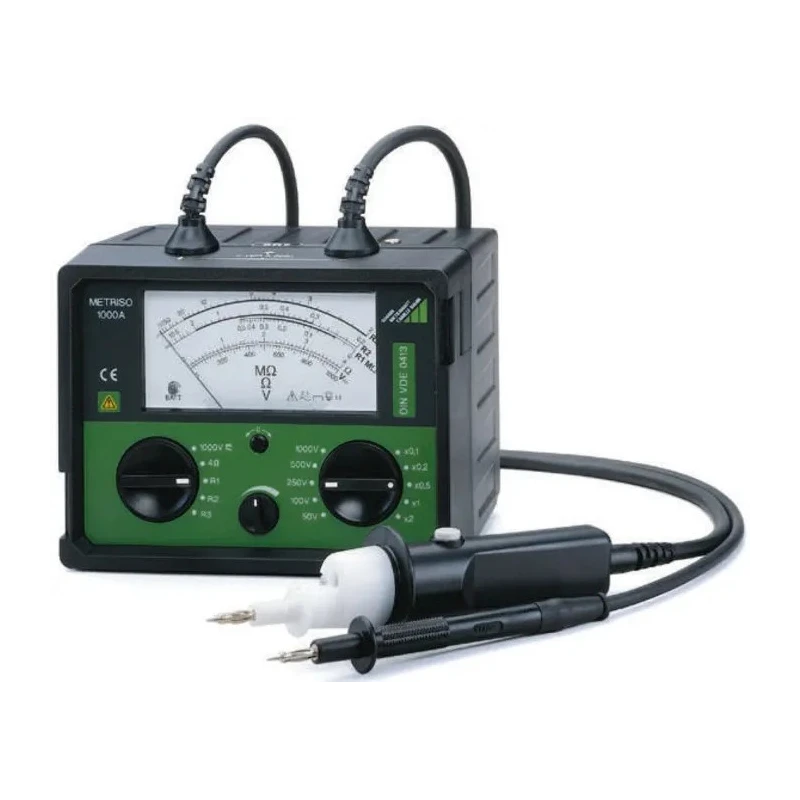

Gossen Metrawatt METRISO 1000A Insulation Tester, 50 V Min, 1 kV Max, 400 MΩ CAT II M540C

Free Delivery in India | Lowest Global Shipping Charges

Gossen Metrawatt METRISO 1000A Insulation Tester, 50 V Min, 1 kV Max, 400 MΩ CAT II M540C

Name: Gossen Metrawatt METRISO 1000A Insulation Tester, 50 V Min, 1 kV Max, 400 MΩ CAT II M540C
Brand: Gossen Metrawatt
SKU: 327461
Price: 1614.36 USD
Availability: InStock



Category Insulation Tester Brand Gossen Metrawatt Condition New

Specifications

Country of Origin	Czech Republic
Display Type	Analogue
Brand	Gossen Metrawatt
Battery type	Type D
Height	110mm
Length	165mm
Model	M540C
Gross Weight	1.6kg
Width	125mm
Maximum Operating Temperature	40°C
Tester Type	Insulation Tester
Minimum Operating Temperature	0°C
Test Current	200mA
Minimum test Voltage	50V
Standards/Approvals	DIN EN 610101, IEC 610101, VDE 04111
Safety Category Level	CAT II
Safety Category Voltage	1kV
Maximum Test Voltage	1kV
Insulation Testing Resistance	400MΩ
Five nominal voltages	50 V, 100 V, 250 V, 500 V and 1000 V

Key Features

Features voltage measurement capability up to 1000 V.
Utilizes a test current of 200 mA for effective insulation testing.
Equipped with a signal lamp for battery status indication.
Includes low impedance measurement compliant with VDE0413 standards.
Operates safely within a temperature range of 0°C to 40°C.
Designed for CAT II safety level with a voltage rating of 1 kV.
Compact dimensions of 165 mm length, 125 mm width, and 110 mm height enhance portability.
Supplied complete with carrying case and operating instructions.

Product Description

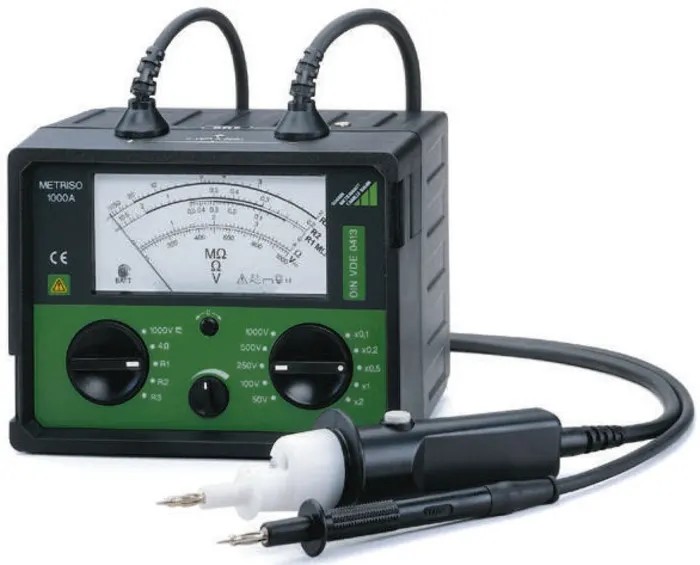

The Gossen Metrawatt M540C METRISO 1000A insulation tester is a reliable analogue device engineered for comprehensive insulation resistance measurements. It supports a versatile range of five nominal test voltages - 50 V, 100 V, 250 V, 500 V, and 1000 V - making it suitable for diverse industrial, electrical maintenance, and laboratory applications.

With a test current of 200 mA, this insulation tester offers precise evaluation of insulation resistance up to 400 MΩ, ensuring enhanced safety and performance diagnostics. The analogue display provides clear, accurate readings while a built-in signal lamp indicates battery status, preventing unexpected power failures during critical testing.

Compliance with VDE0413 standard low impedance measurement enhances measurement reliability by mitigating ghost voltages. This device operates safely under the CAT II safety rating at 1 kV, making it suitable for testing low energy circuits and installations.

The robust design includes a lightweight body weighing approximately 1.6 kg with compact dimensions (165 mm length, 125 mm width, and 110 mm height), facilitating ease of handling and portability. Its operating temperature range from 0 to 40°C suits various industrial environments.

Manufactured in the Czech Republic, the METRISO 1000A comes supplied with a durable carrying case and comprehensive operating instructions, making it a ready-to-use tool for electrical inspection professionals.

Five nominal voltages for versatile insulation testing. Test current of 200 mA ensures reliable measurement results. Signal lamp indicates battery condition clearly. Low impedance measurement complies with VDE0413 standard.

CAT II safety rating at 1 kV for safe operation. Compact and lightweight design enhances usability. Includes carrying case and user manual for convenience.

This Insulation Tester is ideal for electrical testing, maintenance, industrial inspections, laboratory measurements, and other applications requiring accurate insulation resistance readings. Browse EnvMart's extensive range of insulation and electrical testers for complementary tools and accessories.
