Gossen Metrawatt Master Package PROFITEST INTRO Electrical Installation Tester 3.7kV Earth Resistance Measurement M503B
Specifications
| Country of Origin | Slovakia |
|---|---|
| Display Type | LCD |
| Brand | Gossen Metrawatt |
| Battery type | AA |
| Height | 140mm |
| Length | 130mm |
| Model | M503B |
| IP Rating | IP40, IP52 |
| Gross Weight | 1.5kg |
| Width | 225mm |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Measuring Category | CAT III 600 V / CAT IV 300 V |
| Plug Type | Type F |
| Interfaces | USB, DDS-CAD and epINSTROM |
| Test type | Wiring Polarity |
| Test Standards | IEC 60364-6, DIN VDE 0100-600 |
| Continuity Test Current | 15mA |
| Insulation Test Voltage | 3.7kV |
| Interface Type | USB |
| Standards/Approvals | DIN VDE 0105100, DIN VDE 0100600, IEC 603646 |
| Safety Category Level | CAT III, CAT IV |
| Safety Category Voltage | 500V |
| Loop Impedance Test Type | Phase to Earth, Phase to Neutral |
| Maximum Voltage Measurement | 600V |
| RCD Test Type | DC |
| Maximum Continuity Resistance | 9.99kΩ |
| Minimum Continuity Resistance | 300mΩ |
Key Features
- Supports Phase to Earth and Phase to Neutral loop impedance testing.
- Features RCD ramp and DC test functions with non-tripping operation.
- Measures insulation up to 3.7kV and maximum voltage up to 600V.
- Includes USB interface with bidirectional data exchange for documentation.
- Robust design with IP40 and IP52 ratings and CAT III/IV safety levels.
- Portable size with dimensions 225x130x140 mm and weight of 1.5 kg.
- Operates with AA battery or mains power with LCD display interface.
- Test standards include IEC 60364-6 and DIN VDE 0100-600 compliance.
Product Description
Gossen Metrawatt M503B Master Package PROFITEST INTRO Electrical Installation Tester is a versatile and advanced tool designed for precise electrical installation testing and earth resistance measurement up to 3.7kV. Its multifunction testing capabilities include loop impedance, insulation resistance, wiring polarity, and various RCD tests. The device features a robust LCD display and a user-friendly rotary switch for direct selection of measuring functions.
This tester supports measurements compliant with IEC 60364-6 and DIN VDE 0100-600 standards, ensuring reliability and safety with CAT III 600 V and CAT IV 300 V safety categories. It is rated IP40 and IP52 for ingress protection, suitable for industrial and construction environments.

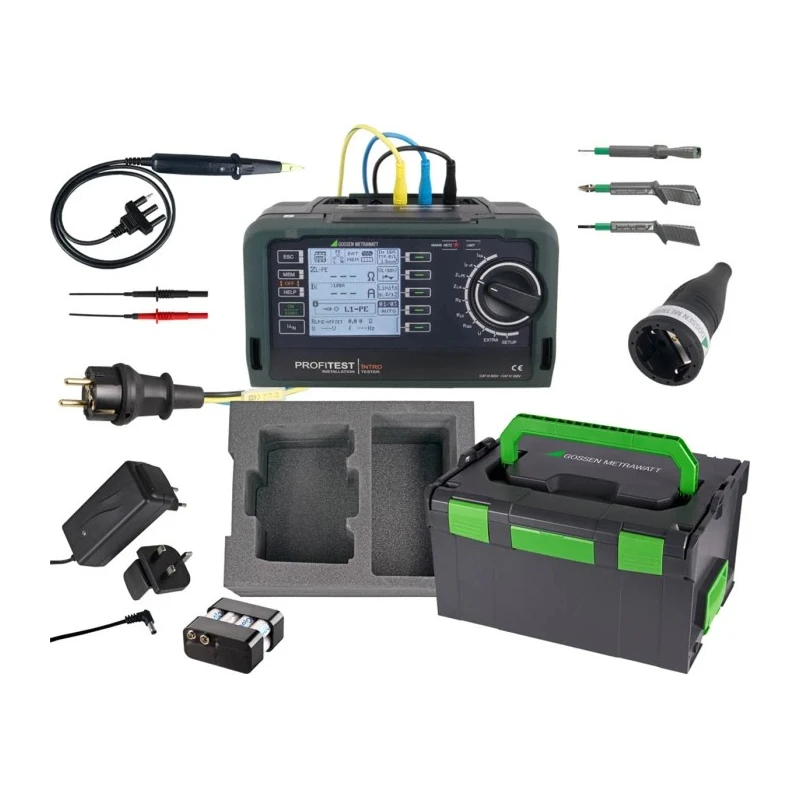

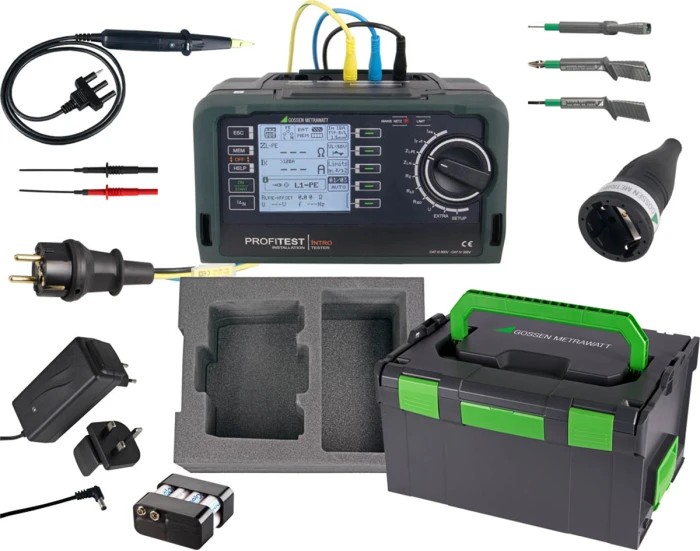

The Master Package includes the PROFiTEST INTRO M520T tester, a test probe with remote release, Vario-Plug set, set-probes, measuring adapters, jumper, battery pack with charger, and a durable SORTIMO L-BOXX case with foam inserts for organized storage. This comprehensive set addresses a wide range of electrical test and measurement requirements.
Additional features include the measurement of RLO, ZL-PE, ZL-N, RINS, RE, ΔU, phase sequence and voltage, support for various RCD types (A, AC, F, B, B+, EV, MI, G/R, SRCDs, and PRCDs), and the capability to interface with RFID readers or barcode scanners for enhanced data management. The device's offset management and individual measured value memory enhance testing accuracy and documentation.
The IP40 and IP52 protection ratings combined with user-friendly interface and lightweight design (1.5 kg) enable safe and efficient operation onsite. Suitable for electrical installation, HVAC, manufacturing, maintenance, and laboratory environments, this tester package ensures versatile application scenarios.
Industrial professionals benefit from its comprehensive test set, which integrates bidirectional USB data exchange with software support for tree structures and documentation creation, enhancing project workflows and compliance management.
Supports Phase to Earth and Phase to Neutral loop impedance testing. Features RCD ramp and DC test functions with non-tripping operation. Measures insulation up to 3.7kV and maximum voltage up to 600V. Includes USB interface with bidirectional data exchange for documentation.
Robust design with IP40 and IP52 ratings and CAT III/IV safety levels. Portable size with dimensions 225x130x140 mm and weight of 1.5 kg. Operates with AA battery or mains power with LCD display interface. Test standards include IEC 60364-6 and DIN VDE 0100-600 compliance.
Comes as a master package including multiple test probes, adapters, and Sortimo storage case. Suitable for industrial, construction, electrical installation, and maintenance use cases. Browse more Multifunction Testers and electrical test equipment from Gossen Metrawatt and others on EnvMart for reliable industrial measurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum insulation test voltage for this model is 3.7kV.
This model has dimensions of 225mm in length, 130mm in width, and 140mm in height, with a weight of 1.5 kg.
It supports various RCD test types including DC, A, AC, F, B, B+, EV, MI, G/R, SRCDs, and PRCDs.
It meets safety category levels CAT III 600 V and CAT IV 300 V.
The maximum voltage measurement capability is 600V.
This model complies with IEC 60364-6 and DIN VDE 0100-600 standards.
It features an LCD display for easy reading of measurements.
The operating temperature range is from 0°C to 40°C.
It can perform loop impedance tests, insulation resistance tests, wiring polarity tests, and various RCD tests.
Yes, it includes multiple test probes, adapters, a battery pack with charger, and a durable SORTIMO L-BOXX case for storage.
It operates with AA batteries or mains power.
It has IP40 and IP52 ingress protection ratings, making it suitable for various environments.
