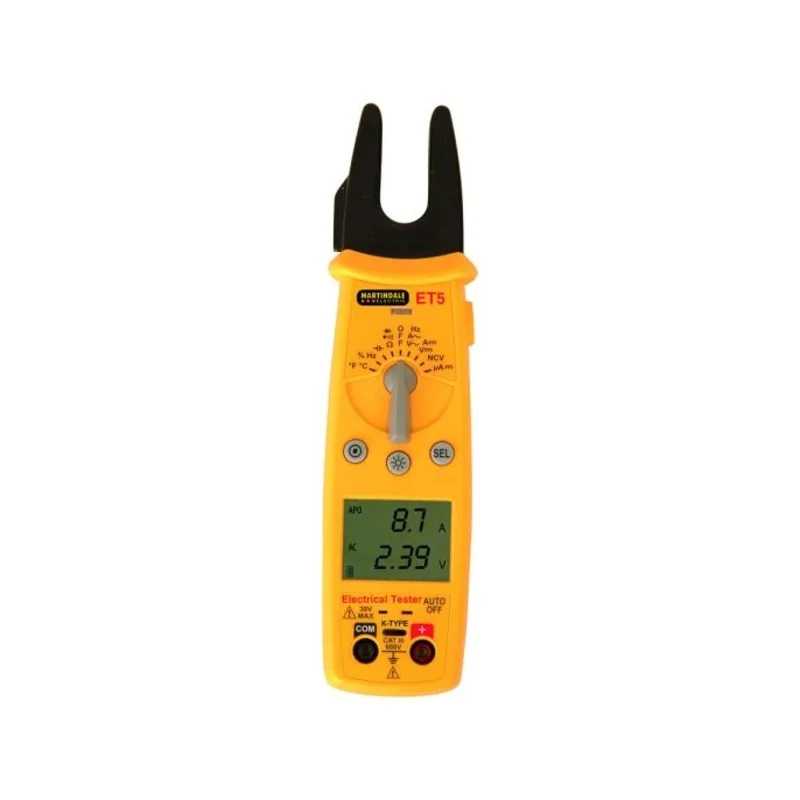

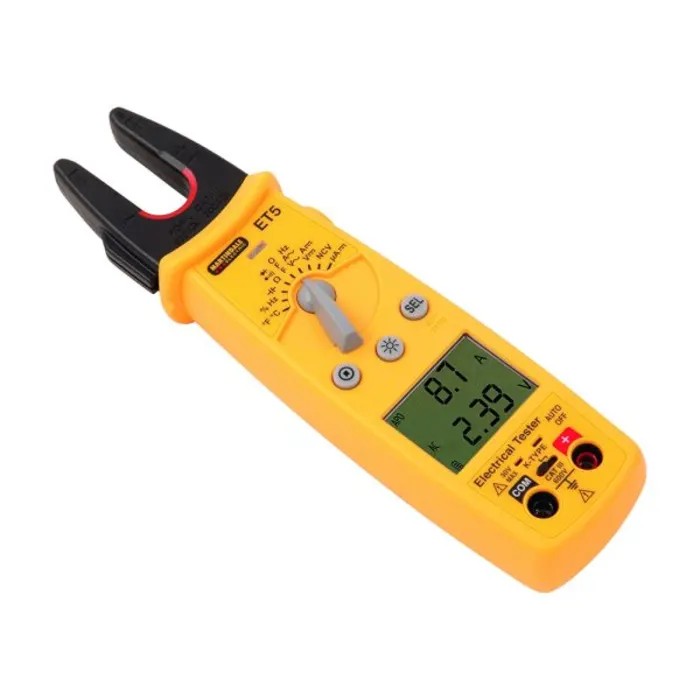

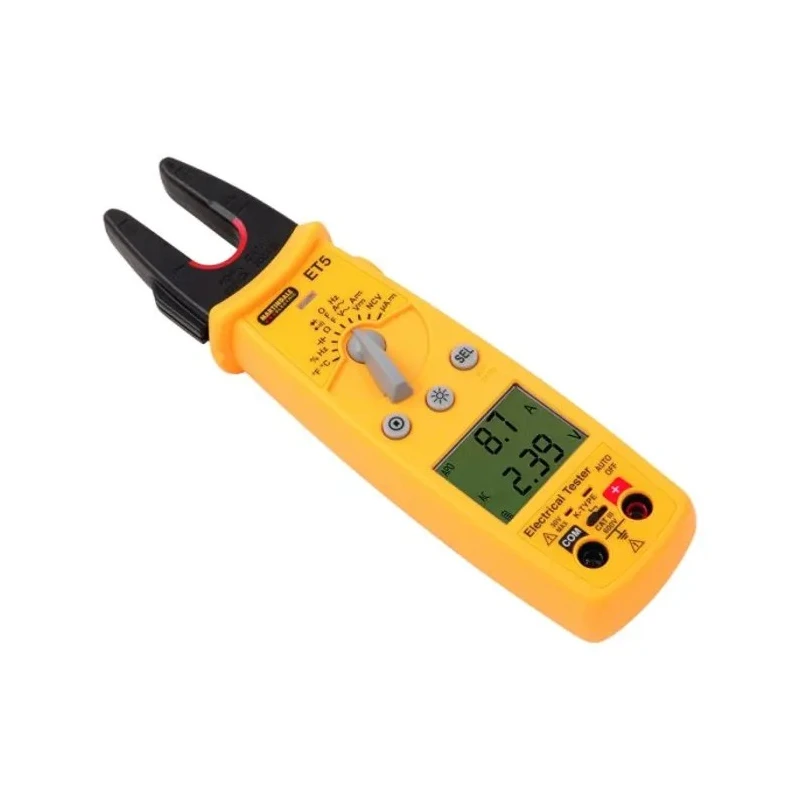

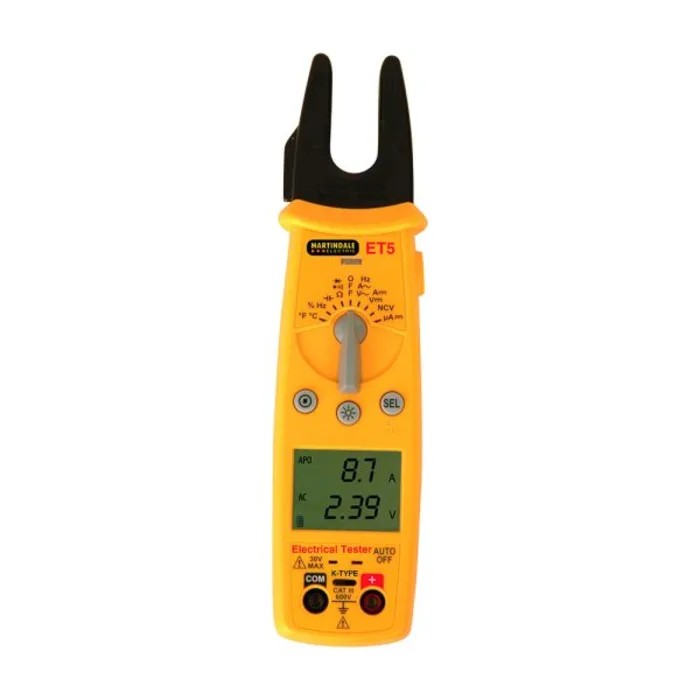

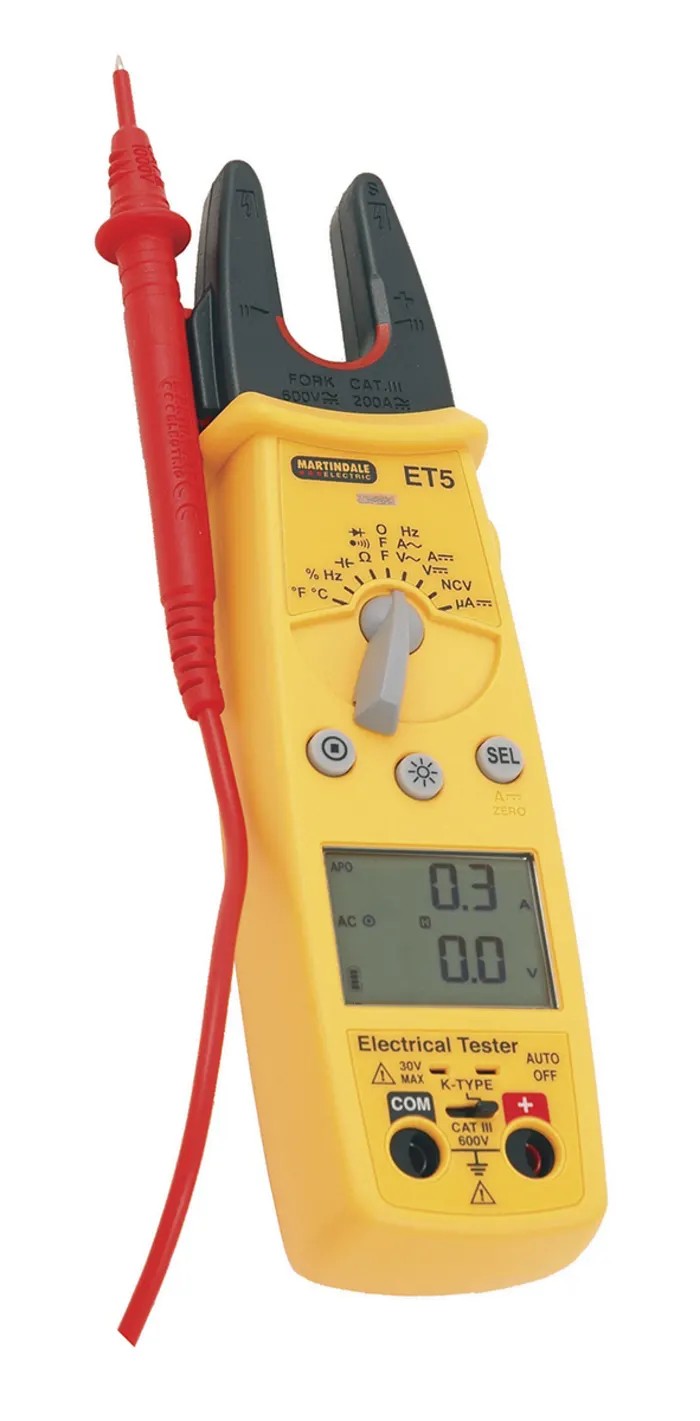

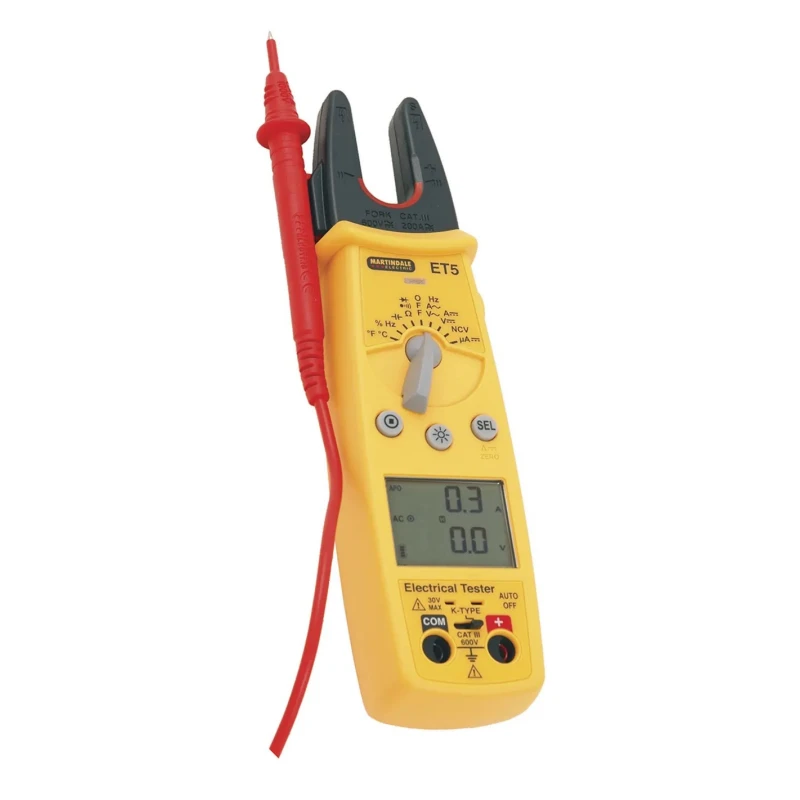

Martindale Multifunction Tester Electrical Test Measurement 0.1mV to 600V AC/DC Voltage 0.1A to 200A AC/DC Current 600V ET5
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | LCD |
| Frequency | 30Hz to 400Hz |
| Diode Test | 1mV to 2V |
| Brand | Martindale |
| Dimensions | 202 x 51 x 44 mm |
| Battery Life | 100h |
| Height | 44mm |
| Length | 202.5mm |
| Model | ET5 |
| Gross Weight | 200g |
| Width | 51mm |
| Maximum Operating Temperature | 40°C |
| Resistance | 0.1Ω to 50MΩ |
| Temperature measurement | -35°C to +500°C |
| Minimum Operating Temperature | 0°C |
| Plug Type | Banana |
| Continuity | 0.1Ω to 500Ω, buzz at |
| Test type | Capacitance, MOSFET, Resistance, SSR Isolated Flyback Converter, Temperature |
| Standards/Approvals | BS EN 610101, BS EN 613261, BS EN 610102032 |
| Safety Category Level | CAT III |
| Safety Category Voltage | 600V |
| Maximum Voltage Measurement | 600V ac |
| AC / DC Current | 0.1A to 200A |
| AC / DC Voltage | 0.1mV to 600V |
| Non-Contact Voltage Indicator | 70V to 600V |
| Fork maximum conductor size | 15mm diameter |
Key Features
- Measures capacitance, MOSFET, resistance, SSR isolated flyback converter, and temperature.
- Large LCD display with intuitive interface for easy operation in dim environments.
- AC/DC current range from 0.1A to 200A supports comprehensive current measurements.
- Wide temperature measurement range from -35°C to +500°C.
- Non-contact voltage indicator detects voltages from 70V to 600V.
- Compliant with BS EN 61010, BS EN 61326-1, and other safety and testing standards.
- Compact and lightweight with dimensions 202 x 51 x 44 mm and weight of 200g.
- Powered by batteries offering 100 hours of operation.
Product Description
Martindale ET5 multifunction tester ET5 is an advanced electrical tester designed for electricians and professionals performing comprehensive electrical safety assessments. It measures AC/DC voltage from 0.1mV to 600V and current from 0.1A to 200A with a safety category level CAT III rated for 600V, ensuring high safety standards during use.
The tester supports additional test types including capacitance, MOSFET, resistance, SSR isolated flyback converter, and temperature, offering versatile functionality in one compact device. Its large LCD display with user-friendly icons and straightforward menu navigation enables easy operation, even under low light conditions.
Additional features include continuity testing with a buzzing indicator, diode test covering 1mV to 2V, and a non-contact voltage indicator detecting 70V to 600V, enhancing safety and usability in various electrical environments.
With dimensions of 202 x 51 x 44 mm and a light weight of 200 grams, the ET5 is easy to carry and handle on-site. It operates on batteries that provide approximately 100 hours of continuous use, supporting extended safety testing sessions.
The product complies with international standards BS EN 61010-1, BS EN 61326-1, BS EN 61010-2-032, ensuring reliable and accurate measurements. Its banana plug connection type is compatible with standard electrical testing accessories.
Measures AC/DC voltage and current across wide ranges. Advanced temperature and capacitance testing capabilities. Large, clear LCD for easy data reading. Safety category CAT III 600V rating for professional use. Lightweight and compact for portability.
Complies with relevant BS EN testing and safety standards. Non-contact voltage indication enhances safety during testing. Extended battery life suitable for field use.
This Multifunction Tester is ideal for industrial, electrical, HVAC, and maintenance professionals requiring reliable and multifaceted diagnostic tools. Explore more electrical test measurement instruments in the Martindale product range at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures AC/DC voltage from 0.1mV to 600V.
It can measure AC/DC current from 0.1A to 200A.
The tester supports various test types including capacitance, MOSFET, resistance, SSR isolated flyback converter, and temperature measurements.
It measures temperature from -35°C to +500°C.
The non-contact voltage indicator detects voltages from 70V to 600V, enhancing safety during testing.
The dimensions are 202 x 51 x 44 mm, and it weighs 200 grams.
It complies with BS EN 61010-1, BS EN 61326-1, and BS EN 61010-2-032 standards.
It features a large LCD display for easy reading of measurements.
The ET5 operates on batteries that provide approximately 100 hours of continuous use.
The maximum operating temperature is 40°C.
It can test continuity from 0.1Ω to 500Ω and includes a buzzing indicator.
It uses a banana plug connection type, compatible with standard electrical testing accessories.
