Catu Multifunction Tester Earth Resistance Measurement 230V, 650mA Continuity Test Current DT-155

Free Delivery in India | Lowest Global Shipping Charges

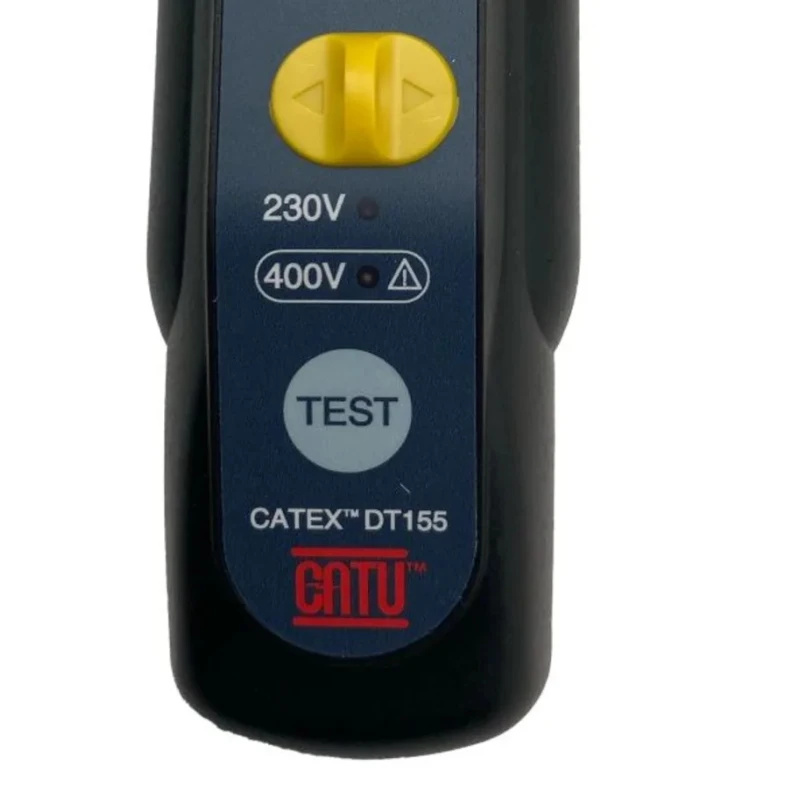

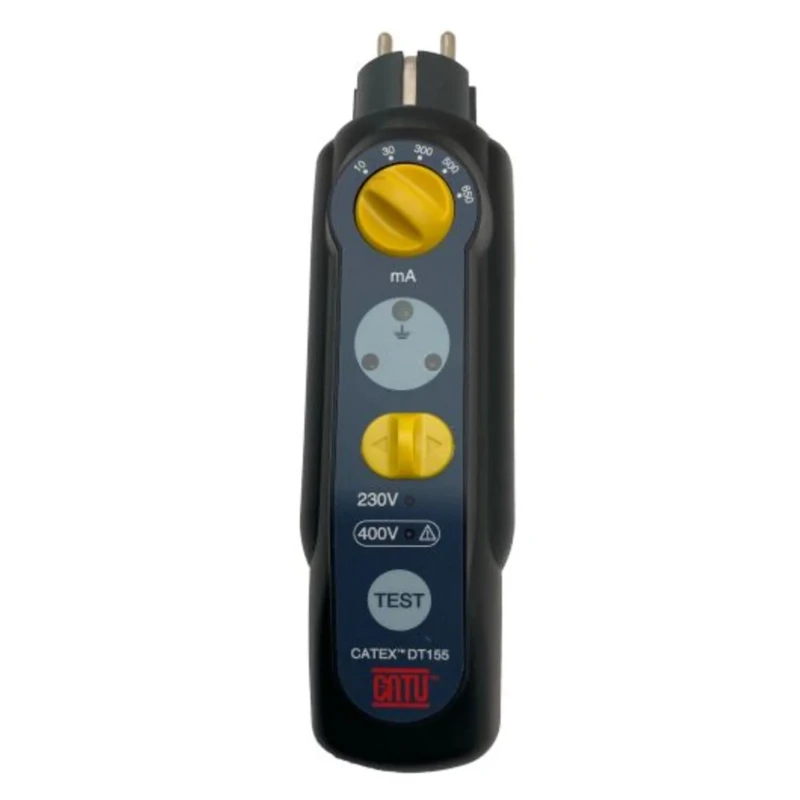

Catu Multifunction Tester Earth Resistance Measurement 230V, 650mA Continuity Test Current DT-155

Name: Catu Multifunction Tester Earth Resistance Measurement 230V, 650mA Continuity Test Current DT-155
Brand: Catu
SKU: 326533
Price: 423.2 USD
Availability: InStock



Category Multifunction Tester Brand Catu Condition New

Specifications

Country of Origin	France
Frequency	50 / 60 Hz ± 10%
Brand	Catu
Operating Temperature	- 15°C to + 45°C
Height	57mm
Length	210mm
Model	DT-155
IP Rating	IP40
Gross Weight	160g
Width	60mm
Maximum Operating Temperature	45°C
Minimum Operating Temperature	-15°C
Operating Voltage	230 V ± 10%
Continuity Test Current	650mA
Standards/Approvals	IEC 610101, CE
Maximum Voltage Measurement	230V
Domestic Installations	Homeowners can use the DT-155 to check the safety of their electrical circuits, ensuring their homes are free from electrical hazards
Industrial Settings	Industrial electricians can utilise the DT-155 to perform regular safety checks on their installations, maintaining a safe and compliant workplace
Maintenance Procedures	Maintenance professionals can incorporate the DT-155 into their maintenance plans, ensuring the safety of electrical installations throughout their lifespan
M-952271 (RS 702-6775)	cord for intervention on LV tables

Key Features

Measures maximum voltage of 230 volts accurately.
Detects earth resistance to ensure proper grounding.
Performs continuity tests with 650 mA current for reliable circuit verification.
Compact and lightweight at 160 grams for ease of use.
Operates effectively between -15°C to 45°C, suitable for varied environments.
IP40 rating provides protection against solid objects larger than 1mm.
Includes fuse protection and class I reinforced insulation.
Indicates correct polarity and phase/neutral positions clearly.

Product Description

Catu DT-155 Multifunction Tester Earth Resistance Measurement is a compact, user-friendly electrical installation tester designed for comprehensive compliance checks of 230 V installations. It features essential functions to instantly control and display the quality and conformity of electrical sockets, ensuring electrical safety and proper grounding.

This tester accurately measures maximum voltage up to 230 volts and tests earth resistance to detect any faults or disconnections, ensuring safe operation. It performs continuity testing with a 650 mA current, verifying circuit integrity, and includes fuse protection and Class I reinforced insulation for user safety. The device clearly indicates the presence of voltage at socket terminals, phase and neutral polarity, and the position of conductors for quick identification.

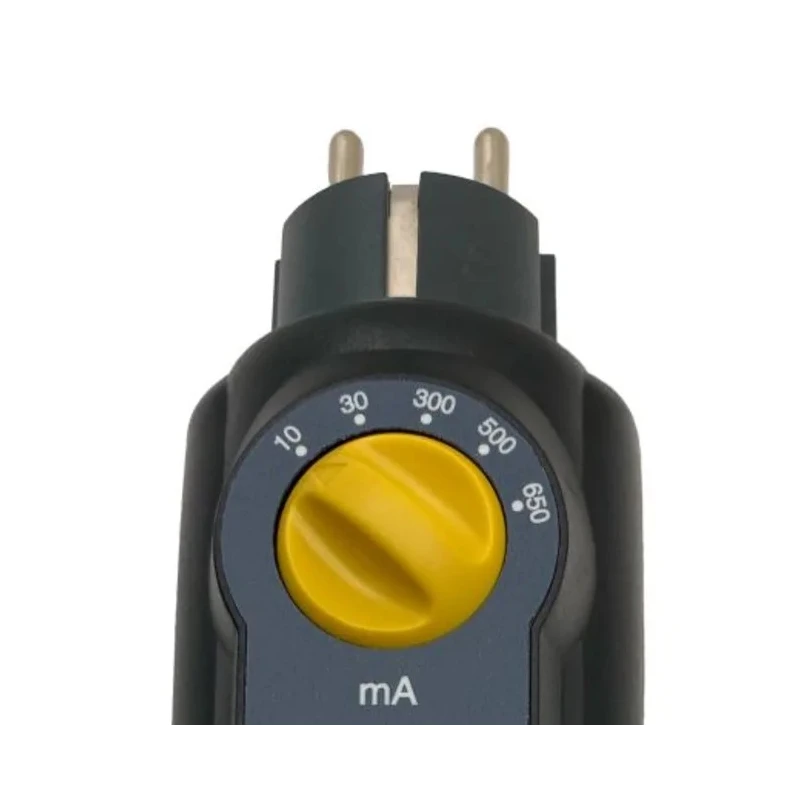

Operating between -15°C and 45°C, with an IP40 protection rating, the DT-155 is suitable for various environments, providing reliable performance for domestic installations, industrial electricians, and maintenance professionals. Its testing capabilities include residual current device (RCD) operation checks at sensitivities of 30 mA, 100 mA, 300 mA, 500 mA, and 650 mA, crucial for preventing electrical shock hazards in single-phase circuits.

The compact form factor with dimensions of 210 mm length, 60 mm width, and 57 mm height and a weight of 160 grams make it convenient for field and workshop use. Measures maximum voltage of 230V ± 10% for electrical installations.

Performs earth resistance measurement ensuring safe grounding. Conducts continuity testing at 650 mA ensuring circuit integrity. Indicates correct phase and neutral polarity for safe connections. Includes fuse protection and Class I reinforcement insulation.

RCD system check at multiple thresholds improves electrical safety. IP40 rating and operating temperature range -15°C to 45°C allow diverse applications. Compact and lightweight design for portable use.

This multifunction tester is widely applicable for domestic homeowners verifying home safety, industrial electricians conducting regular safety checks, and maintenance personnel ensuring compliance throughout equipment lifespans. The robust design and reliable safety functions make it an essential tool for electrical testing and measurement in commercial, industrial, and residential environments.
