Fluke T5-1000 + 1AC-II Multifunction Tester Set 1000V ac Voltage Continuity Resistance SSR MOSFET Test Fluke T5-H5-1AC II/UK

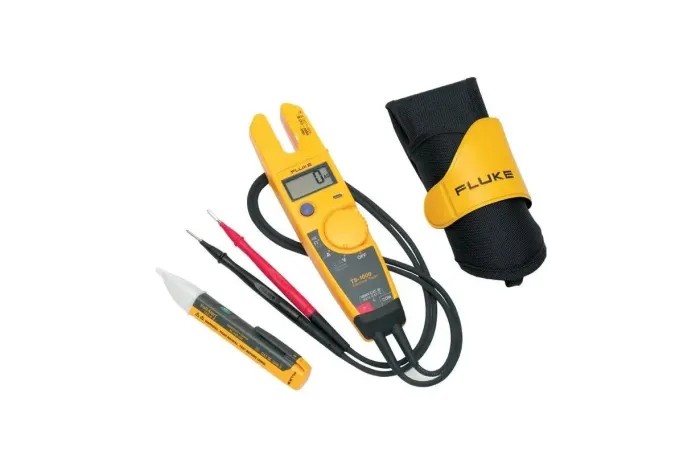

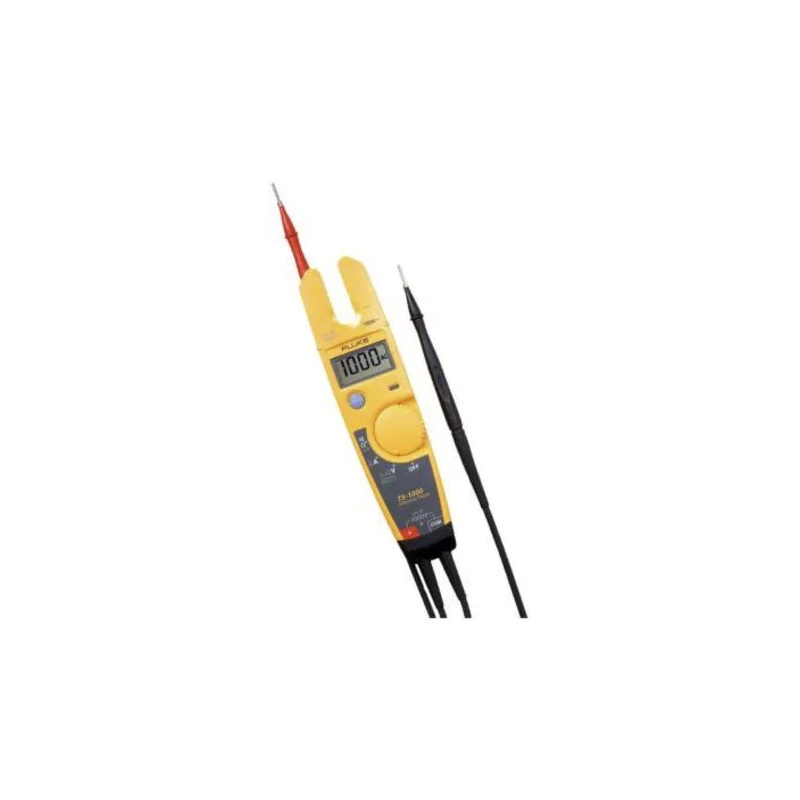

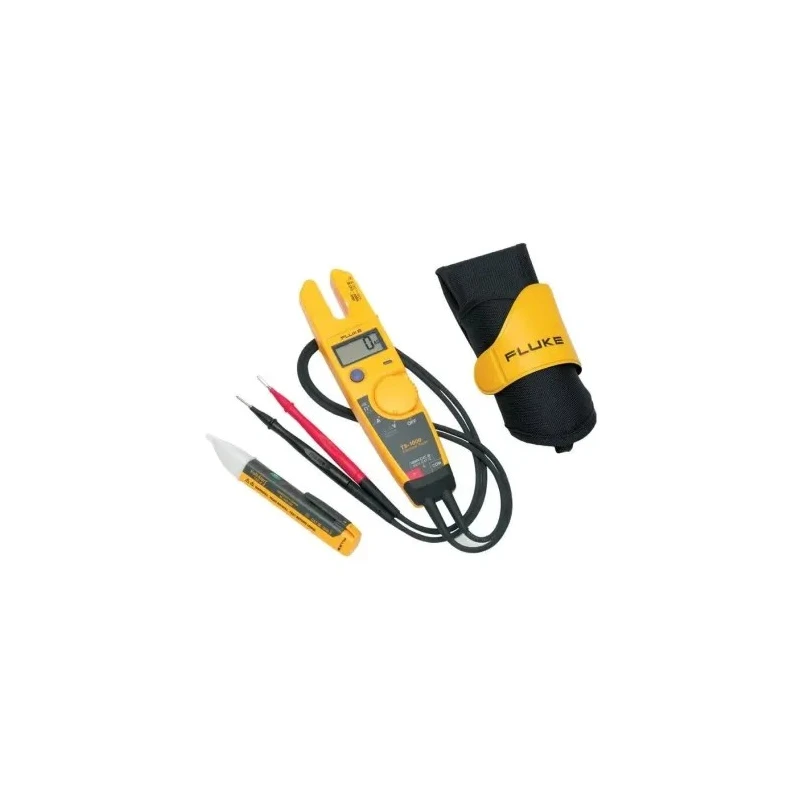

Fluke Fluke T5-H5-1AC II/UK Multifunction Tester Set is a compact and versatile diagnostic tool designed for electricians and engineers to verify voltage, continuity, resistance, and current measurements on site with a maximum 1000V AC voltage capacity. It includes the Fluke T5-1000 tester, 1AC II non-contact voltage detector, H5 holster, batteries, and instructions.

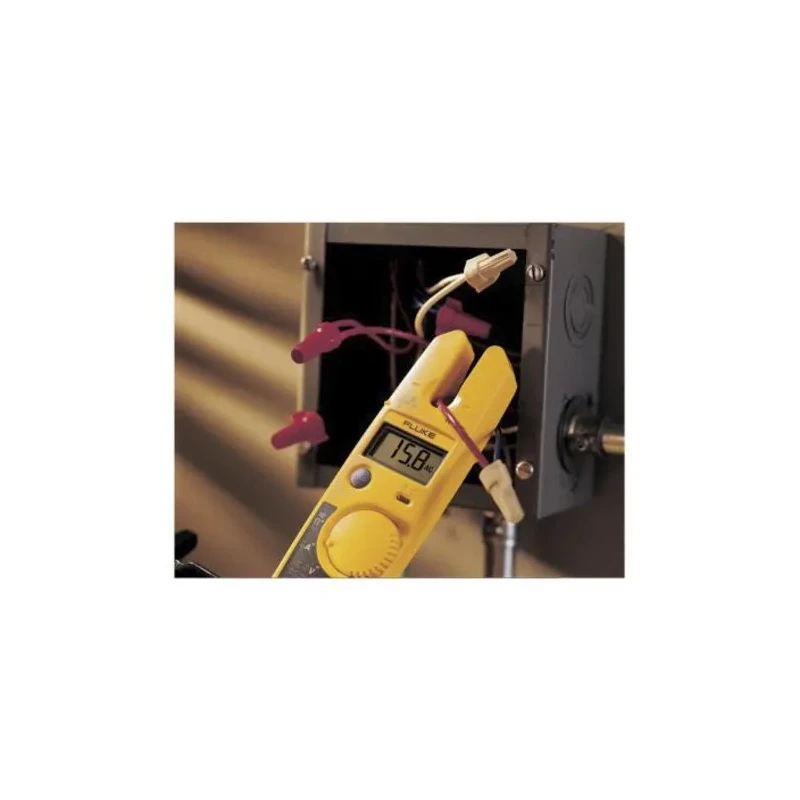

This tester set features an OpenJaw clamp sensor that enables current measurement up to 100 A without circuit disconnection, enhancing efficiency and safety during electrical diagnostics. Its resistance testing capability extends to 1000 ohms ensuring effective circuit integrity assessment. The continuity beeper offers quick go/no-go checks for electrical connections.

Constructed with IP52 ingress protection, this set withstands limited dust and water drip exposure, making it suitable for field, industrial, and commercial environments. The unit operates reliably between -10 °C and 50 °C, and meets stringent safety standards including CAT IV 1000V and CAT III 1000V protection levels. Compliance with international standards EN 61010-1, CSA, VDE, IEC 60529, and CE ensures trusted performance and safety.

The included 1AC II non-contact voltage detector provides a glowing tip and audible alert for rapid live voltage detection, enhancing user safety and efficiency when testing sockets, cabling, and electrical panels. This multifunction tester set is ideal for commissioning, maintenance, troubleshooting of motors, industrial drives, control panels, and electronic power components such as MOSFETs and SSR isolated flyback converters.

The set’s battery-powered operation using AA cells offers a long battery life of 360 hours. The compact form factor with dimensions approximately 203 mm height, 51 mm width, and 30.5 mm length, along with a lightweight design of 380 grams, ensures ease of handling and mobility on job sites.

Measures AC/DC voltage up to 1000 volts for high-voltage electrical checks. OpenJaw current clamp sensor allows up to 100 A measurements without circuit disconnection. Resistance measurement range up to 1000 ohms for circuit integrity evaluation.

Continuity beeper provides rapid go/no-go indication for electrical connections. Battery powered with AA cells providing up to 360 hours of operation. Durable IP52 rated casing suitable for dust and drip water environments.

Operates in temperatures from -10 to 50 degrees Celsius for field versatility. Complies with safety CAT IV and CAT III rating for 1000V max input protection. Includes non-contact voltage detector with audible and visual voltage presence indications.

Compact and rugged design suited for electrical troubleshooting and verification tasks.

This Fluke multifunction tester set is essential for industrial, construction, HVAC, manufacturing, and maintenance applications where electrical verification and fault diagnosis are crucial. It efficiently supports measurement of voltage, current, and resistance, continuity testing, and checking electronic components to ensure electrical systems operate safely and reliably.
