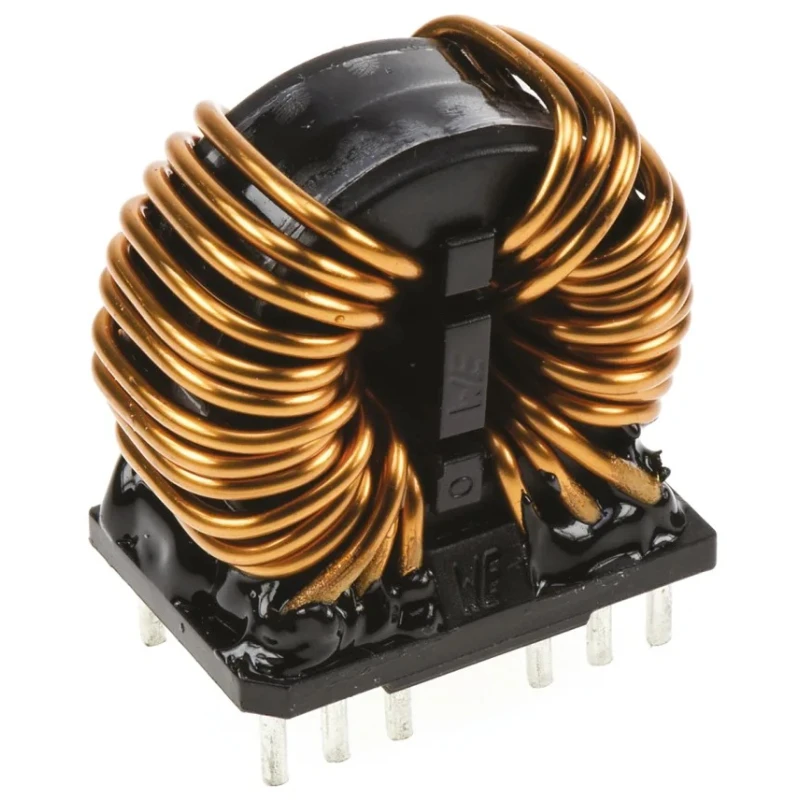

Wurth Elektronik 12 mH Nano Crystal Common Mode Choke Through Hole WE-CMBNC 7448051012
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 34mm |
| Brand | Wurth Elektronik |
| Height | 36mm |
| Length | 34mm |
| Depth | 23mm |
| Packaging | Tray & Carton |
| Mount Type | Through Hole |
| Series | WE-CMBNC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 50Hz |
| Core Material | Nano Crystal |
| Inductance | 12mH |
| Standards/Approvals | VDE, REACH, ENEC 10, RoHS |
| Maximum DC Current | 10A |
| Maximum DC Resistance | 15mΩ |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 300MHz |
| Lead Pitch | 25mm |
| Lead Diameter | 1.2mm |
| Small size Frequency range | 1 kHz-300 MHz |
| Wurth Elektronik 12 mH Nano Crystal Common Mode Choke, Max SRF | 300 MHz, 10 A Idc, 15 mΩ Rdc, WE-CMBNC |
Key Features
- Constructed with a high permeability nanocrystalline core material ensuring high and stable inductance at elevated temperatures.
- Features a maximum DC current rating of 10 A and a low DC resistance of 15 mΩ for efficient power handling.
- Compact dimensions with 34 mm diameter, 36 mm height, and a lead pitch of 25 mm facilitate integration in limited spaces.
- Designed to suppress common mode noise and radio frequency interference in power electronics and motor applications.
- Operates reliably within temperature ranges from -40°C to 125°C, adhering to VDE, REACH, ENEC 10, and RoHS standards.
- Packaged in tray and carton suitable for automated insertion and production efficiency.
- Termination style is solder type with 1.2 mm lead diameter ensuring durable electrical connections.
Product Description
Wurth Elektronik 7448051012 is a high-performance 12 mH nano crystal common mode choke designed for through-hole mounting, providing broadband suppression with a frequency range from 1 kHz to 300 MHz. It features a maximum self-resonant frequency of 300 MHz and supports a maximum DC current of 10 A, making it suitable for power electronics and radio interference suppression applications.
The inductor employs a high permeability nanocrystalline core material that guarantees stable inductance values even at high temperatures. Its plastic case and winding spacer improve isolation, enhancing reliability in complex industrial settings.
Physically, the component measures 34 mm in length and diameter with a 36 mm height and 23 mm depth, with a lead pitch of 25 mm facilitating easy installation on printed circuit boards. The termination style is solder, using 1.2 mm diameter leads, ensuring durable electrical and mechanical connections.
This common mode choke effectively suppresses common mode noise in power line input and output filters and is ideal for use in power electronics, motor systems, and RF noise suppression. Operating temperature ranges from -40°C to 125°C ensure suitability for demanding industrial environments. It complies with industry standards including VDE, REACH, ENEC 10, and RoHS for safety and environmental compliance.
It is delivered in tray and carton packaging, prepared for automated insertion to increase efficiency in manufacturing processes. Manufactured in China, this product offers a compact solution for electromagnetic interference mitigation in industrial and commercial applications.
Constructed with nanocrystalline core material for high permeability. Stable inductance values at high operating temperatures. Compact size and mounting suited for through-hole technology. Wide frequency range effective from 1 kHz to 300 MHz.
Meets multiple international standards including RoHS and VDE. Low DC resistance enhances power efficiency. Suitable for use in power electronics and motor radio interference suppression. Discover more high-quality Inductors and electronic components with Wurth Elektronik at EnvMart to enhance your automotive, industrial, and electronic projects.
