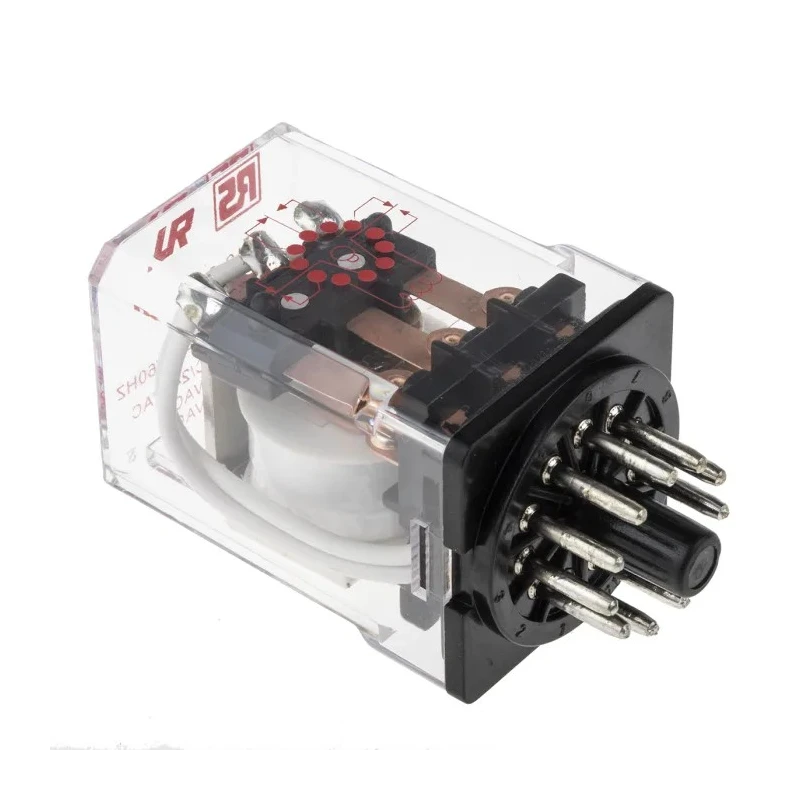

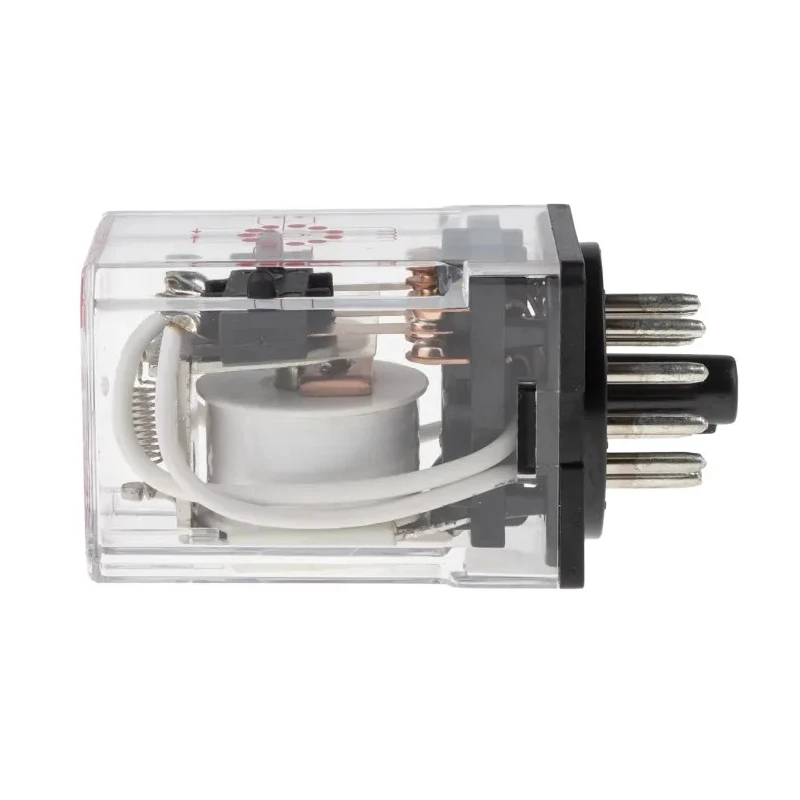

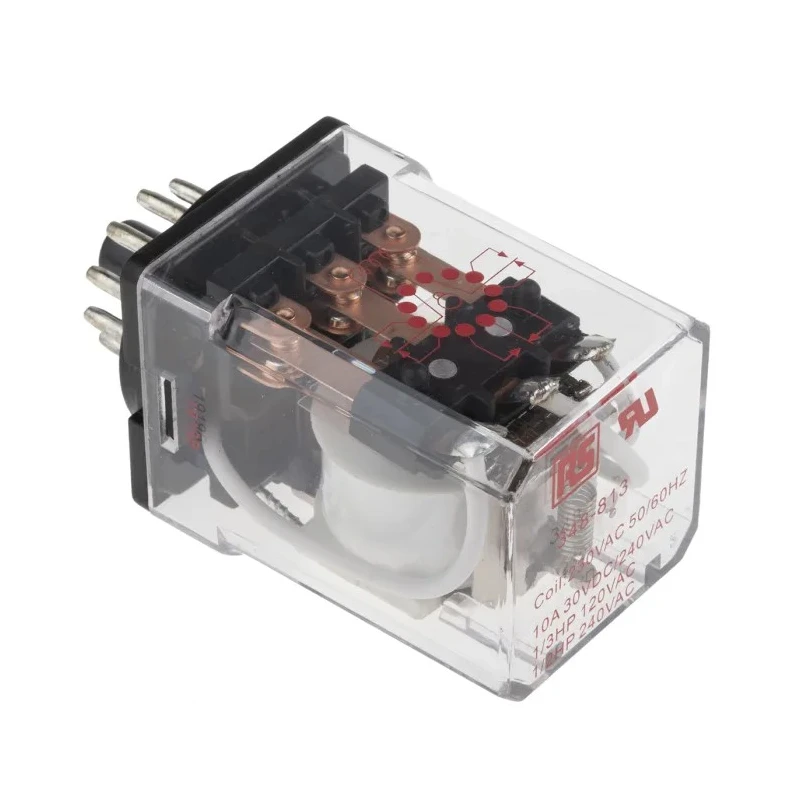

RS PRO 230V ac Coil Power Relay, 10A Switching Current, 3PDT Contact Configuration 348-813

RS PRO 348-813 Power Relay is designed with a 230V AC coil and provides a reliable 10A switching current with a 3PDT contact configuration. This non-latching relay features a transparent polycarbonate cover for protection and easy monitoring of internal components. The coil resistance of 8.2 kΩ and coil power of 2.75W ensure efficient energizing of the relay coil.

With compact form factor measuring 56 mm in height, 35 mm in width, and 35 mm in length, this power relay is suitable for DIN Rail or surface mounting via plug-in terminals using solder type connectors. The contact material uses a silver alloy enhanced with gold flashing, ensuring dependable conductivity and contact life.

The relay operates within a temperature range from -45°C minimum to a maximum of 55°C at rated coil voltage, making it robust for various industrial and commercial environments. It supports switching powers up to 300W, with maximum switching voltages of 240V AC and 30V DC, suitable for demanding electrical control applications.

This power relay is engineered for longevity, offering a mechanical life expectancy of at least 10 million operations and an electrical life rating of 100 thousand operations. Its applications span automotive engines, household appliances, industrial machinery, medical devices, and telecommunications equipment, providing versatile use across multiple sectors.

Equipped with a 3PDT contact configuration for versatile switching. Durable silver alloy contact material ensures reliable operation. Compact size supports DIN rail or surface mounting options. Wide operating temperature range ensures functionality in harsh conditions.

High switching power and current ratings enable various control applications. Clear polycarbonate cover allows visual inspection of relay status. Mechanical and electrical life ratings provide long-term reliability. Applications in automotive, industrial, medical, and telecom sectors.

Low coil power helps reduce energy consumption in control circuits.

Choose RS PRO Power Relays for reliable, long-lasting switching solutions in your electronics and electrical projects. Explore EnvMart for a wide range of industrial relays and components to meet diverse technical needs.
