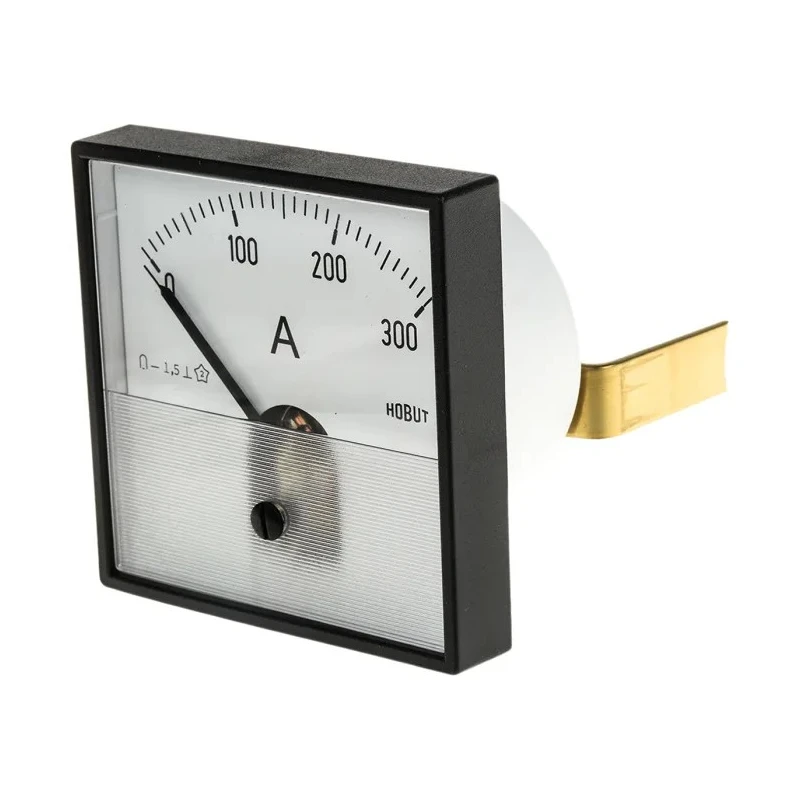

HOBUT Analogue Panel Ammeter AC/DC, Model , Flame Retardant Case, UL94V0, Horizontal Scale 75mV PD721MCS75MV/2-001 0/300A

HOBUT PD721MCS75MV/2-001 0/300A Analogue Panel Ammeter AC/DC offers reliable and accurate current measurement for industrial, electrical, and automation applications. Its horizontal scale and integral scales ensure easy readability of current values, while the flame retardant case rated to UL94V0 provides enhanced safety compliance.

This ammeter supports both AC and DC current measurement with an accuracy class of 1.5, adhering to BS89 and IEC51 standards, making it suitable for process control and monitoring in various industrial scenarios.

The unit features a full-scale deflection calibrated from 0 to 75mV and operates effectively within a temperature range of -25°C to +40°C, accommodating typical working environments encountered in electrical engineering and automation fields.

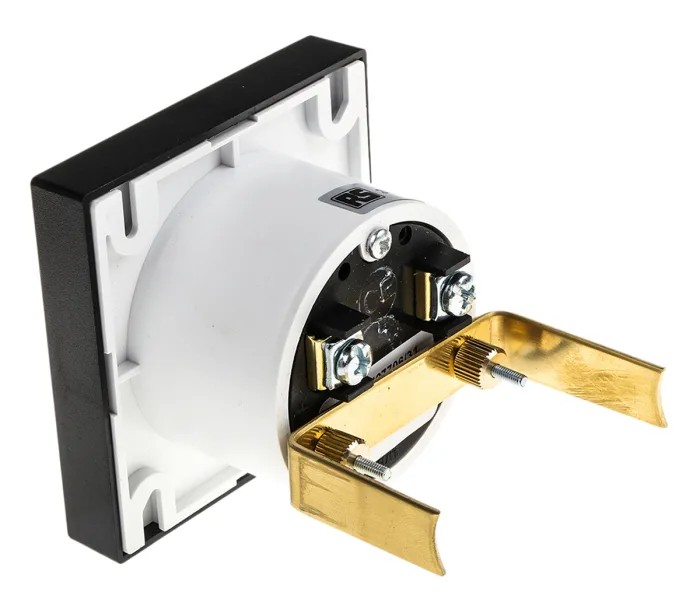

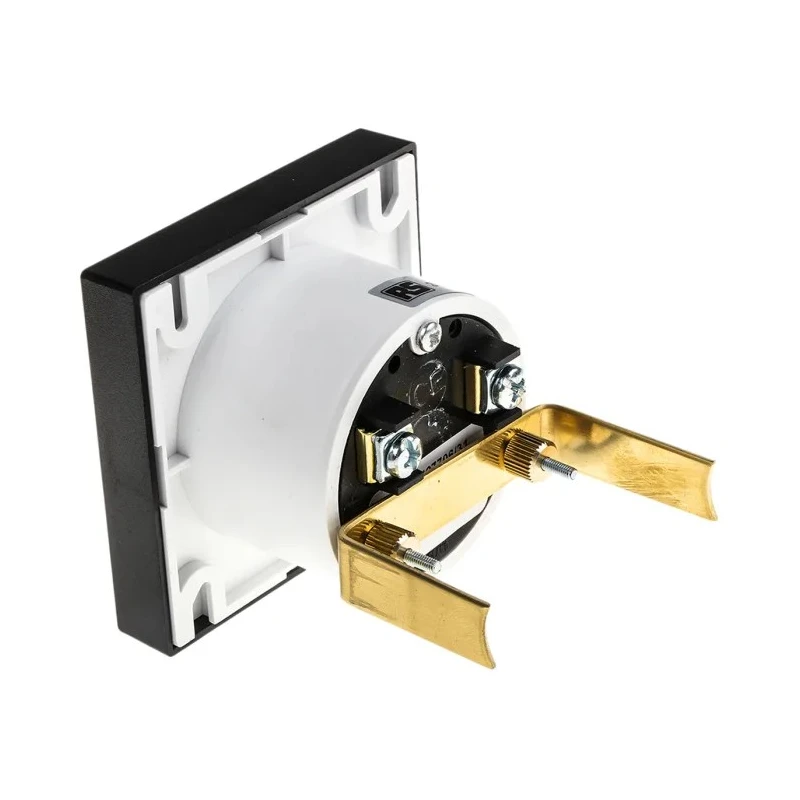

Physically compact, the ammeter measures 72mm by 72mm, with a 56mm diameter panel cut-out, allowing straightforward integration into control panels. Installation is facilitated by supplied U-clamps, 4-pin M3 fixing methods, and an anti-rotation pin to ensure secure mounting.

For current measurements above 50A, this model requires an appropriate shunt, specifically a 300A shunt (stock no. 313-794), ensuring consistent and accurate readings. Measures AC and DC currents with accuracy class 1.5 according to BS89/IEC51 standards.

Full scale deflection from 0 to 75mV for precise current measurement. Flame retardant case compliant with UL94V0 ensuring safety under electrical stress. Operating temperature range from -25°C to +40°C suits a range of industrial environments.

Compact size 72mm x 72mm with panel cut-out diameter 56mm for easy integration. Installation accessories included: U-clamp, 4-pin M3 fixings, anti-rotation pin. Requires 300A shunt (stock no. 313-794) for currents above 50A measurement.

This Analogue Panel Ammeter is ideal for use in industrial automation, electrical distribution boards, laboratory equipment, process control setups, and HVAC systems. Its robust design and compliance with multiple international standards make it a reliable instrument for continuous monitoring.
