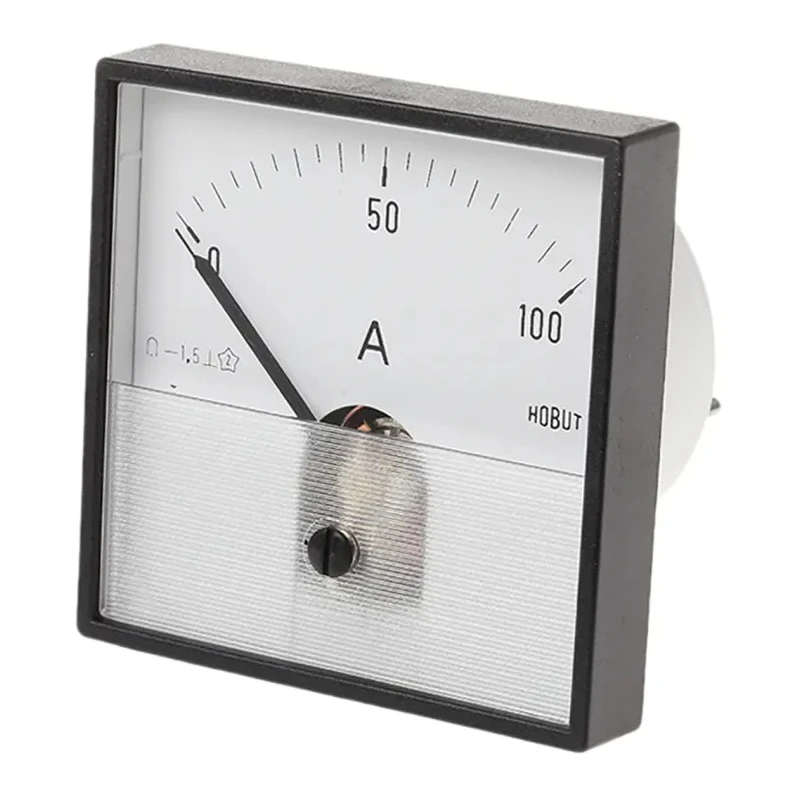

HOBUT DIN Range Analogue Panel Ammeter AC/DC, Accuracy Class 1.5, 100A PD721MCS75MV/2-001 -100A

HOBUT PD721MCS75MV/2-001 -100A DIN Range Analogue Panel Ammeter AC/DC is engineered for accurate and reliable measurement of electrical current in industrial and commercial control panels.

This ammeter features an accuracy class of 1.5 as per BS89 and IEC51 standards, ensuring precision in monitoring current levels. It is suitable for both alternating current (AC) and direct current (DC) applications, making it versatile for diverse automation and process control systems.

The device operates efficiently within a temperature range from -25°C to +40°C, allowing deployment in varied environmental conditions. Its robust flame retardant case complies with UL94V0 safety standard, providing enhanced durability and fire resistance for panel installations.

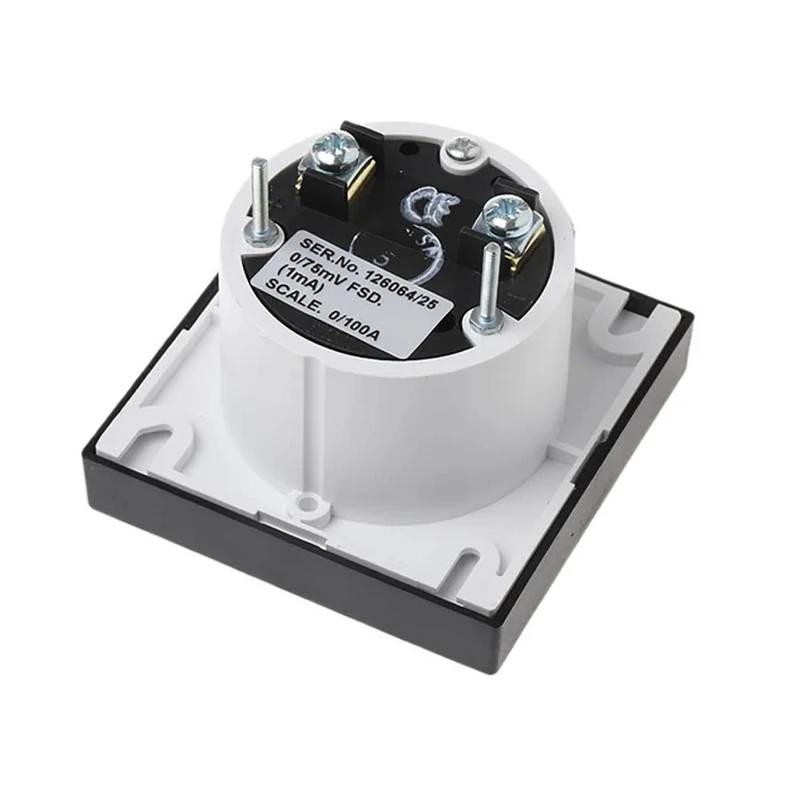

Physical dimensions include a 72 mm height by 72 mm width panel size with a 56 mm diameter cut-out, compatible with standard DIN mounting requirements. The gauge incorporates a horizontal scale for DC meter precision and comes equipped with U-clamp and 4 pin M3 fixing methods including an anti-rotation pin for secure installation.

The 100A ammeter model requires a dedicated 100A shunt (sold separately) for accurate current measurement. This product meets multiple international standards including IEC51, DIN 43802, DIN 43700, UL94V0, ES50-2, UL94V1, and BS89, ensuring global compliance and quality assurance.

Features accuracy class 1.5 to BS89/IEC51 standards. Suitable for AC/DC current measurement applications. Operates within a temperature range of -25°C to +40°C. Constructed with a flame retardant case compliant to UL94V0 standard.

Includes both U-clamp and 4 pin M3 fixing methods with anti-rotation pin. Panel cut-out diameter of 56mm fits standard DIN range applications. Integral horizontal scale specifically designed for DC meters. Requires 100A shunt for 100A ammeter operation (shunt sold separately).

Manufactured adhering to IEC51, DIN 43802, DIN 43700, UL94V0, ES50-2, UL94V1, BS89 standards.

This Analogue Panel Ammeter is widely used in industrial automation, process control, electrical distribution panels, HVAC control, and other commercial electrical applications requiring precise current monitoring.
