HOBUT Analogue Panel Ammeter DC 72 mm x 72 mm, Class 1.5 Moving Coil PD72MC

HOBUT PD72MC Analogue Panel Ammeter DC, 72 mm x 72 mm, Class 1.5 Moving Coil is a high-accuracy, reliable instrument designed for precise DC current measurements in industrial and commercial environments.

This ammeter features a moving coil element ensuring accurate readings within a Class 1.5 accuracy standard as per BS89 and IEC51 regulations. The meter is designed with a 72 mm by 72 mm panel cutout size and a depth of 30.5 mm, making it suitable for standard panel installations.

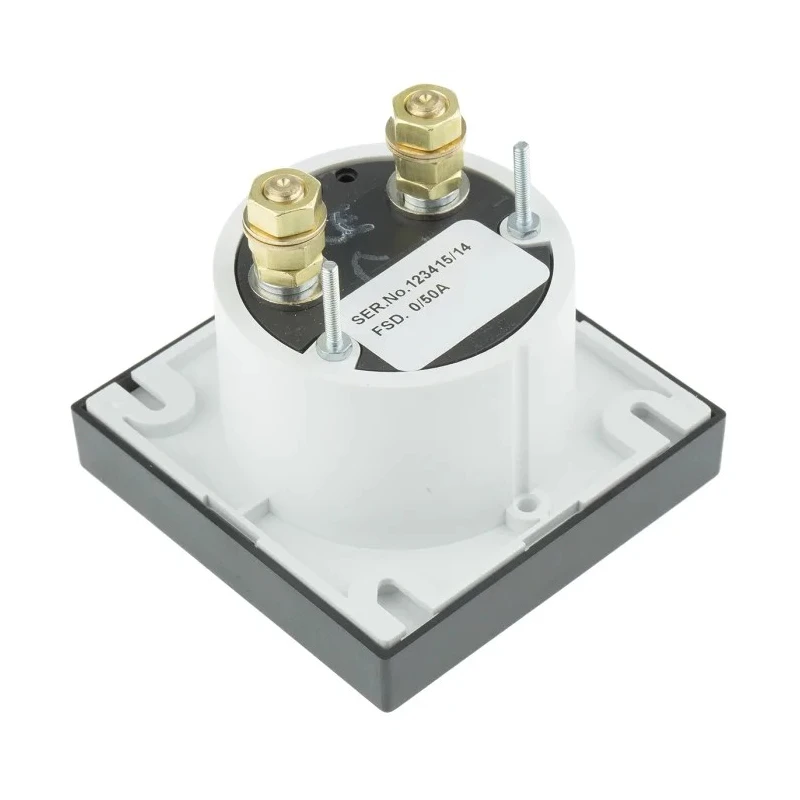

The device accommodates operating temperatures from -25°C to +40°C and is housed within a flame retardant case certified to UL94V0, enhancing safety in demanding electrical environments. Mounting is facilitated by a U-clamp and 4 pin M3 fixing method along with an anti-rotation pin, providing a secure and stable installation.

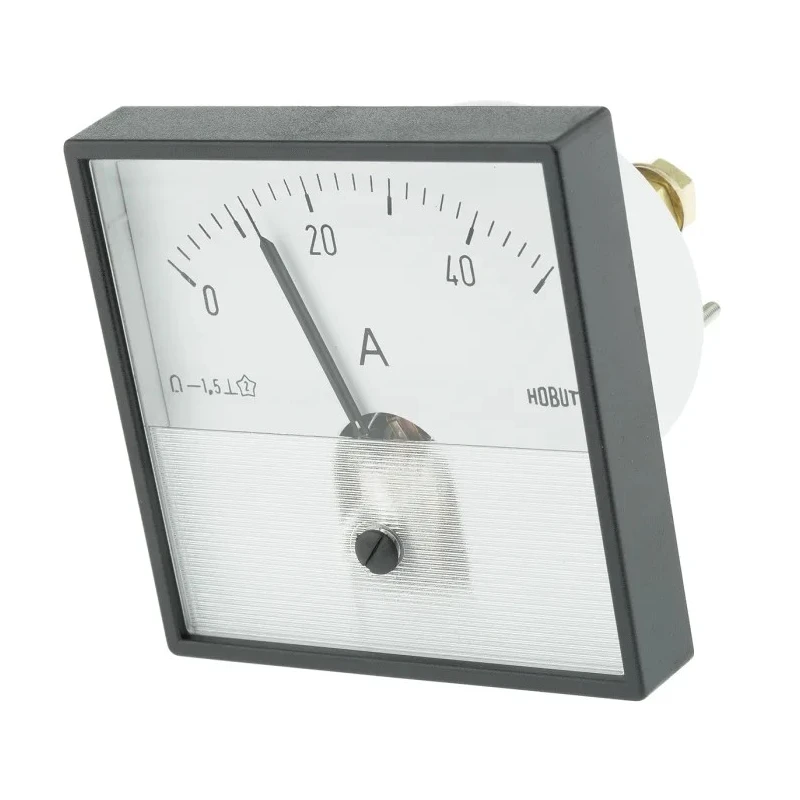

Integral scales enhance readability and ease of use. Ammeter units up to 50A operate without shunts, while higher ranges such as 100A and 300A require appropriate shunts. Common industrial applications include process control, automation, and electrical system monitoring, offering dependable performance wherever DC current monitoring is required.

Designed for DC current measurement with precision moving coil operation. Panel cutout dimension of 72 mm x 72 mm allows standard panel mounting. Class 1.5 accuracy ensures reliable and accurate current readings. Operating temperature range from -25°C to 40°C supports diverse environments.

Flame retardant case rated UL94V0 provides safety compliance. Secure mounting with U-clamp, 4 pin M3 fixing, and anti-rotation pin. Integral scales for easy and clear visualization of values. Suitable for industrial automation, control panels, and process monitoring.
