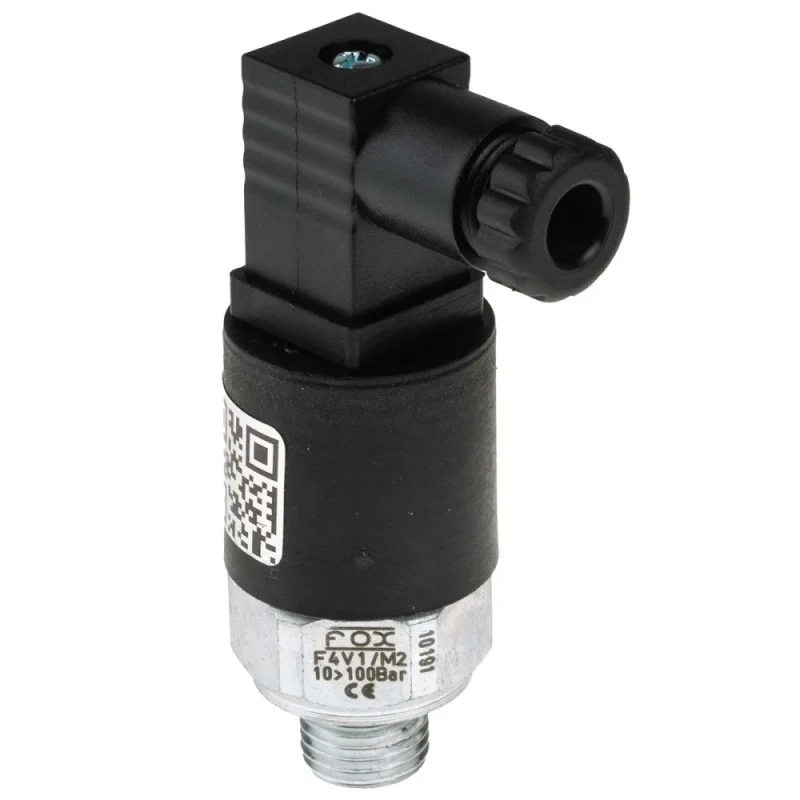

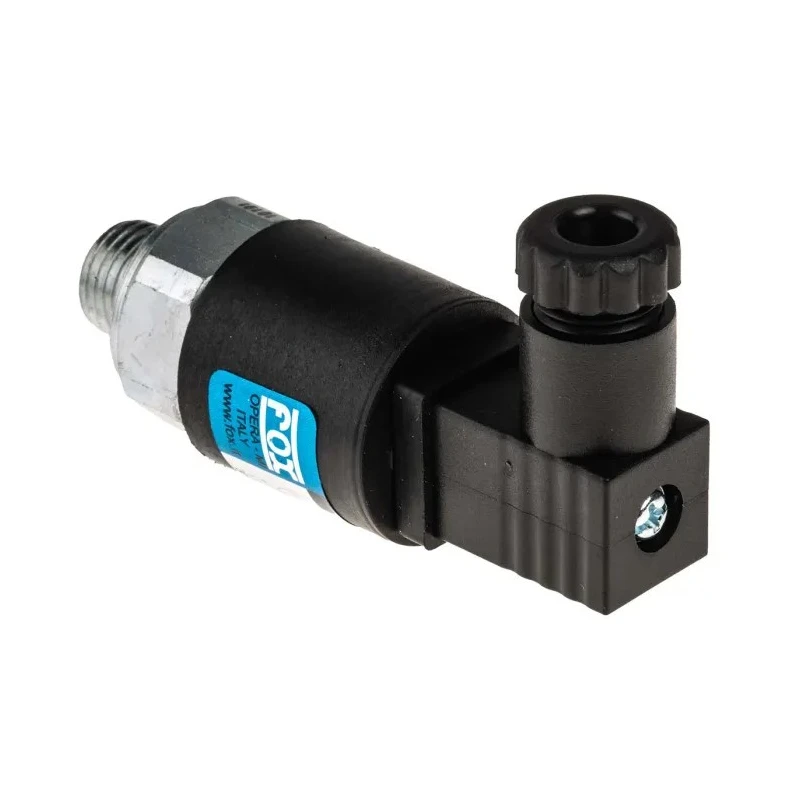

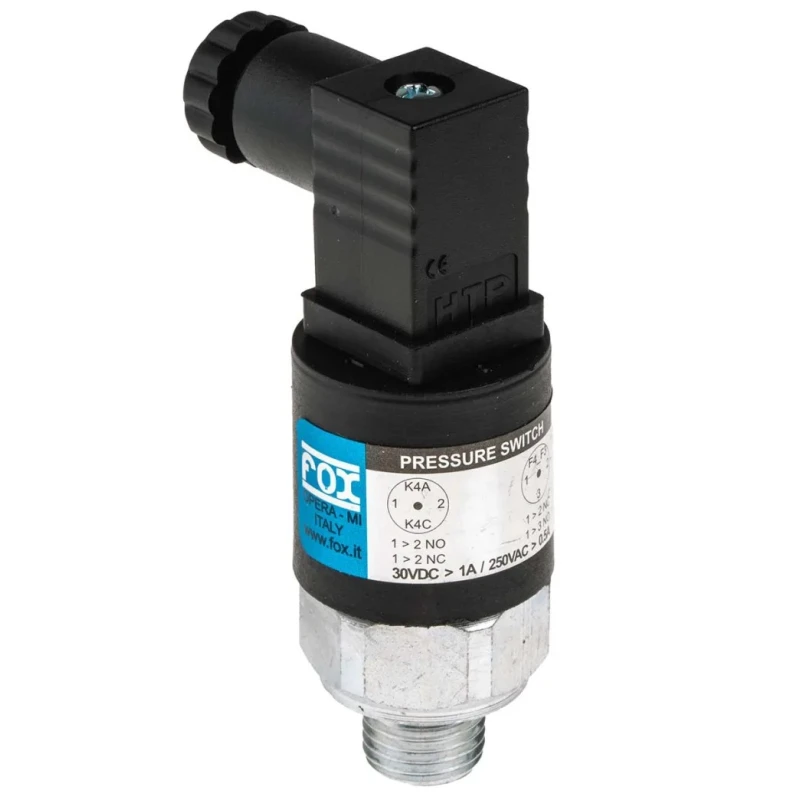

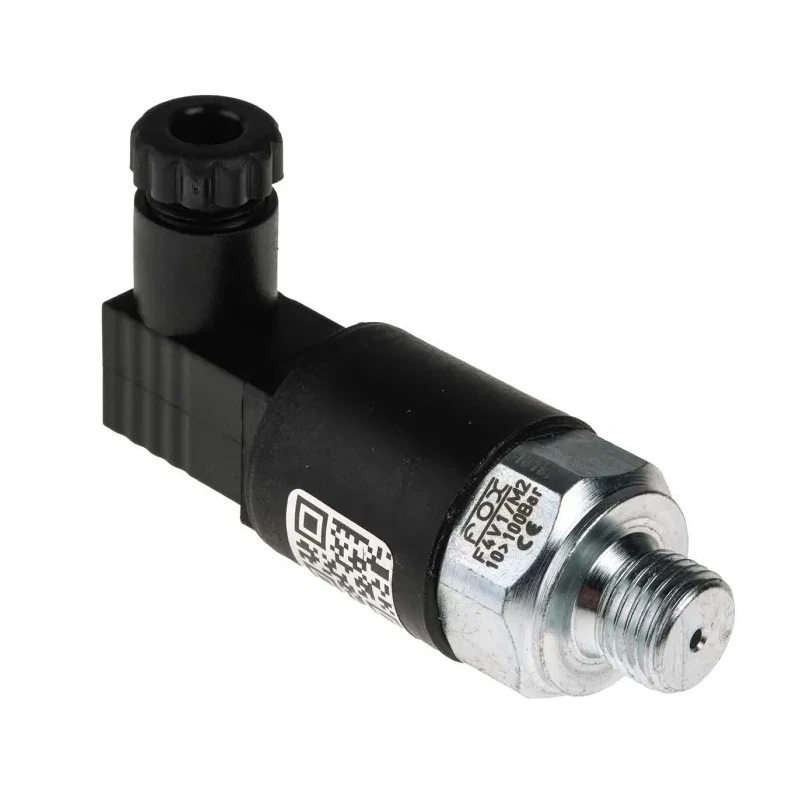

RS PRO Adjustable Pressure Switch NC 10 bar to 100 bar Positive Pressure 250V AC 500mA IP65 Italy 297-0074
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 250V ac |
| Brand | RS PRO |
| Maximum Operating Pressure | 100 bar |
| Current | 500mA |
| Model | 297-0074 |
| IP Rating | IP65 |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Pressure Type | Positive Pressure |
| Contact Configuration | NC |
| Switch output | NC, NO |
| Port Size | 1/4 in |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | RoHS, DIN |
| Connection Thread Standard | G |
| Minimum Operating Pressure | 10bar |
| RS PRO Pressure Switch NC 20 bar to 300 barBrand | RS PRO |
Key Features
- Robust steel construction ensures durability in industrial environments.
- Can be mounted in any orientation for flexible installation.
- Switching frequency of 90 cycles per minute supports dynamic applications.
- Long mechanical life with up to one million cycles at 70 bar pressure.
- Maximum load of 0.5A at 250 VAC suitable for various electrical systems.
- Accurate operation with ±4% set pressure tolerance.
- Wide temperature range operation from -25°C up to +85°C.
- Includes mechanical stops to protect the spring and microswitch from over pressurization.
Product Description
RS PRO 297-0074 adjustable pressure switch is designed for industrial hydraulic and pneumatic applications requiring precise pressure detection within a range of 10 bar to 100 bar. Operating at 250V AC and supporting a maximum current of 500mA, this pressure switch features robust steel construction suitable for harsh environments. It is compact and can be mounted in any orientation, making it adaptable to various installation requirements.
The switch provides an electrical signal once the preset pressure is reached, with adjustment possible via a centrally located screw for fine-tuning the setpoint pressure. Mechanical stops protect the internal spring and microswitch from damage due to over-pressurization, enhancing durability and operational life. The pressure switch supports normally closed (NC) and normally open (NO) contact configurations to suit different control schemes and includes a DIN 43650 IP65 connector for reliable electrical connections.
Key applications include pumps, compressed air systems, machine tools, process control equipment, sensors, hydraulics, and valves within industrial, manufacturing, and fluid power environments. The product is RoHS and DIN approved, ensuring compliance with industry standards.
Robust steel construction ensures durability in industrial environments. Flexible orientation mounts accommodate diverse setups. High switching frequency supports dynamic system demands. Extended mechanical life ensures long-term reliability.
Electrical load capacity fits a wide range of applications. Accuracy within ±4% for precise control. Wide operational temperature range (-25°C to +85°C). Mechanical stop protection prevents over-pressurization damage. Both NC and NO contact options for versatile control.
DIN 43650 IP65 connector sealing ensures environmental protection.
This pressure switch is made in Italy and is a trusted component in hydraulic and pneumatic system designs for industrial, laboratory, construction, HVAC, and manufacturing sectors. Explore more RS PRO products and Pressure Switches for your applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a pressure range of 10 bar to 100 bar.
It supports a maximum current of 500mA at a voltage of 250V AC.
The pressure switch has an IP65 rating, providing protection against dust and water ingress.
It can operate within a temperature range of -25°C to +85°C.
It supports both normally closed (NC) and normally open (NO) contact configurations.
The setpoint pressure can be fine-tuned via a centrally located screw on the unit.
It has a switching frequency of 90 cycles per minute, suitable for dynamic applications.
The pressure switch features a robust steel construction, designed for durability in industrial environments.
The minimum operating pressure is 10 bar.
Yes, it is RoHS and DIN approved, ensuring compliance with relevant industry standards.
The port size is 1/4 inch, following the G connection thread standard.
This model is made in Italy.
