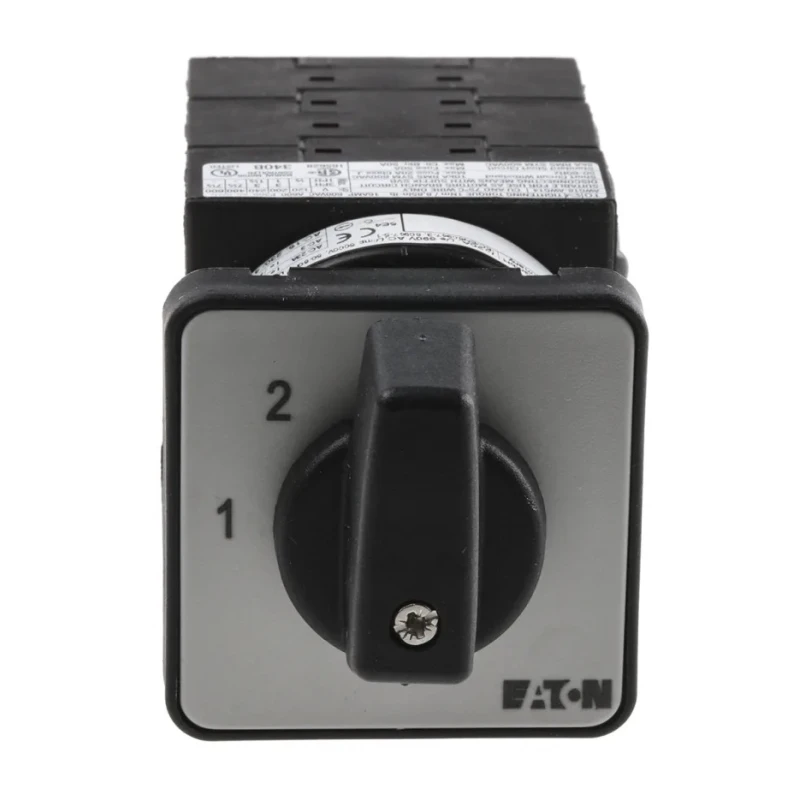

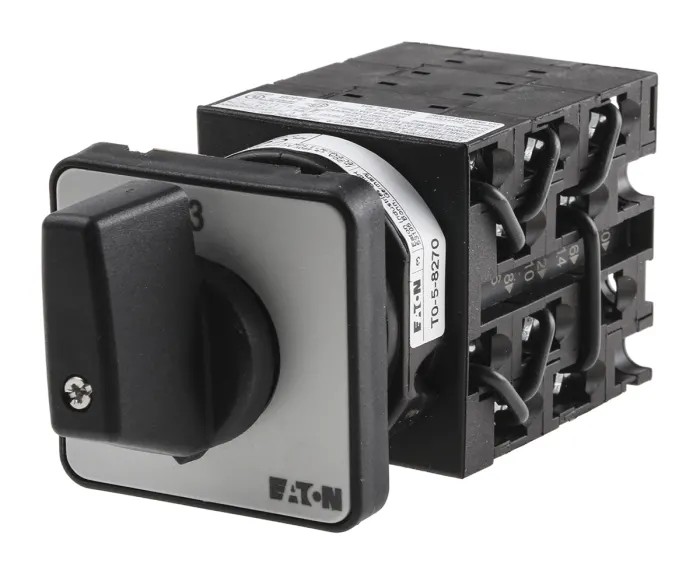

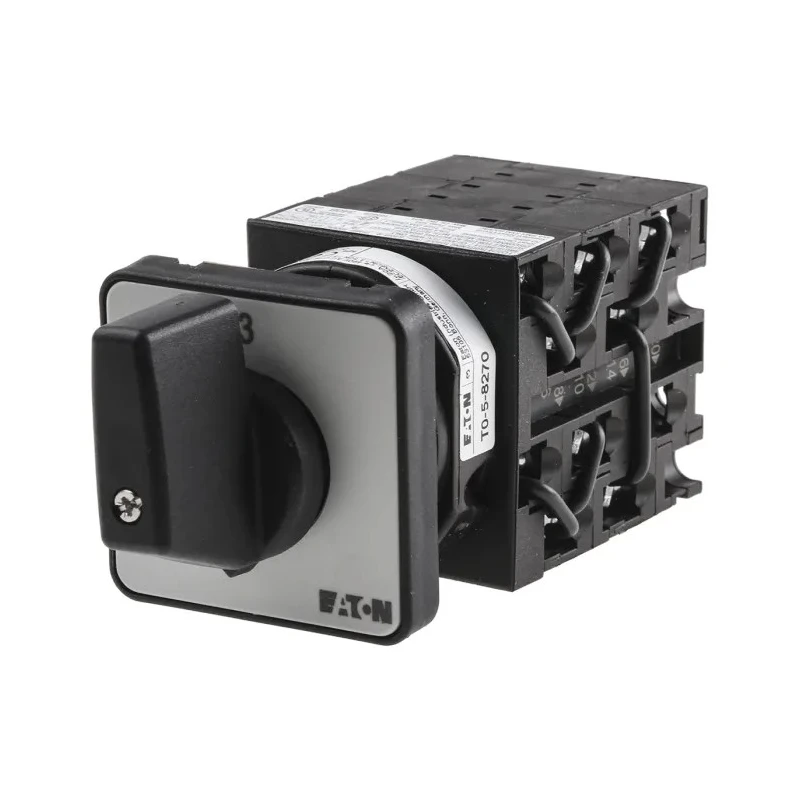

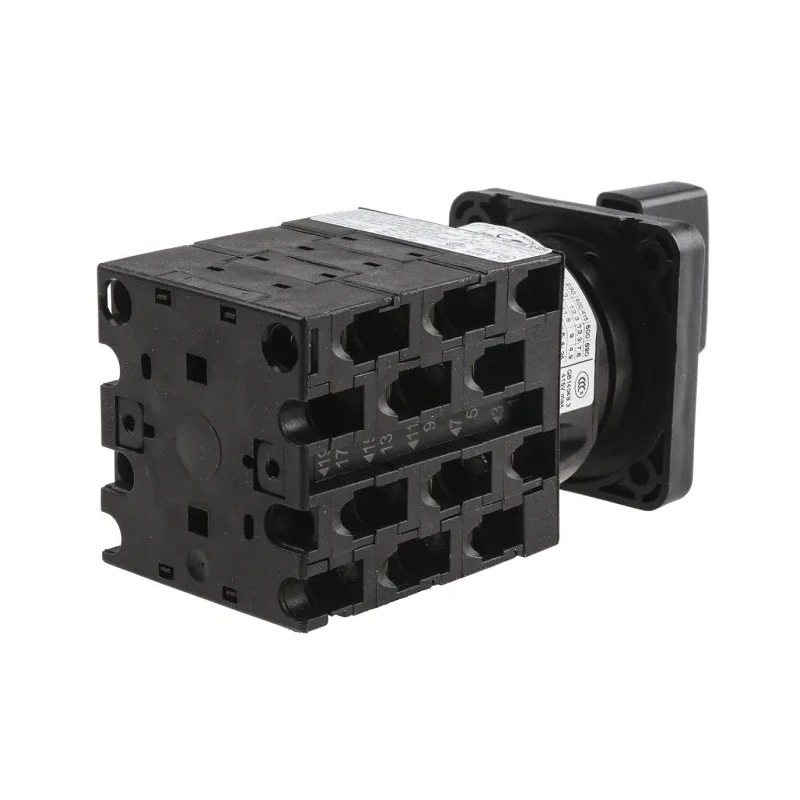

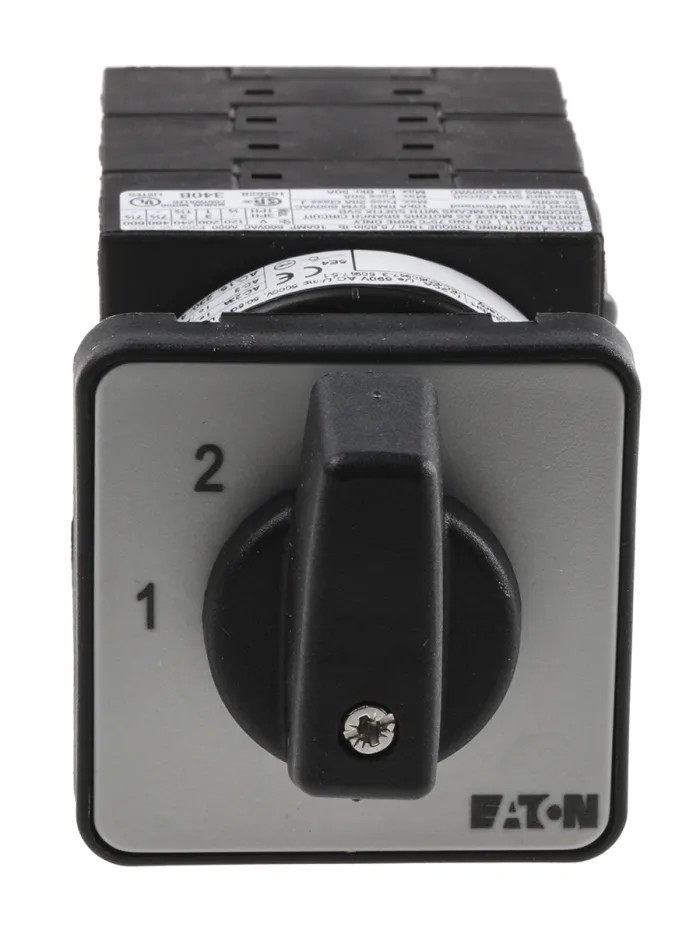

Eaton Cam Switch 3 Position 45° Rotary Actuator 690V AC 20A Flush Mount 78628229 T0-5-8270/E/EZ-P1(RS295-3108)

Eaton 78628229 T0-5-8270/E/EZ-P1(RS295-3108) Cam Switch with 3 Position 45° rotary actuator is designed for robust electrical control applications requiring up to 20 amps of current and 690V AC contact voltage. This flush-mount rotary switch integrates seamlessly in industrial, automation, and electrical panel setups where durable and precise switching is essential.

Featuring a compact form factor of 48mm height, width, and length, this unit suits environments with limited space. Its black thumb-grip handle ensures comfortable operation while the silver escutcheon plate provides resistance against corrosion and mechanical wear. The device supports a mechanical life of 10 million operations and a maximum operational frequency of 1200 operations per hour, making it ideal for heavy-duty industrial use.

This Eaton cam switch offers three poles and three selectable positions via a rotary actuator with a 45-degree throw angle, providing reliable switching capability. With an IP65 rating on flush mounting, it safeguards against dust ingress and water jets, suitable for harsh industrial conditions. Its operating temperature range from -25°C to +50°C supports use in varied ambient environments.

Installation convenience is enhanced by M3.5 screw terminals and compatibility with panel thicknesses up to 5 mm. Safety certifications include IEC/EN 60947-3, UL 508, CE, CSA-C22.2 No. 14-05, and CSA-C22.2 No. 94, confirming the switch's compliance with rigorous international standards.

The Eaton Cam Switch is widely applicable in electrical automation, manufacturing equipment, HVAC control systems, process control, and other industrial sectors requiring reliable power switching and control. Its rugged design, excellent electrical ratings, and certified safety approvals make it a dependable component for industrial switchgear assemblies and control panels.

The rotary actuator features a 45-degree angle of throw for easy switching between positions. Flush mounting type with compact dimensions of 48mm x 48mm suitable for space-constrained installations. IP65 protection ensures dust-tight sealing and low-pressure water resistance for harsh environments.

Operates reliably between -25°C and 50°C for demanding industrial conditions. The switch includes three poles and M3.5 screw terminals for secure electrical connections. Durable black thumb-grip handle and corrosion-resistant silver escutcheon plate enhance usability and longevity.

Mechanical life rated for 10 million operations supports heavy-duty continuous use. Certified to IEC/EN 60947-3, UL 508, CE, and CSA standards ensuring global compliance and safety. Explore more premium Rotary Switches and actuators to suit your industrial electrical control needs on EnvMart.
